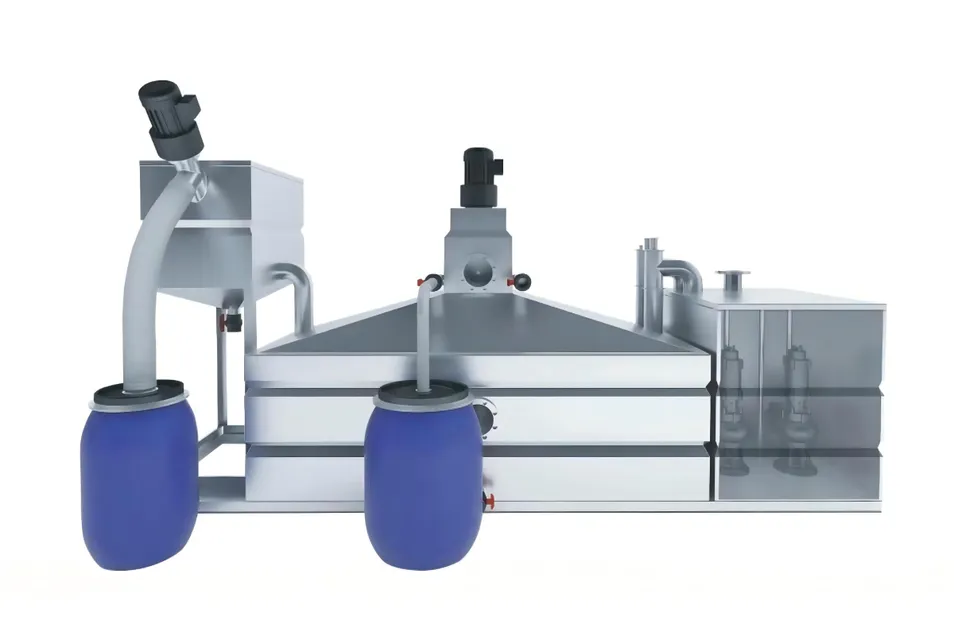

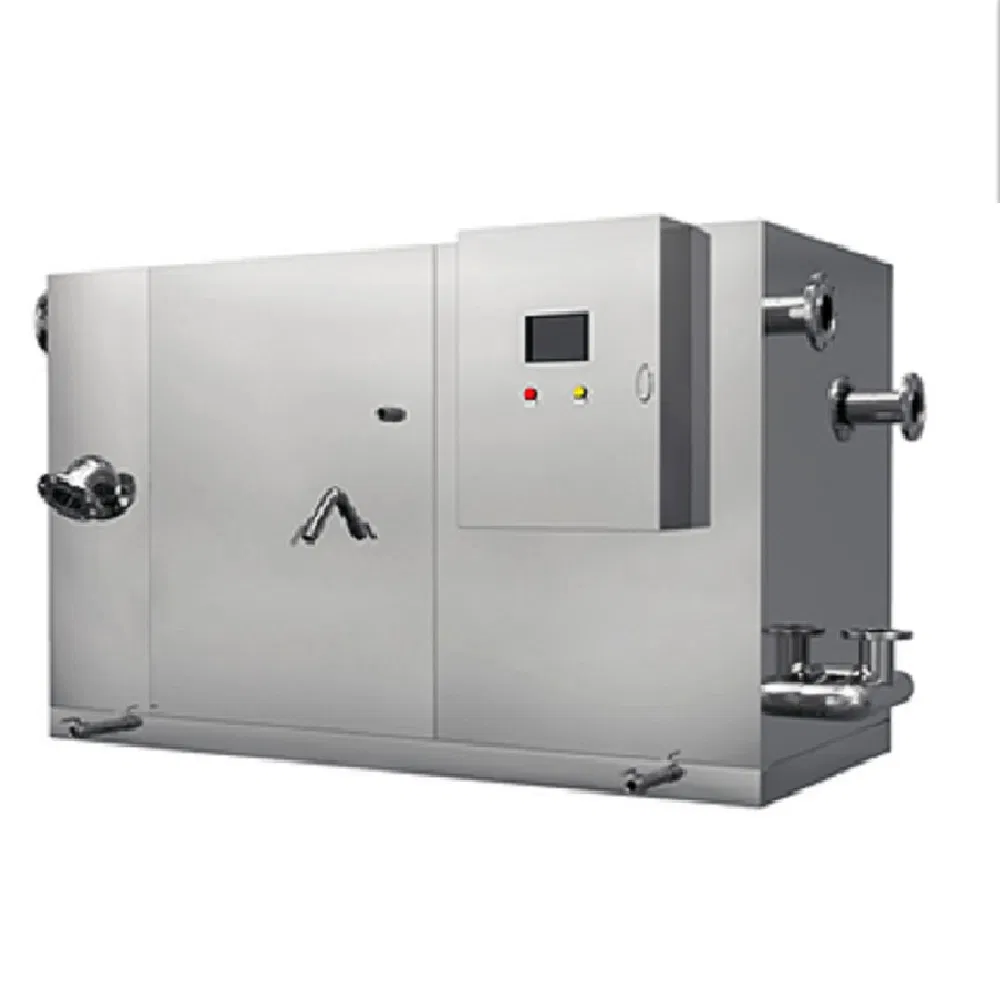

Smart Integrated Grease Management System with Thermal Emulsion Control

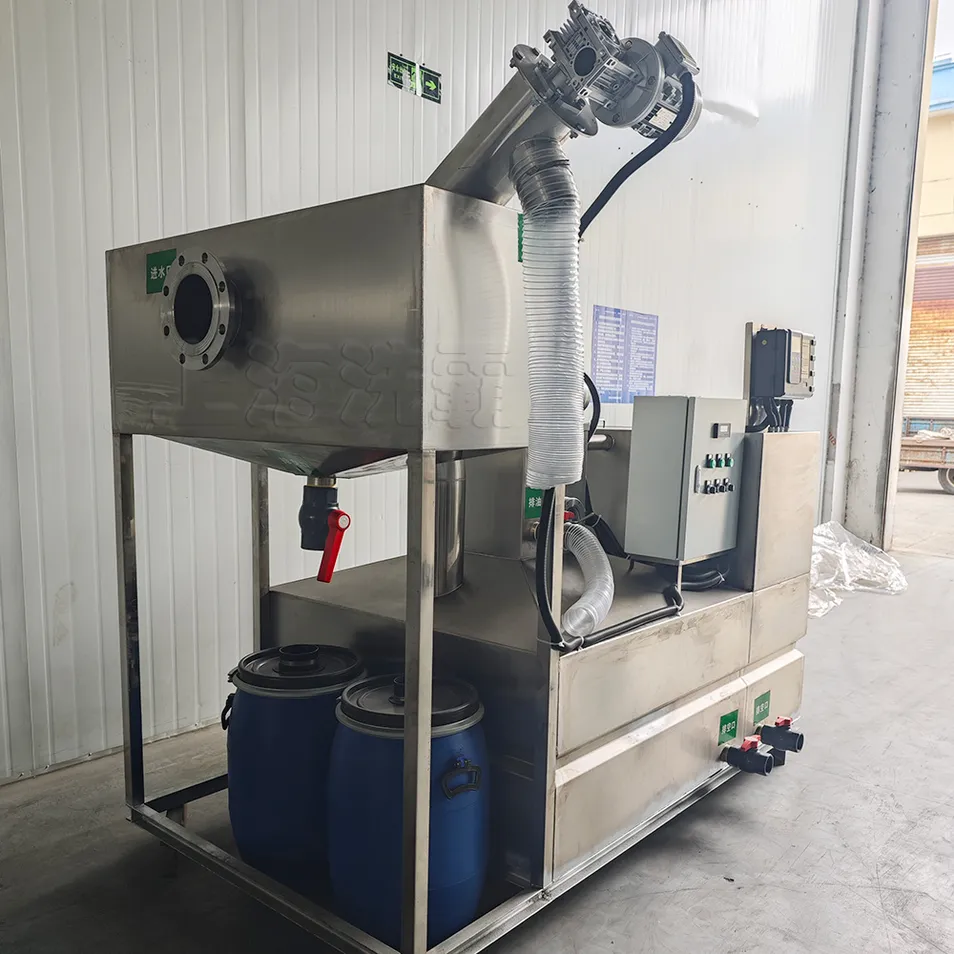

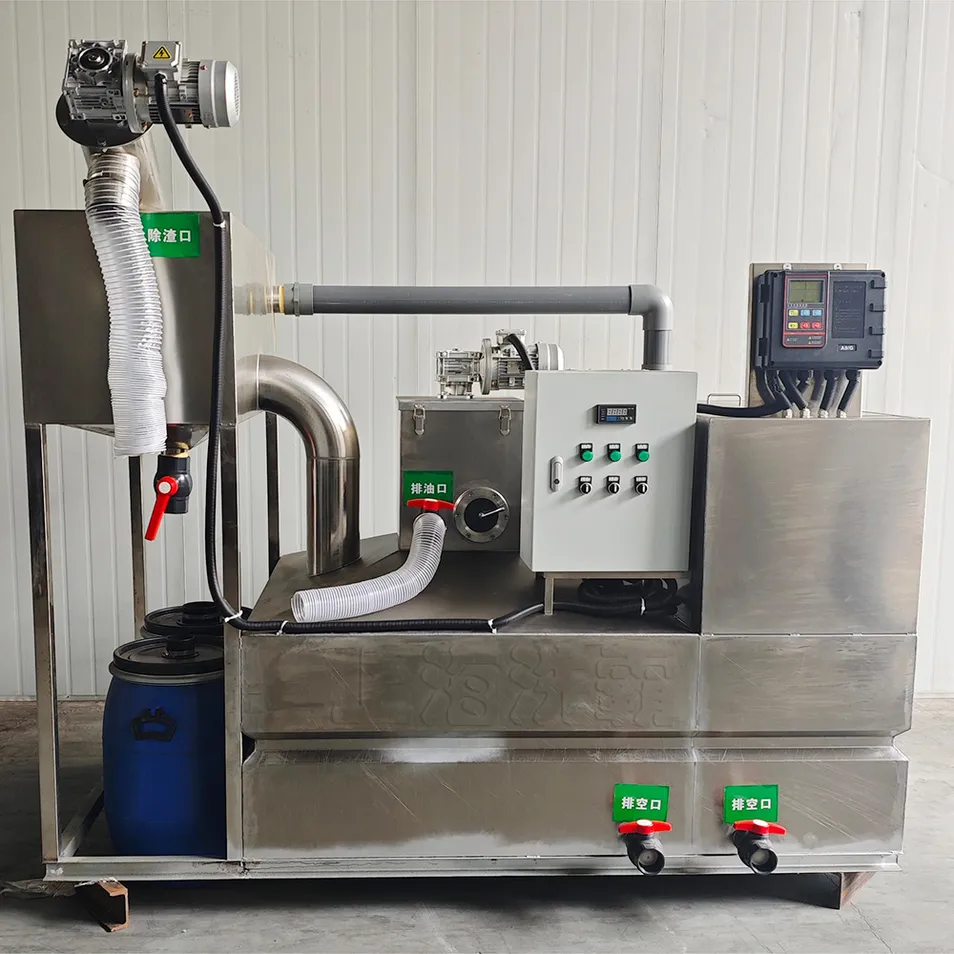

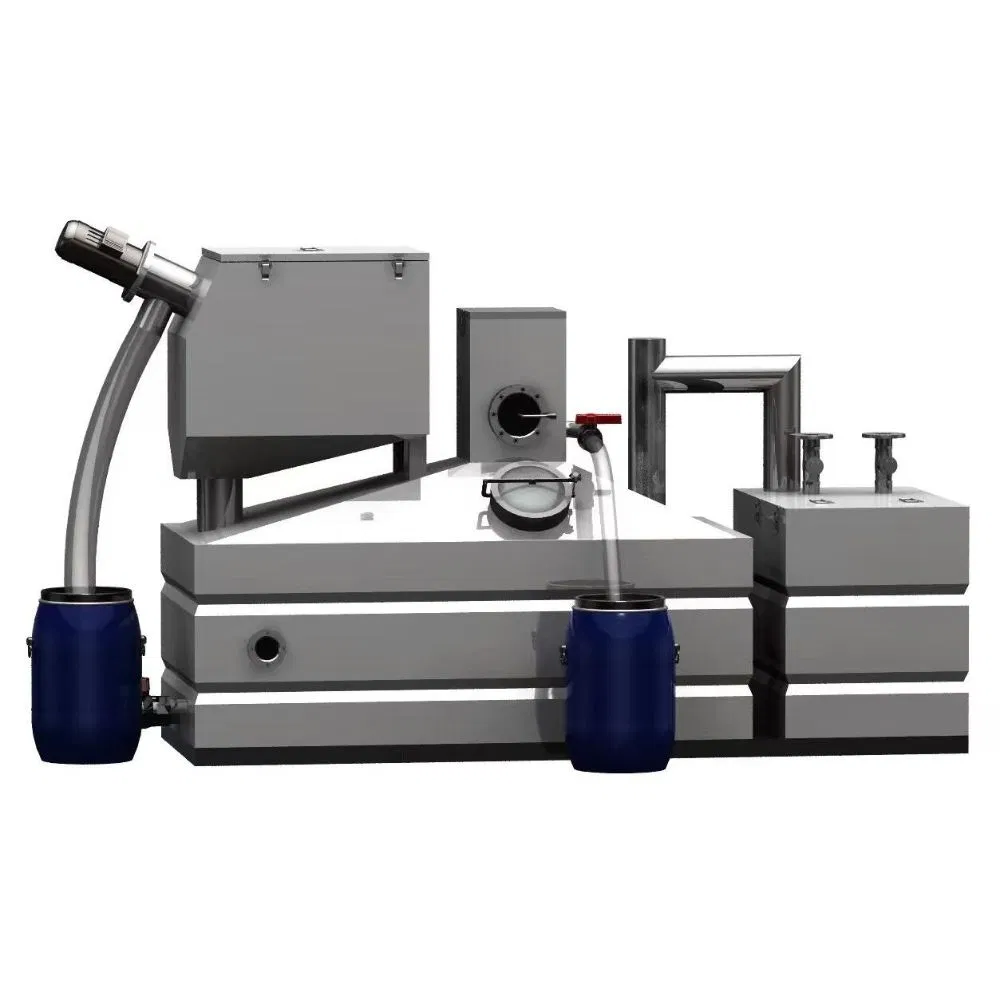

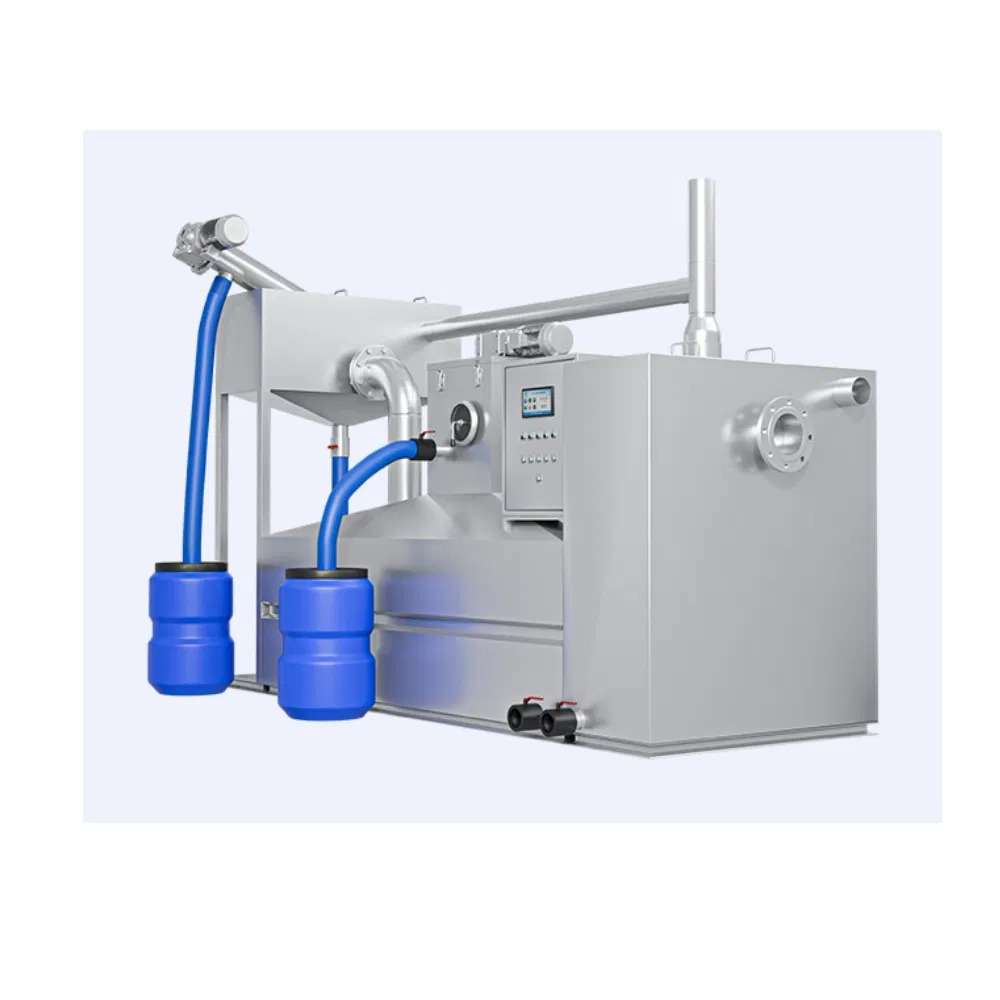

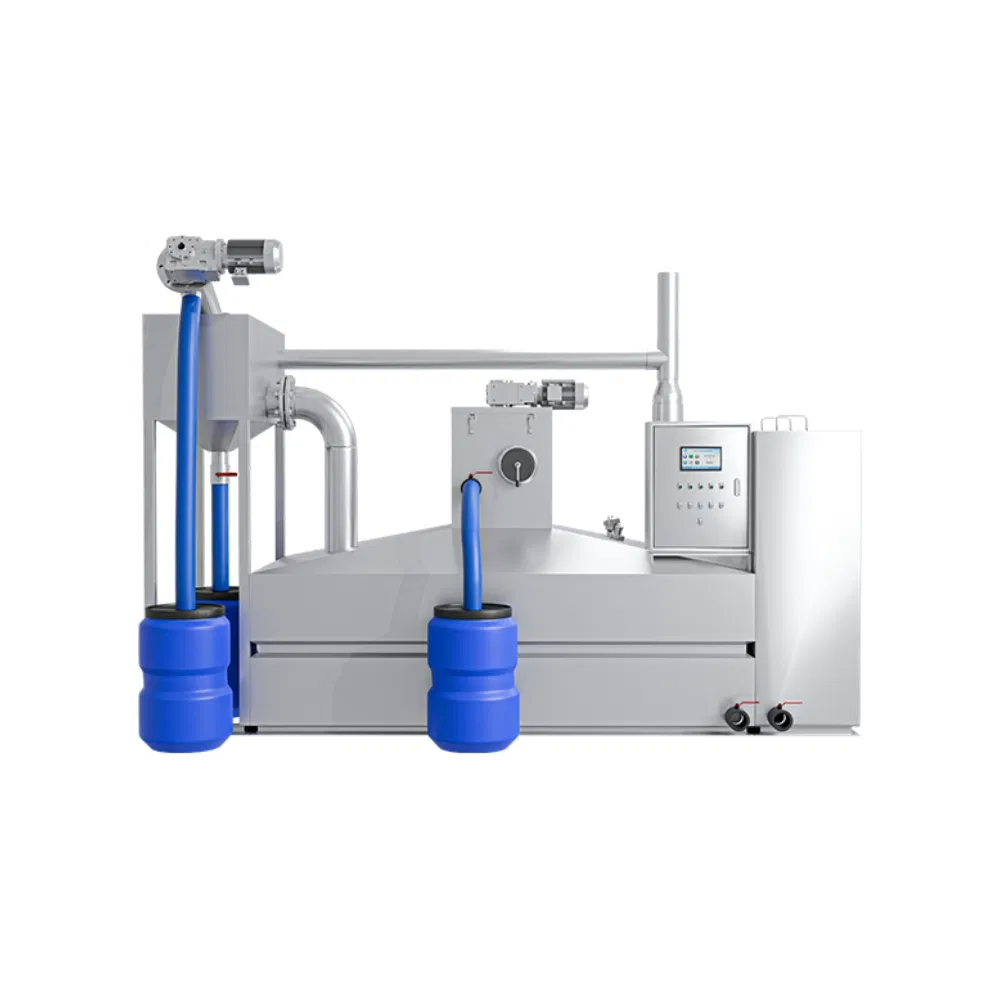

Integrated Oil Isolation Lifting Equipment

The integrated oil separation and lifting treatment equipment is an environmentally friendly device independently developed and produced, specifically designed for treating oil-containing wastewater from the catering industry.

💡 Applications:

Underground restaurants, hotels, kitchens, and auxiliary food processing facilities requiring oil-water separation and lifting.

Model Description

Example: ECH-GY-5/2-W/N

GY: Grease Separator
5: Hourly Processing Capacity
2: Dual Pump
W/N: External/Internal

Smart Integrated Grease Management System with Thermal Emulsion Control

Installation Instructions

It is recommended to install flexible rubber joints on the inlet and outlet pipelines to prevent vibration.
Ensure the ground is level, no foundation is required.
The grease separator room should reserve a vent pipe.
It is recommended to reserve a faucet and floor drain in the grease separator room.
It is advisable to install the equipment centrally (leave space for maintenance of the slag removal device).

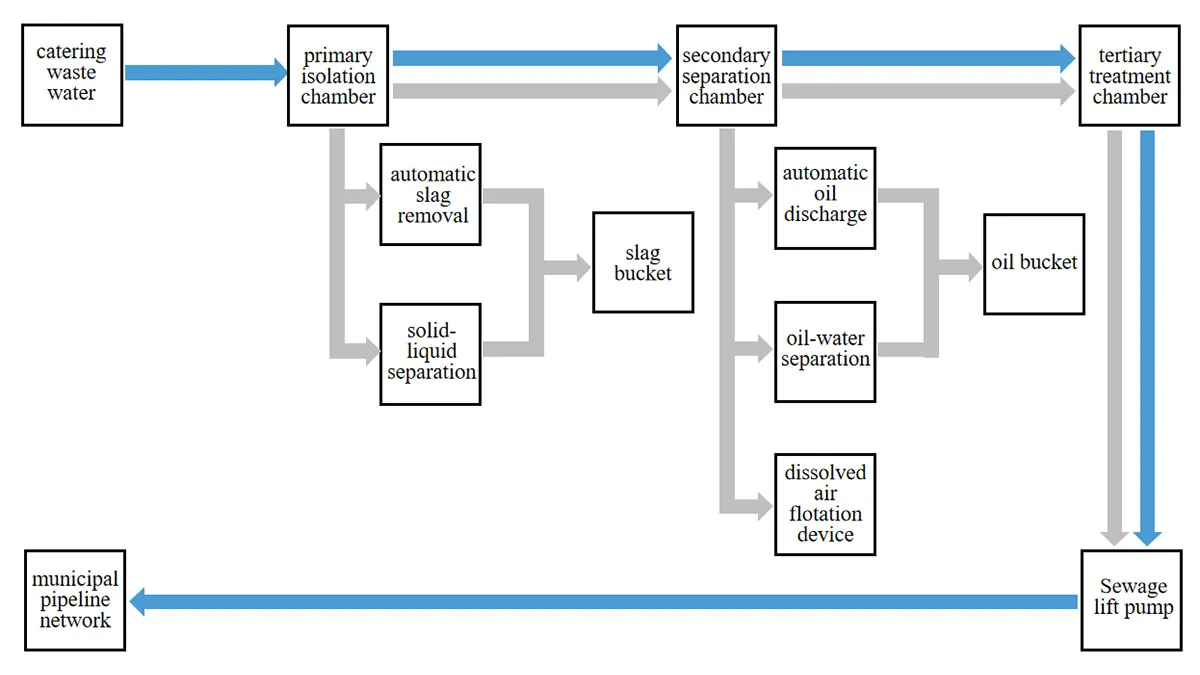

Working Principle Diagram

Technical Specifications

Models	Flow rate (m³/h)	Lift height (m)	Single pump power (kw)	Equipment dimensions (LWH)
Models	Flow rate (m³/h)	Lift height (m)	Single pump power (kw)	External type(W)	Internal type(N)
ECH-GY-5/2	5	10	0.75	26008001400	19008001400
		13	1.1
		20	1.5
ECH-GY-10/2	10	10	0.75	26008001400	20008001400
		13	1.1
		20	1.5
ECH-GY-15/2	15	15	1.5	285010001450	215010001450
		22	2.2
		25	3
ECH-GY-20/2	20	15	2.2	300010001450	230010001450
		20	3
		28	4
ECH-GY-25/2	25	15	2.2	315012001500	245012001500
		18	3
		24	4
ECH-GY-30/2	30	15	3	330012001500	260012001500
		18	4
		30	5.5

Core Technologies

1

Clean, intelligent, integrated equipment

Three-stage separation treatment, enclosed overall structure, odor-free, clean, and environmentally friendly.

2

Solid-liquid separation device

Built-in filtration device and particle recovery device, capable of automatic slag removal and solid-liquid separation.

3

Intelligent control system

Utilizes an intelligent management control system with PCU microcontroller control, featuring liquid level detection and monitoring, automatic alarm, overload and short circuit protection, remote signal transmission, and water pump dry-run protection.

4

Oil-water separation chamber

Conical sealed oil-water separation chamber with an added constant temperature electric heating device and mixing mechanism, capable of maintaining the grease at optimal flow temperature for efficient and rapid grease concentration.

5

Sewage lifting device

Built-in liquid level sensor to prevent overflow.

6

Self-cutting sewage pump

Unique spiral structure design with a cutter blade impeller, capable of effectively shredding impurities in the liquid.

Company Profile

Our company was founded in 1994 and is a professional service provider of integrated solutions for water treatment technology and healthy space environment technology. It has obtained multiple qualifications, including the safety production permits, and certifications for quality, environment, and health management systems. It is also recognized as a National Torch High-tech Enterprise.

We have extensive experience and offer a range of high-quality products and services, including:

Various water treatment chemicals.
Automatic water softeners, filters, RO systems, UV sterilizers, and other water treatment equipment.

We serve clients across the globe. We have successfully delivered projects in countries such as Indonesia, Ethiopia, Pakistan, and Saipan (USA). In addition, we have established companies in Dubai, Thailand, Vietnam, and the United States, further strengthening our international presence.

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
A listed company in the water treatment industry

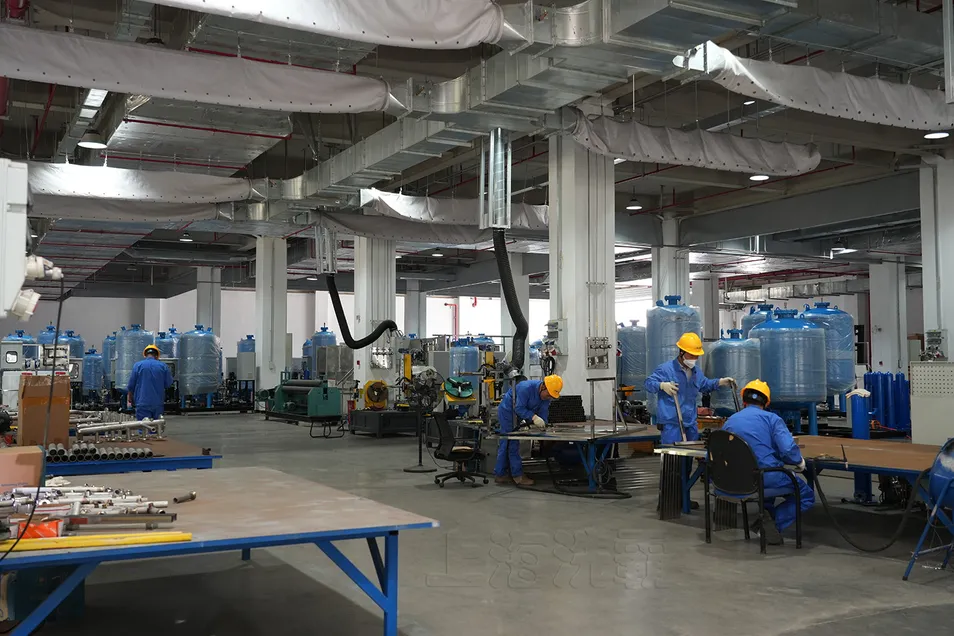

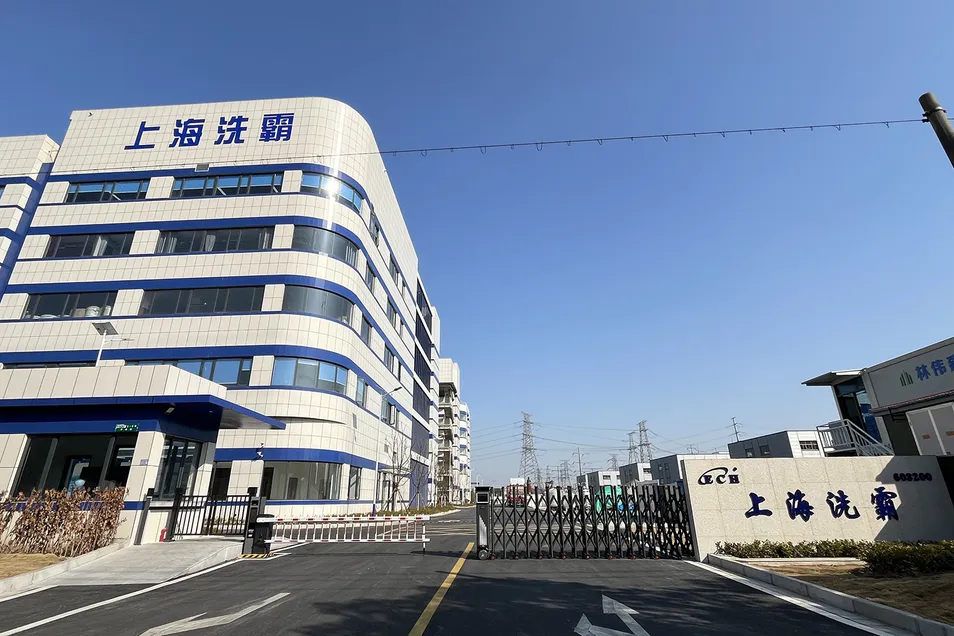

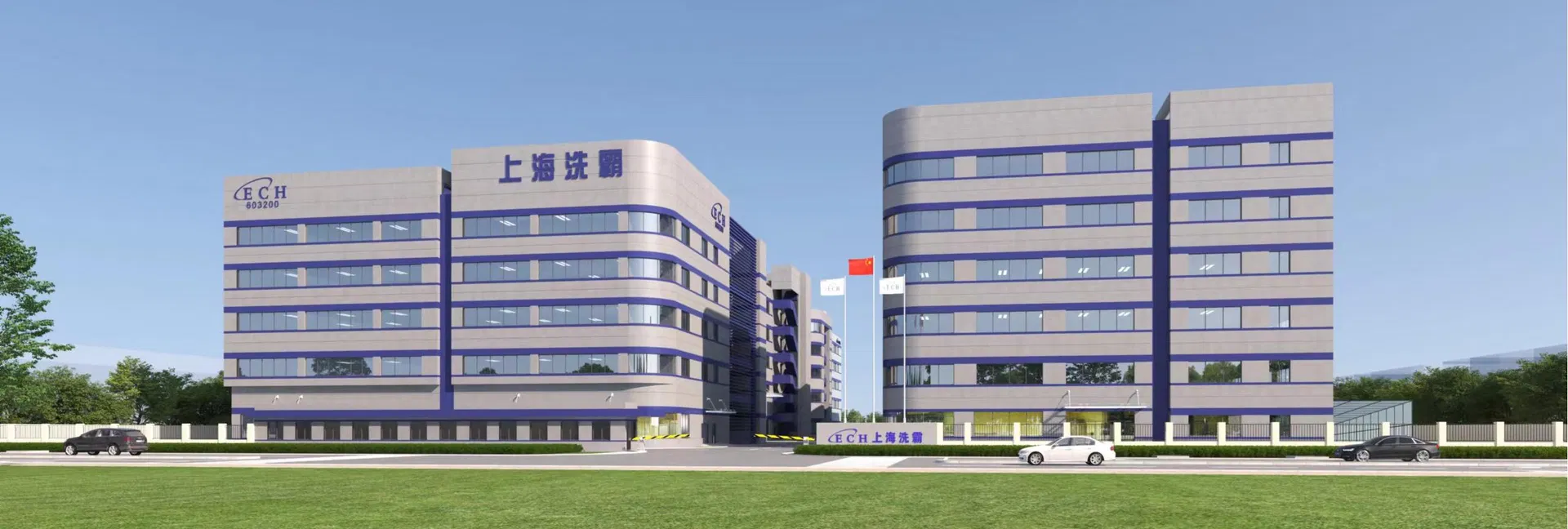

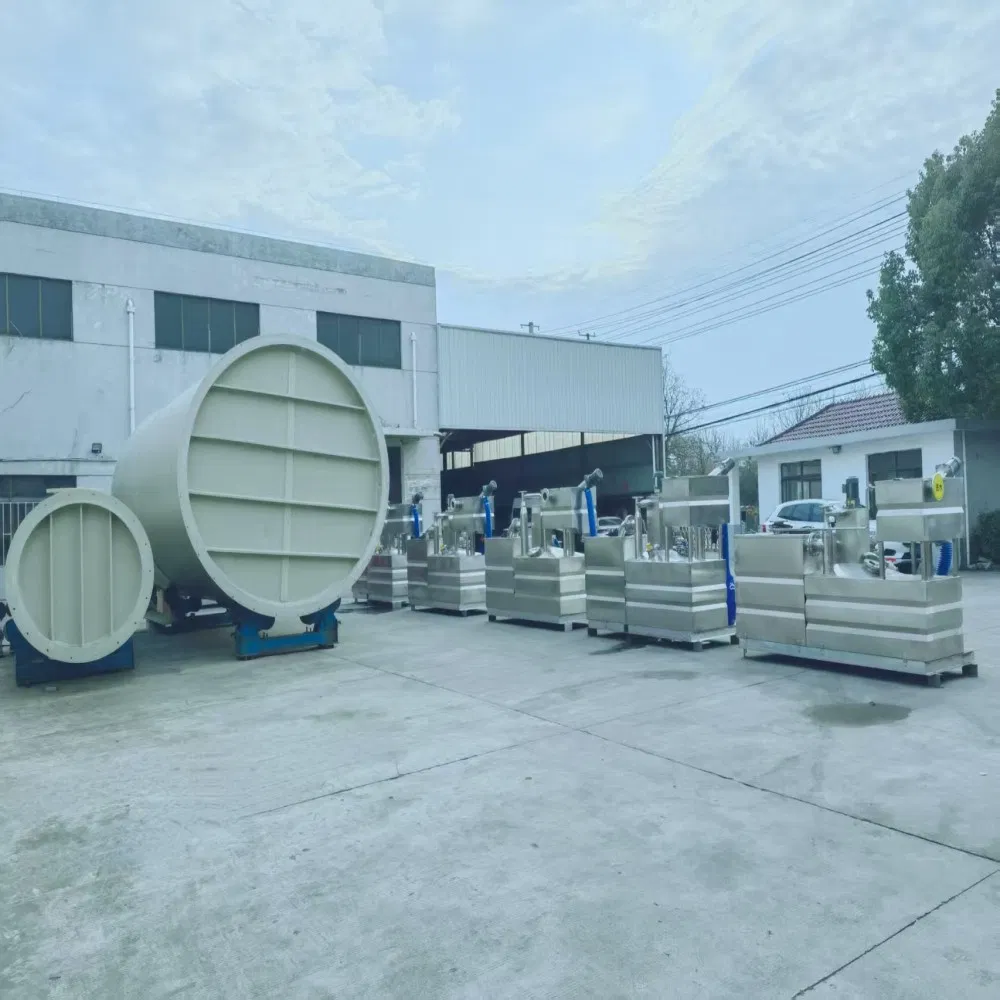

Our Factory

Site area: 31,000 square meters.
Certification: ISO9001, ISO45001, and ISO14001 obtained; and we are currently applying for additional international certifications.

Patents

As of June 30, 2024, our company and its subsidiaries hold a total of 126 authorized patents, including 60 invention patents and 66 utility model patents and 38 software copyrights, covering multiple fields such as special chemicals, process methods, equipment, advanced materials for new energy, and more.

R&D Center

Technological innovation advantage: Established a water treatment technology research center, which provides comprehensive services in water treatment chemicals technology and water treatment operations technology.

Frequently Asked Questions

What is the core technology of the oil-water separator?

Features cone-shaped sealed separation chamber, solid-liquid separation, smart control system and self-cleaning discharge pump.

What's the unique advantage of your oil-water separator?

Smart control enables fully automatic operation, with self-cleaning pump eliminating clogging risks.

Can we customize the equipment?

Yes. We offer OEM/ODM customization based on your needs.

Is your company a trading company or a manufacturer?

We are a manufacturer with in-house production and export capability. Our company integrates R&D, manufacturing, and international trade, offering factory-direct prices and professional support.

What are the primary applications of this grease management system?

It is designed for underground restaurants, hotels, kitchens, and auxiliary food processing facilities requiring oil-water separation and lifting.

What is recommended for installing the equipment?

Ensure the ground is level (no foundation required). It is recommended to install flexible rubber joints on the inlet and outlet pipelines to prevent vibration, and reserve a vent pipe, faucet, and floor drain in the room.
