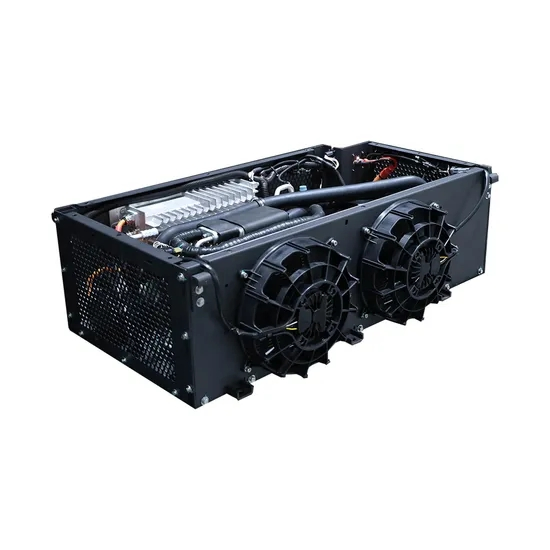

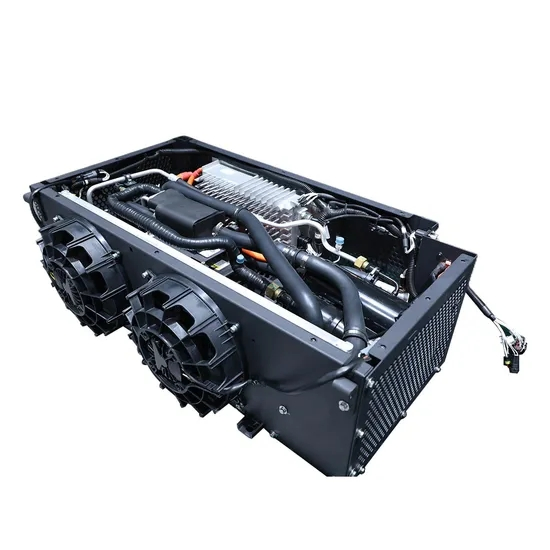

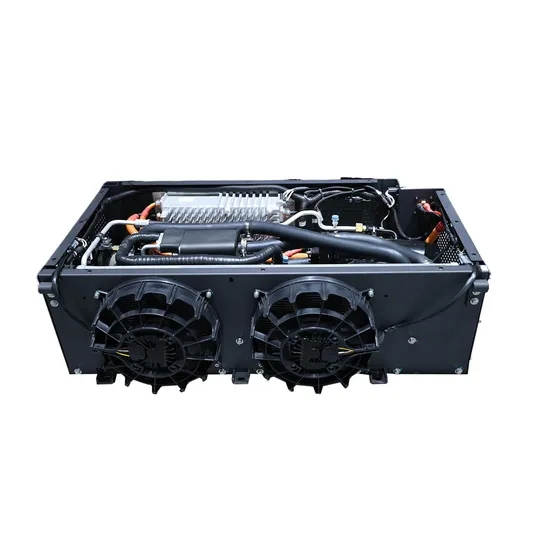

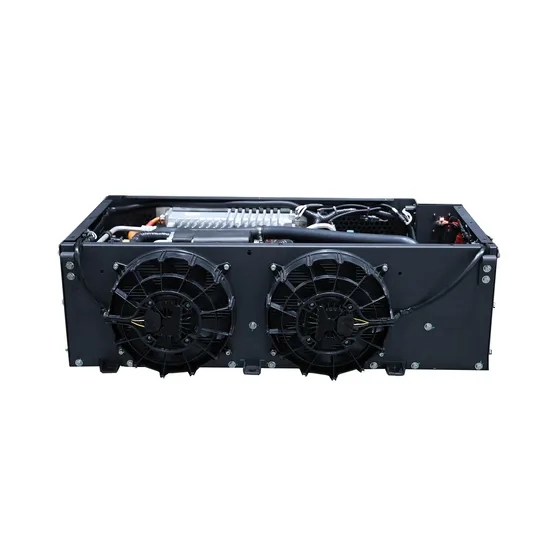

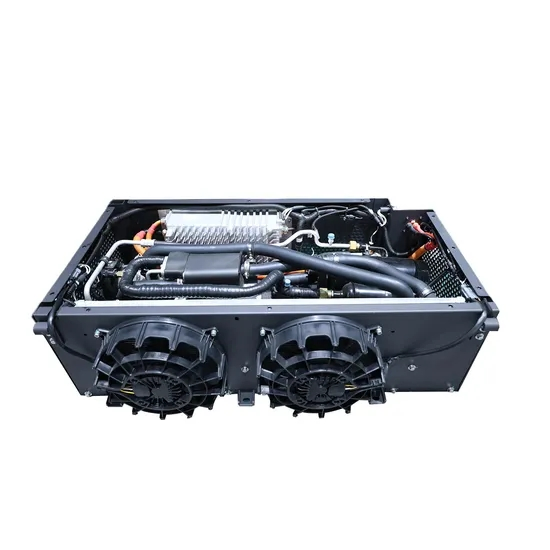

NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks
NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks
NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks
NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks
NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks
1 / 5
NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks
NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks
NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks
NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks
NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks

NF 8-24kw Thermal Management System for New Energy Heavy-Duty Trucks

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
NFBTM10
Function
Cooling & Heating, Ventilating, Air Filtering
Control Mode
Optional
Driving Mode
Independent
Certification
CE
Name
Battery Thermal Management System
Power
8-15kw
Low-Voltage Supply
18~32V
High-Voltage Range
≤750V
Body Material
Aluminium
Cooling Capacity
10kw(8~24kw)
Weight
<48kg
Product Description
Battery Thermal Management System for Electric Vehicles
Providing high-efficiency battery cooling and heating for commercial vehicles, energy storage stations, and battery swap stations.
Thermal Management System
Technical Parameters
Parameter Specification
Product Model CodeNFBTM10
Refrigeration ConditionAmbient 38ºC, Outlet water 15ºC
Operating Temperature-30 to +60ºC
Maximum Heating Capacity0~35Kw
Compressor Displacement33CC / 46CC
Compressor Speed800~12000rpm
Coolant Type50%/50% Ethylene Glycol/Water Solution
Communication InterfaceCAN 2.0 (500k bps)
COP>2.2
Protection RatingIP67 / IP6K9K
Dimensions833 * 550 * 291mm
Key Features
1. Full-range temperature control
Combined low-temperature heating & high-temperature cooling (-30°C~50°C ambient) with ±1°C precision, maintaining optimal battery temperature for extended cycle life.
2. Intelligent Algorithms
Advanced PID & energy-demand algorithms enable precise outlet temperature control (±0.5°C) with optimized energy efficiency and remote monitoring.
Detailed Gallery

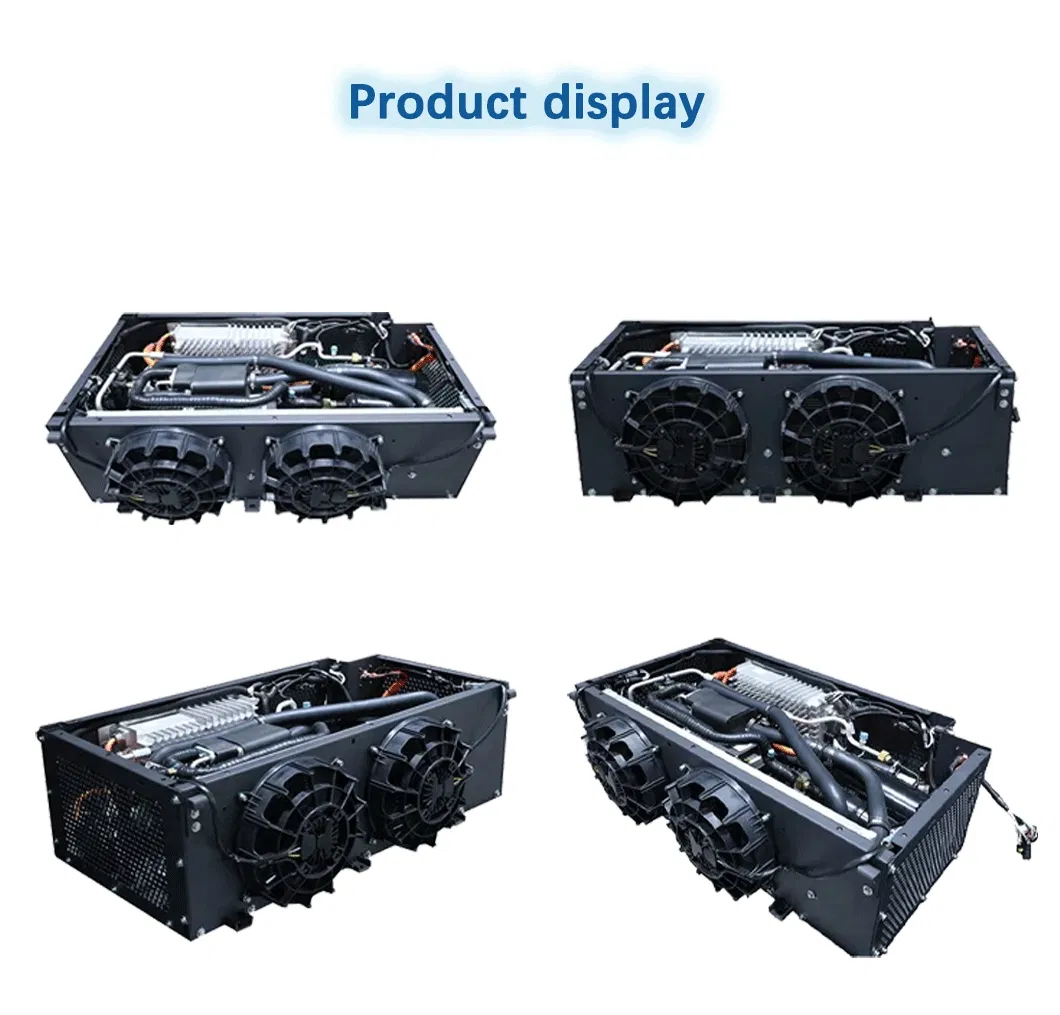

Detailed View 1
Detailed View 2

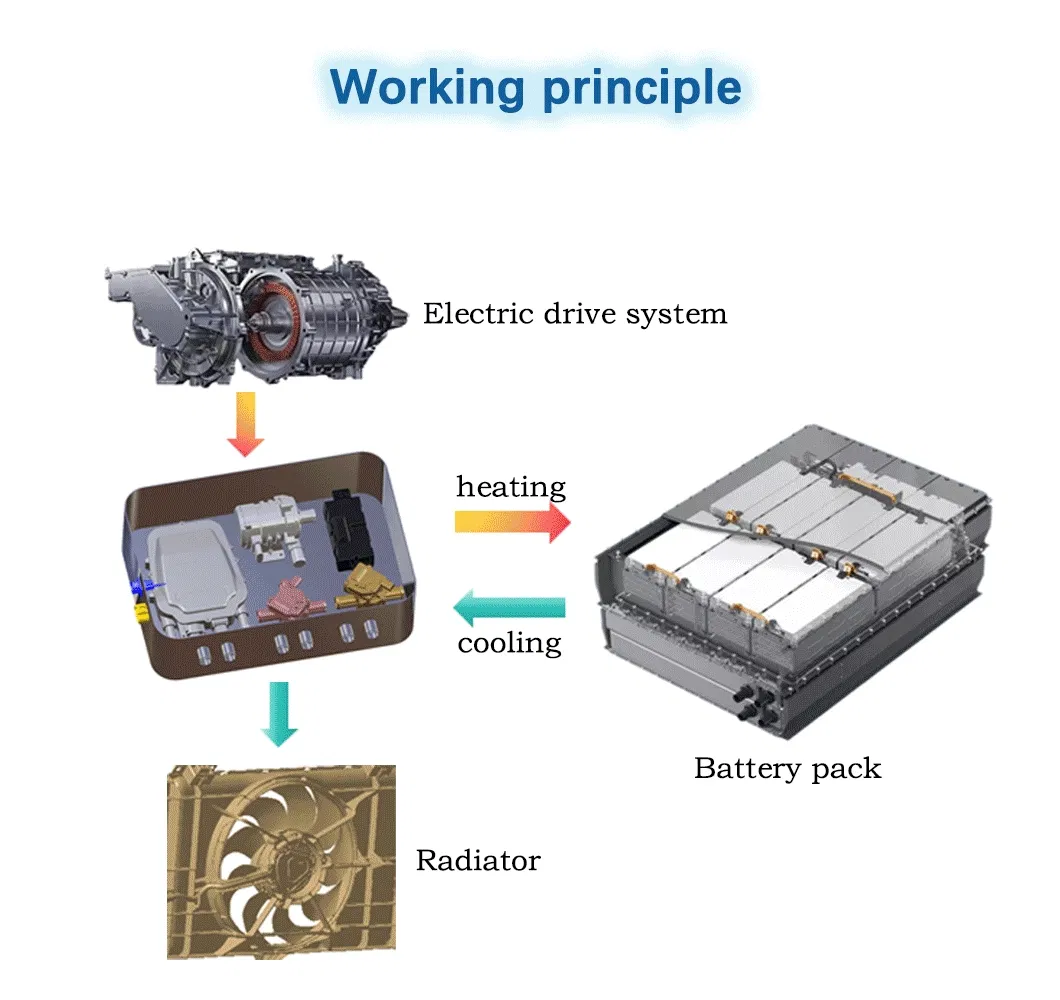

Product Analysis
Advantage 1
Advantage 2
Certifications & Quality
Certification 1
Certification 2
FAQ
Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. Customized branded packaging is available with proper authorization.
Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We will provide photos of the products and packages before final payment.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it takes 30 to 60 days after receiving your advance payment, depending on the items and order quantity.
Q5. Can you produce according to the samples?
A: Yes, we can produce based on your samples or technical drawings, including building molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we perform 100% testing on all products before delivery to ensure quality.
