5015kwh Energy Management Module System with Safe Thermal System

1 / 5

5015kwh Energy Management Module System with Safe Thermal System

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Send Inquiry

Product Description

Basic Information

Nominal Voltage

1331.2V

Nominal Capacity

5015kWh

Rated Power

5MWh

Cycle Life

9000 Cycles

Warranty

3 Years

IP Rating

IP54

Cooling System

Liquid Cooling

Origin

China

Product Description

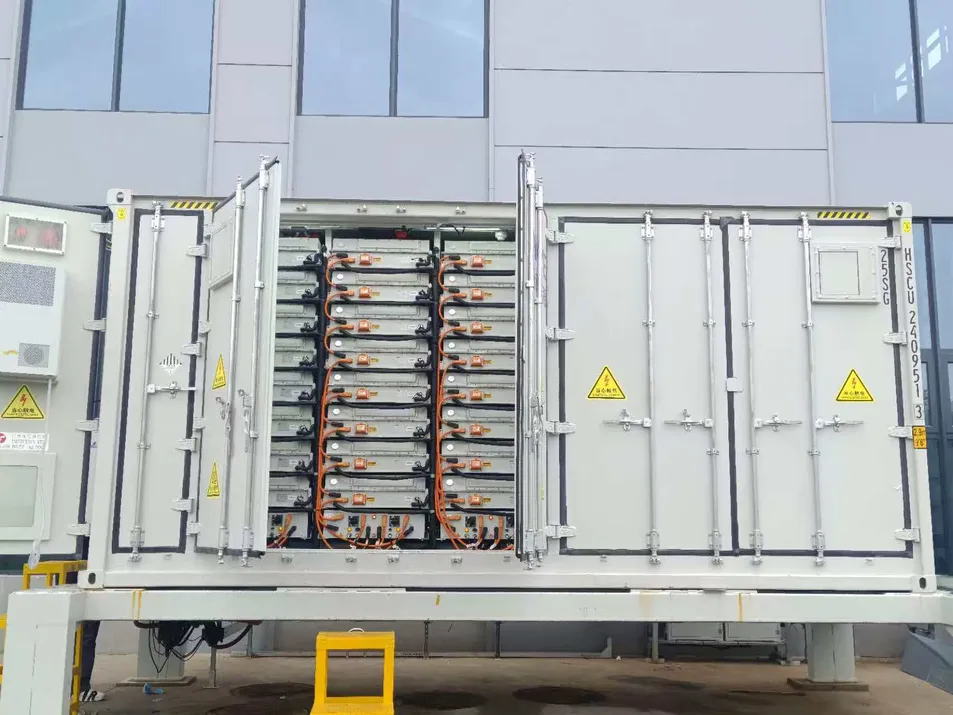

5015KWh Liquid Cooling Energy Storage System

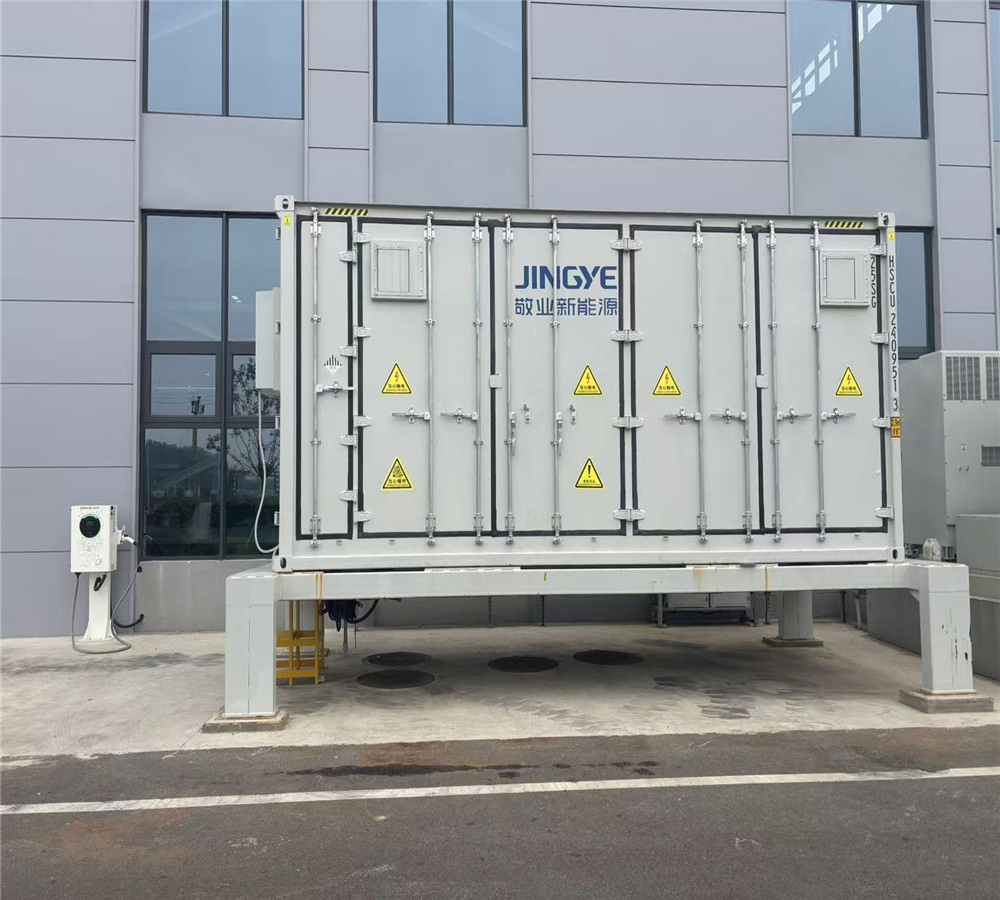

The 5015KWh Liquid Cooling energy storage system is based on high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, advanced battery management systems (BMS), fire protection, thermal management, and environmental control systems. This integrated technology houses all components within a standard 20-foot container (6058mm x 2438mm x 2896mm), ensuring safety and suitability for various site conditions.

🚀 Core Features

🔋 Advanced Battery Technology: High-efficiency, long-life lithium iron phosphate (LiFePO4) batteries.

🧠 Intelligent Management: Advanced BMS ensuring product safety and optimal performance.

🌡️ Thermal Control: Liquid cooling achieving a temperature difference of ≤3℃ inside PACKs and ≤5℃ in the cabinet.

🛡️ Safety Protection: Three-level automatic fire extinguishing system (PACK, cluster, compartment) using perfluorohexane or aerosol.

📊 Comprehensive Monitoring: Smoke detection, humidity/temperature sensors, and video monitoring inside the container.

🏗️ Modular Design: Simplified structure for easy transportation, installation, and maintenance.

Technical Specifications

Item	Specification
Configuration	12(1P104S4)
Rated Voltage	1331.2VDC
Voltage Range	1164.8V - 1497.6VDC
Rated Charging/Discharge Power	≤ 2.5MW
Auxiliary Power Supply	400VAC±5% 50Hz / 220VAC
Operating Temperature (Charge)	0℃ to 60℃
Operating Temperature (Discharge)	-30℃ to 60℃
Altitude	≤ 4000m
Dimensions	L6058 x W2438 x H2896mm
Weight	Approx. 43t
Communication Protocol	Ethernet, CAN, ModbusRTU

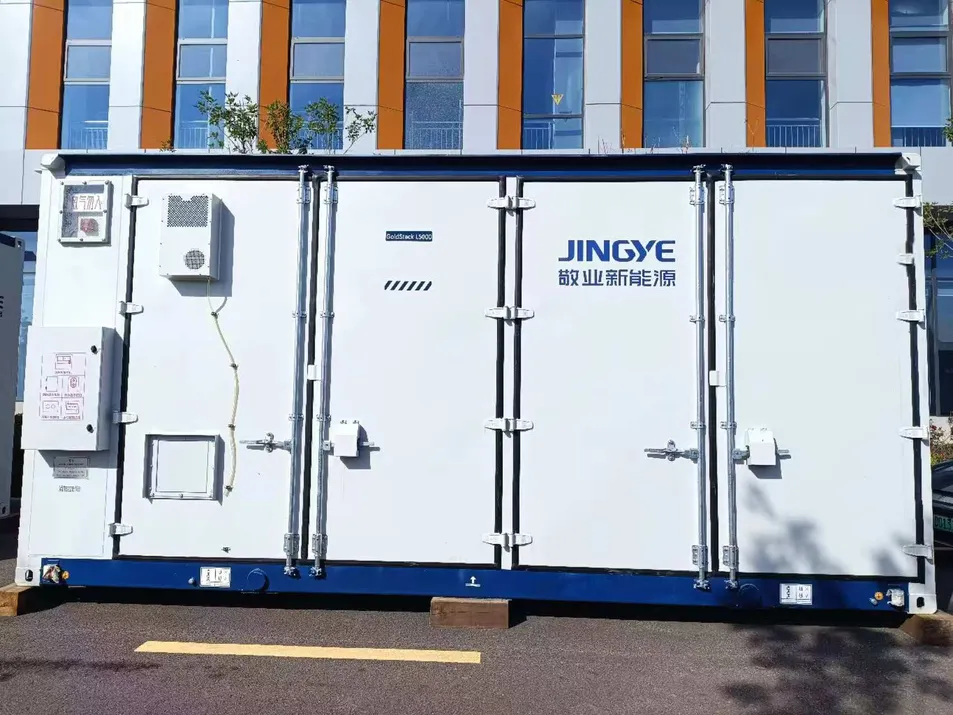

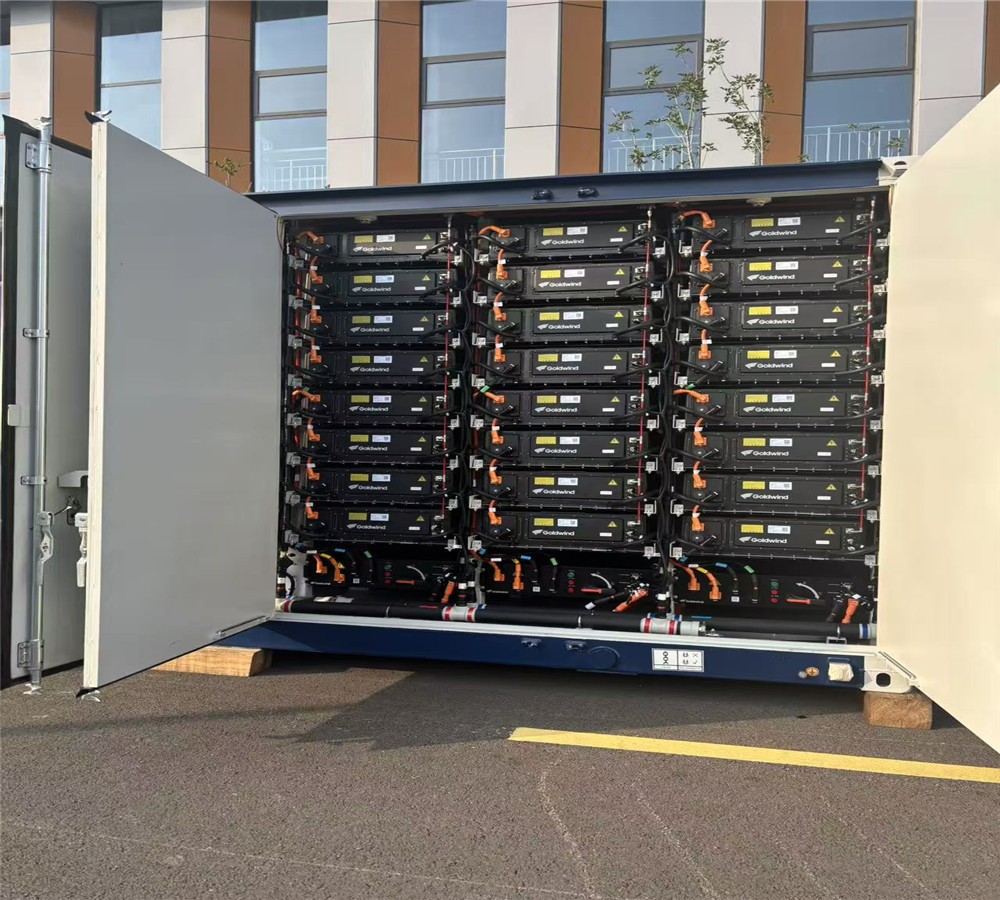

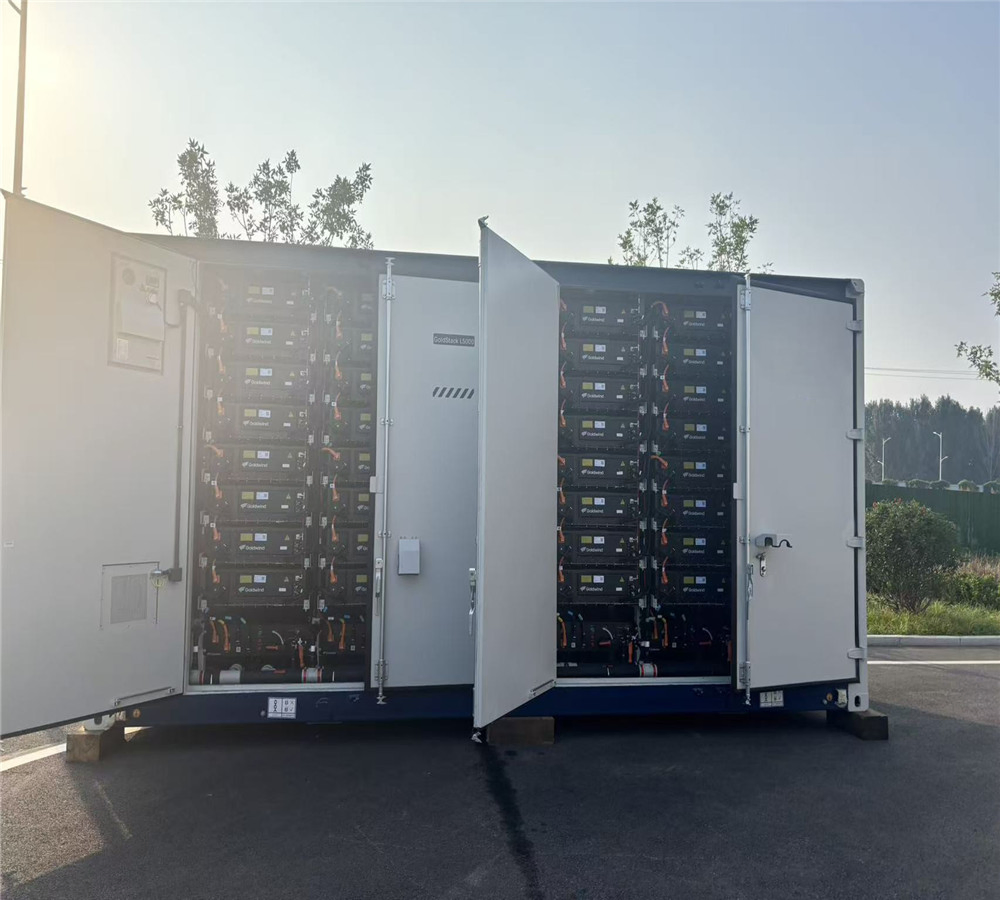

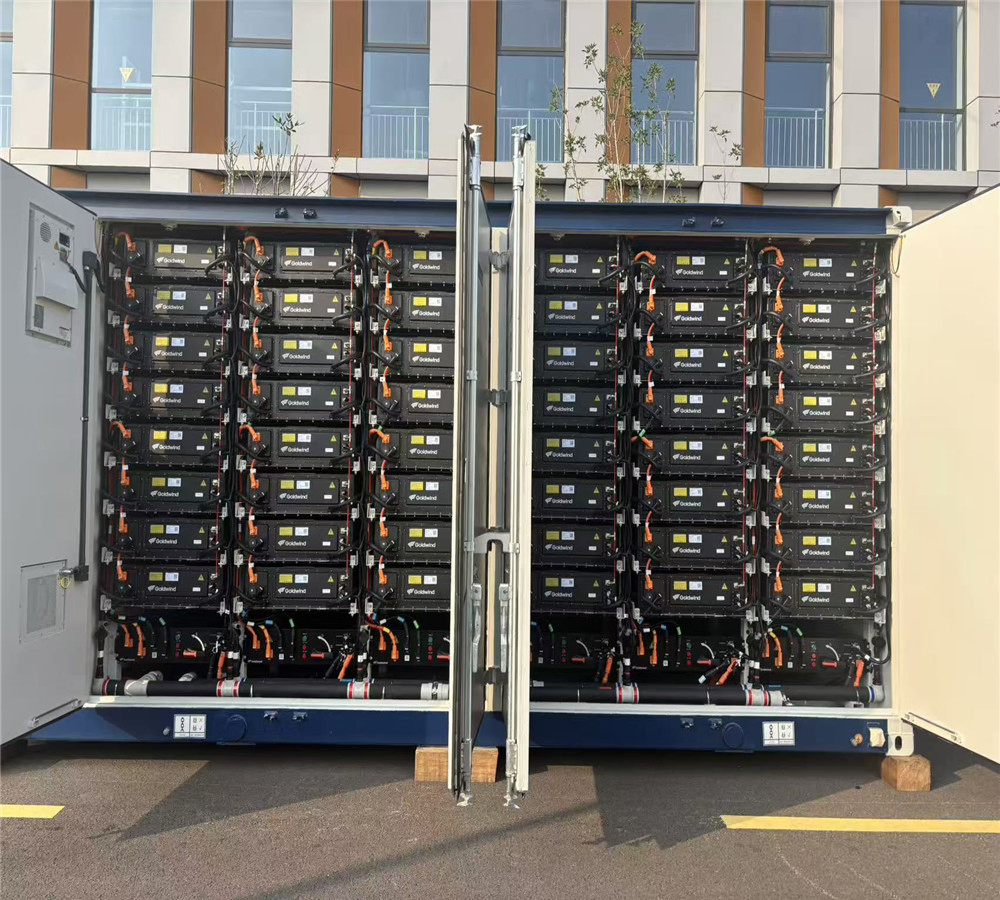

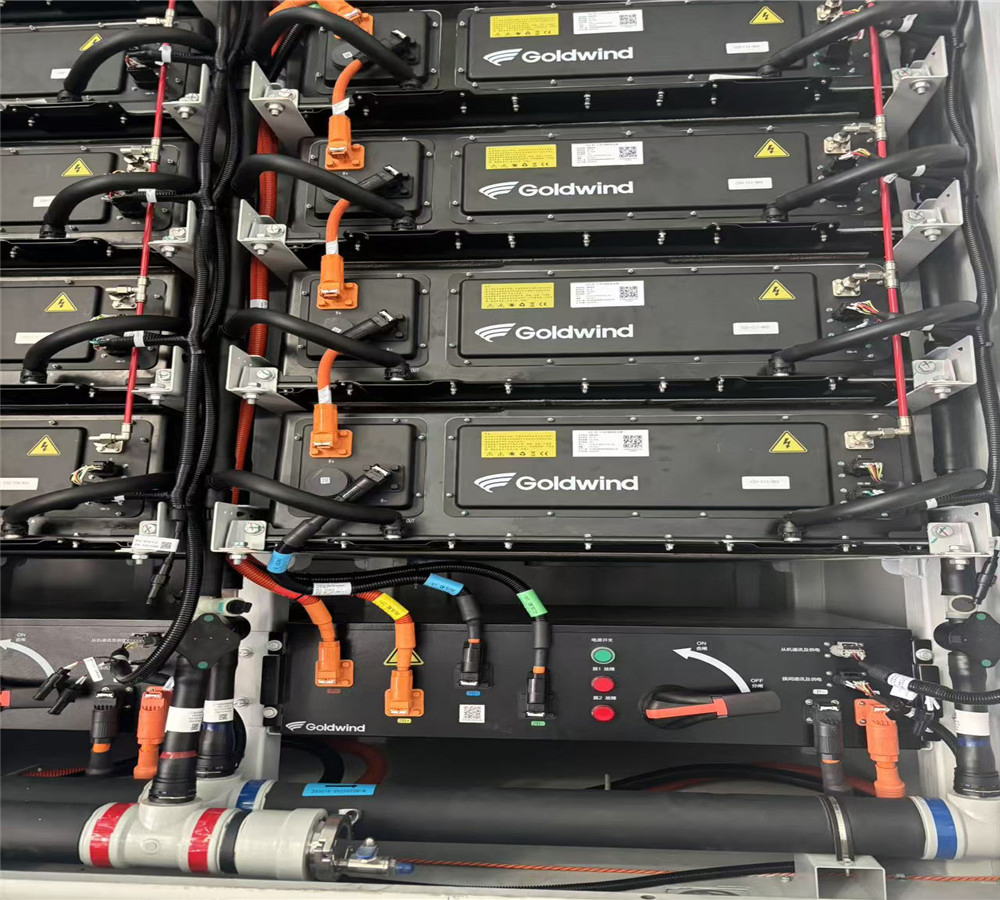

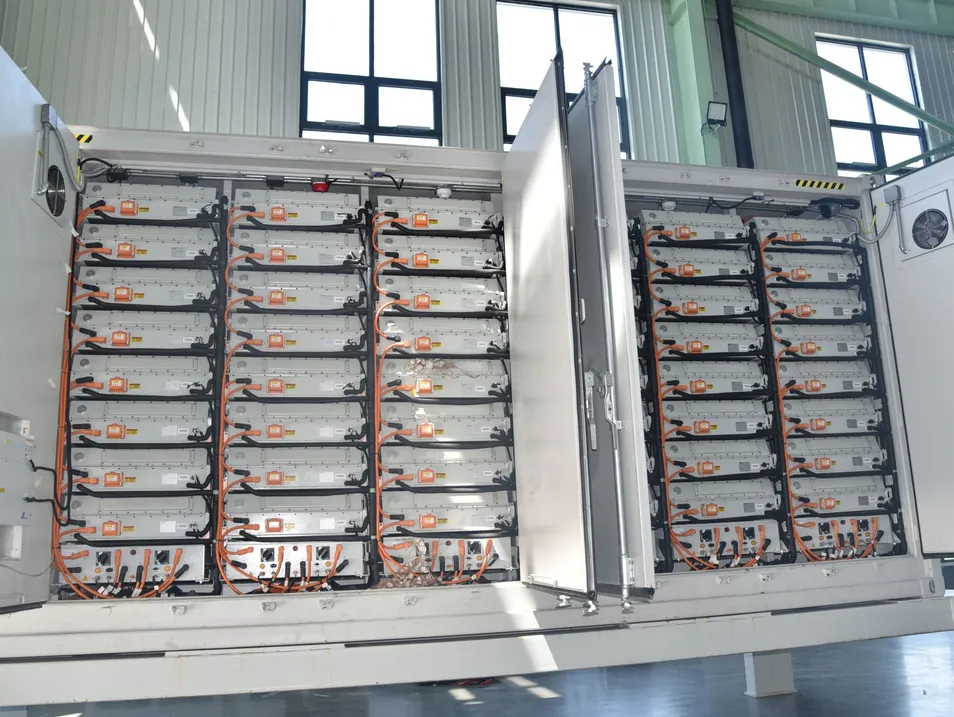

Product Gallery

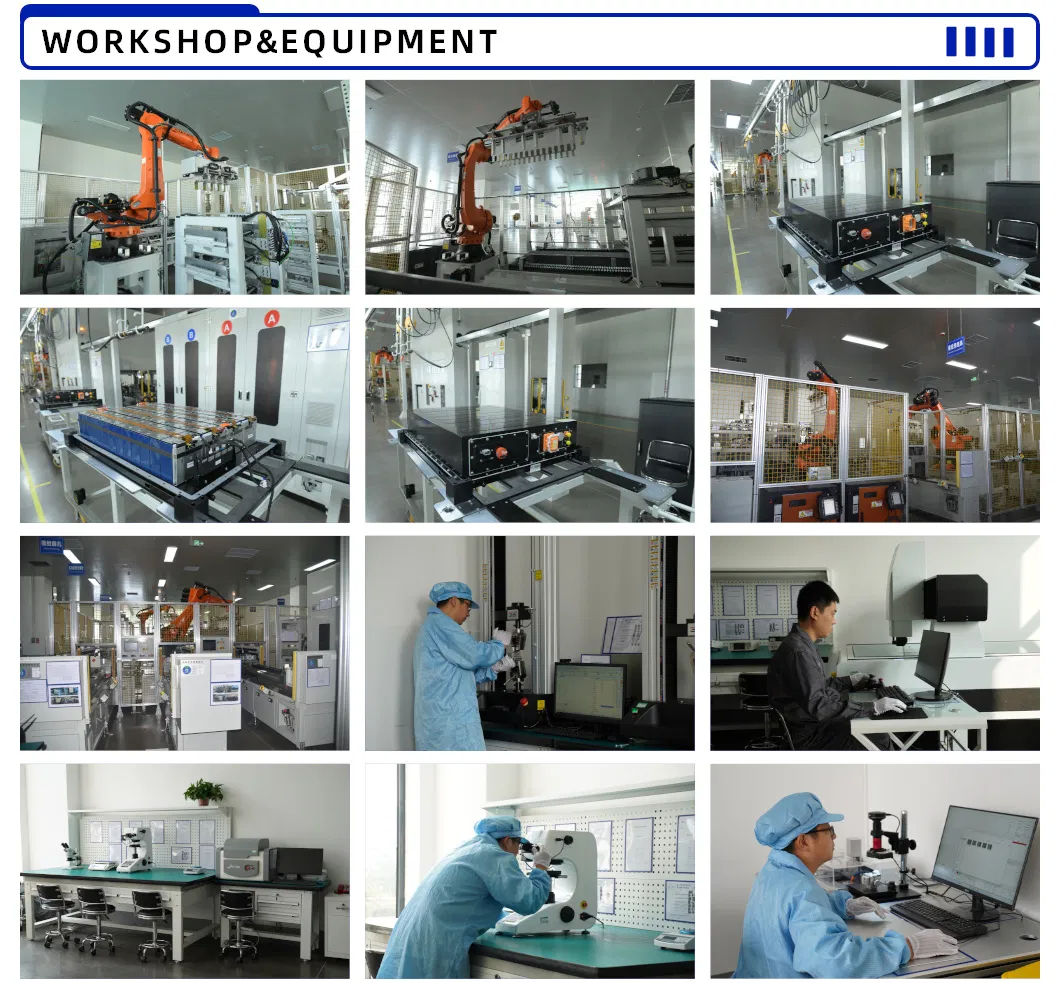

Workshop & Equipment

Equipped with advanced automated production lines, the company maintains an annual production capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These products are widely applied in smart grids, industrial and commercial energy storage, and green transportation.

Certifications & Exhibition

Frequently Asked Questions

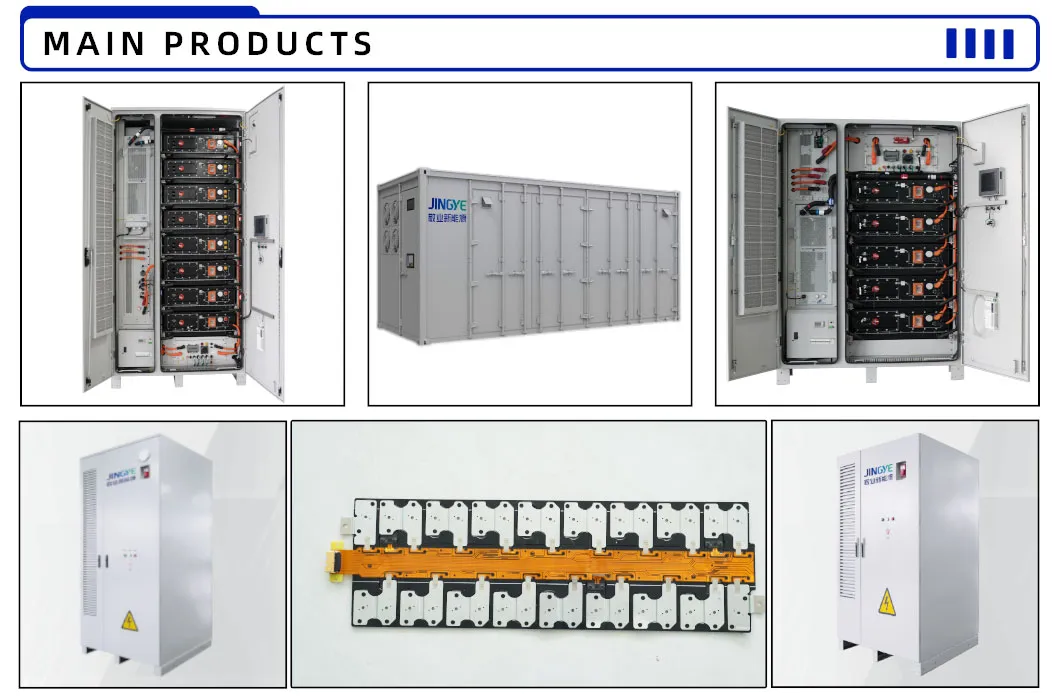

Q1: What are the main products available? A: Our main range includes 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Q2: Do you support customization services? A: Yes, we offer flexible customization services tailored to diverse process types and specific technical requirements.

Q3: How are production and delivery timelines managed? A: With our comprehensive automated production lines and skilled technical personnel, we guarantee stable production and strict adherence to on-time delivery schedules.

Q4: Are you a trading company or a source factory? A: We are a formal source factory with standardized production processes, allowing us to offer both competitive pricing and high-quality product control.

Q5: What is the warranty for the energy storage system? A: We provide a standard 3-year warranty and a cycle life of up to 9000 cycles for our liquid-cooled energy storage solutions.

Q6: How can I receive a detailed quotation? A: You can contact our staff directly through the website interface. We will promptly provide you with a comprehensive and detailed quotation.
