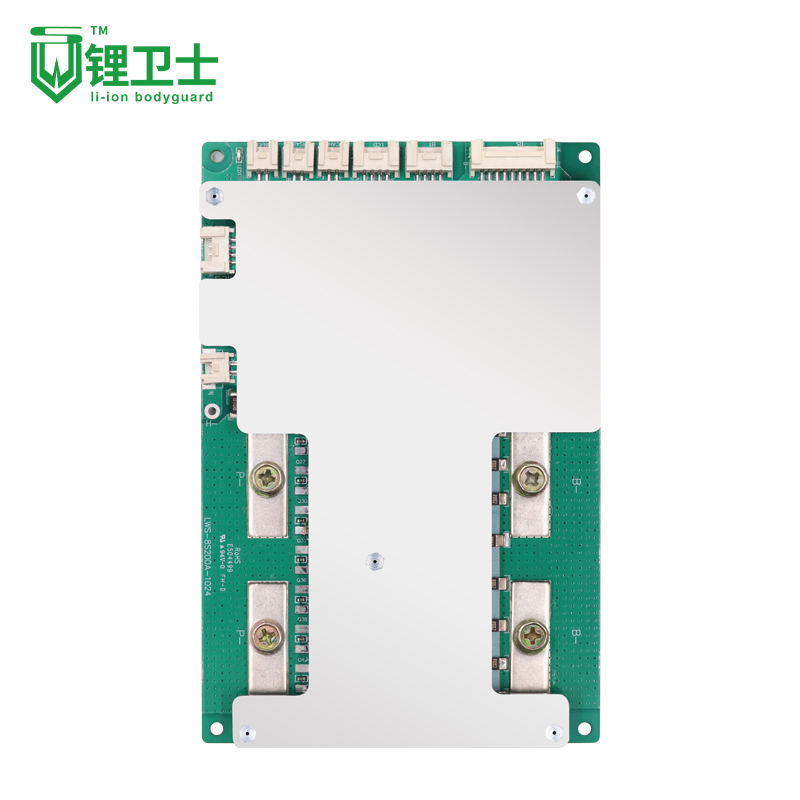

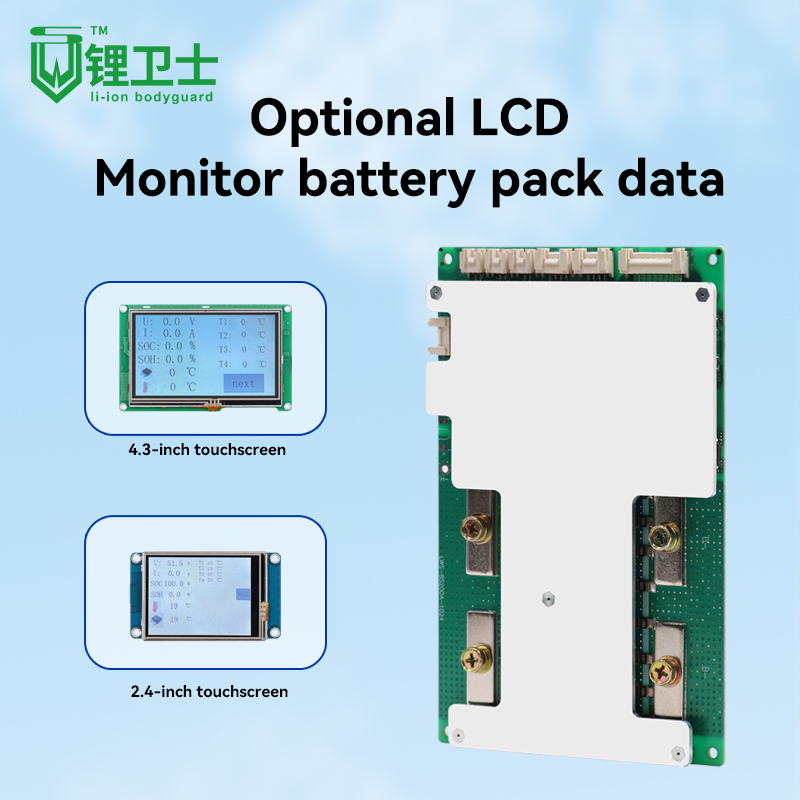

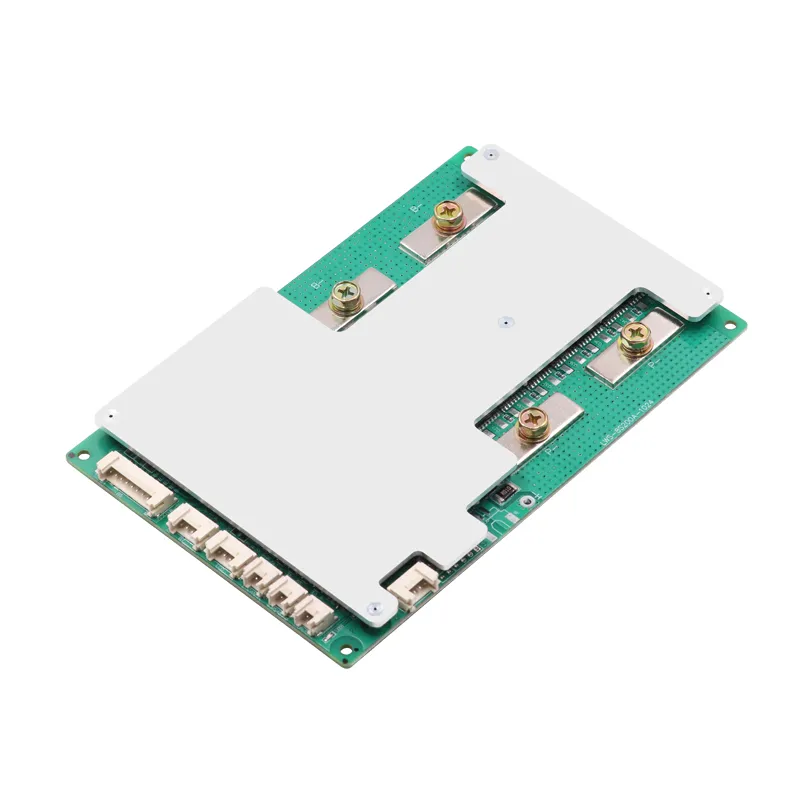

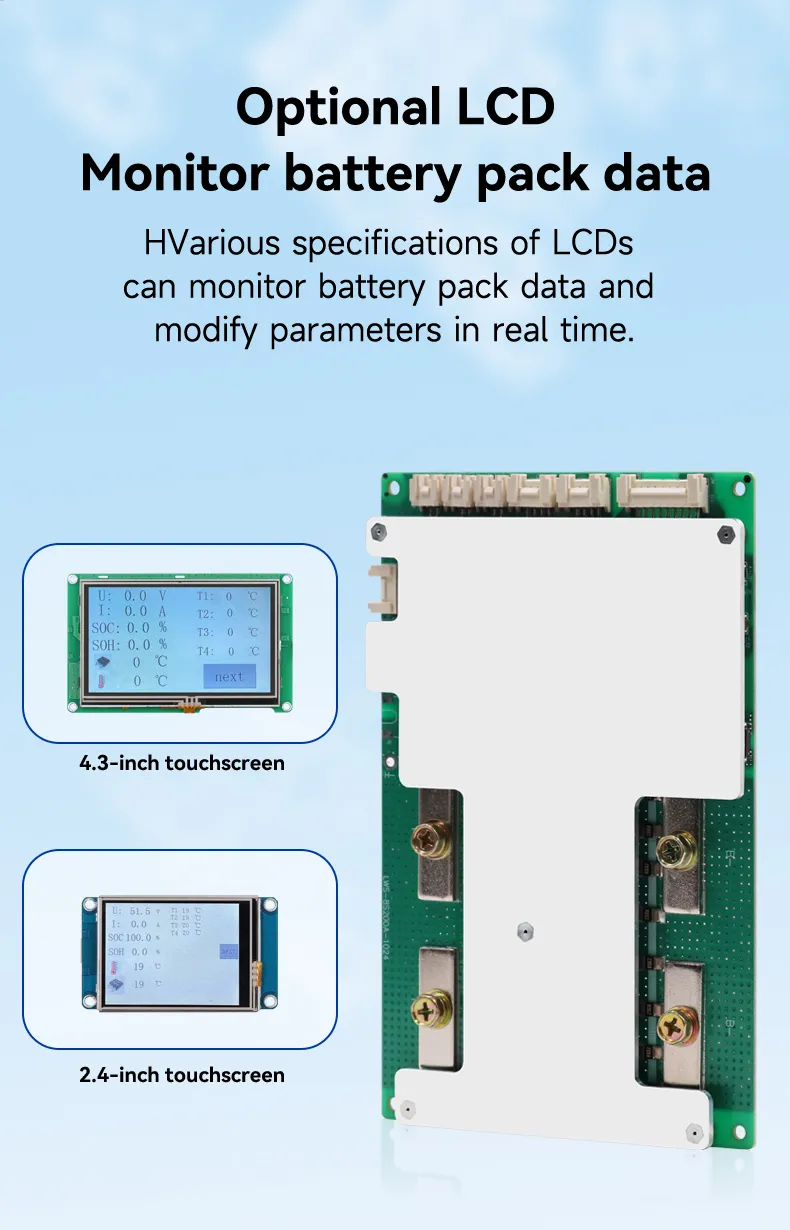

Smart Battery BMS 8S 200A Management Systems for LiFePO4 with LCD/BT/RS485
| Key Parameters | |
|---|---|

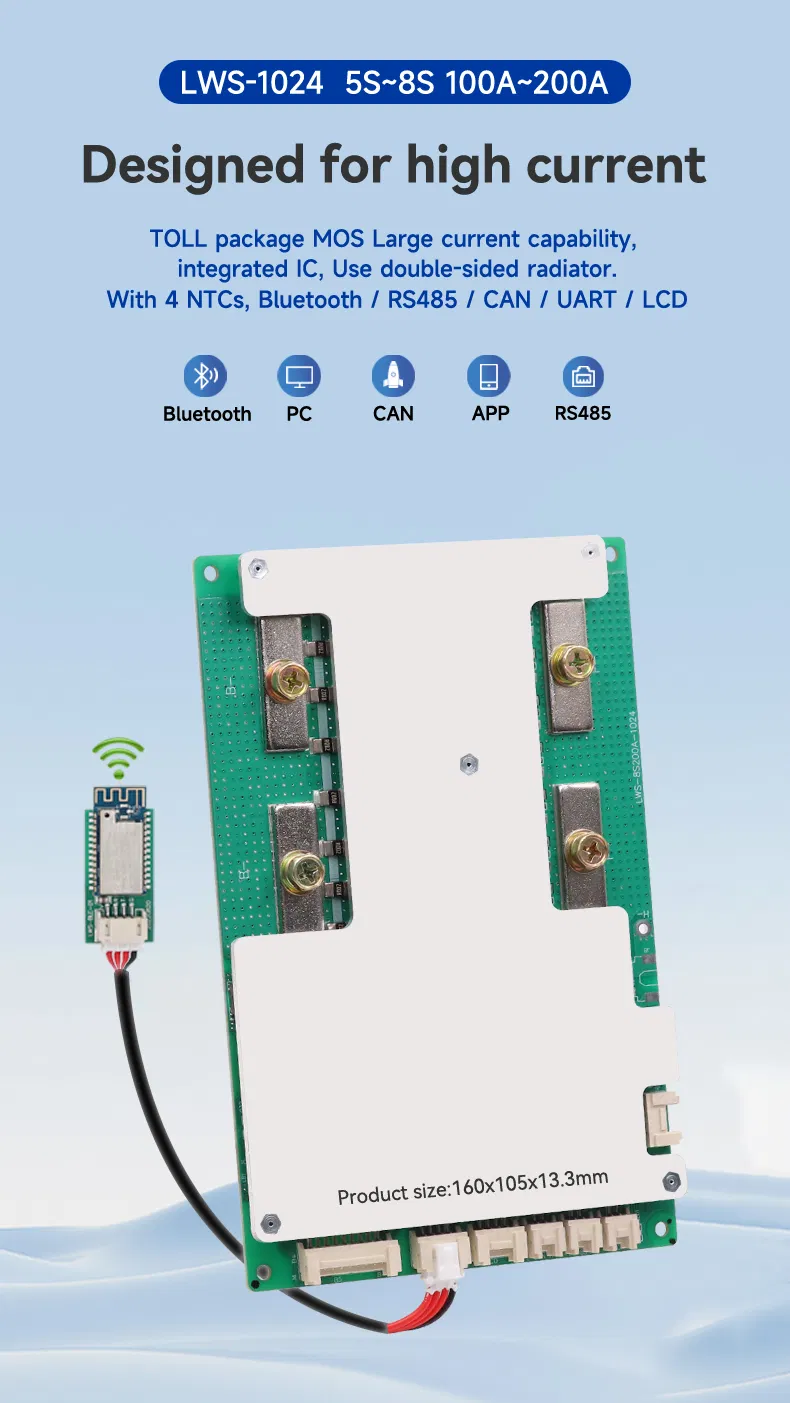

| PCM Size | L160*W105*T14.2mm |
| Series Available | 8S |
| Working Current | 100A / 200A Available |
| Cell Type | Li-ion (14.8V) / LiFePO4 (12.8V) |
| Application | Ebike, Solar products, etc |
The 8S BMS solution supports loads with high stability, catering to continuous currents up to 100A for LiFePO4 battery packs of 8 cells in series.
| Test Item | Criterion |
|---|---|
| Charging Voltage | DC: 28.8V CC/CV |
| Balance Voltage (Single Cell) | 3.6±0.025V |
| Balance Current (Single Cell) | 60±20mA |
| Max. Continuous Charging Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Over Charge Detection Voltage | 3.75±0.025V |
| Over Discharge Detection Voltage | 2.5V±0.05V |
| Over Current Detection Delay | 500-1500mS |
| Short Circuit Condition | External short circuit |
| Operating Temperature | -20 ~ +60 ºC |

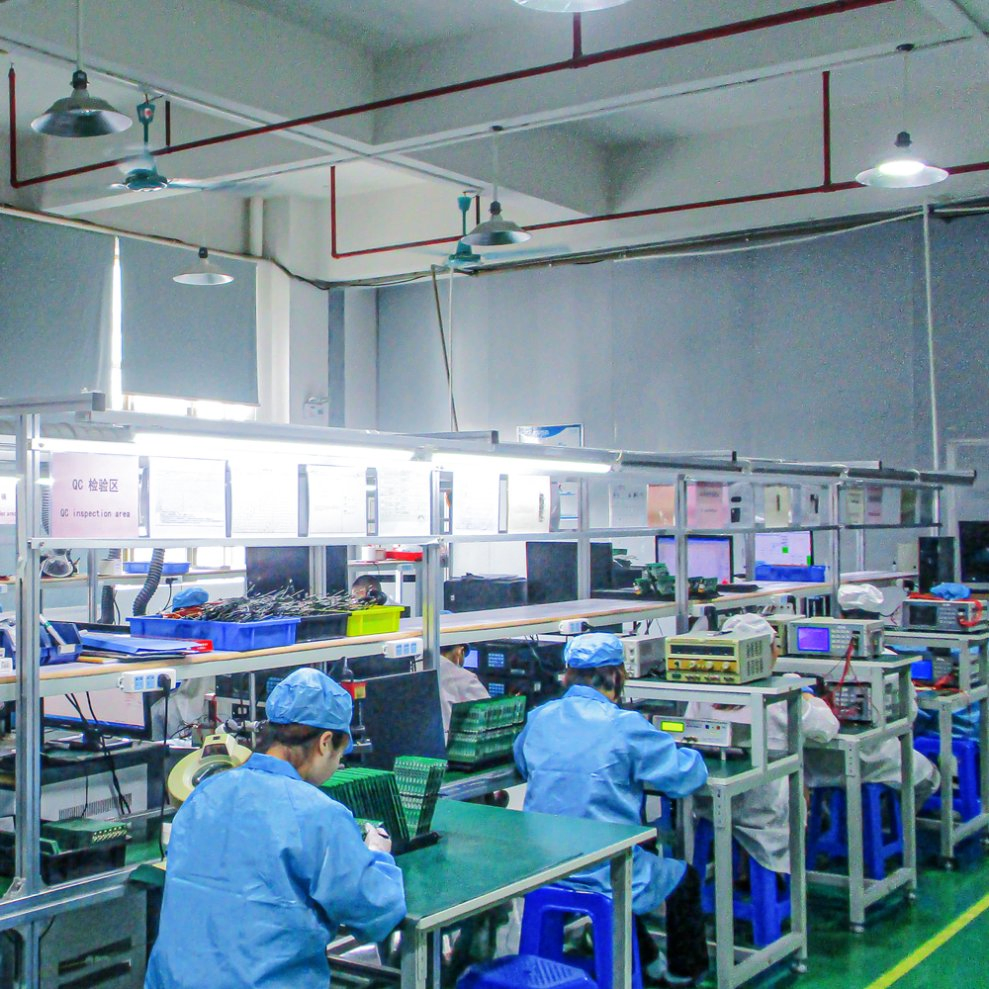

As a specialized developer in the field since 2013, we provide Battery PCM & BMS for Lithium ion, LiFePo4, and LTO battery packs along with ODM & OEM services. With over 900 types of hardware and software BMS designed, our solutions cover 1S-35S configurations with working currents up to 350A.

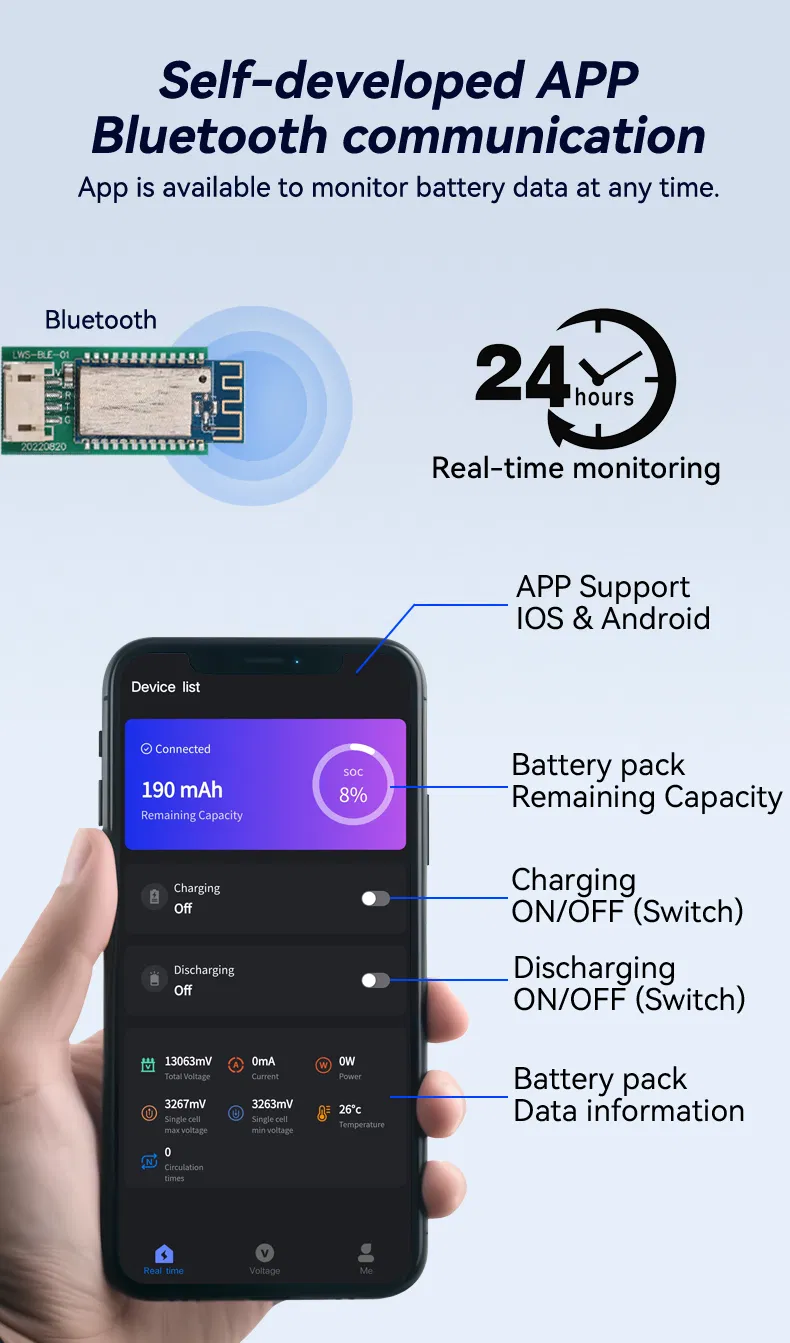

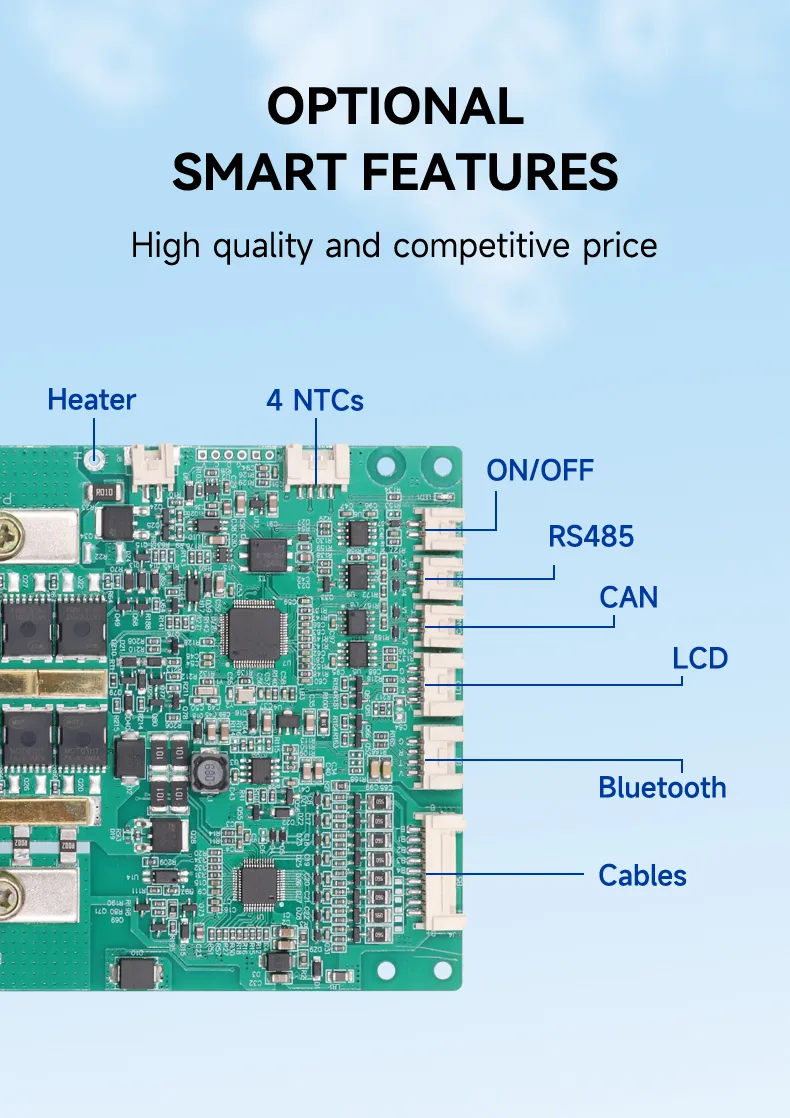

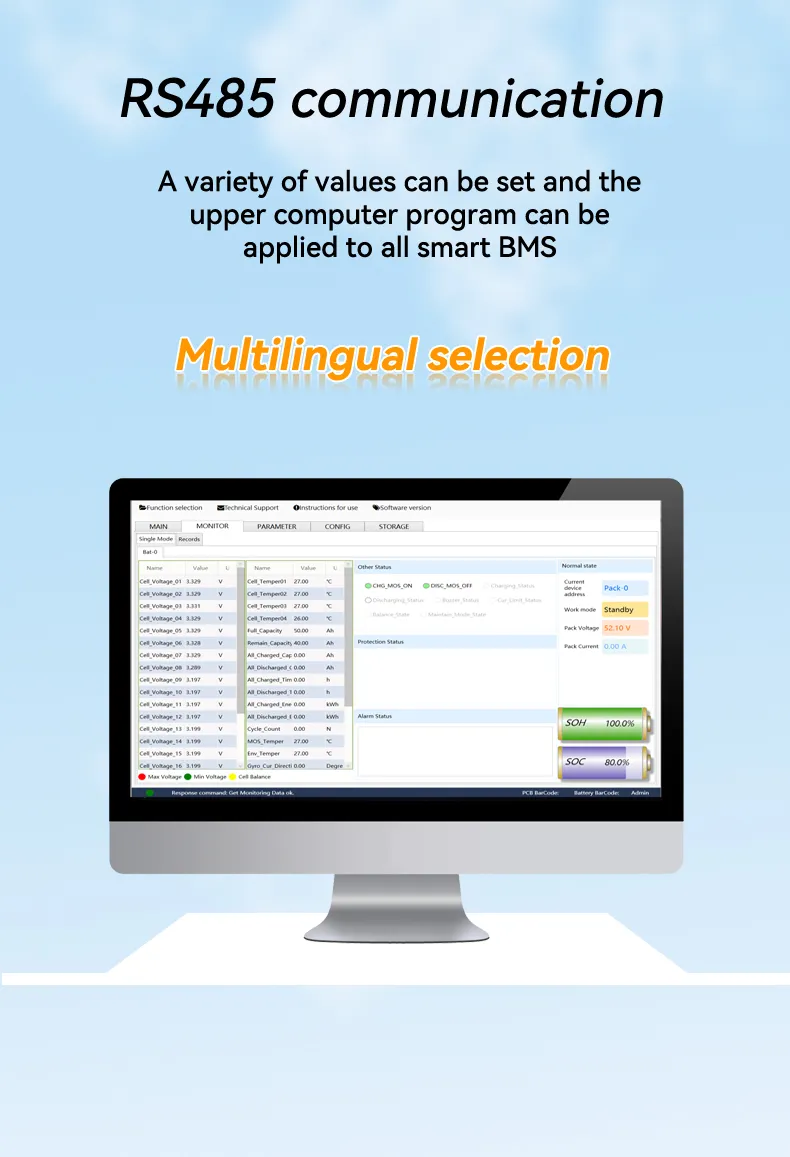

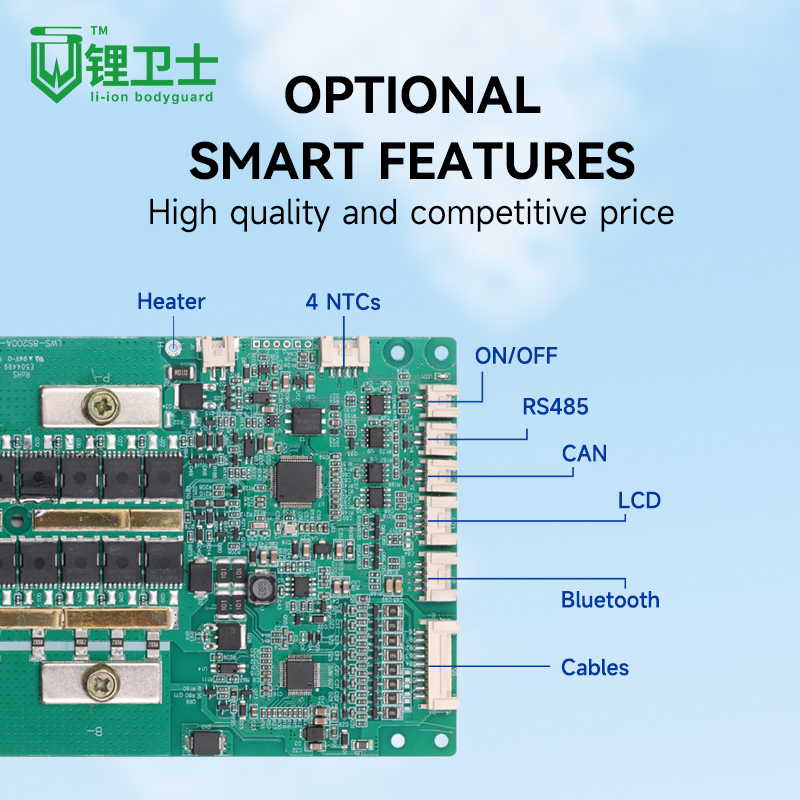

Our products feature advanced communication protocols including HDQ, I2C, SMBUS, RS485, RS232, and Bluetooth, serving industries such as electric bicycles, medical equipment, and EV applications.
