Tell us your relative voltage, cells, current requirements, or equipment type, and we will recommend the most suitable battery management solutions for your needs.

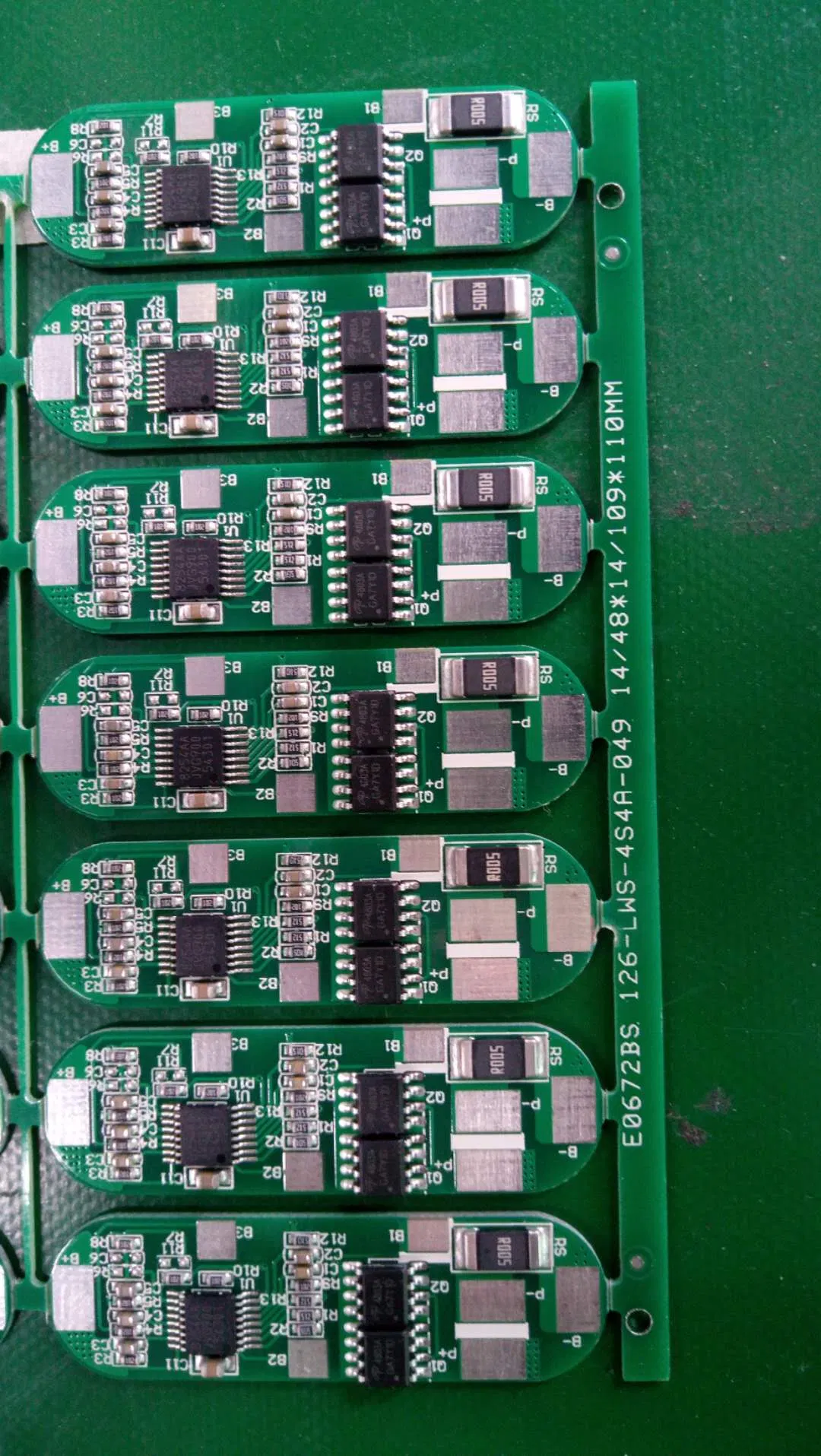

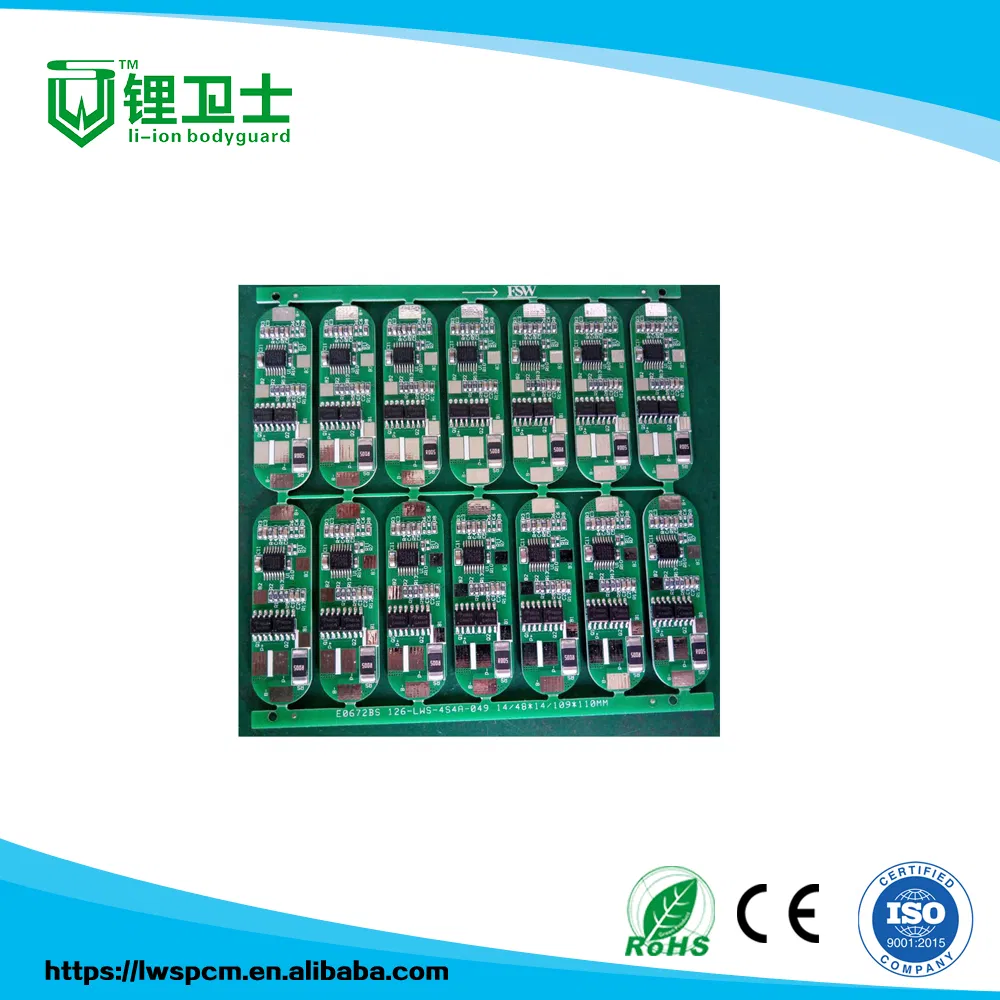

Main Functions: Detect and protect the battery from over-charge, over-discharge, over-current, and short-circuits. Includes temperature detection and automatic voltage balancing.

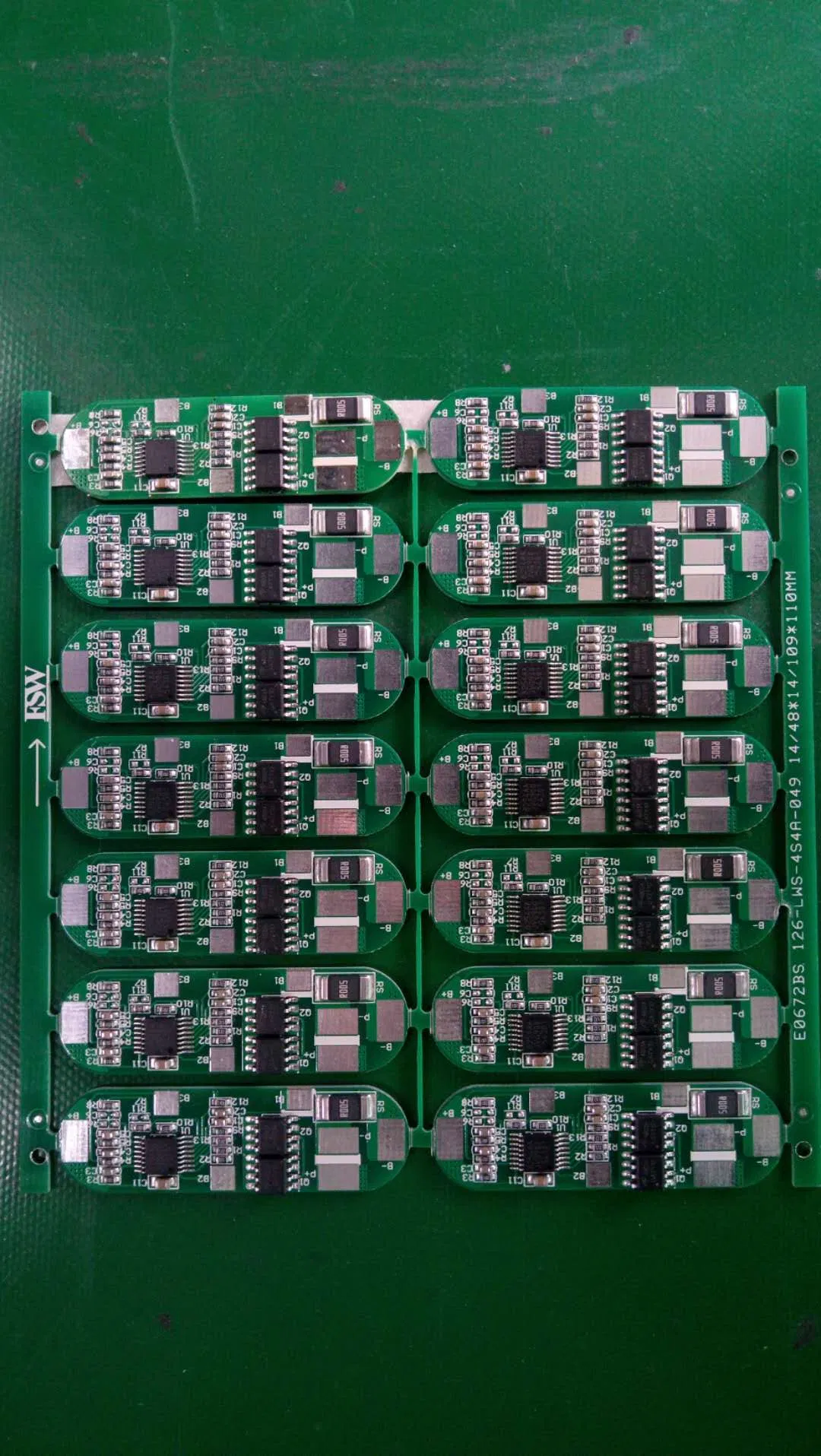

Built with high-end electronic components (High End IC and MOSFET), the simple structure design ensures stable performance and flexible application for various battery series.

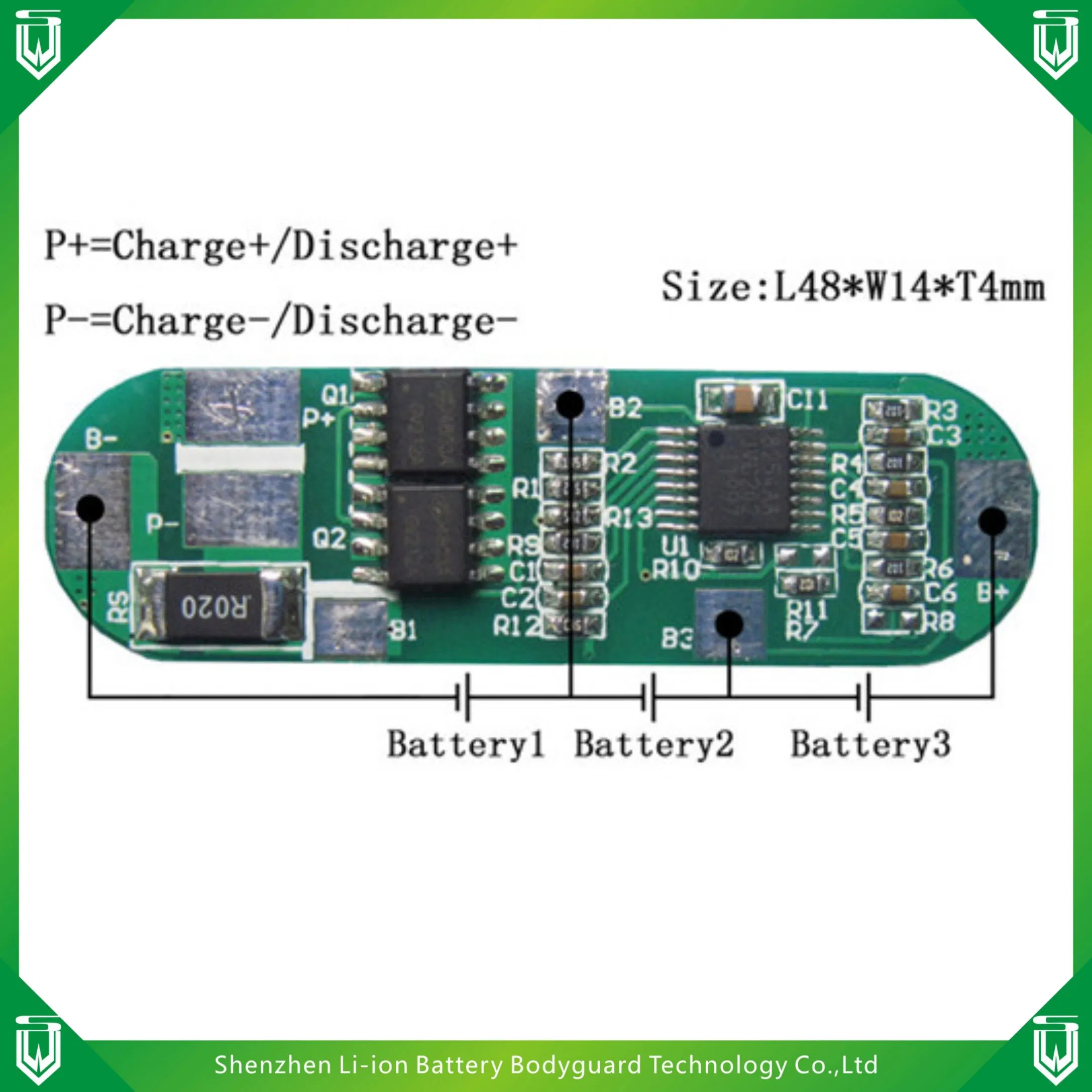

| PCM Specifications For 11.1V (3S) Li-ion Battery Packs | |||
|---|---|---|---|
| Voltage | Charging voltage | DC: 12.6V CC/CV | |
| Current | Max continuous charging/discharging | 4A | |
| Peak current (2-3 seconds) | 10A | ||
| Over Charge Protection | Detection voltage (single cell) | 4.350±0.025 V | |
| Release voltage (single cell) | 4.150±0.050 V | ||
| Over Discharge Protection | Detection voltage (single cell) | 2.40V±0.08V | |
| Release voltage (single cell) | 3.00±0.100 V | ||
| Over Current Protection | Detection current | 25±5A | |
| Short Protection | Release condition | Cut load | |
| Temperature | Operating Range | -40 ~ +85ºC | |
| Components | Protection IC model | S8254AAJ (Seiko) | |
Payment Terms: PayPal, T/T, L/C.
Any further questions, welcome to contact our sales team by sending an inquiry. Your satisfaction is our priority. Let's work together for mutual benefits!
