Lithium-Ion Battery Rack 200kwh 229kwh Battery Storage System Bess Thermal Management System Solar Battery Storage System Fast-Install Outdoor Battery Cabinets

Customization:	Available
After-sales Service:	Available
Warranty:	10 Years

Send Inquiry

Product Description

Overview
Description
How it works
Configuration
Components
Factory

Basic Information

Model NO.

HTAC-100/200-OD

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, 100/200/215/229kWh

Product Name

100/200/215/229kwh Ess Outdoor Cabinet

Key Word

Air Cooling Outdoor Energy Storage System

Nominal Capacity

100kwh/200kwh/215kwh/229kwh Option

Output Voltage

220/380/400/415/480VAC 50/60Hz 3phase

Rated System Voltage

358.4-768V

Cell Capacity

280ah/314ah

Cycle Life

≥6000 Cycles

Installation

Outdoor Installation

Battery Type

Lithium Ion, LiFePO4 Battery

Product Description

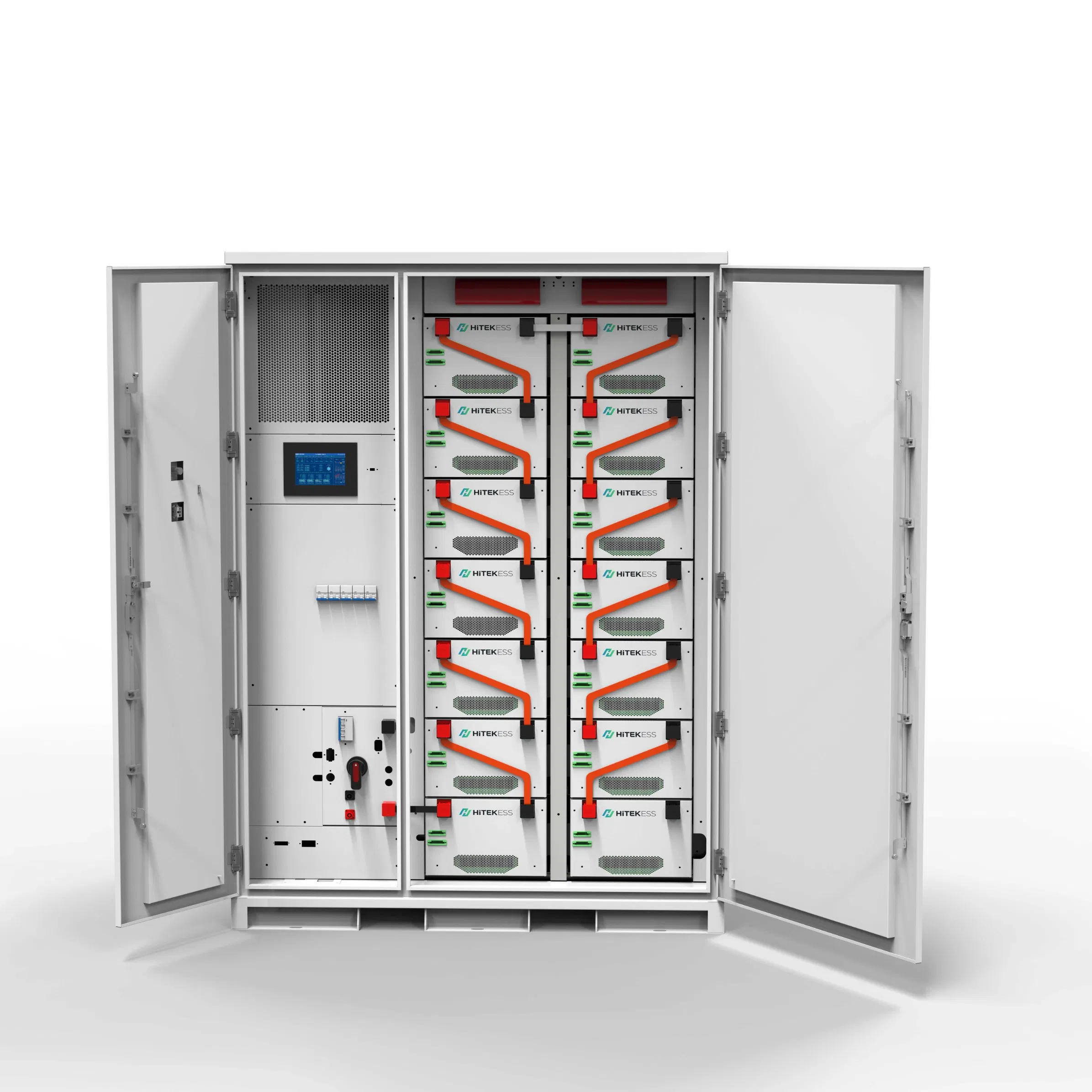

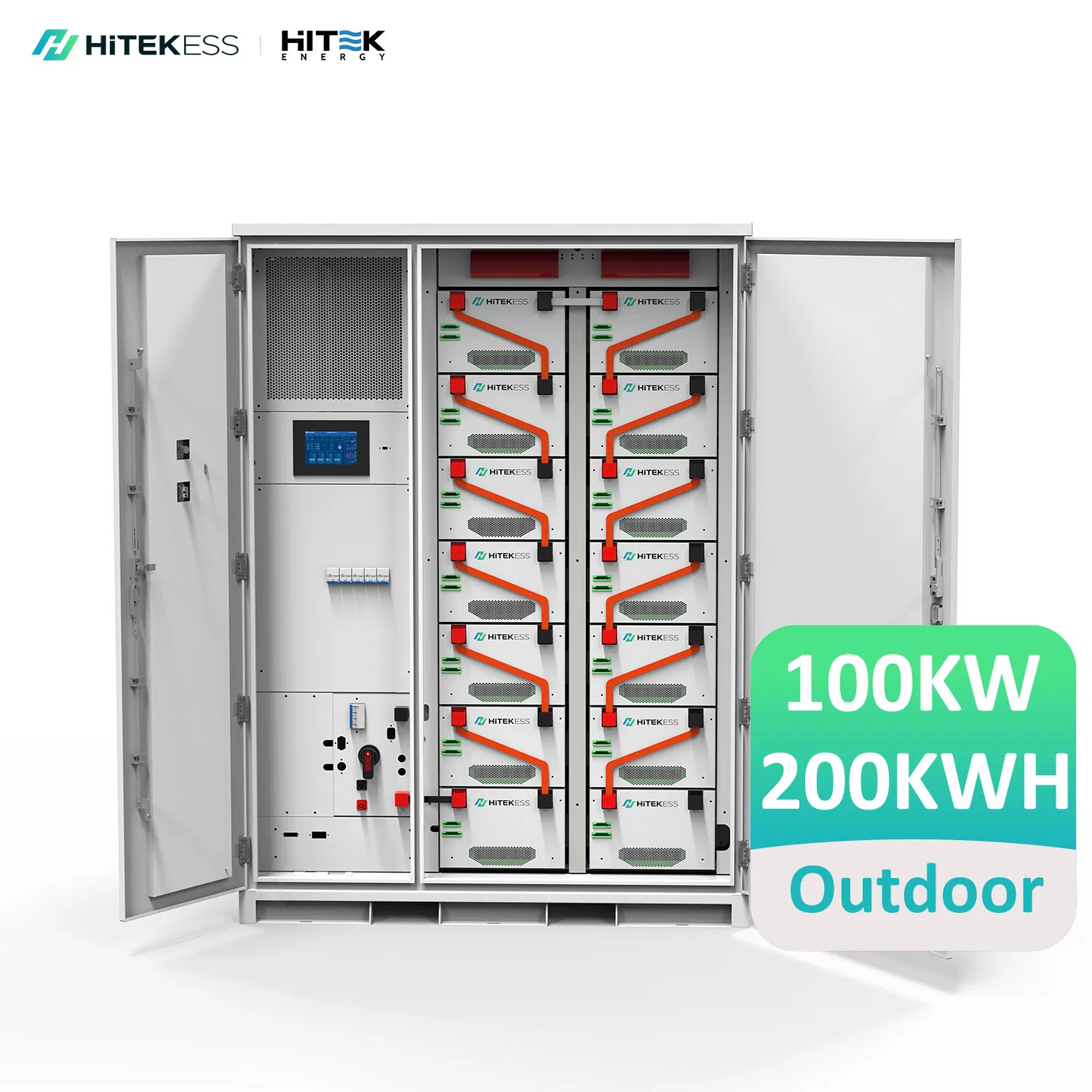

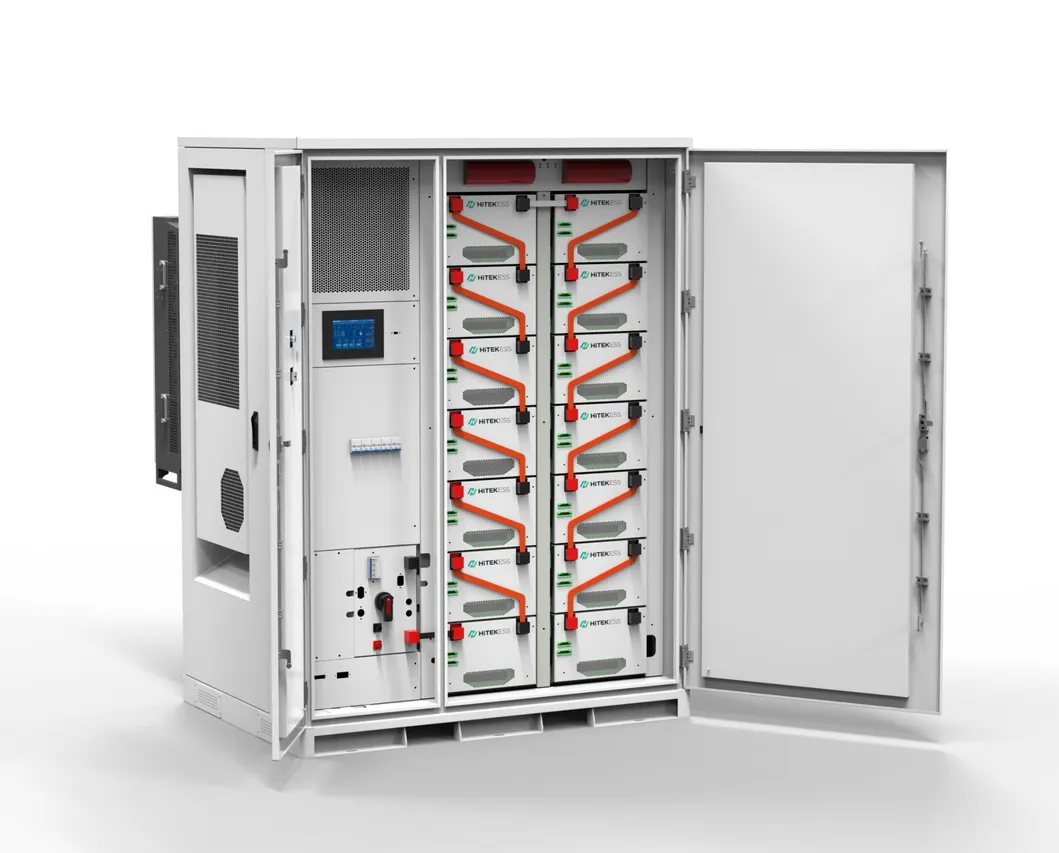

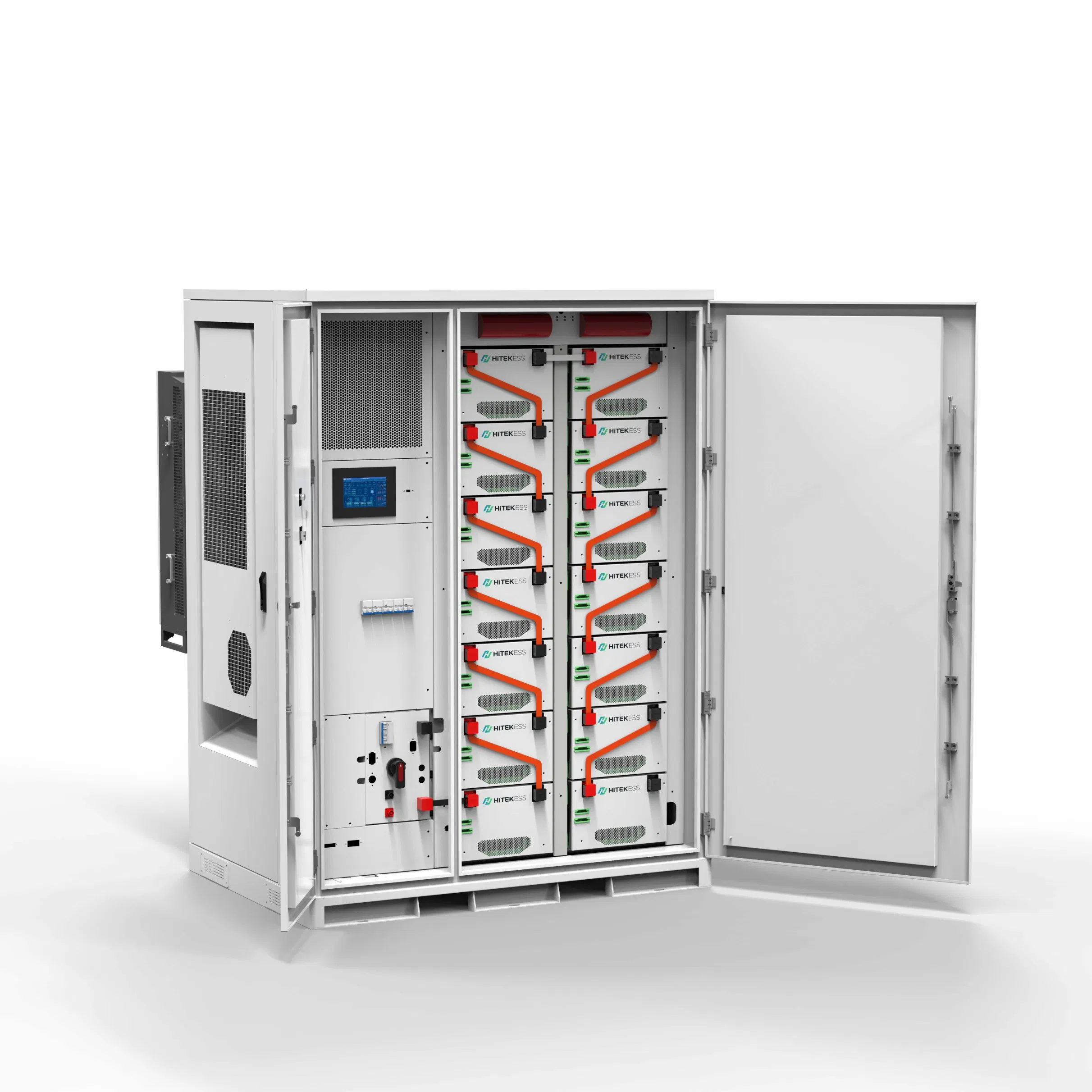

High Voltage 50kW/100kWh, 100kW/200kWh, 100kW/229kWh ESS Outdoor Cabinet Solution for fast install, includes inverter, lithium battery trays, racks, BMS, Microgrid Controller, HVAC, fire suppression, islanding switch, and outdoor rated enclosure.

The ESS Cabinet features Safe Technology & Multi-level Protection, and is Easy & Flexible to Scale with Powerful Performance. The modular design allows for easy capacity expansion.

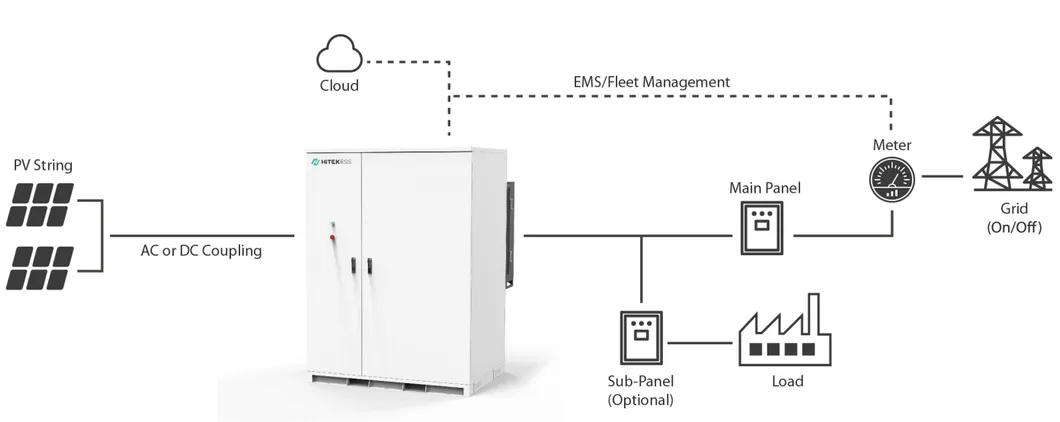

How it works?

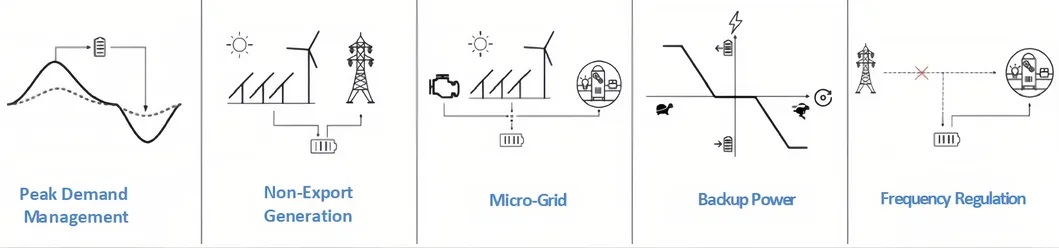

Different Application Scenarios

📈

Peak Shaving Control: Optimize demand charge management through comprehensive load control and quantitative tracking.

🛡️

Non-Export Generation: Ensure private generation without grid export.

🏝️

Energy Island System: Establish self-contained microgrids with autonomous control.

🔋

Outage Resilience Unit: Provide backup battery support during grid outages.

🔄

Synchronous Compensation: Automatic frequency regulation to maintain grid-synchronized stability.

System Configuration

Model	HTAC-50/100-OD	HTAC-100/200-OD	HTAC-100/215-OD	HTAC-100/229-OD
System Parameter	50kW/100kWh	100kW/200kWh	100kW/215kWh	100kW/229kWh
Cooling Method	Air-Cooling
Rated System Voltage	358.4V	716.8V	768V	409.6V
Battery Type	Lithium Iron Phosphate Battery (LFP)
Cell Capacity	280Ah
Max. PV Power	100kW	200kW	200kW	200kW
Rated AC Power	50kW	100kW	100kW	100kW
Protection Level	IP54/IP65
Dimension (WDH)	85011002060mm	150011002060mm	157013502100mm	157013502100mm
Weight (Approx.)	1300kgs	1900kgs	2300kgs	2300kgs

System Components

TOPCon Mono Solar Panel
600Wp High Efficiency

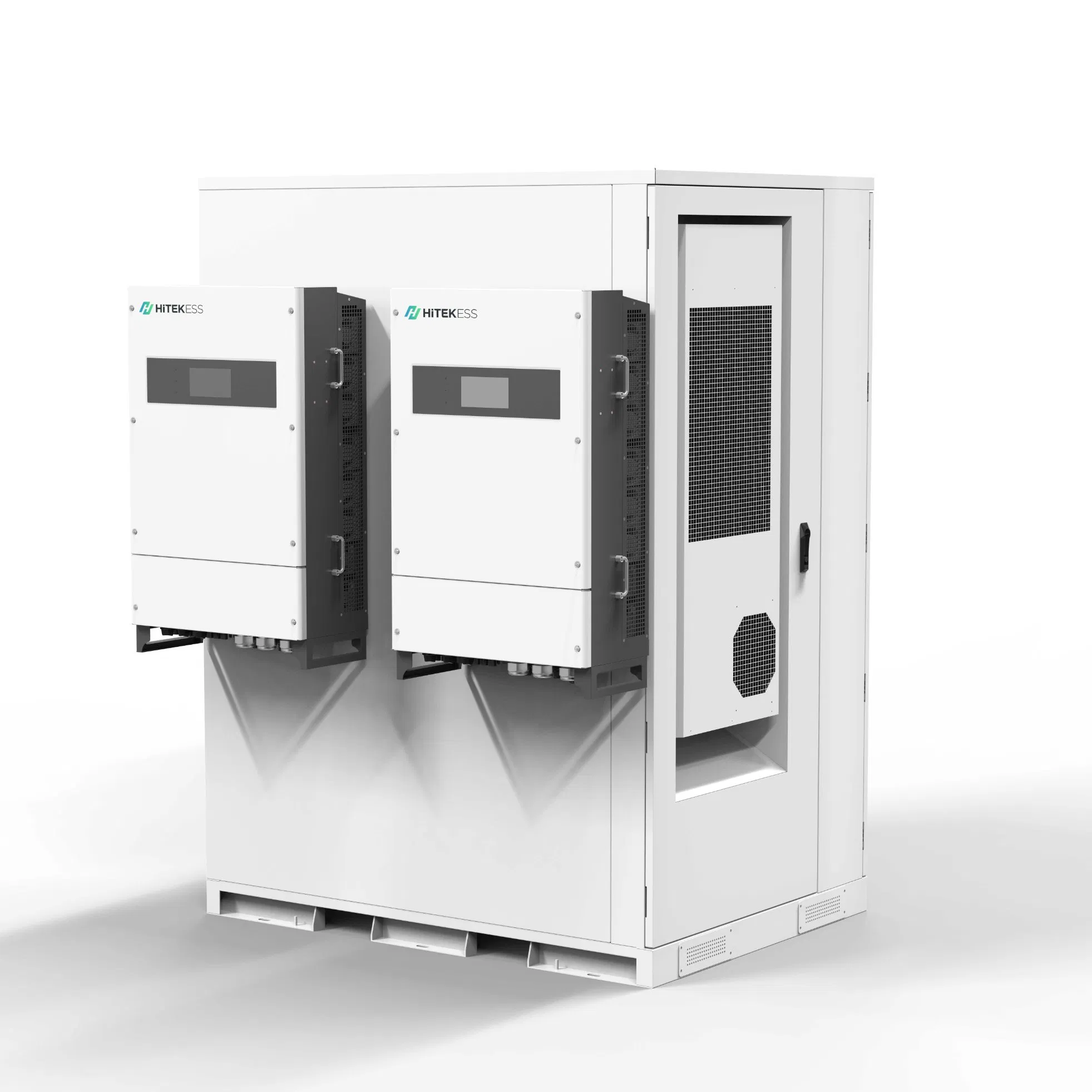

All-in-one Hybrid Solar Inverter
Smart Monitoring & Configurable Modes

Online Monitoring System
One-click dispatch and data security

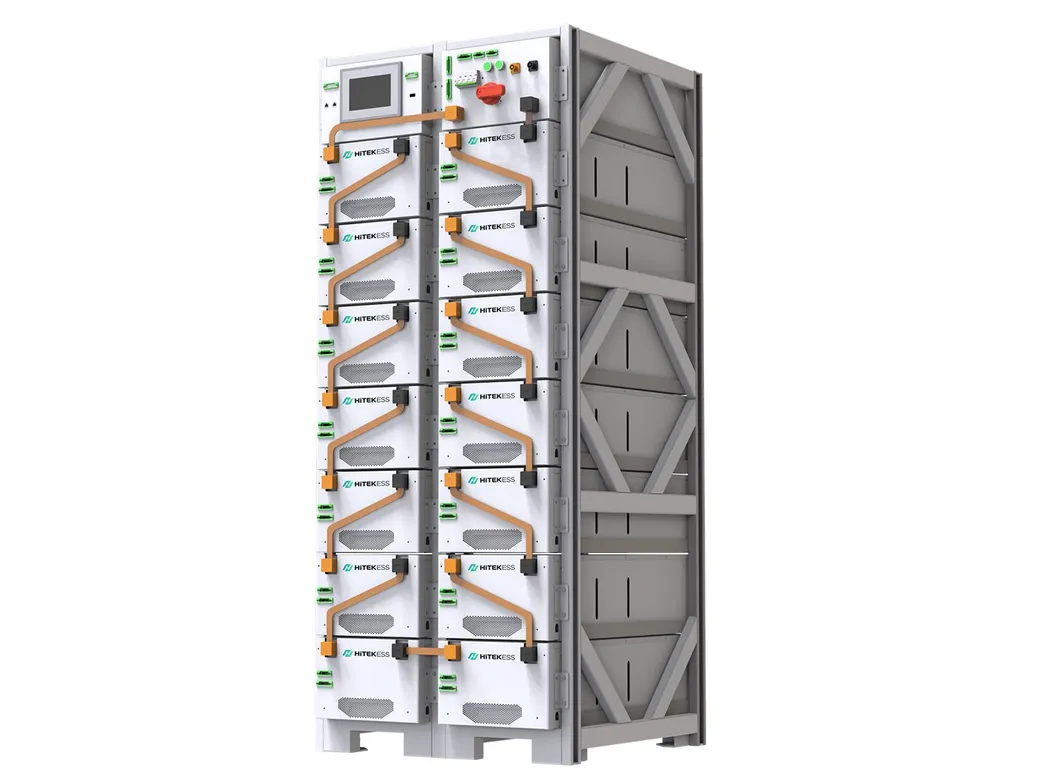

Solar Battery Rack
Deep Cycle, 6000+ Cycles, 90% DOD

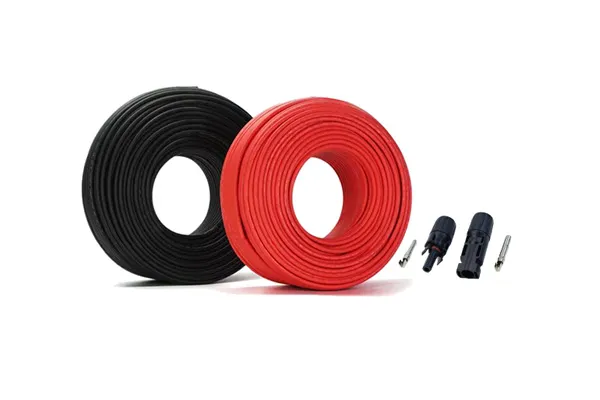

DC Cable & MC4 Connector
Rated for 25-year lifetime

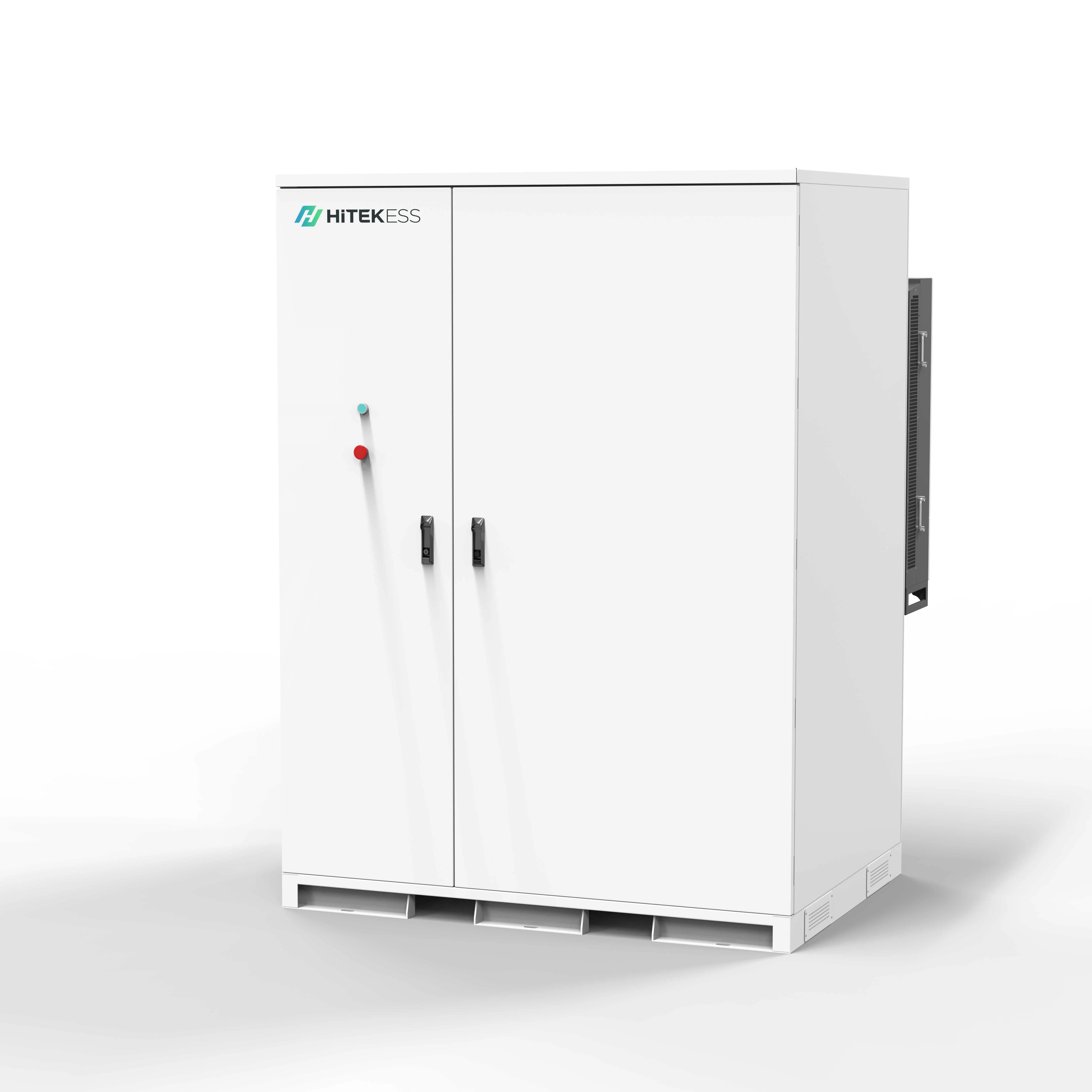

ESS Outdoor Cabinet
Includes fire protection & HVAC

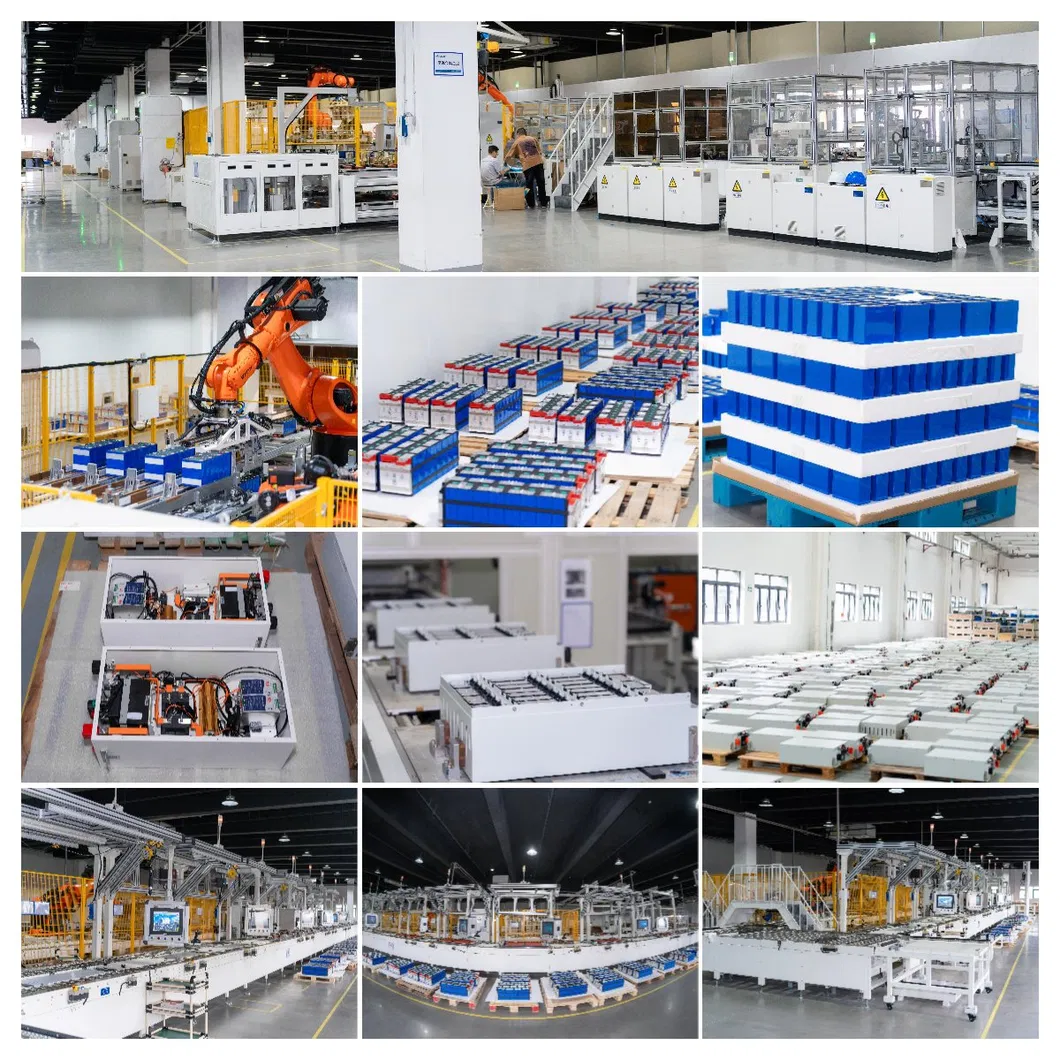

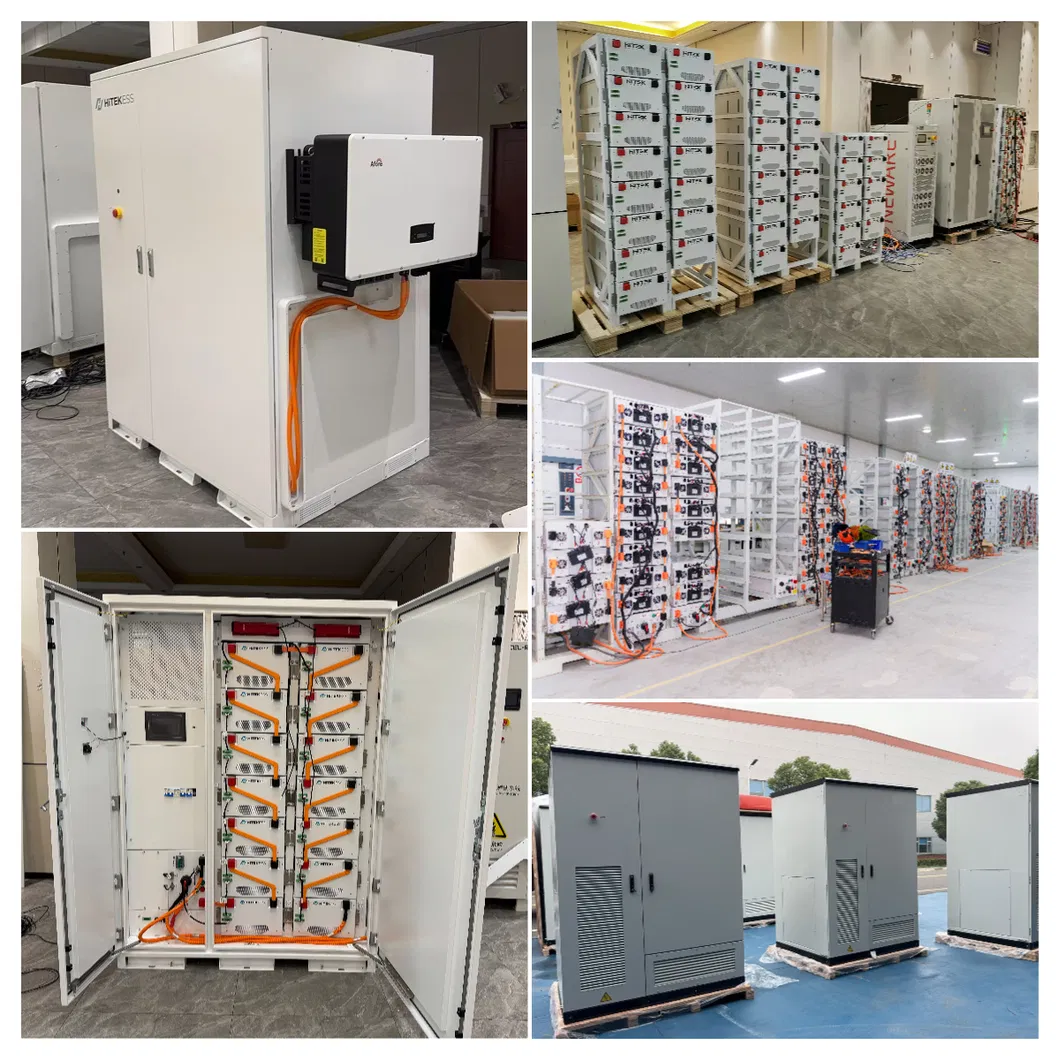

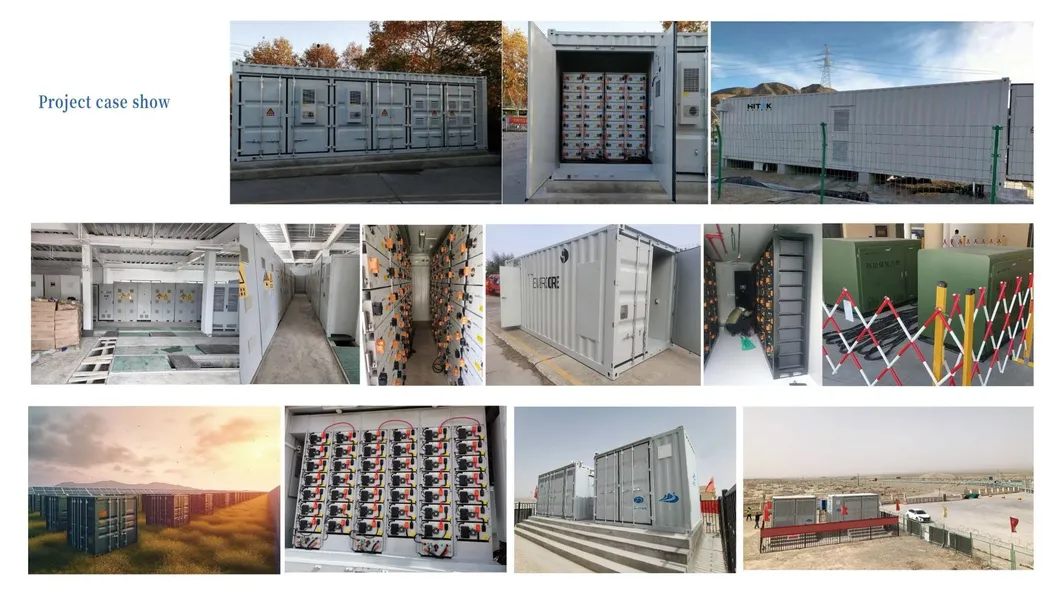

Our Factory & Projects

Company Profile

Founded in 2018, the manufacturer is dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories. We provide tailored solar energy solutions for backup, residential, and commercial needs.

Let's work together for a better, brighter and greener future.

Frequently Asked Questions

Q: What is the expected cycle life of the battery system? A: The system uses high-quality LiFePO4 cells providing a cycle life of ≥6000 cycles at 90% Depth of Discharge (DOD).

Q: Can this system be installed in harsh outdoor environments? A: Yes, the cabinet is rated IP54/IP65 and includes integrated HVAC and fire suppression systems (Aerosols/perfluorohexanone) to ensure safety in various weather conditions.

Q: What are the primary applications for this ESS? A: It is ideal for Peak Shaving, Non-Export Generation, Energy Island Systems (Microgrids), and as an Outage Resilience Unit for backup power.

Q: Does the system support remote monitoring? A: Yes, it features an online monitoring system via WiFi, LAN, or GPRS, allowing for real-time data tracking and remote firmware upgrades.

Q: Is the system modular and expandable? A: Absolutely. The modular design supports flexible parallel functions, allowing you to scale the capacity from 100kWh to multiple MWh based on your requirements.

Q: What certifications does the system hold? A: The system is certified according to international standards including CE, IEC/EN62619, IEC/EN62477, and grid-connection standards like VDE4105 and UN38.3.
