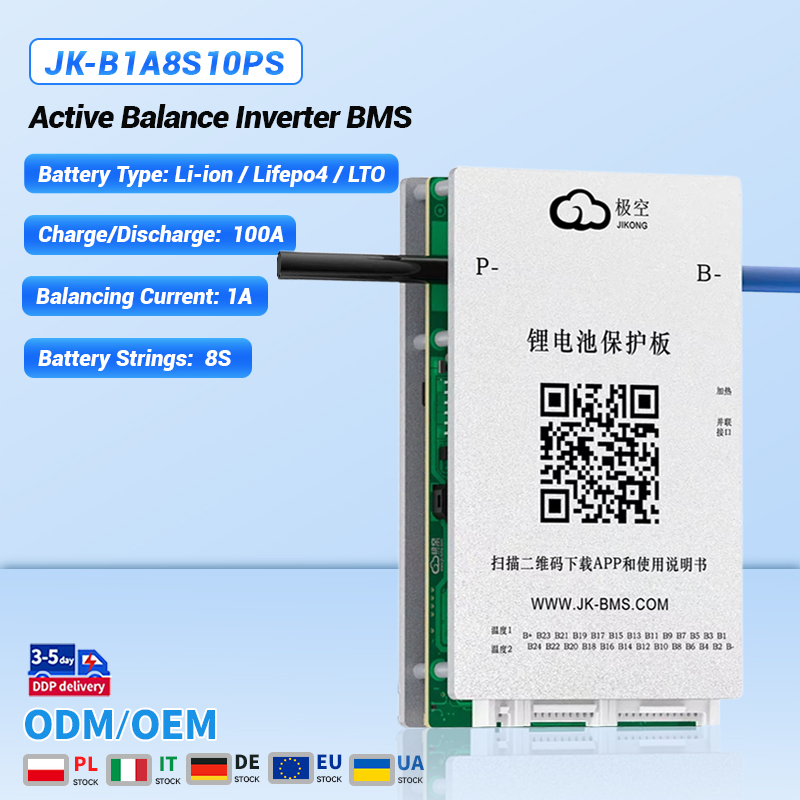

Jk BMS Battery Management System 1A Active Balance Inverter BMS 4-8s 24V 48V BMS LiFePO4 100A/200A/300A with Bt/Can/RS485

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Information

Model NO.:JK-B1A8S10P
Base Material:PCBA
Communication:RS485/Canbus/Uart/Bluetooth Optional
Usage:Battery Management System
Min. Hole Size:≤ 1mm
Min. Line Spacing:≤3mm
Trademark:JIKONG
HS Code:8507600090
Production Capacity:500,000 Pieces/Month
📦

Packaging & Delivery

Package Size:20.00cm * 15.00cm * 10.00cm
Gross Weight:1.000kg

Product Description

A high-tech provider of new energy lithium battery solutions, focusing on environmental energy, power, and energy storage lithium batteries. Providing intelligent solutions for small and medium-sized enterprises globally, focusing on creating value and enhancing quality of life through advanced battery management technology.

Jk BMS
Jk BMS Display

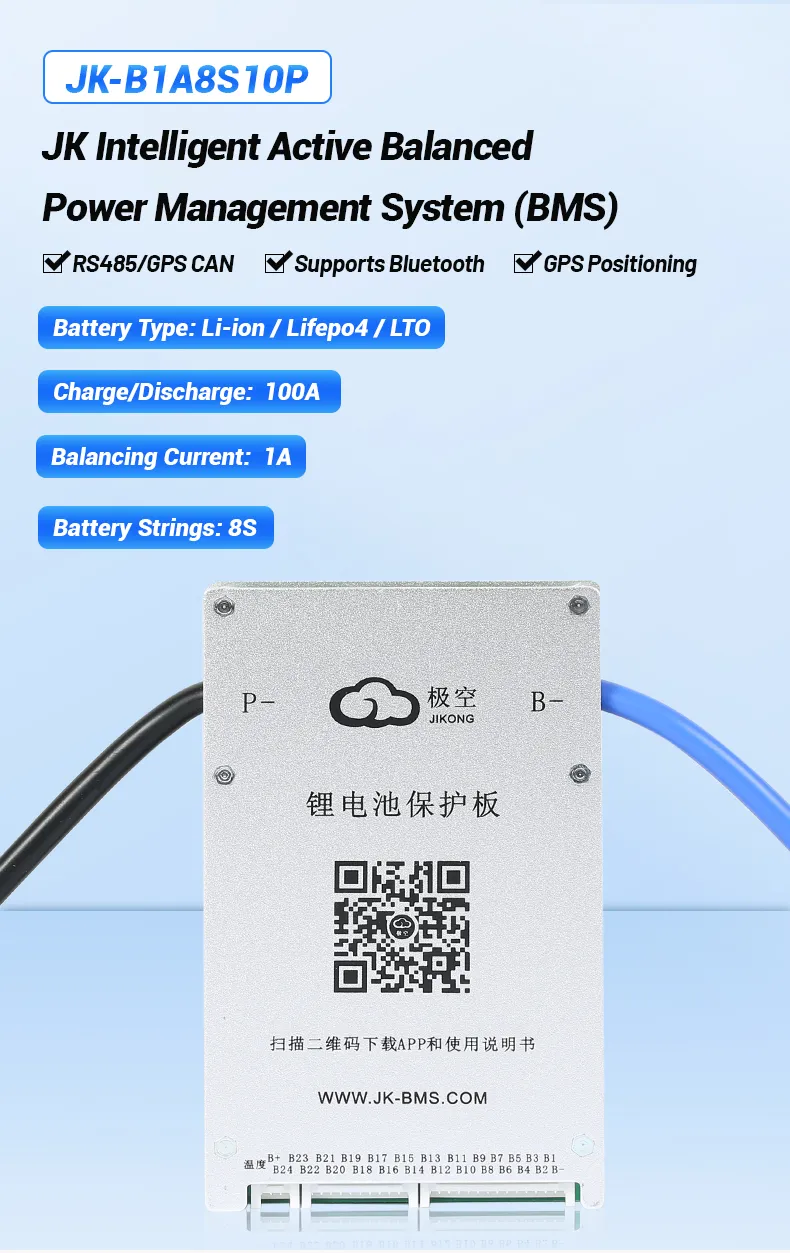

Jk BMS Detail

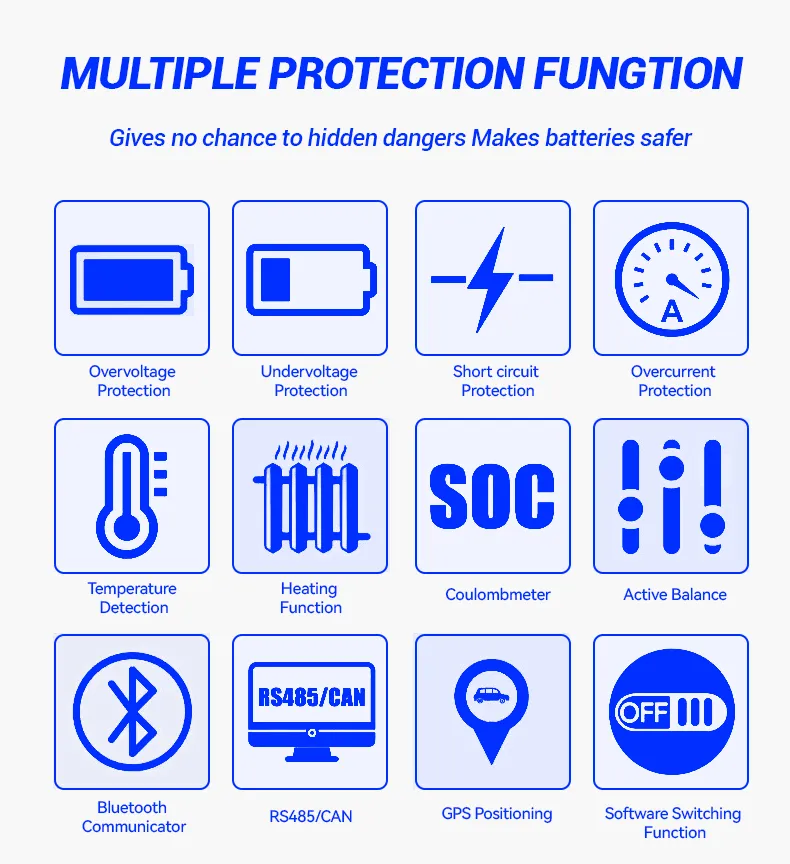

Jk BMS Features

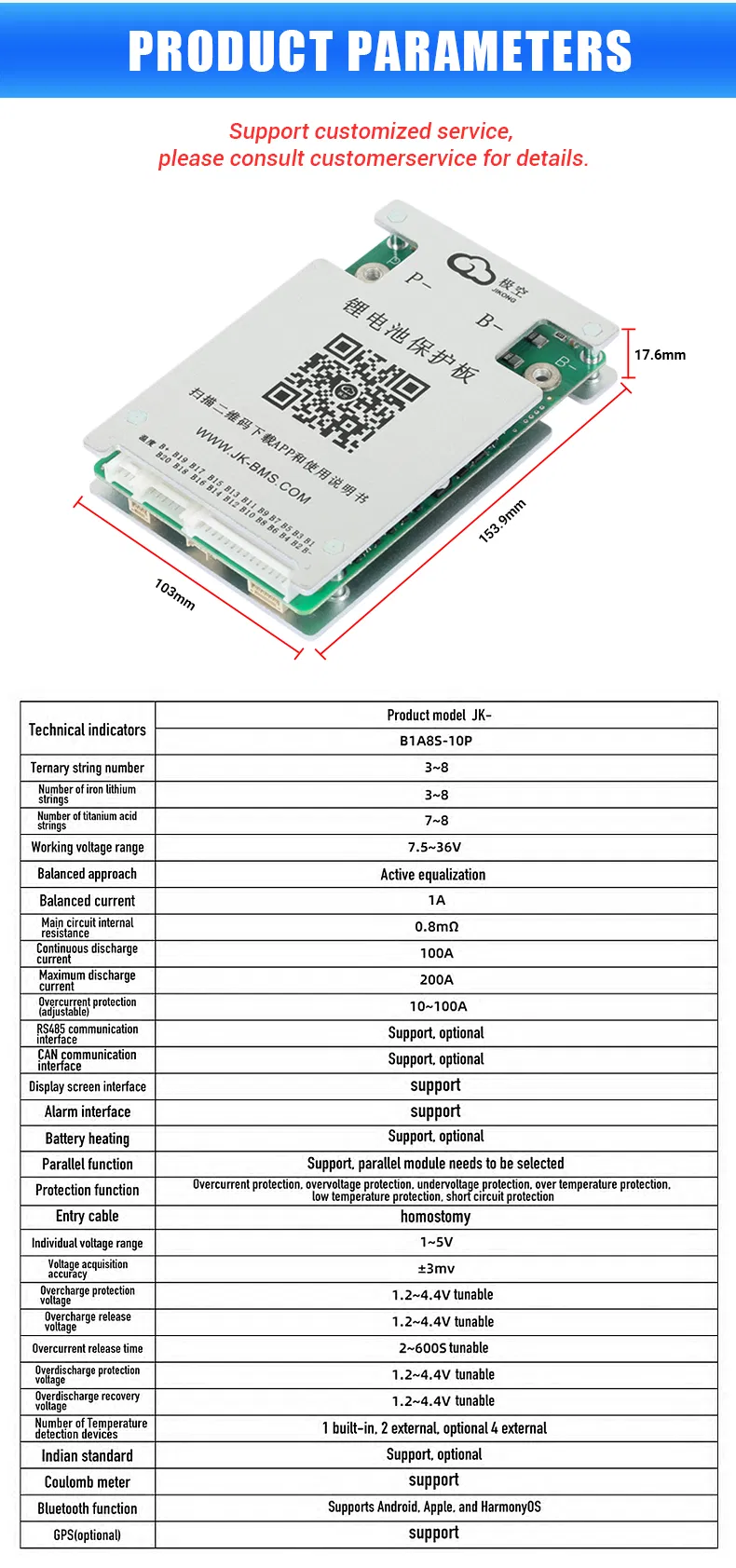

Jk BMS Technical

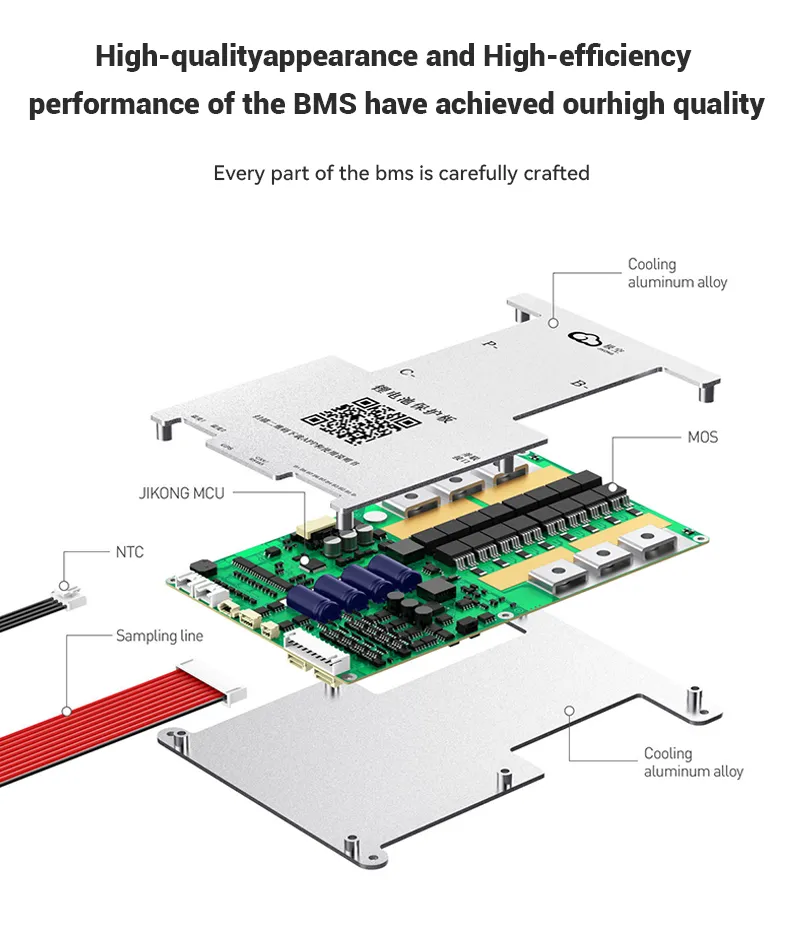

Jk BMS Diagram
📊

Cell Specifications

Brand Model Number V & Ah Impedance (mΩ) Weight (kg)
CATLCATL 50AH3.7V 50Ah≤2.01.38
CATL 120AH3.2V 120Ah≤0.72.86
CATL 156AH3.2V 156Ah≤0.53.4
CATL 173AH3.2V 173Ah≤0.53.1
CATL 200AH3.2V 200Ah≤0.253.84
CATL 280AH3.2V 280Ah≤0.35.34
CATL 302AH3.2V 302Ah≤0.25.35
CATL 314AH3.2V 314Ah≤0.185.5
CATL 340AH3.2V 340Ah≤0.185.55

Note: Please verify the quantity required for your system:

  • For a 48V system: 16 pieces
  • For a 24V system: 8 pieces
  • For a 12V system: 4 pieces

Applications: Backup power for home energy storage, campers, RVs, yachts, etc.

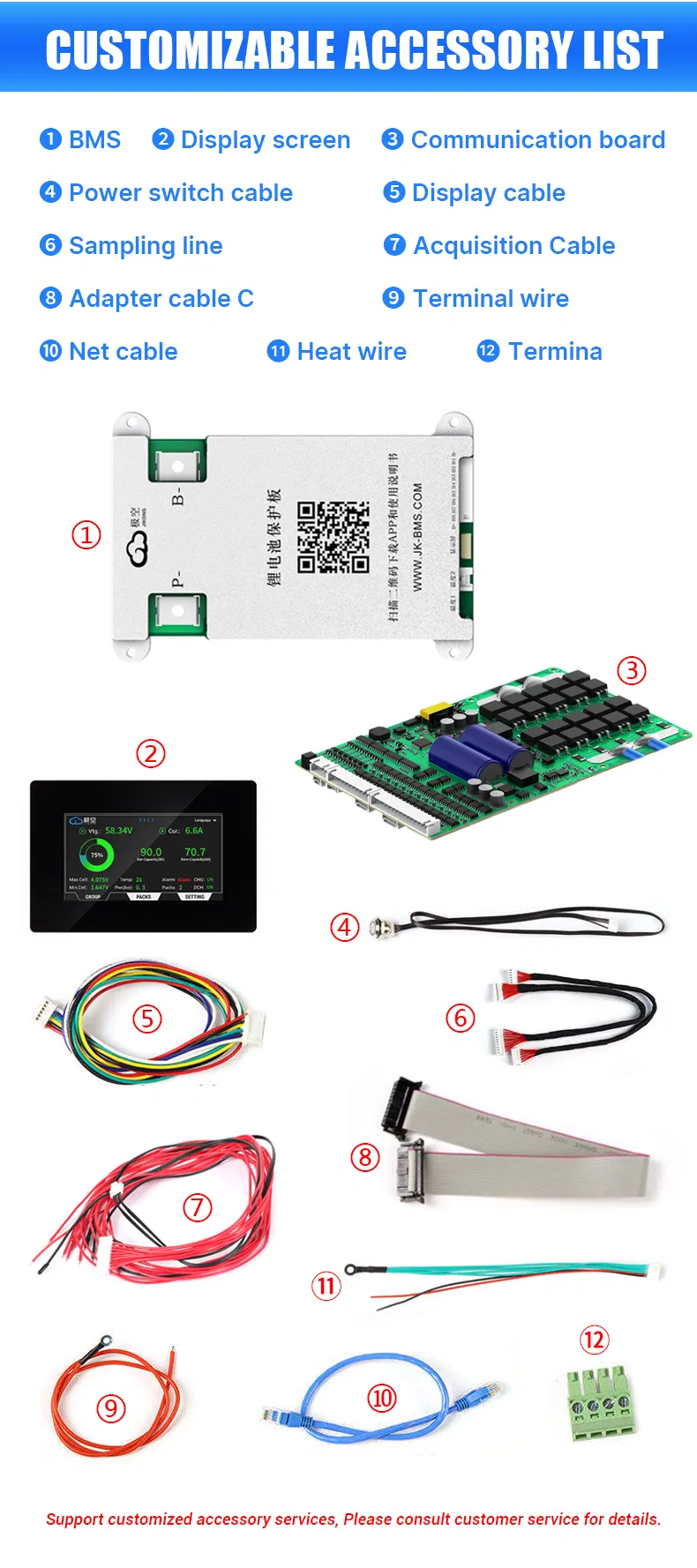

Battery Cells

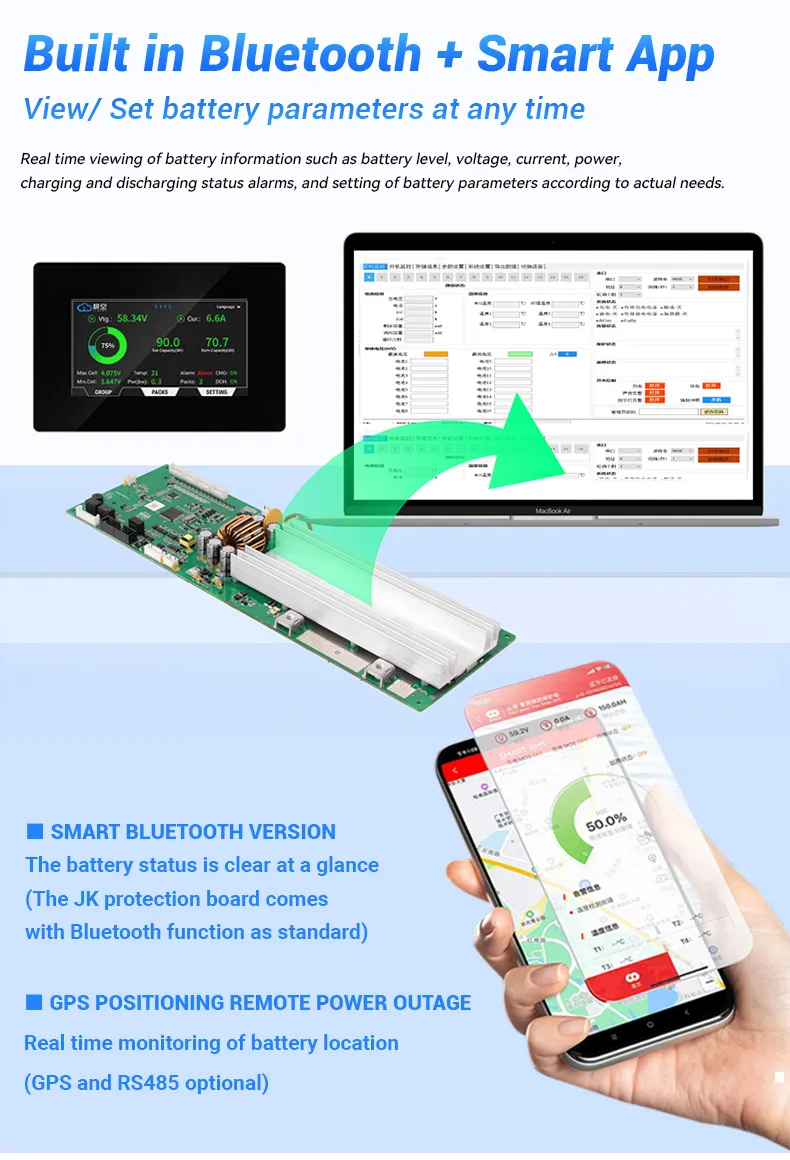

Assembly

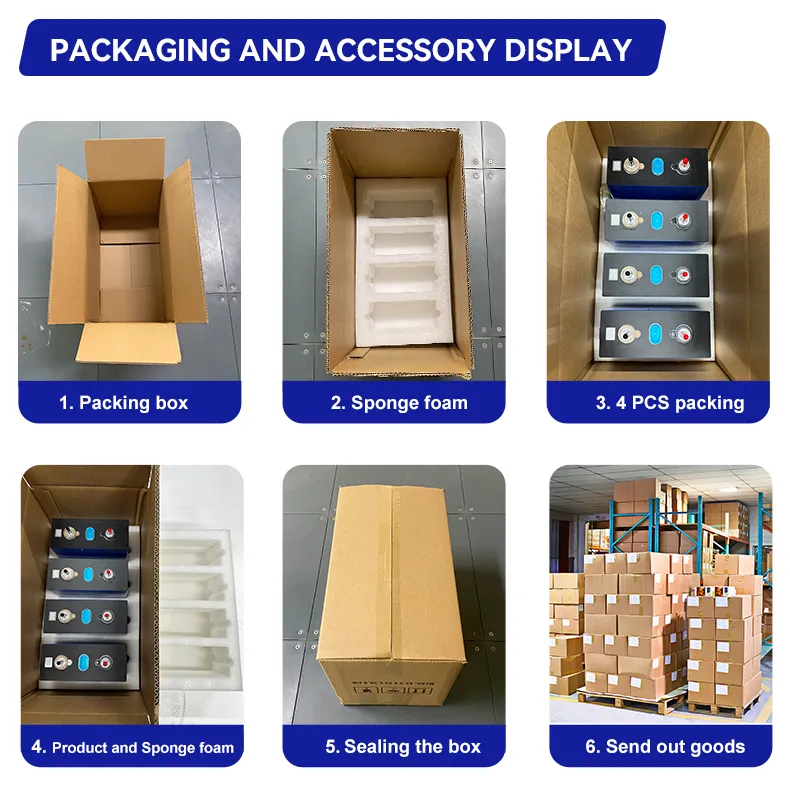

Packaging
🛡️

Professional Packaging Features

  • ✅ High hardness custom sponge to strengthen protection
  • ✅ 5-layers dangerous goods export corrugated carton
  • ✅ Positive and negative paste insulation tape
  • ✅ Labelled test data on each cell before delivery
  • ✅ Optional wooden packing available upon request
Shipping Box

Frequently Asked Questions

What is required before assembling a DIY battery pack?
DIY battery packs must have the cells balanced (same voltage) before assembly. It is critical to ensure proper voltage and resistance alignment. Professional testing is recommended before final assembly.
How are batteries tested prior to shipping?
Every battery undergoes a Capacity Test (less than 2% margin of error), Voltage testing (deviation < 0.01V), and Internal Resistance testing (deviation < 0.05mΩ) to ensure performance.
Do the batteries include busbars and bolts?
Yes, the cells come with busbars and bolts/studs for free. Typically, each battery includes 1 piece of busbar and 2 pieces of bolts or studs.
What happens if the shipment is damaged?
If there is damage or loss, please provide photos or videos immediately. We will communicate regarding resending, replacement, or refunding the product cost based on the severity of the damage.
Under what conditions are returns not accepted?
Returns are not accepted if problems occur after assembly (e.g., BMS miswiring leading to damage) or if damage is caused by user error, such as battery bulging due to unprotected charging. Only unused, intact cells can be returned.
How can I place an order for these products?
Orders can be placed via trade assurance online. For Ready-to-Ship (RTS) products, you can proceed directly if shipping costs are clear, or provide your information to sales for an custom online order.
