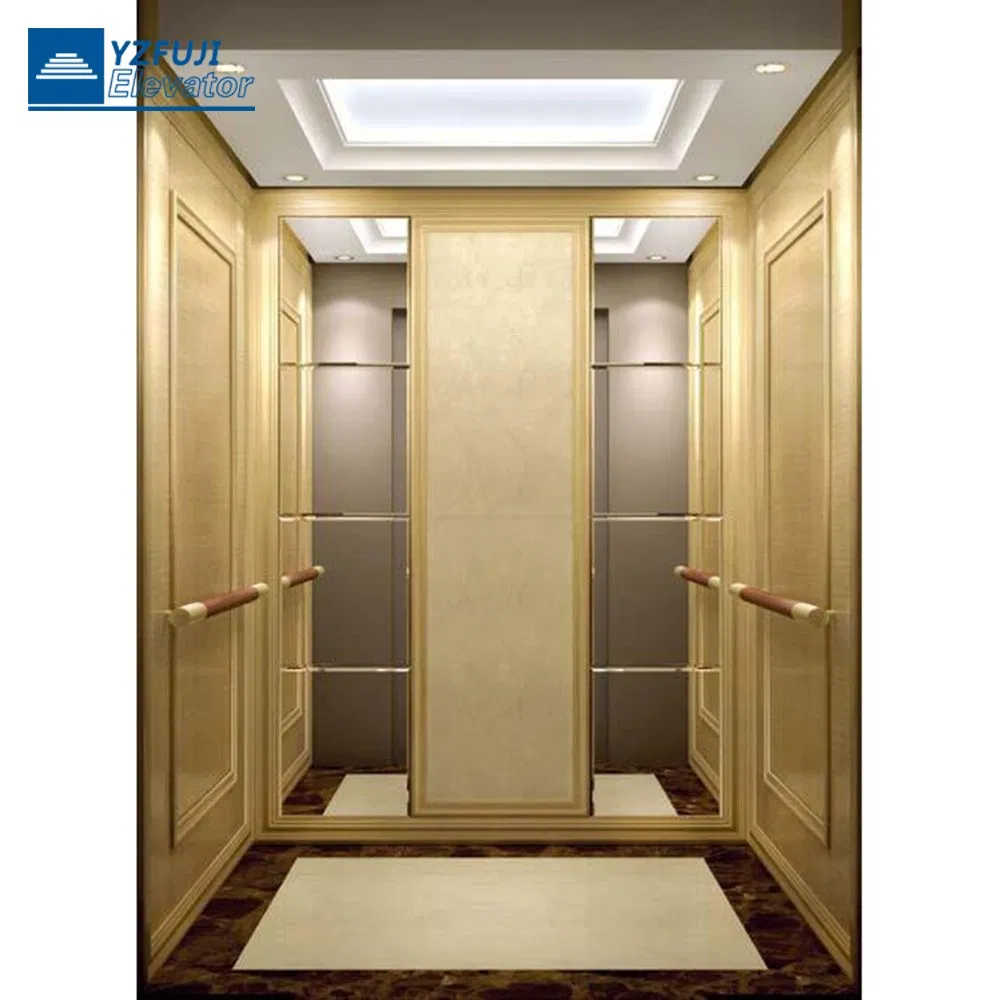

Passenger Lift Elevator with Residential Buildings

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1 Year

📊 Basic Specifications

Model NO.

fuji-jx 02

Driving Type

AC Elevator

Capacity

500-1000kg

Persons

6 - 10

Speed

1.00 - 2.00m/s

Control Mode

Group Control

Machine Room

Without Computer Room

Door Type

Straight Fractional Door

Control System

Vvvf Drive

Material

304 Stainless Steel

Energy Saving

More Than 50%

Certification

ISO

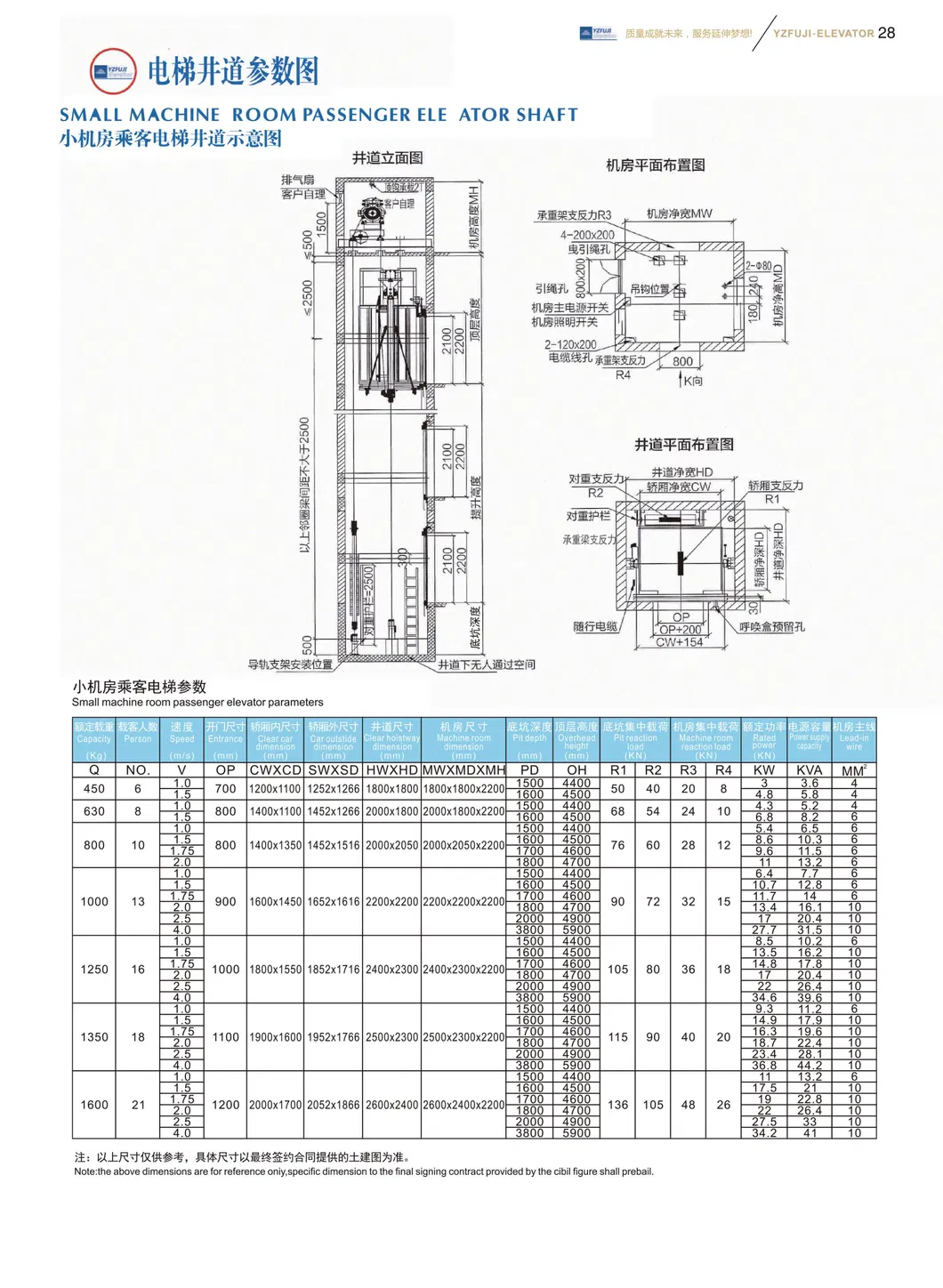

📐 Dimensional Data

Shaft Size	Cabin Size	Load	Pit	OH
1500*1500	950*1050	400kg	300	3000

💡 Main Features

This small machine room elevator leads the industry in equipment configuration. It is designed not only for passenger use but also for freight, suitable for general offices, hotels, apartment buildings, and skyscrapers. The system adopts advanced energy-saving gearless permanent magnet machine drives, ensuring safety, reliability, lower noise, and superior performance.

🛡️ Safety & Reliability

Passenger safety is the priority. The elevator networking is incorporated into an internet platform, allowing all elevator information to be queried, maintained, and managed efficiently.

💰 Cost Reduction

The drive system adopts regenerative braking units. The elevator can feed energy back to the power grid, resulting in 50% energy savings compared to ordinary AC elevators and 20% compared to standard elevators, greatly reducing operating costs.

🌿 Environmental-Friendly

Uses the latest permanent magnet gearless technology to replace traditional turbo worm tractors. This miniaturized design is light, requires no oil, no maintenance, and produces minimum noise.

⚡ High Technology

Adopts VVVF technology and uses IGBT transistors. Motor noise is greatly reduced, and the service life of the motor is significantly prolonged.

🎨 Customization

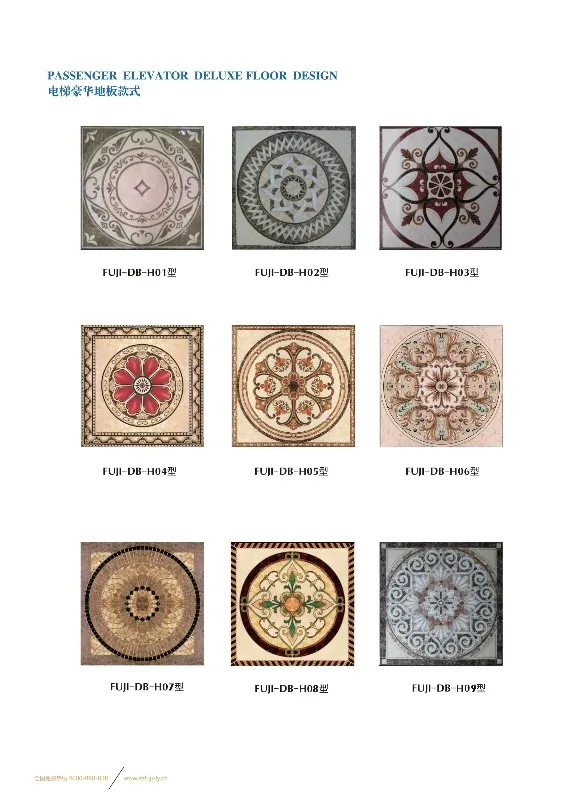

Customers can choose customized appearances, including car finish, design, ceiling, and floor materials (OEM & ODM available).

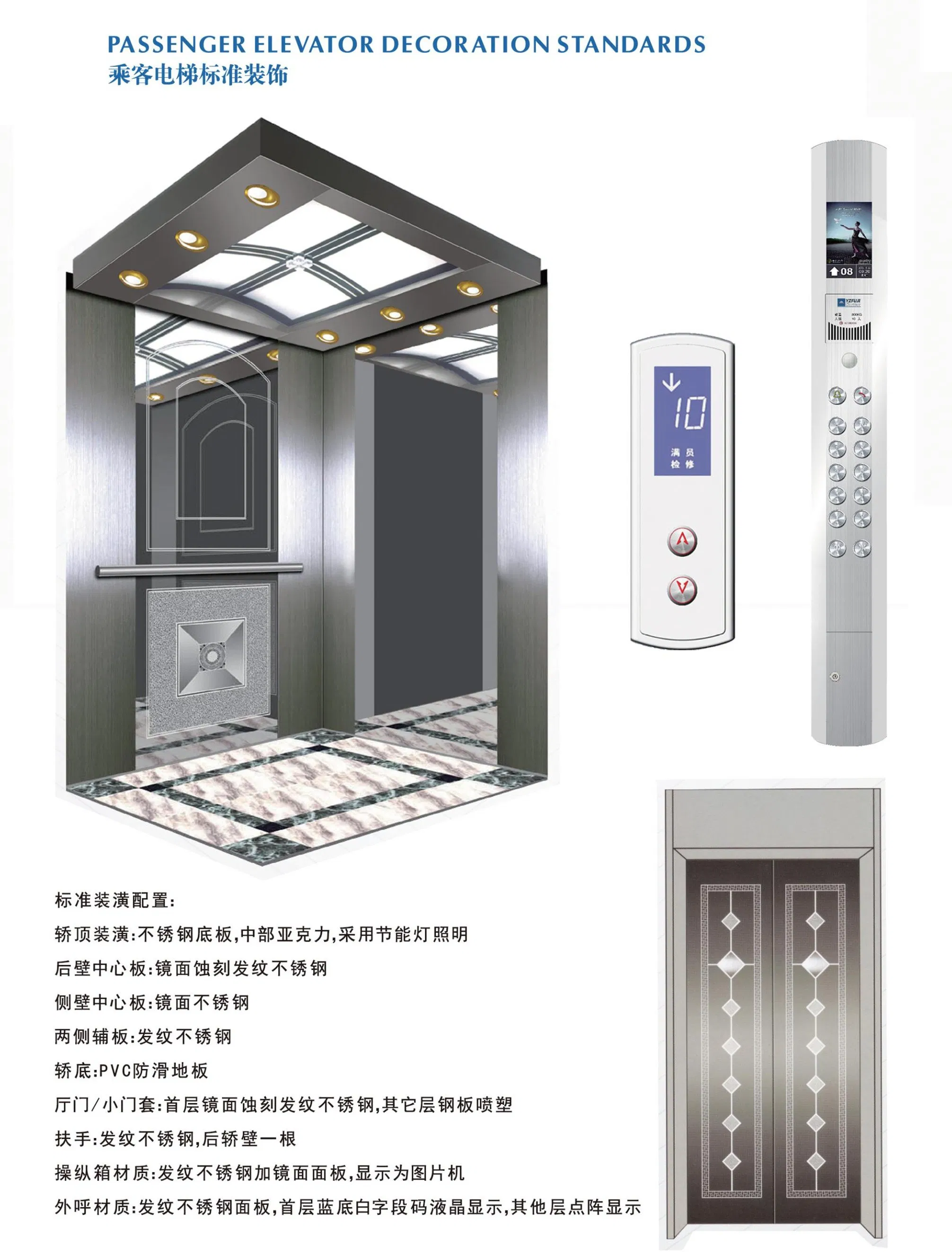

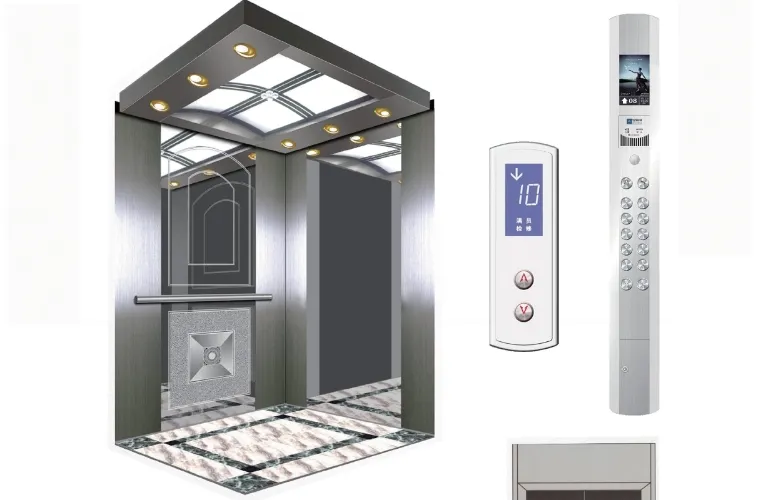

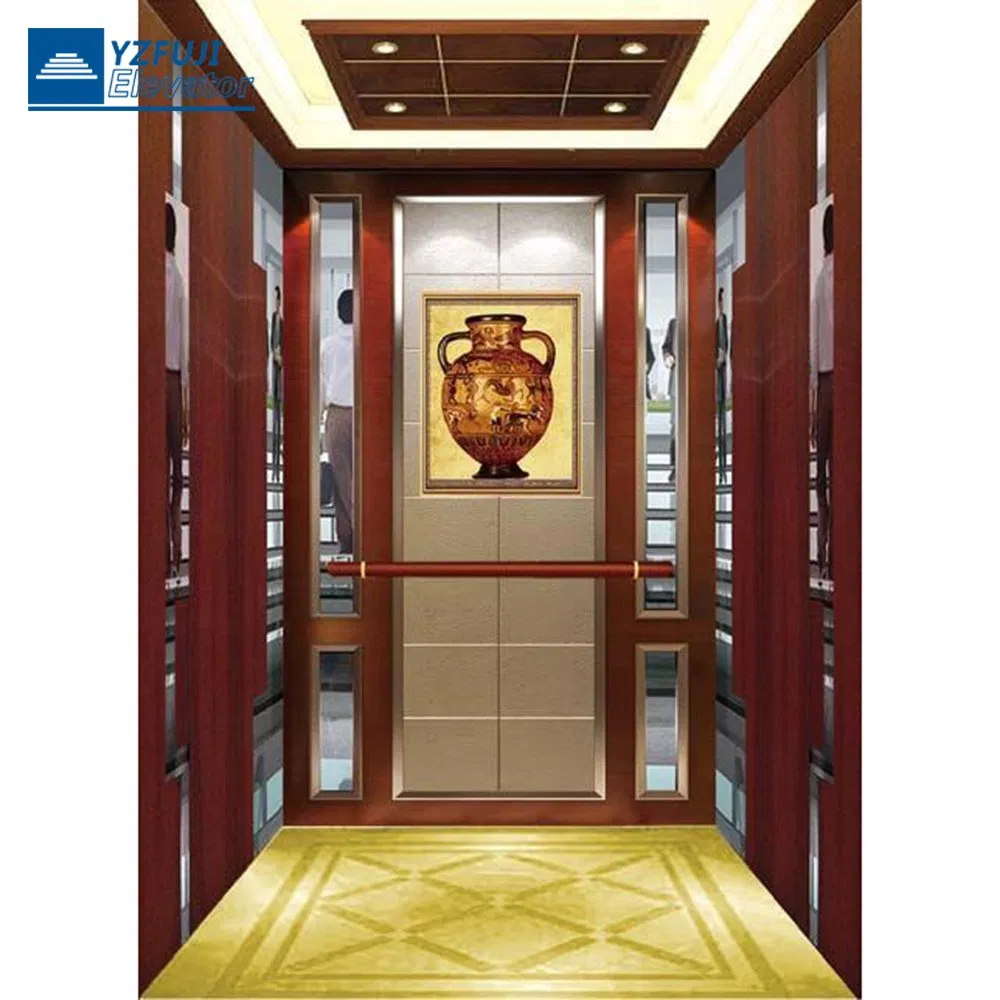

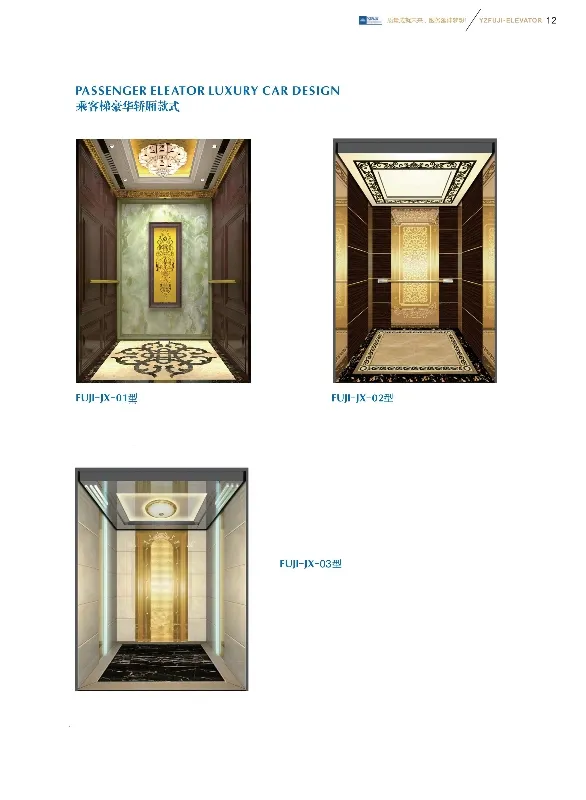

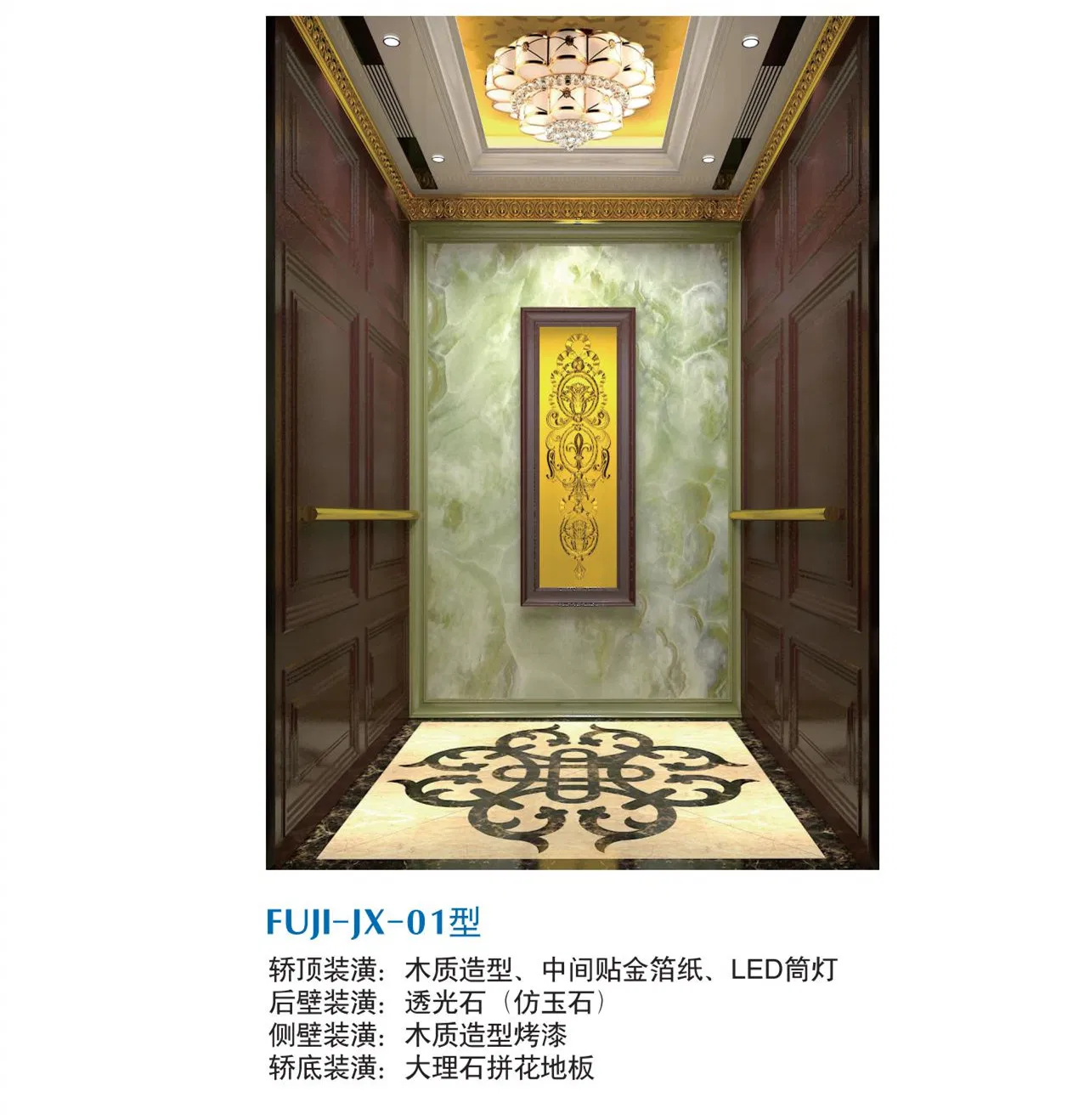

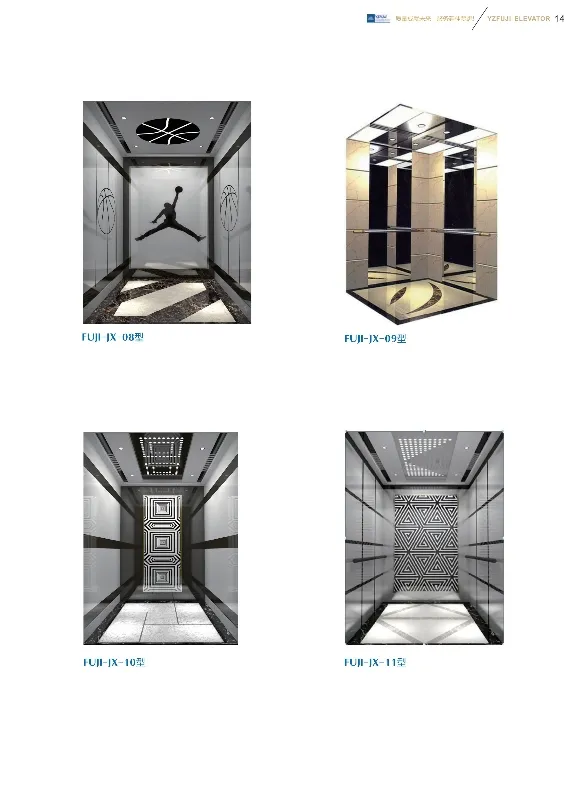

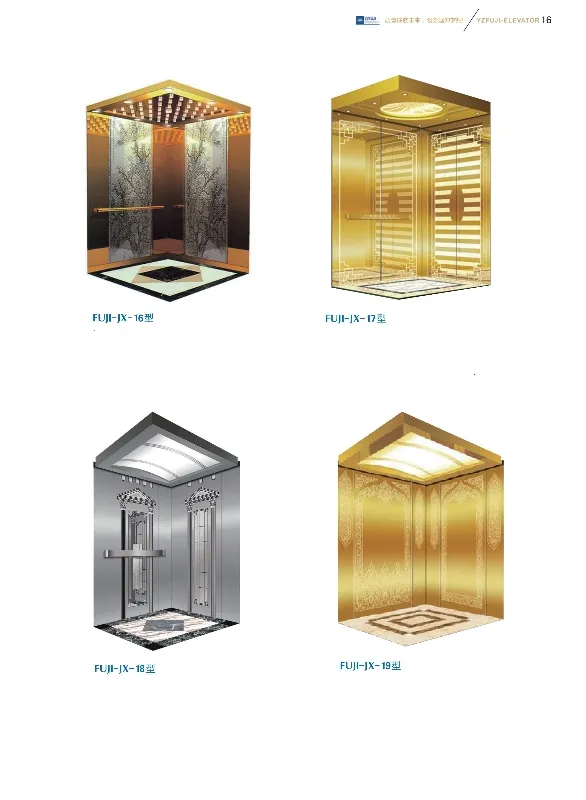

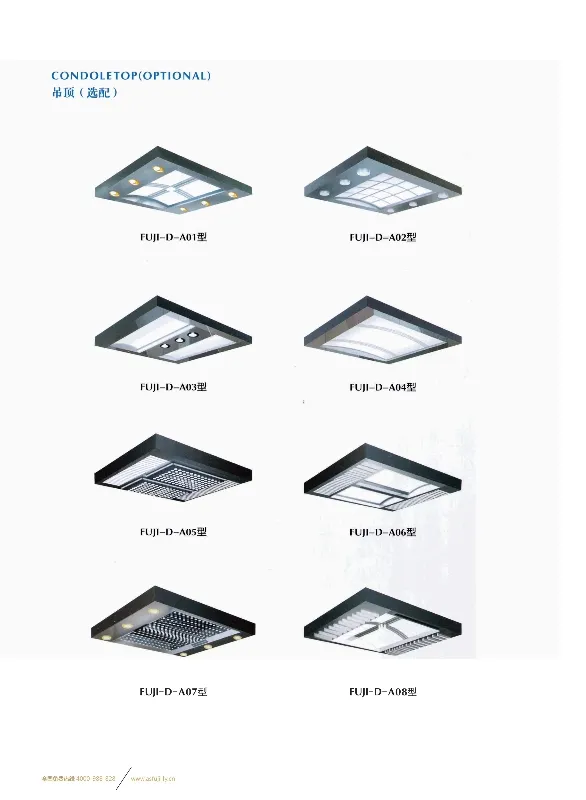

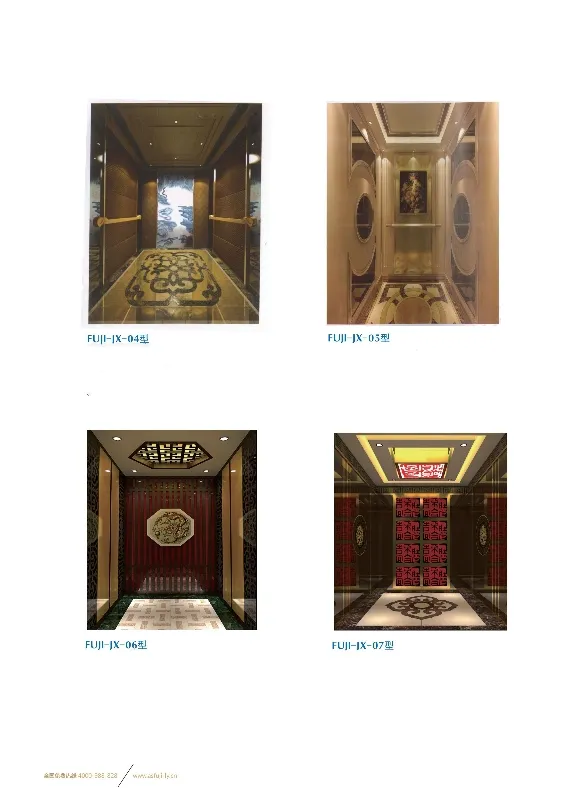

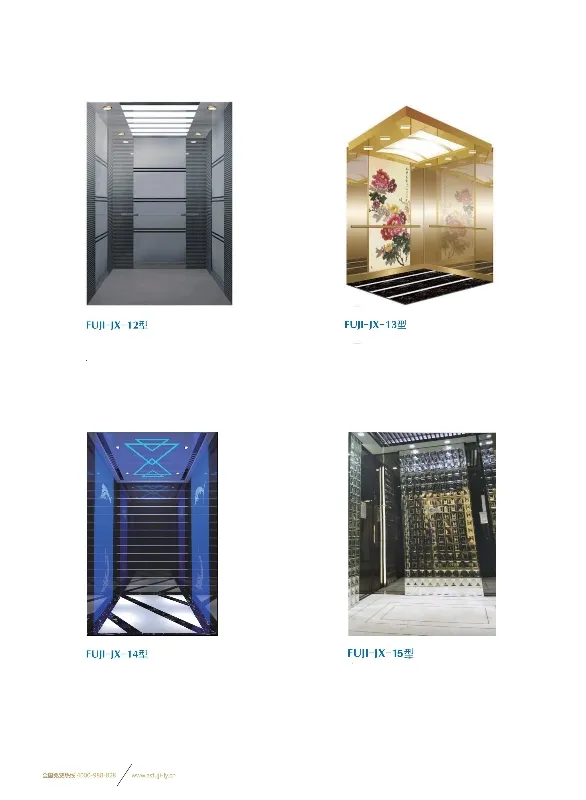

🖼️ Design Showcase

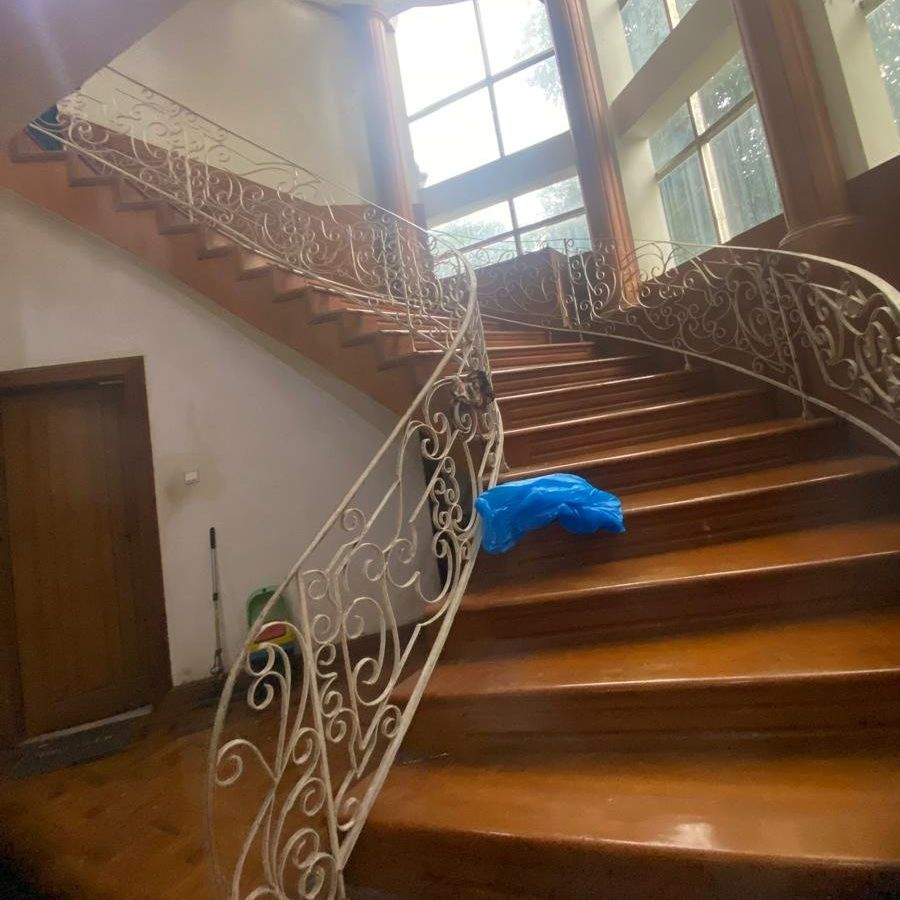

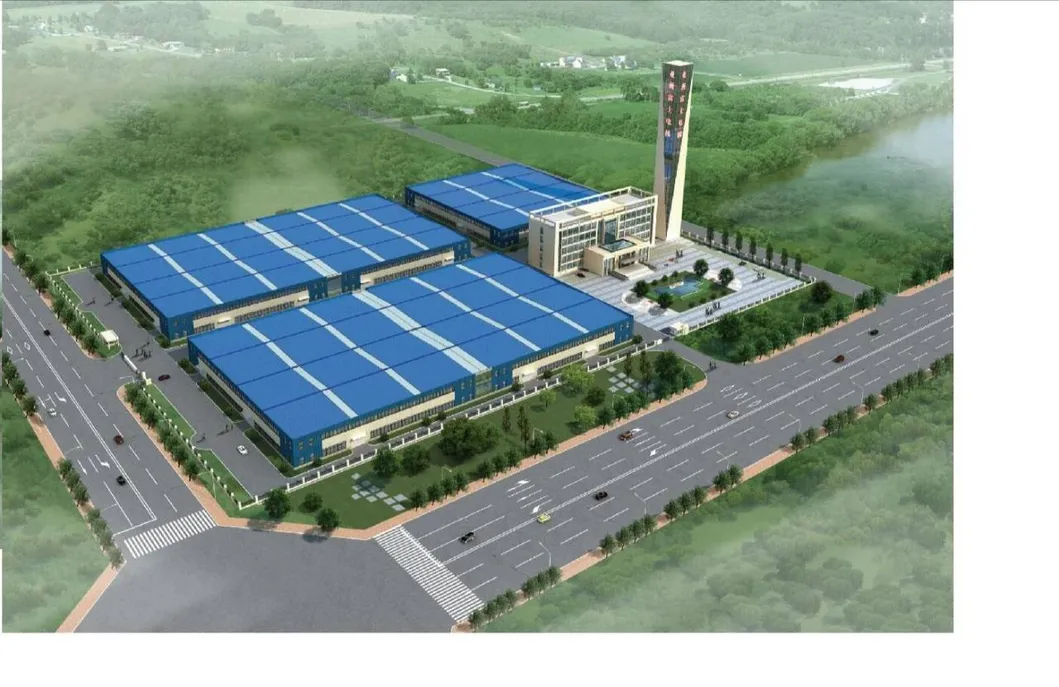

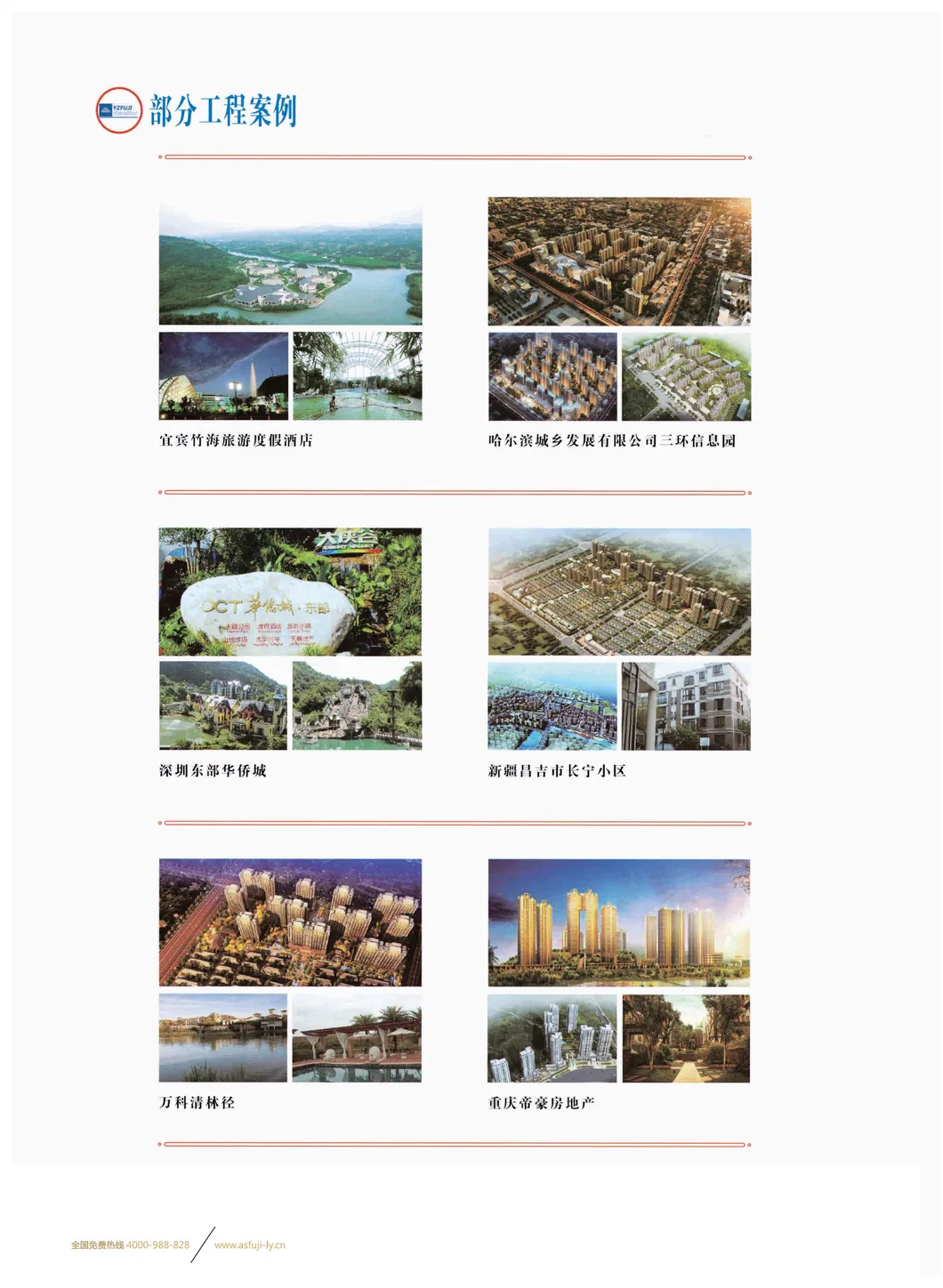

🏢 Production & Projects

❓ Frequently Asked Questions

1. What is the maximum capacity and speed of this elevator?

The capacity ranges from 500kg to 1000kg (accommodating 6-10 persons), with a rated speed between 1.00m/s and 2.00m/s.

2. Does this model require a machine room?

This model is designed to work without a machine room (Machine Room-Less) or with a very small machine room, saving building space and construction costs.

3. How much energy can be saved with this system?

By using VVVF drive and regenerative braking units, the system can achieve more than 50% energy saving compared to traditional AC elevators.

4. What materials are used for the cabin construction?

The standard material used is high-quality 304 Stainless Steel, ensuring durability and a premium aesthetic finish.

5. Is the elevator design customizable?

Yes, we offer full OEM and ODM customization for car finishes, ceiling designs, lighting, and floor materials to match your building's style.

6. What safety systems are integrated?

The elevator includes safety gear, VVVF technology for smooth operation, and an internet-connected monitoring system for real-time maintenance and safety management.
