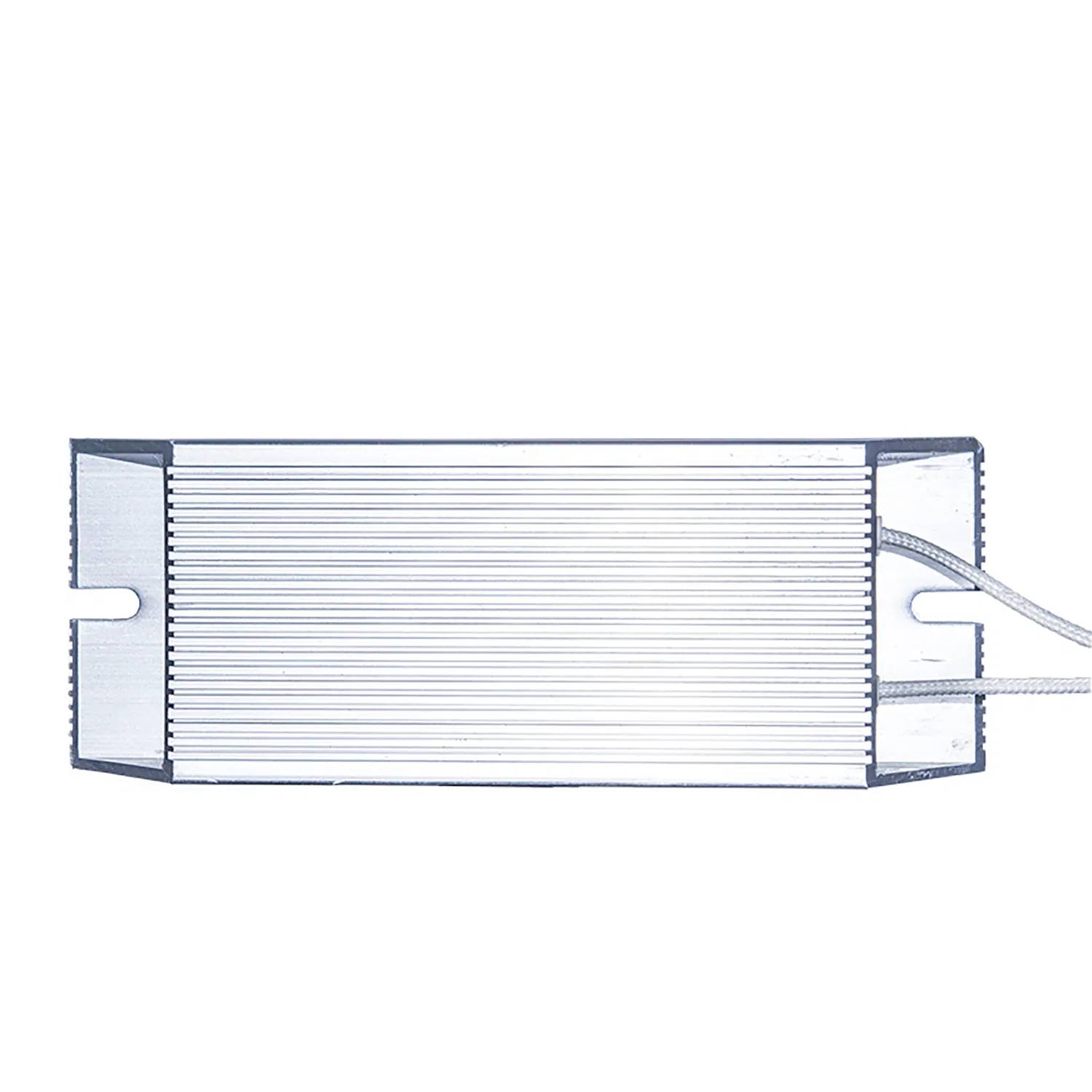

1000W 75 Ohm Brake Resistor, Regenerative Resistors for Elevator, Aluminum Body

Basic Specifications

Model NO.

RXLG

Installation

DIP Resistor

Material

Wire-wound Resistor

Packaging

Through Hole

Type

Brake Resistor

Shape

Rectangle

Application

Inverter, Machine Tool, Wind Power, Elevator, Ship

Operating Voltage

0.5kv-2kv

Resistance Range

0.1r-100kr

Protection Level

IP44

Specification

W 50*H 107*L 450MM

HS Code

853329000

Product Showcase

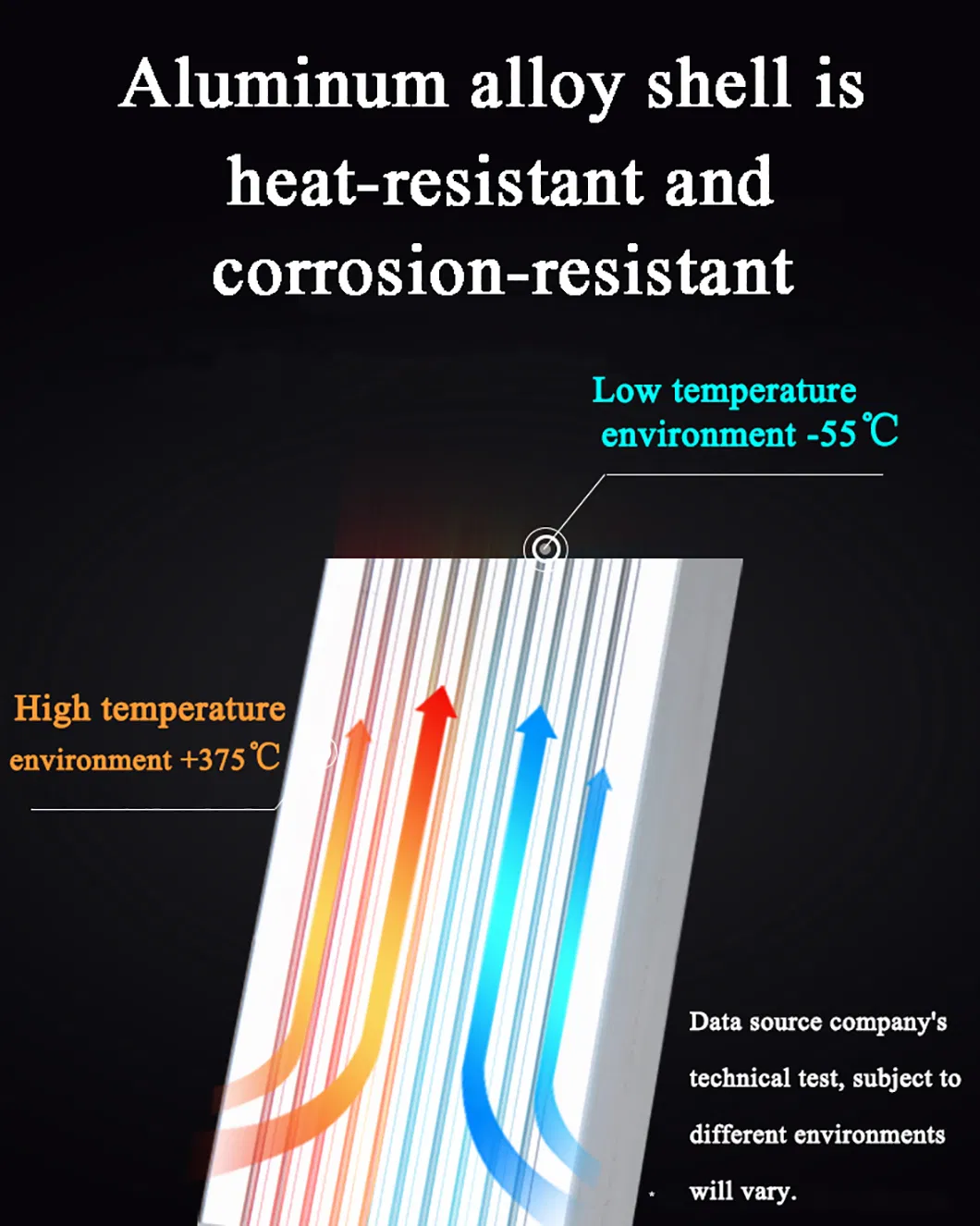

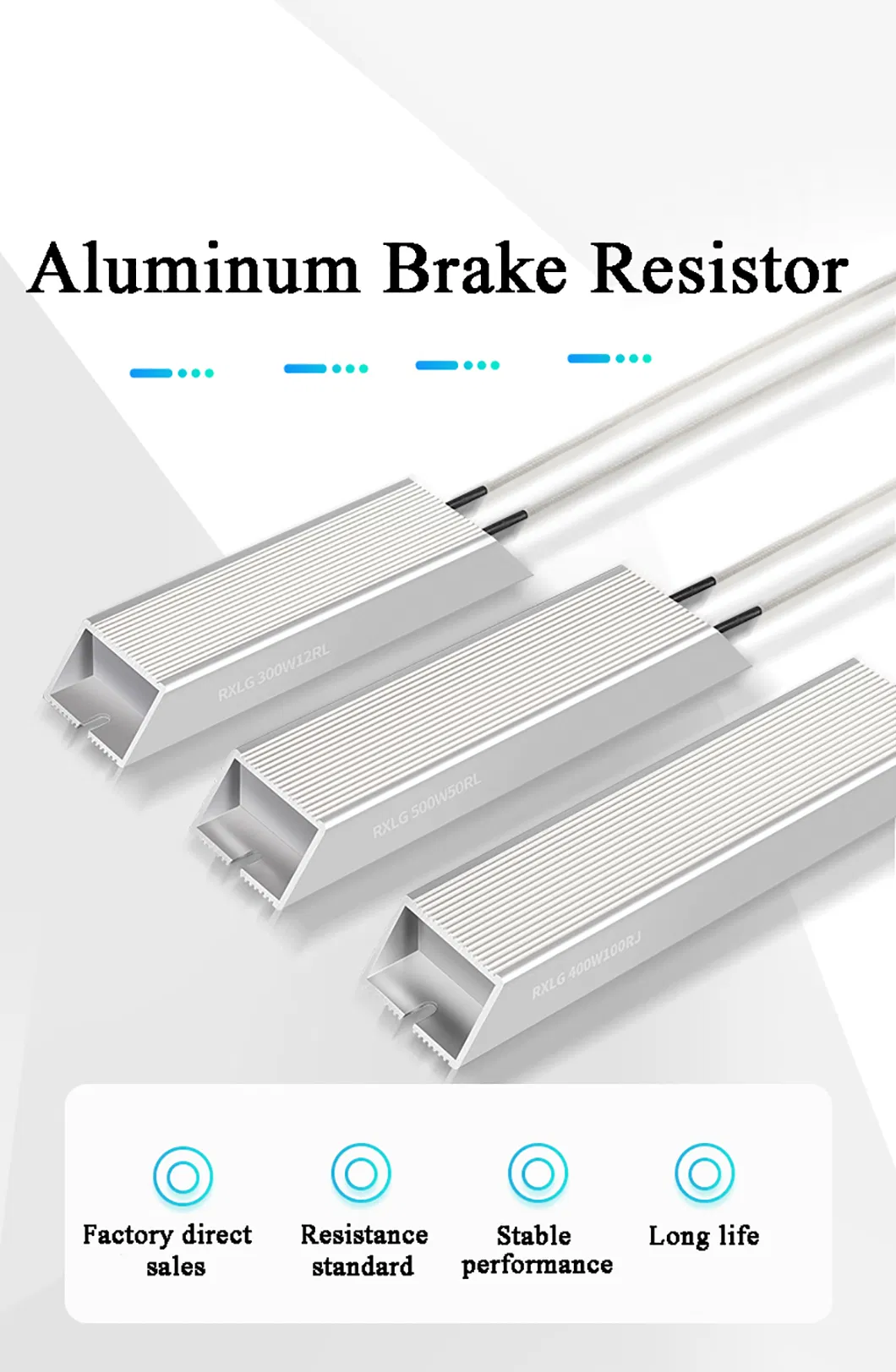

Aluminum resistor is also widely known as a braking resistor, charge resistor, bleeder resistor, or current-limited resistor. It is characterized by high resistance to shock, strength power, fast heat dissipation, high stability, and an exceptionally long service life.

Core Construction

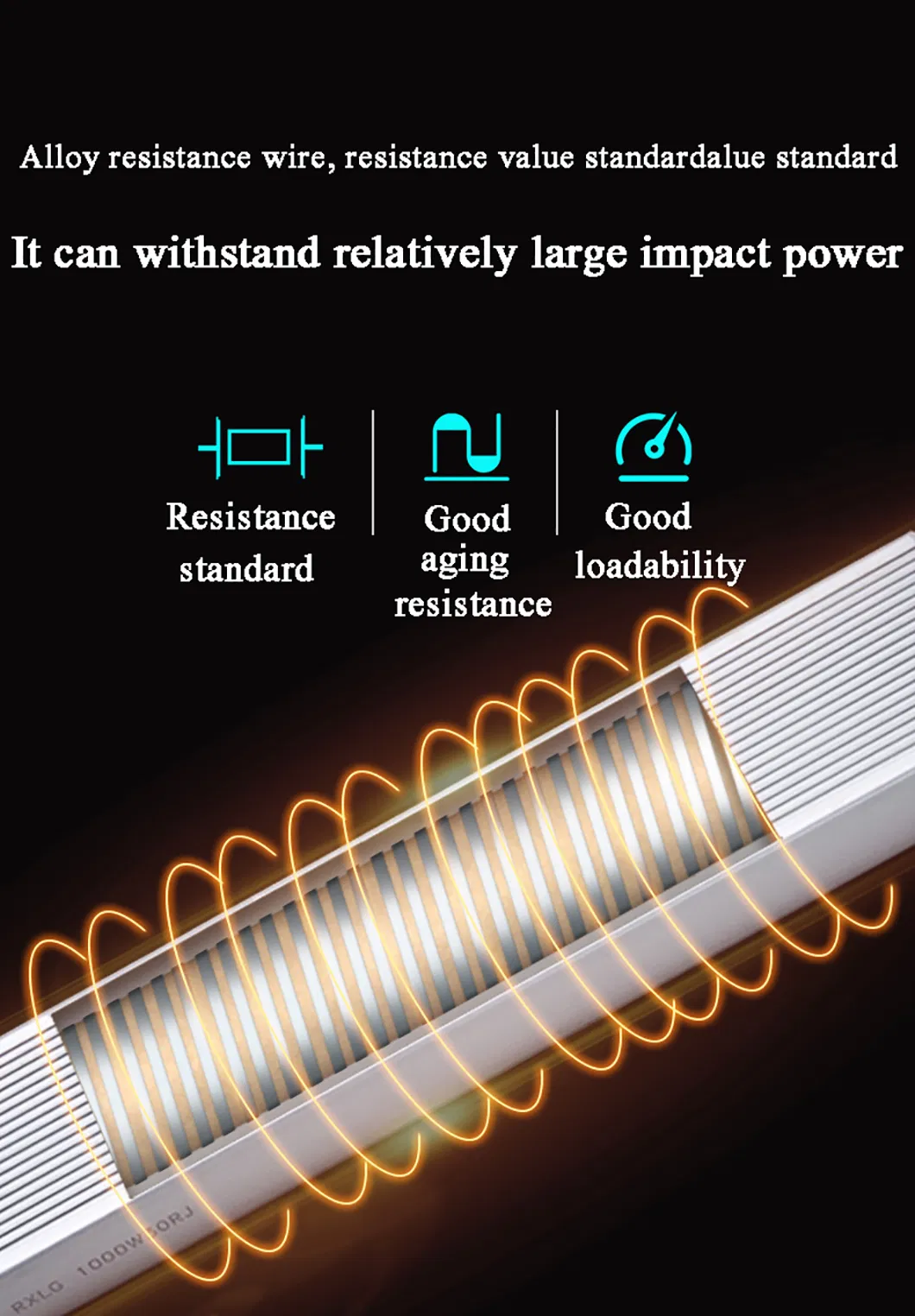

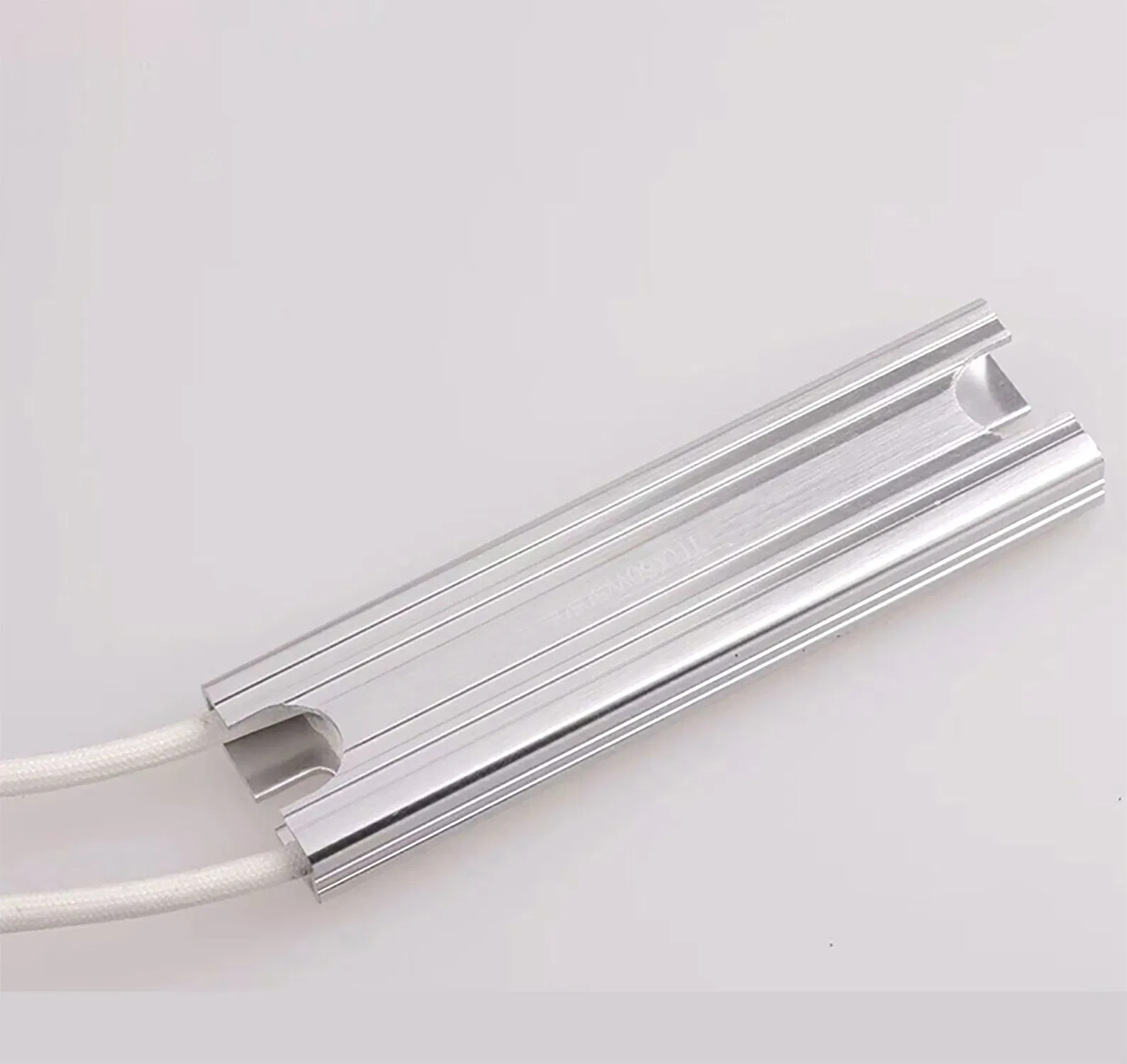

An aluminum encased consists of an alloy metal coil-type resistance element assembled into an aluminum enclosure.

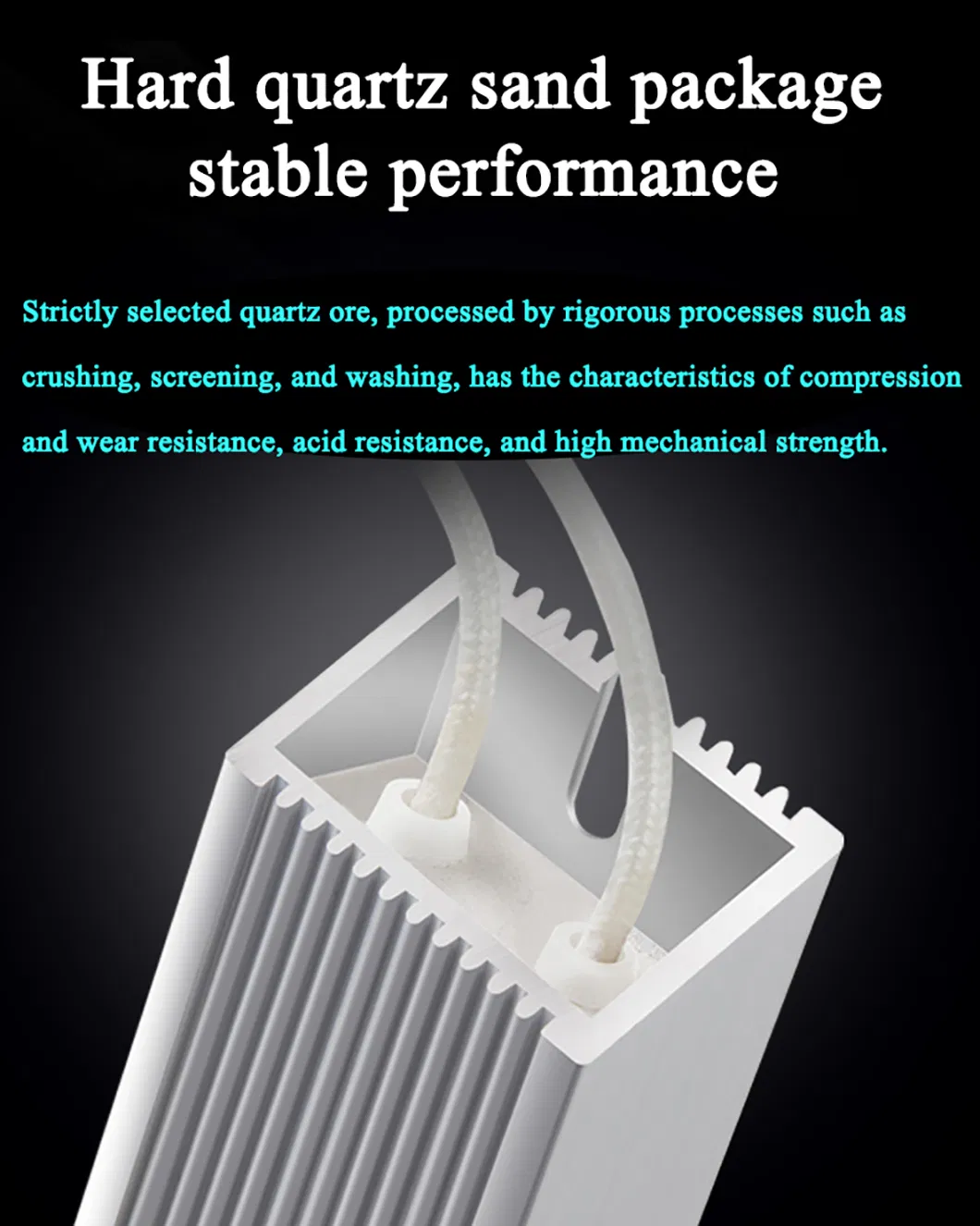

Following high-temperature anodization, the enclosure is filled with a special non-flammable cement paste. Insulation is applied through a specialized high-temperature process.
Since this component is embedded in heat-proof cement, it remains unaffected by external mechanical forces and dusty environments.

RXLG 60W~5000W Dimensions

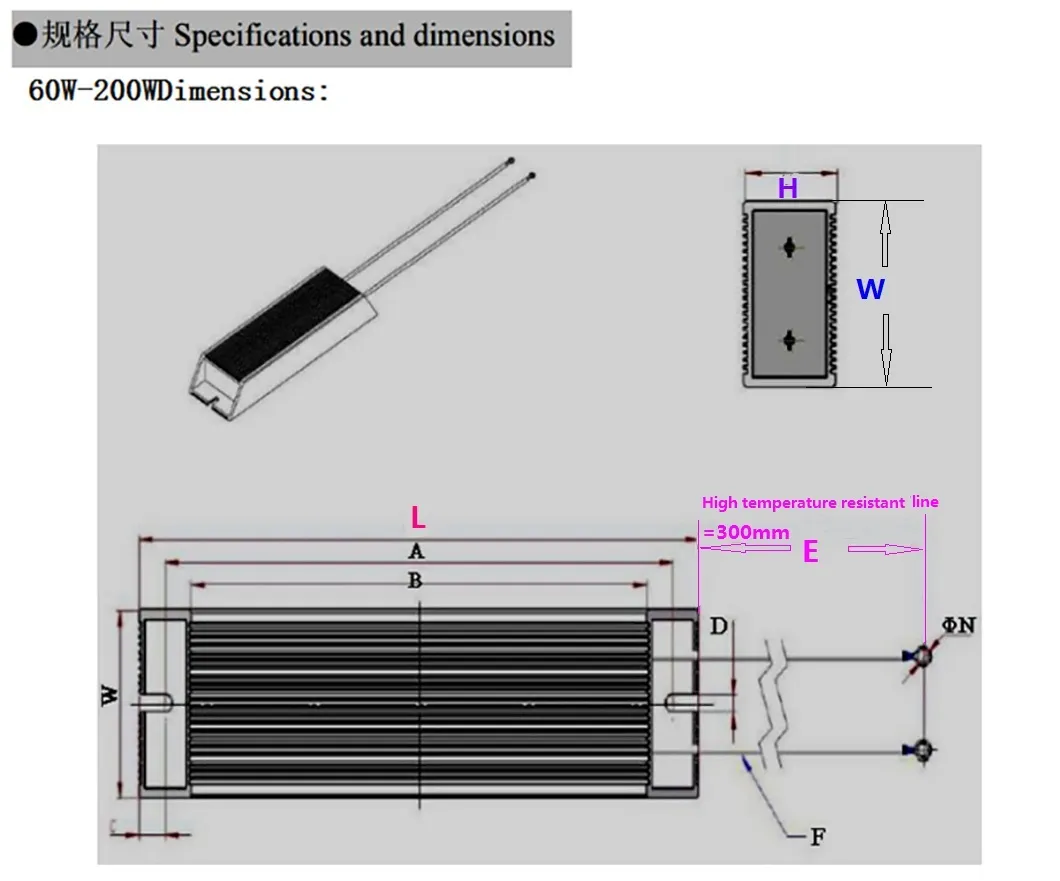

Power (W)	Bottom length (L)	Width (W)	High (H)	Face length (B)	Pitch (A)	Slot width (D)	Line length (E)	Terminal (N)
60	100	40	20	75	80	5.5	300	4
100	115	40	20	90	95	5.5	300	4
200	215	40	20	190	195	5.5	300	4
The power and dimension can be especially customized for customers.

Power (W)	Bottom length (L)	High (H)	Width (W)	Pitch (A)	Slot width (D)	Terminal dia (N)
1000	300	107	50	280	6.5	6
3000	550	107	50	530	6.5	6
5000	750	107	50	730	6.5	6
The power and dimension can be especially customized for customers.

Technical Testing Standards

Test item	Test condition	Specifications
Temperature coefficient	JIS-C-5202 5-2	±250PPM/ºC Max
Short-term overload	500% rated power 5 seconds	ΔR≤±(2%+0.1Ω)
Dielectric withstanding	2000V DC 1 minute	Free of structural irregularity
Insulation resistance	1000V DC	100 MΩ Min

Key Features & Applications

Rated Power: 50W to 6000W
Durability: Vibration-proof with excellent heat dissipation.
Environment: Suitable for harsh industrial conditions.
Standards: Conforms to ROHS and LEAD-FREE standards.
Industrial Use: Perfect for power supplies, elevators, inverters, automotive systems, generators, and marine applications.

Frequently Asked Questions

What are the main functions of the RXLG aluminum shell resistor?

It serves multiple purposes including acting as a braking resistor, charge resistor, bleeder resistor, or current-limited resistor, particularly in inverter and elevator systems.

Is the resistor suitable for harsh working environments?

Yes, with an IP44 protection level and a rugged metal aluminum shell encapsulation, it is designed to withstand vibrations and harsh industrial conditions.

What is the typical lead time for these power resistors?

The standard delivery time is generally between 5 to 7 days, depending on the specific technical requirements.

Can the power and dimensions be customized?

Absolutely. We offer customization for non-standard technical requirements to suit unique client applications.

Does this product meet international environmental standards?

Yes, all resistors conform to the ROHS standard and the LEAD-FREE non-lead standard.

What resistance range is available for the RXLG series?

The rated resistance range is very broad, covering from 0.1R up to 100KR.
