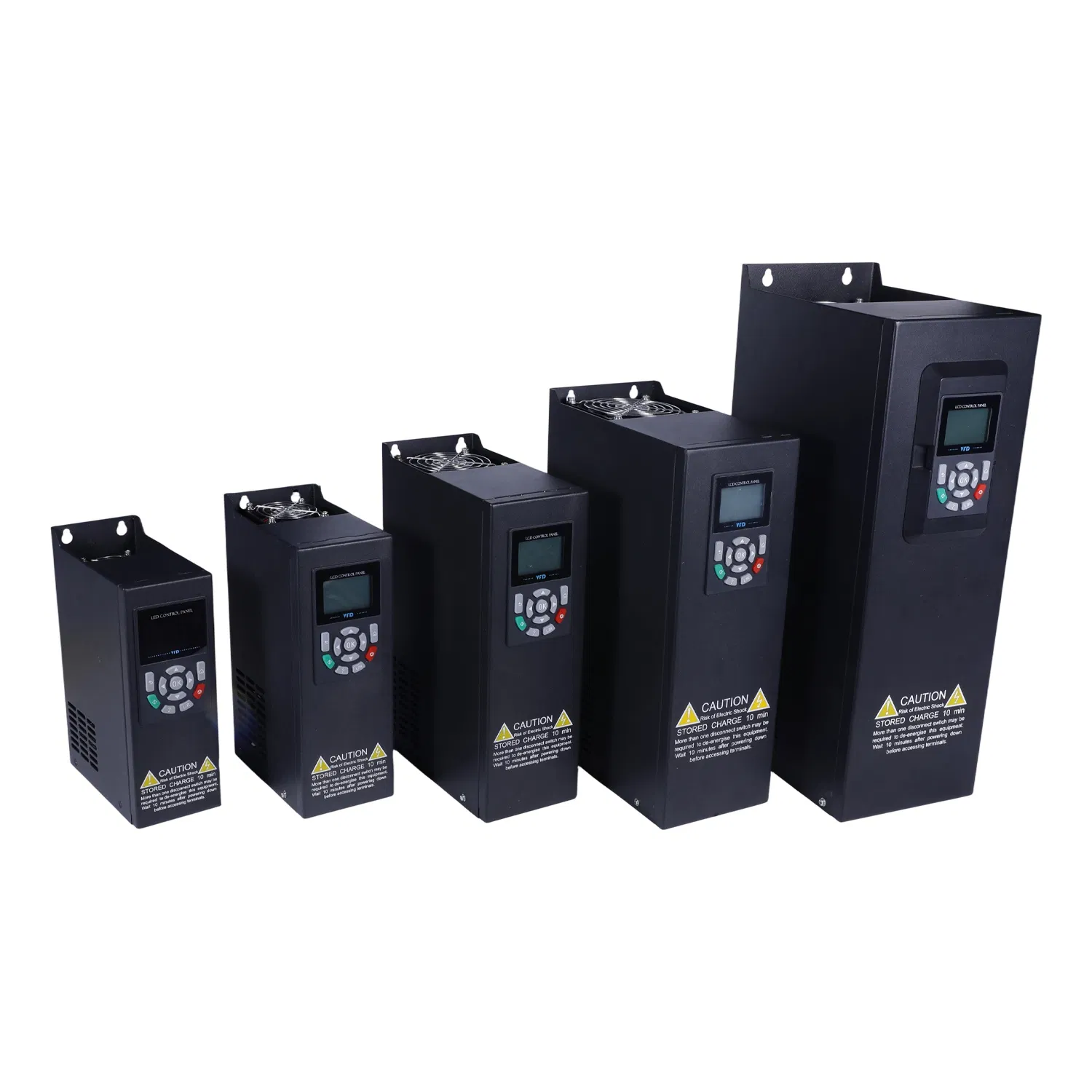

Product Description

Basic Specifications

Model NO.

AE(AF)300

Principle of Work

Vector Control Transducer

Switch Mode

High Carrier Frequency PWM Control

Main Circuit Type

Voltage

Voltage Supply

Low Voltage Variable-Frequency Drive

Transformation

AC-DC-AC Variable-Frequency Drive

DC Power Nature

Voltage Variable-Frequency Drive

Function

Simple Type, Elevator Special, Textile Special, Constant Torque Universal

Power Range

0.75kw-650kw

Voltage Levels

220V, 380V, 690V

Drive Mode

Open Loop Vector, Close Loop Vector

Control Method

Vector Control, V/F, Encoder (Optional)

IP Level

IP20/IP65

Package

Wooden

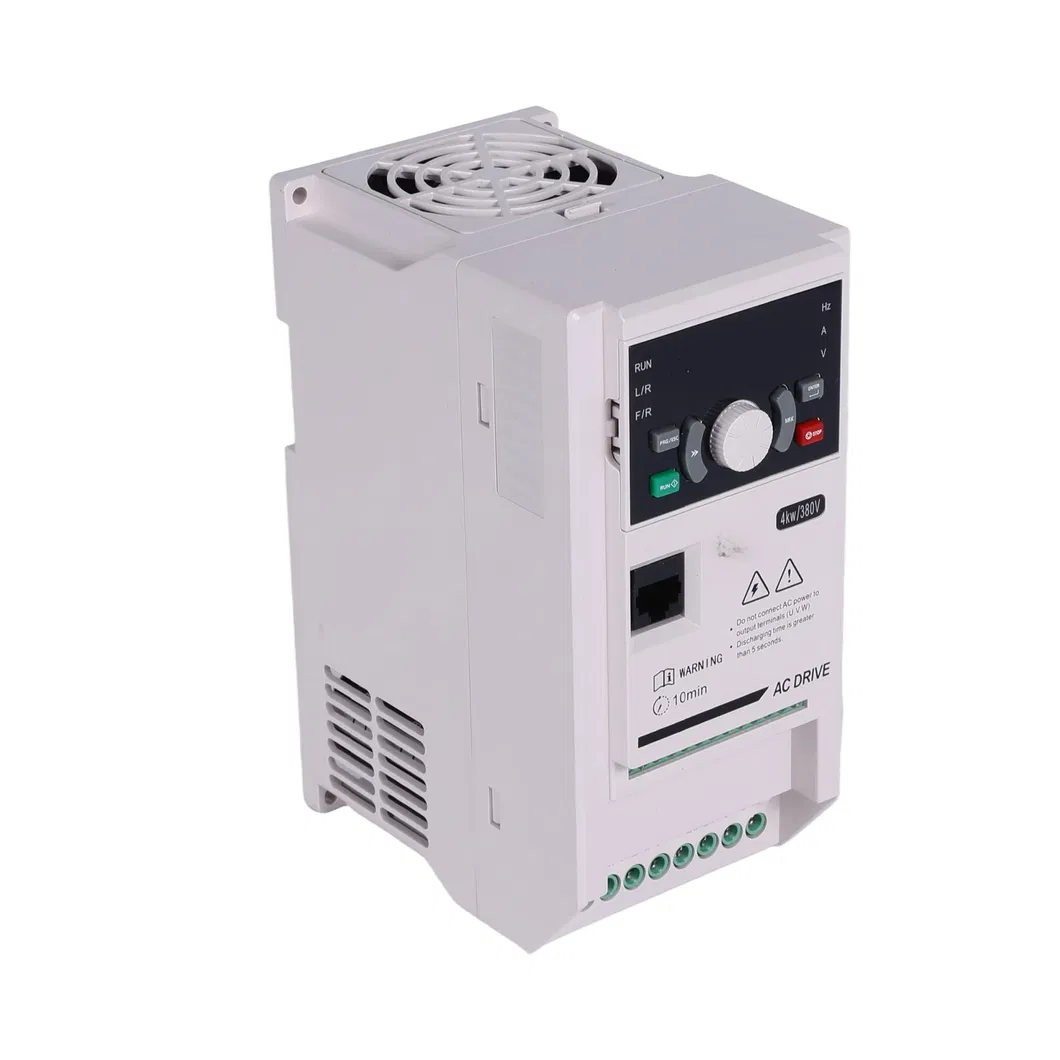

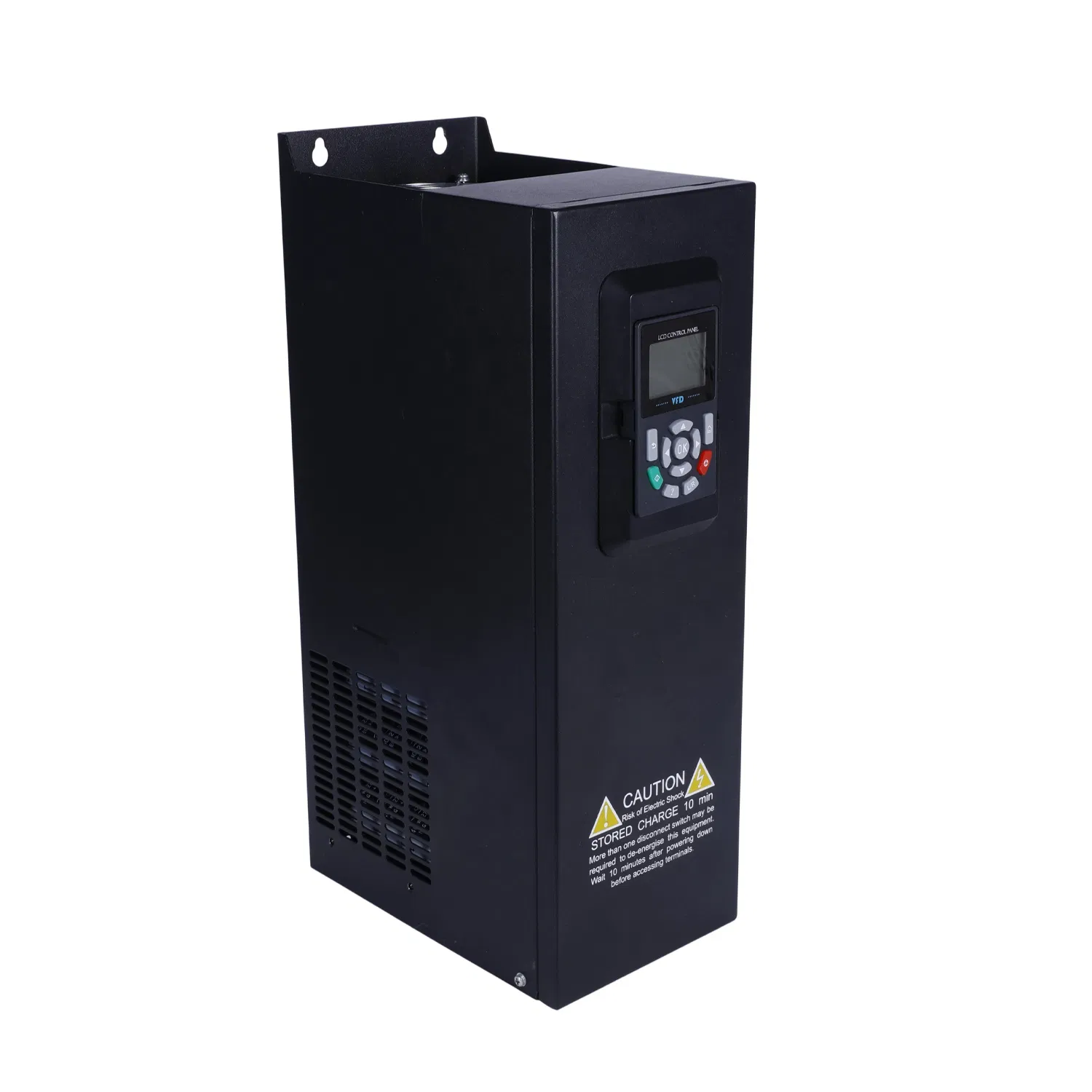

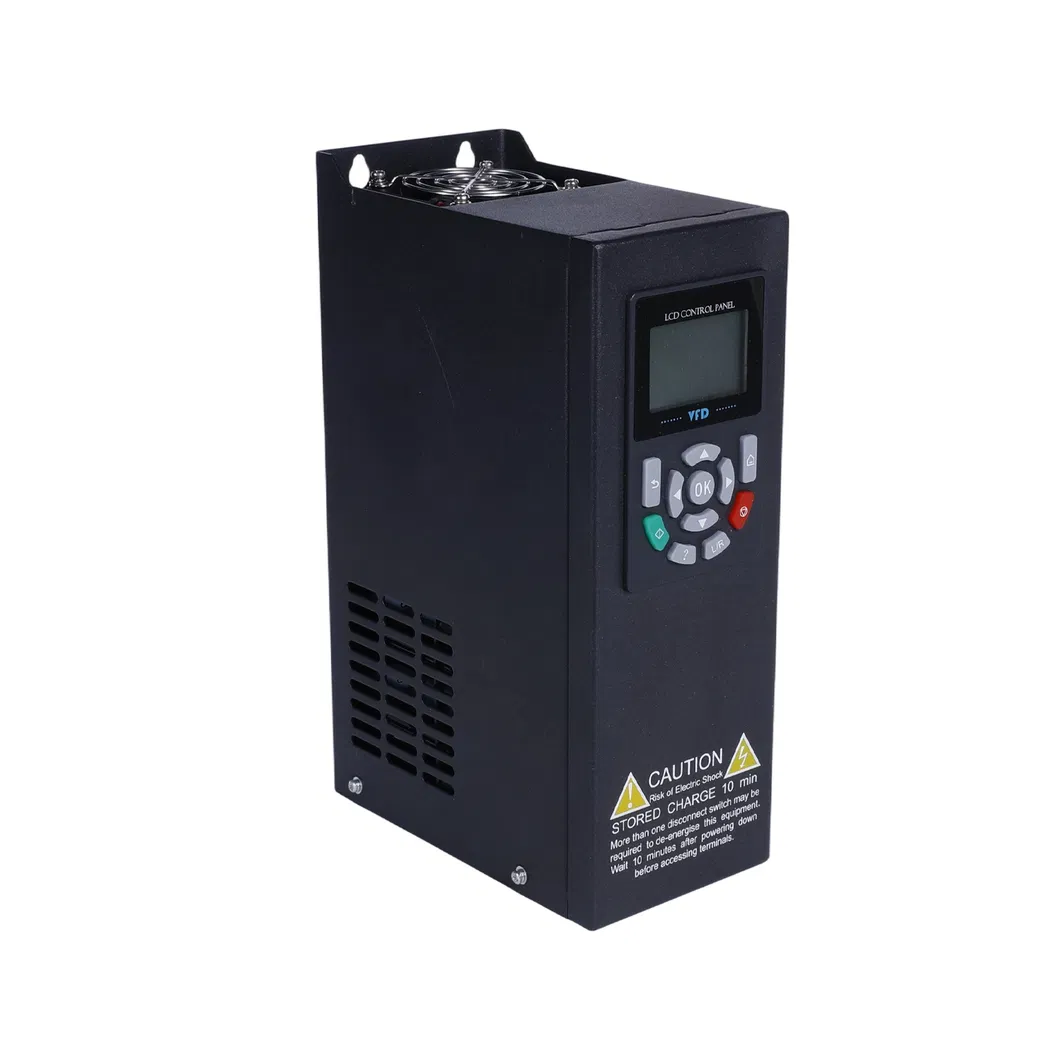

Product Description

The compact general-purpose AC drive offers a comprehensive power range from 0.75 kW to 650 kW and supports multiple voltage levels including 220 V, 380 V, and 690 V, catering to a wide array of industrial application requirements. Featuring a sophisticated narrow, book-style design with side-by-side mounting capability, it significantly saves cabinet space while providing convenient wiring and user-friendly operation.

Ensuring stable performance under various conditions, it is available with either an IP20 or IP65 protection rating. OEM/ODM customization is fully supported, allowing for flexible configurations that align precisely with the operational needs of diverse machinery, providing reliable quality and enhanced cost-competitiveness.

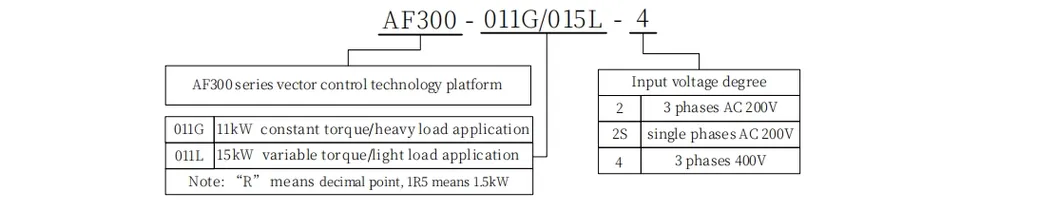

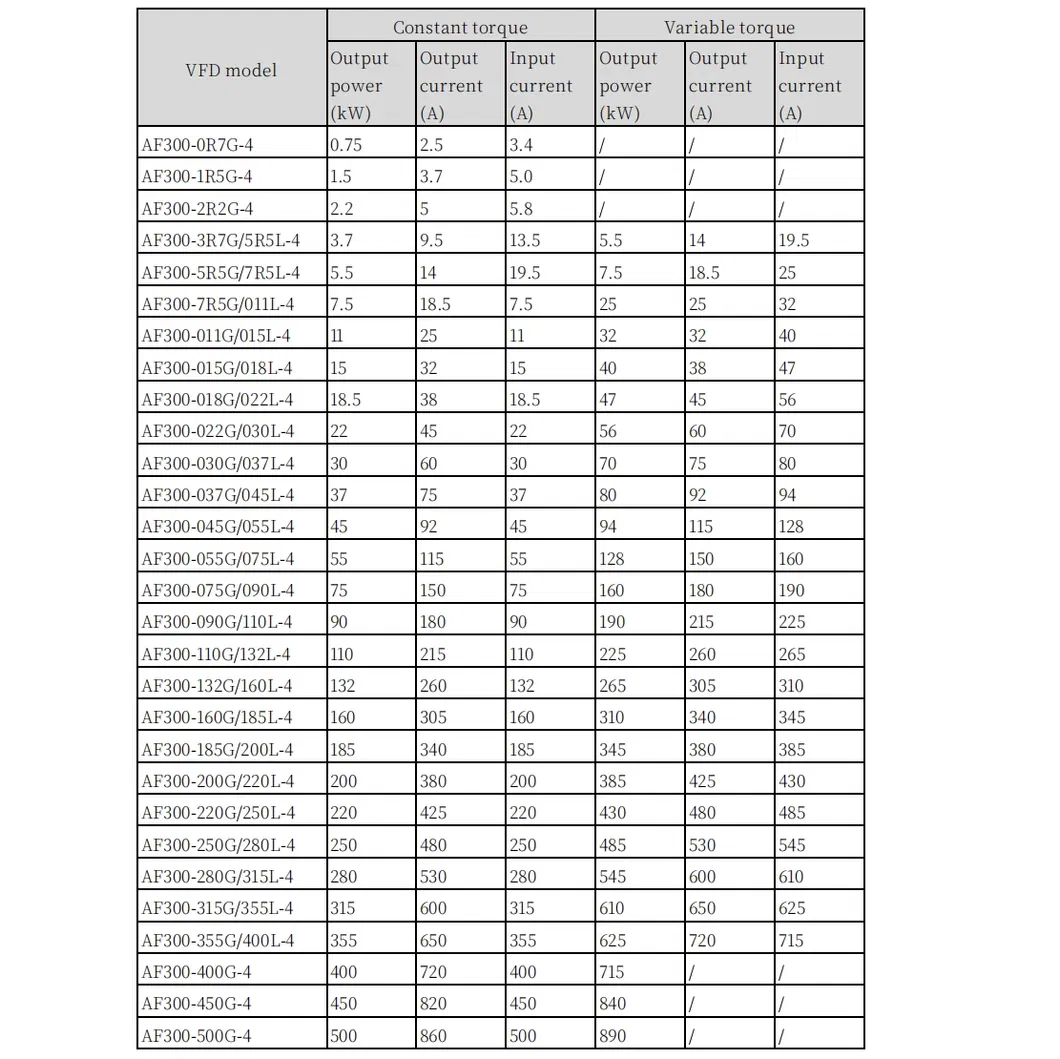

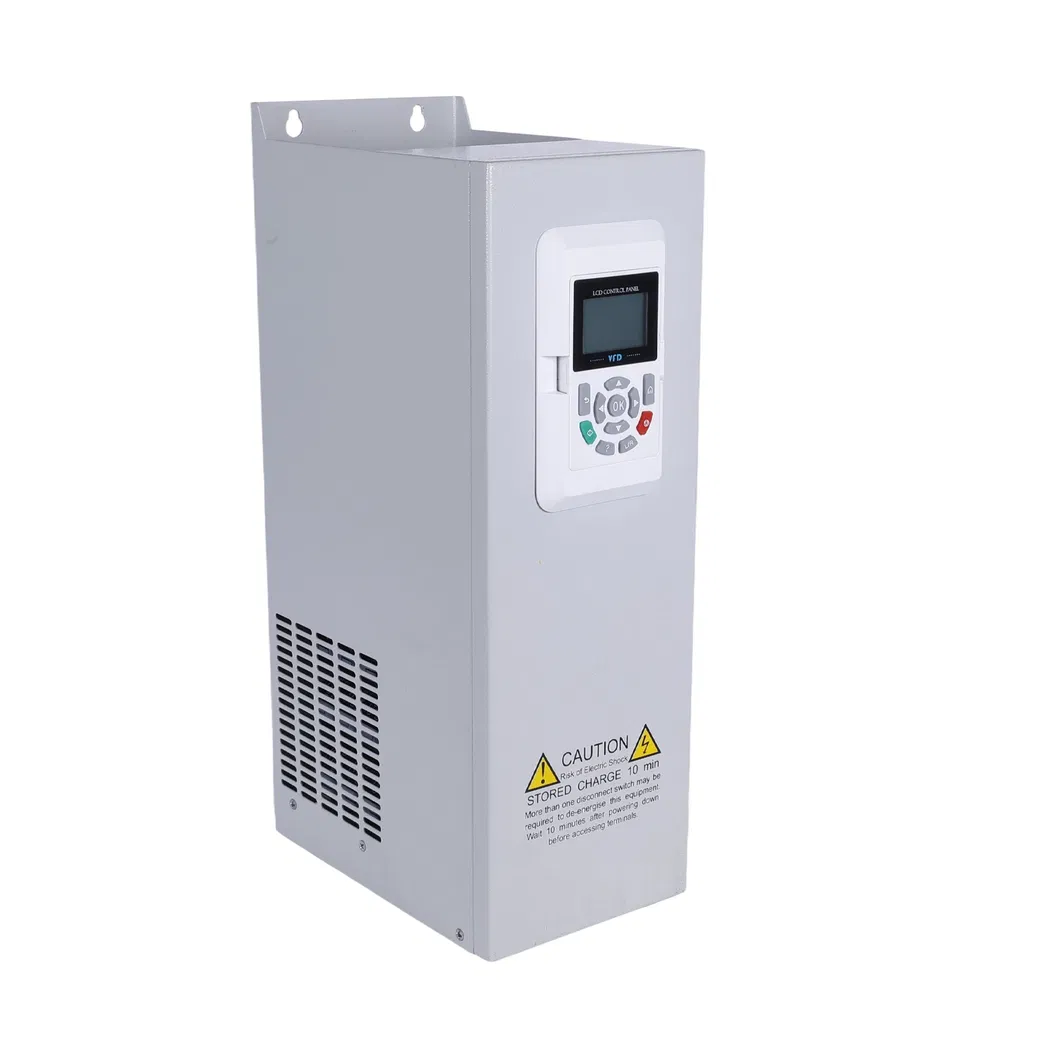

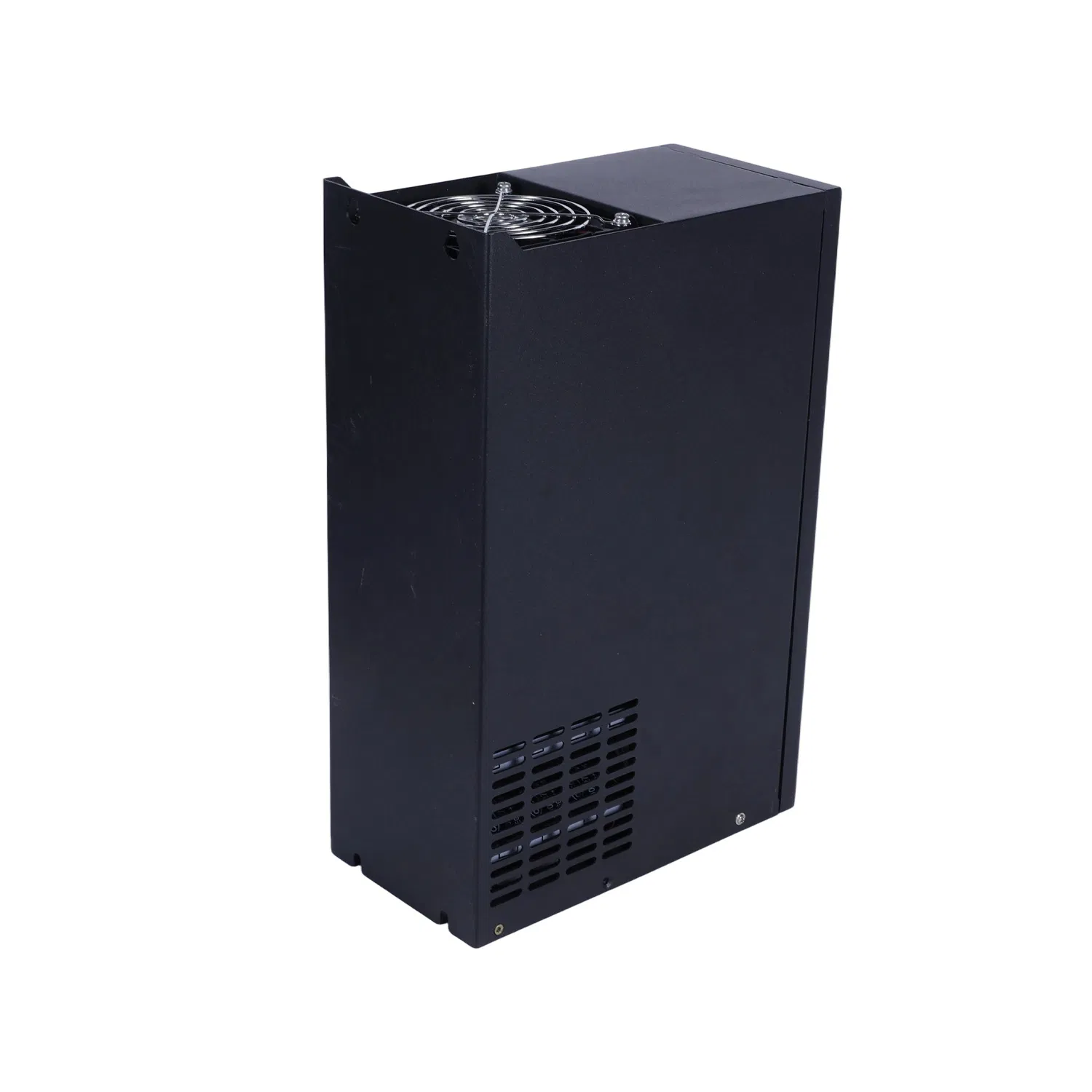

Product Series

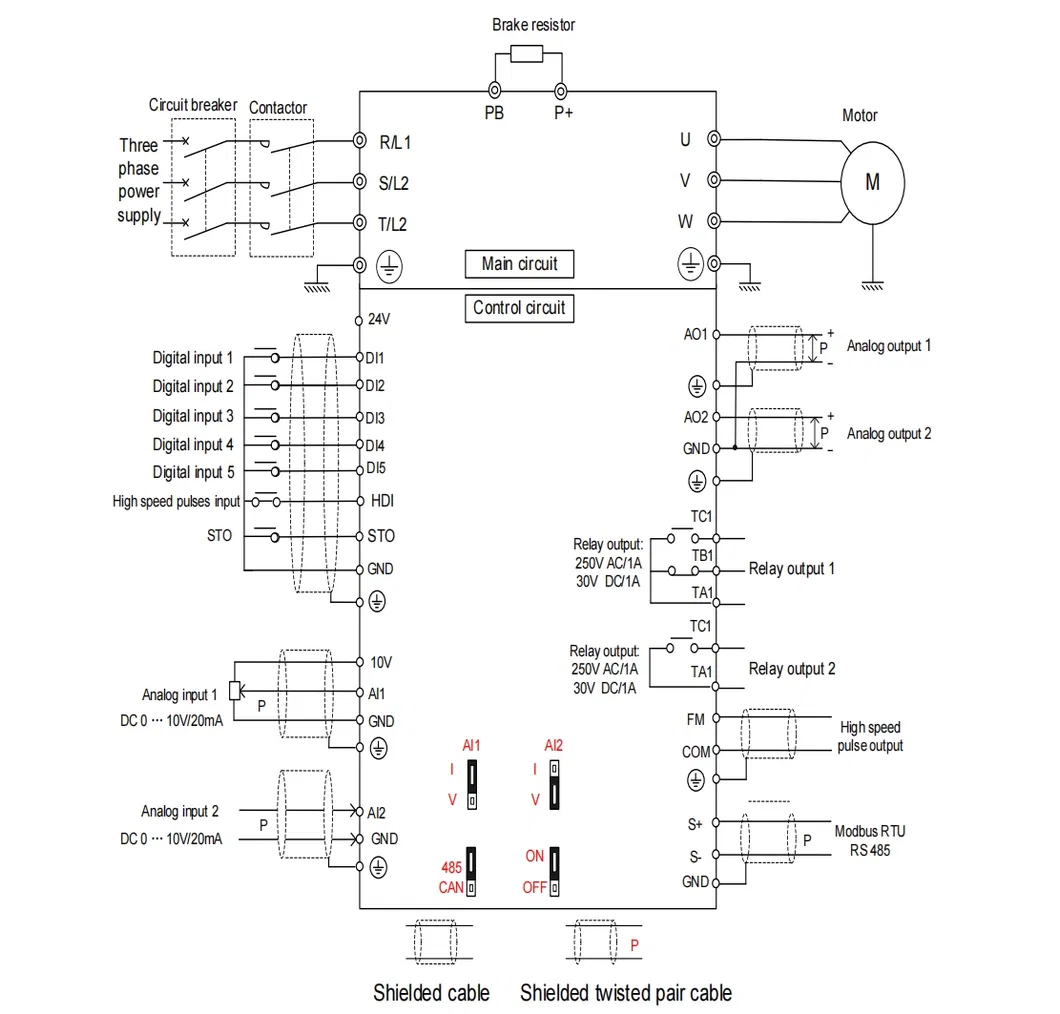

Terminal Wiring Diagram

Mounting Dimensions

Model	Outline and mounting dimensions (mm)
Model	H	W	D	H1	W1	Hole
AF300-0R7G to 3R7G-4	230	80	165	215	52	M5
AF300-5R5G to 7R5G-4	255	90	165	245	50	M5
AF300-011G to 015G-4	300	100	205	290	70	M6
AF300-018G to 022G-4	350	120	230	340	70	M6
AF300-030G to 037G-4	465	150	250	455	90	M6

AE300-0R7G to 2R2G-4	165	90	125	155	75	M5
AE300-3R7G to 5R5G-4	185	95	135	175	85	M5
AE300-7R5G to 011G-4	255	145	190	240	130	M5
AE300-015G to 018G-4	320	170	205	305	150	M5
AE300-022G to 030G-4	360	220	210	340	130	M7
AE300-037G to 045G-4	415	270	250	400	215	M7
AE300-055G to 075G-4	610	260	300	590	175	M7
AE300-090G to 110G-4	640	290	330	620	190	M7
AE300-132G to 185G-4	720	310	405	700	205	M8
AE300-200G to 250G-4	930	310	405	875	205	M9
AE300-280G to 400G-4	1000	460	480	940	380	M10
AE300-450G to 500G-4	1060	650	350	960	450	M10

Frequently Asked Questions

What is the power range supported by these AC drives?

The drives support a broad power spectrum from 0.75 kW up to 650 kW, suitable for both light and heavy-duty industrial applications.

Which voltage levels are compatible with the AE(AF)300 series?

The series is compatible with standard industrial voltages including 220V, 380V, and 690V systems.

What are the main control methods available?

These drives utilize advanced Vector Control (both Open Loop and Close Loop), V/F control, and offer optional encoder support for precise motor management.

Can these drives be installed in space-constrained cabinets?

Yes, the "book-style" narrow design allows for side-by-side mounting, which is specifically engineered to minimize space requirements in electrical cabinets.

Are there different protection ratings for harsh environments?

Yes, the products are available with IP20 for standard indoor use or IP65 for environments requiring higher protection against dust and water.

What types of machinery are these drives suitable for?

They are universal drives ideal for elevators, textile machinery, constant torque applications, and general-purpose motor speed control.
