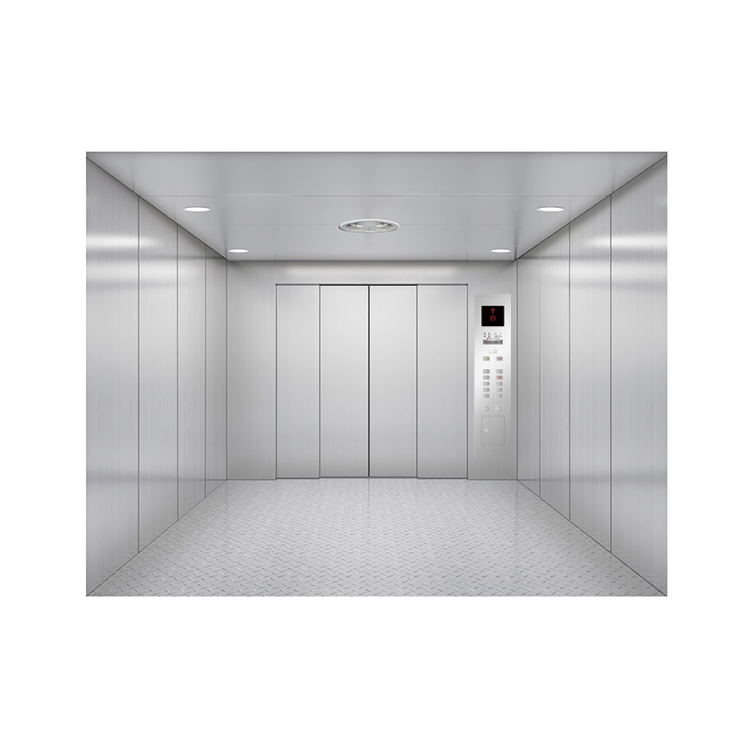

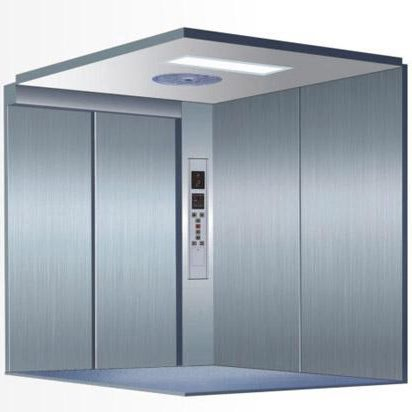

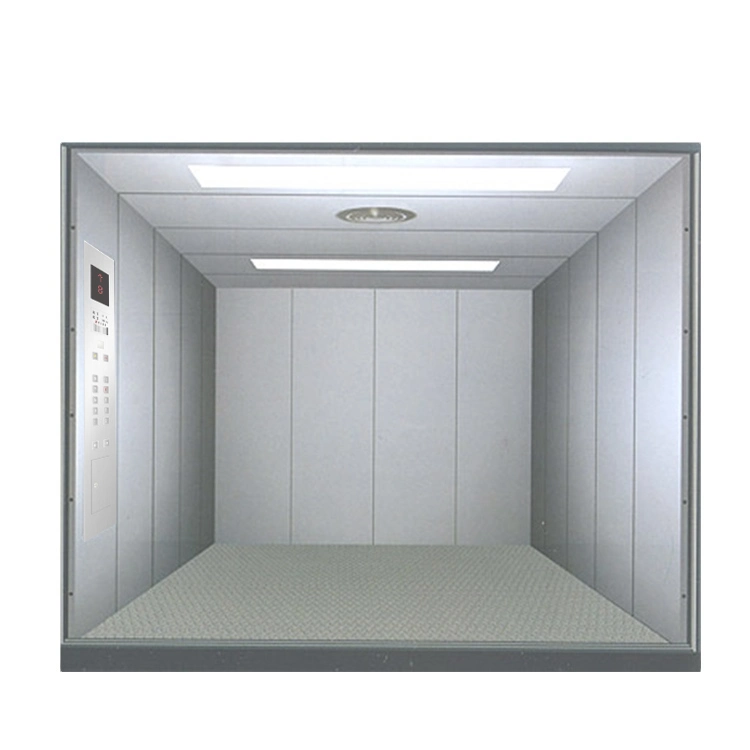

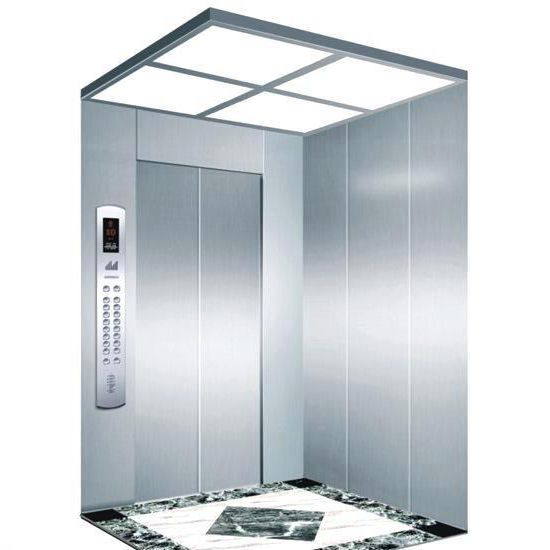

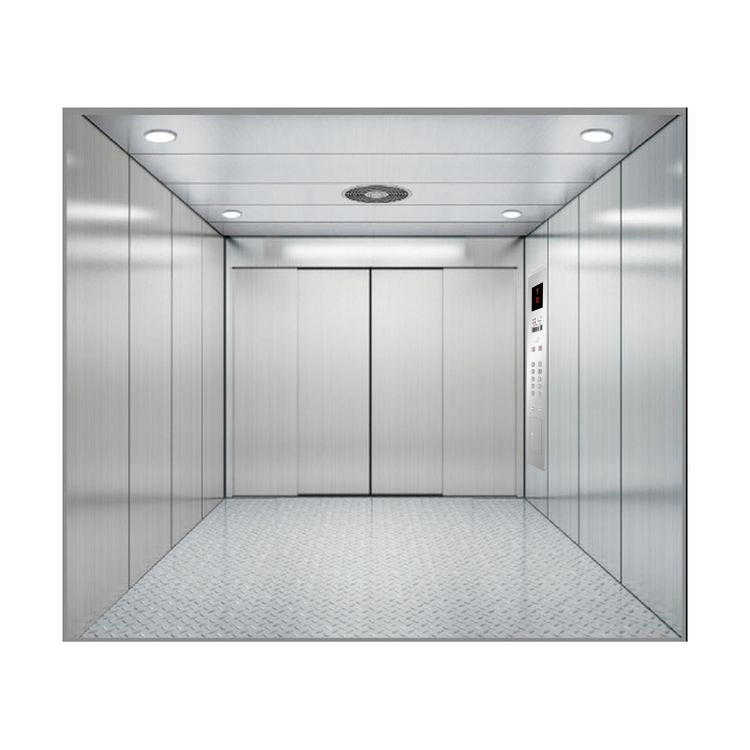

FUJI Small Machine-Room for Freight Elevator/Goods Lifts

Customization:	Available
After-sales Service:	Warranty/Installation Training/24 Hours Guidance
Warranty:	18 Months

Basic Info

Model NO.

FUJI

Type

Derrick

Load Capacity

2000kg

Speed

0.63m/s

Drive Mode

AC

Control System

Vvvf Drive

Material

304 Stainless Steel

Energy Saving

More Than 50%

Product Description

We provide customized elevators to cater to your buildings or decoration needs:

Save space: Can customize elevators for special mini shaft or no shaft buildings.

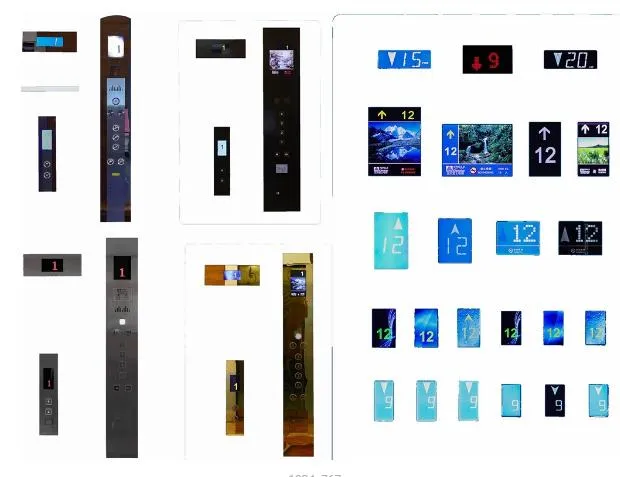

Humanize design: Customize COP, LOP and door handle positions according to user needs.

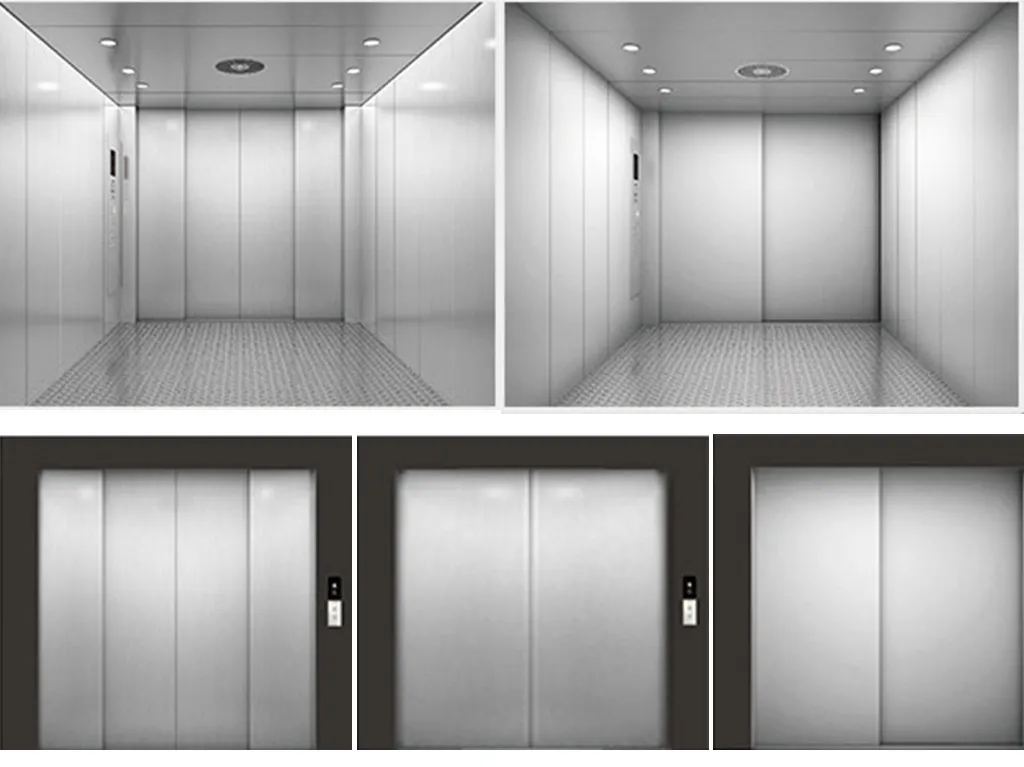

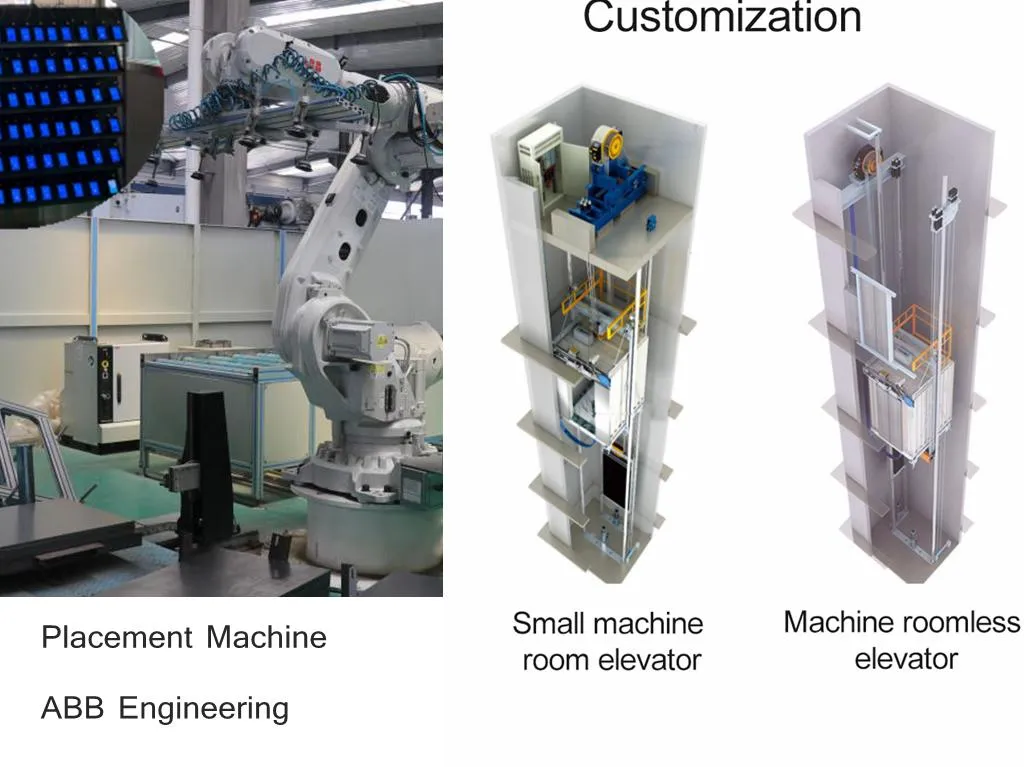

Decoration customized: Various schemes including modern, traditional, and technical styles.

Product Parameters

Capacity (Kg)	Speed (m/s)	Clear car dimension (mm)	Hoistway dimension (mm)	Pit depth (mm)	Overhead height (mm)	Rated power (KW)
1000	0.5/0.65	1400X1500	2300X2100	1500/1600	4200/4300	3.4/6.4
1500	0.5/1.0	1700X1700	2600X2300	1500/1600	4200/4300	5.6/10.3
2000	0.5/1.0	1800X2150	2800X2750	1500/1600	4200/4300	6.7/13.3
3000	0.5/1.0	2200X2450	3300X3050	1500/1600	4300/4500	10.3/20.8
5000	0.5/1.0	2700X3100	4000X3700	1500/1600	4800/5000	16.8/34.5
8000	0.5	3200X4000	4500X4600	1500	4800	37

Our Advantages

⚙️

VVVF Frequency Modulation Technology

Adopts low noise vector control inverter, voltage regulation, and speed regulation (VVVF). Utilizing advanced IGBT to realize PWM control, reducing motor noise and power consumption while prolonging motor life.

🌱

Energy-Saving Host System

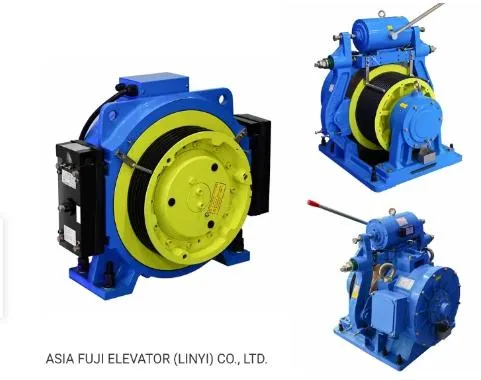

Uses permanent magnet gearless traction machines instead of traditional worm types. Saves more than 60% energy, requires no oil, and ensures minimum vibration and noise.

🛡️

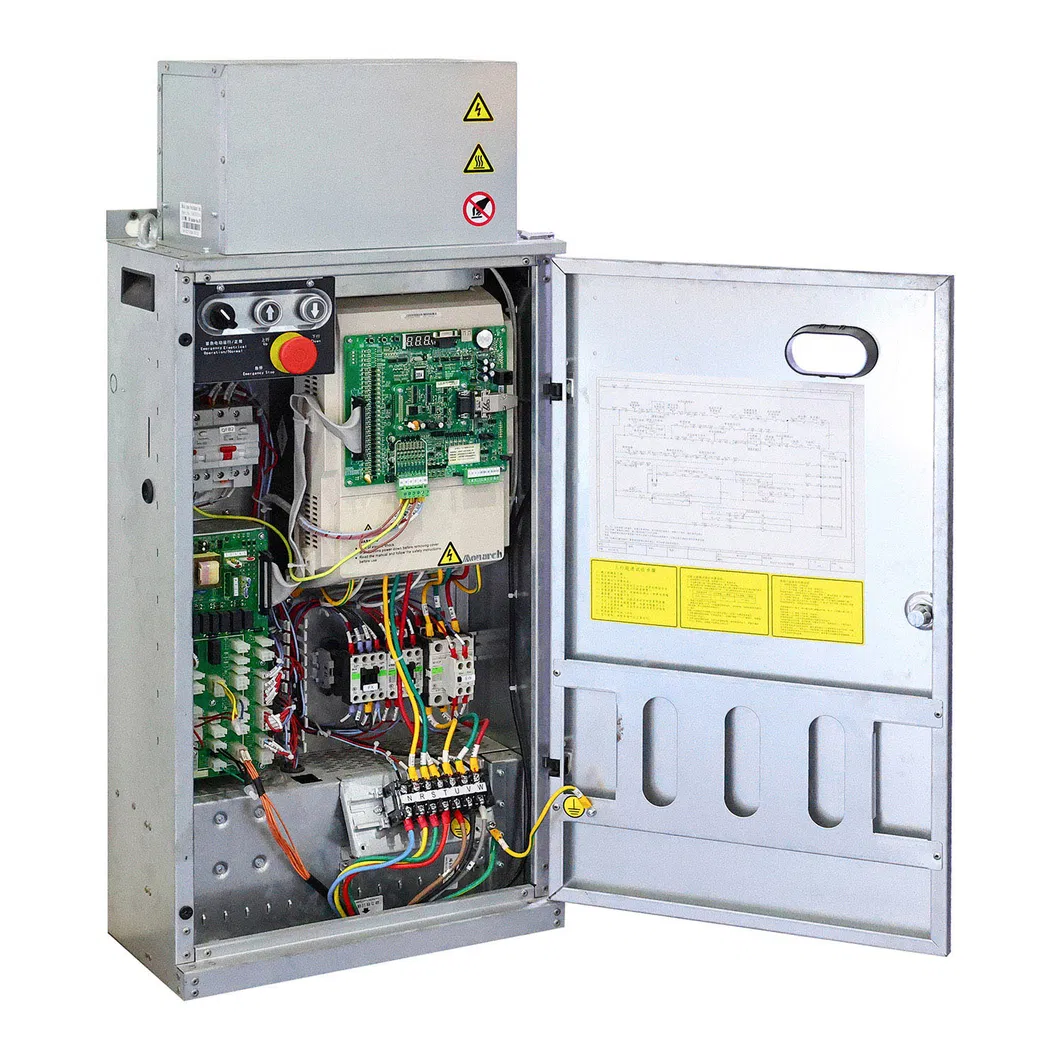

Integrated Control System

Equipped with NICE3000 integrated control system, using high-performance vector control and digital direct parking technology for smooth operation curves.

🛡️

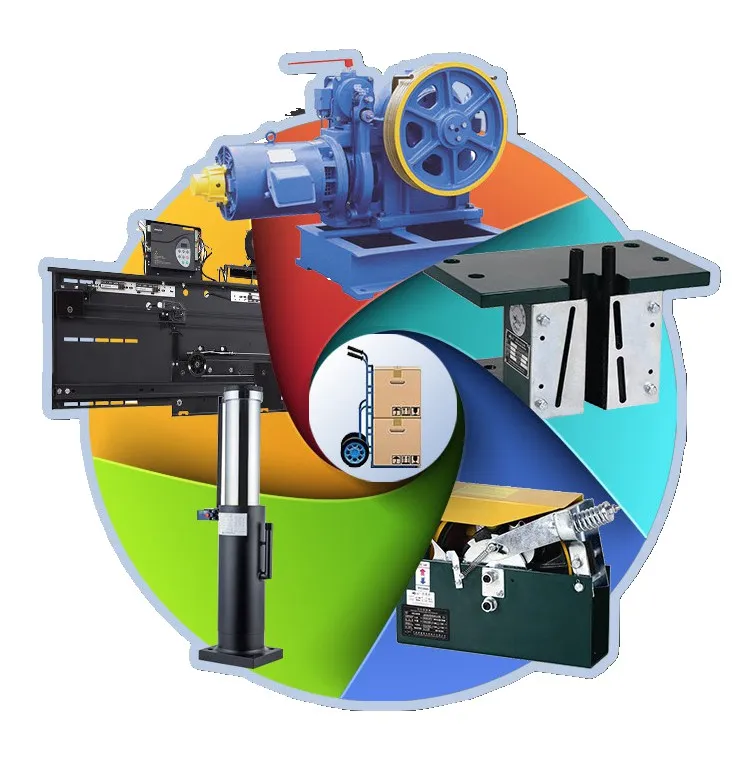

Safety Components

Advanced network control technology with self-diagnostic functions. High stability and anti-corrosion ability. Includes speed limiter, safety gear, guide shoes, and buffers.

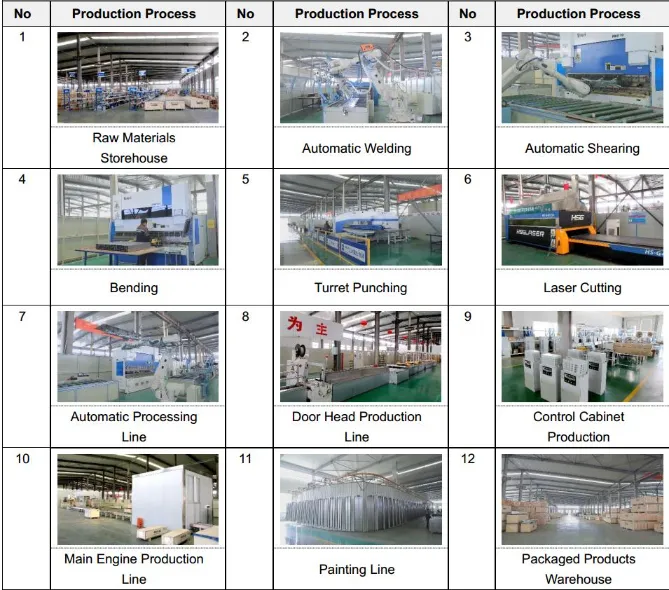

Production Process & Quality

A unified set of high-standard configurations is maintained for all customers to ensure long-term reliability and reduce maintenance costs. All components are inspected and recorded before shipping.

Frequently Asked Questions

Q1: What information is needed for a price quote?

A: Please provide the load capacity (number of persons), number of floors/stops, shaft size (width and depth), and whether there is a machine room on top.

Q2: How is product quality guaranteed?

A: We inspect all purchased and produced parts. Before shipping, a final inspection and mock-up of the cabin are performed with photos and videos provided for your records.

Q3: What are the payment terms?

A: Our standard terms are 30% in advance and 70% after inspection, before loading.

Q4: How is the elevator packaged for transport?

A: All parts are packed in solid wooden cases. Sensitive machinery parts are wrapped in protective film to prevent damage during long-distance transportation.

Q5: What about installation and maintenance?

A: We provide detailed guidebooks and technical support. Local engineers can typically complete the installation, or we can send engineers to guide the process and train your workers.

Q6: What is the warranty period?

A: We provide an 18-month guarantee period with free replacements for any defective parts during this time.
