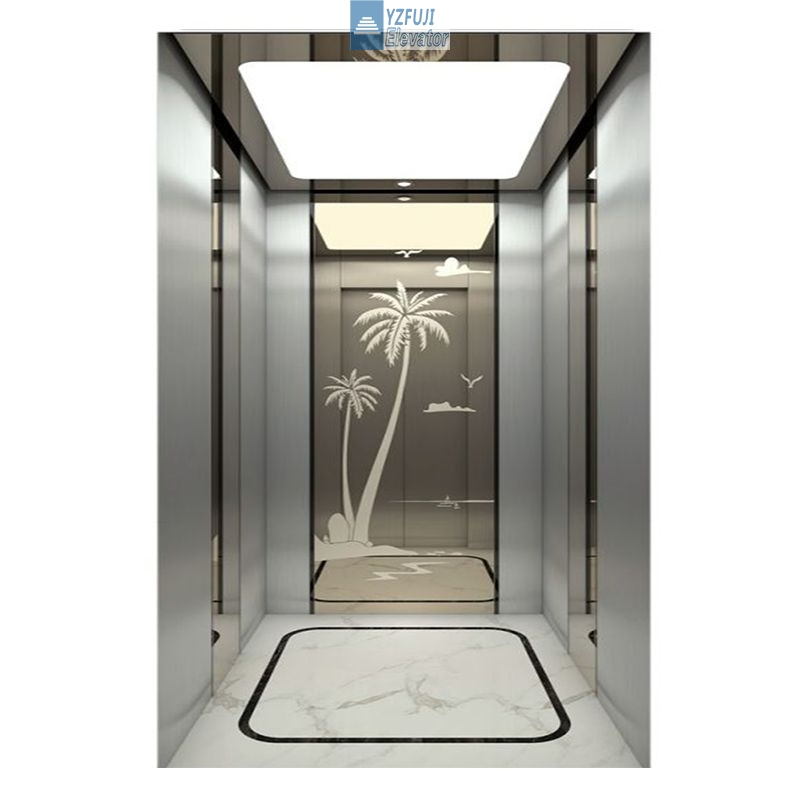

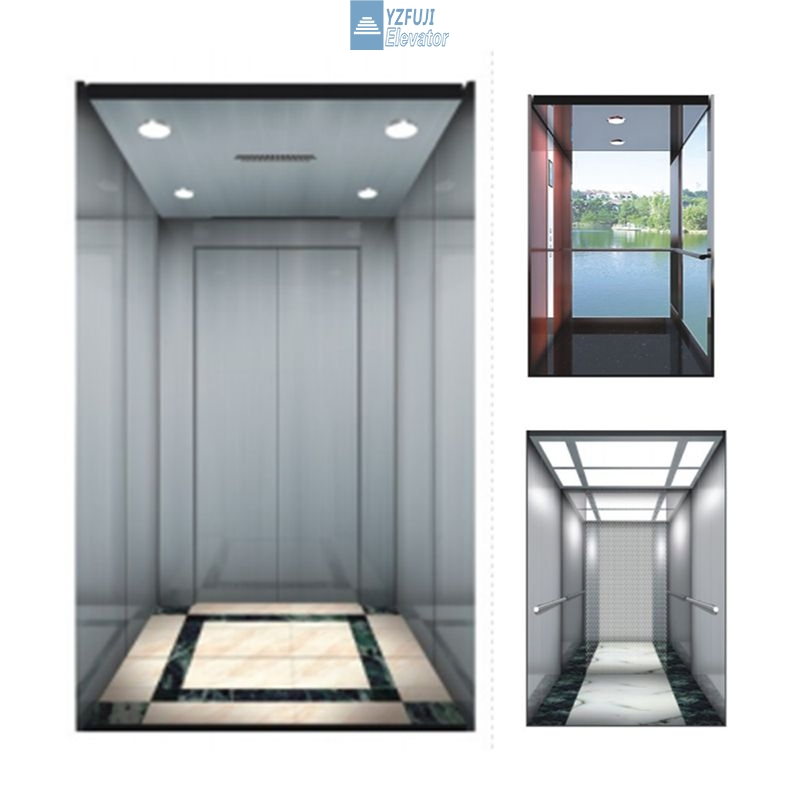

Integrated with the building and the surrounding environment, it not only becomes a part of the building, but also adds a moving beautiful landscape. The smooth and comfortable ride feeling and multi-angle landscape outside the ladder bring users enjoyment and novelty. Widely used in shopping malls, hotels, office buildings, and high-end residential areas.
| Capacity (Kg) | Persons | Speed (m/s) | Entrance (mm) | Car Dimension (mm) | Hoistway Dimension (mm) | Pit Depth (mm) | Overhead Height (mm) | Power (KW) |
|---|---|---|---|---|---|---|---|---|
| 450 | 6 | 1.0 / 1.5 | 700 | 1200x1100 | 1800x1800 | 1500 / 1600 | 4400 / 4500 | 3.0 / 4.8 |
| 630 | 8 | 1.0 / 1.5 | 800 | 1400x1100 | 2000x1800 | 1500 / 1600 | 4400 / 4500 | 4.3 / 6.8 |
| 800 | 10 | 1.0-2.0 | 800 | 1400x1350 | 2000x2050 | 1500-1800 | 4400-4700 | 5.4-11 |
| 1000 | 13 | 1.0-4.0 | 900 | 1600x1450 | 2200x2200 | 1500-3800 | 4400-5900 | 6.4-27.7 |
| 1250 | 16 | 1.0-4.0 | 1000 | 1800x1550 | 2400x2300 | 1500-3800 | 4400-5900 | 8.5-34.6 |
| 1600 | 21 | 1.0-4.0 | 1200 | 2000x1700 | 2600x2400 | 1500-3800 | 4400-5900 | 11-34.2 |

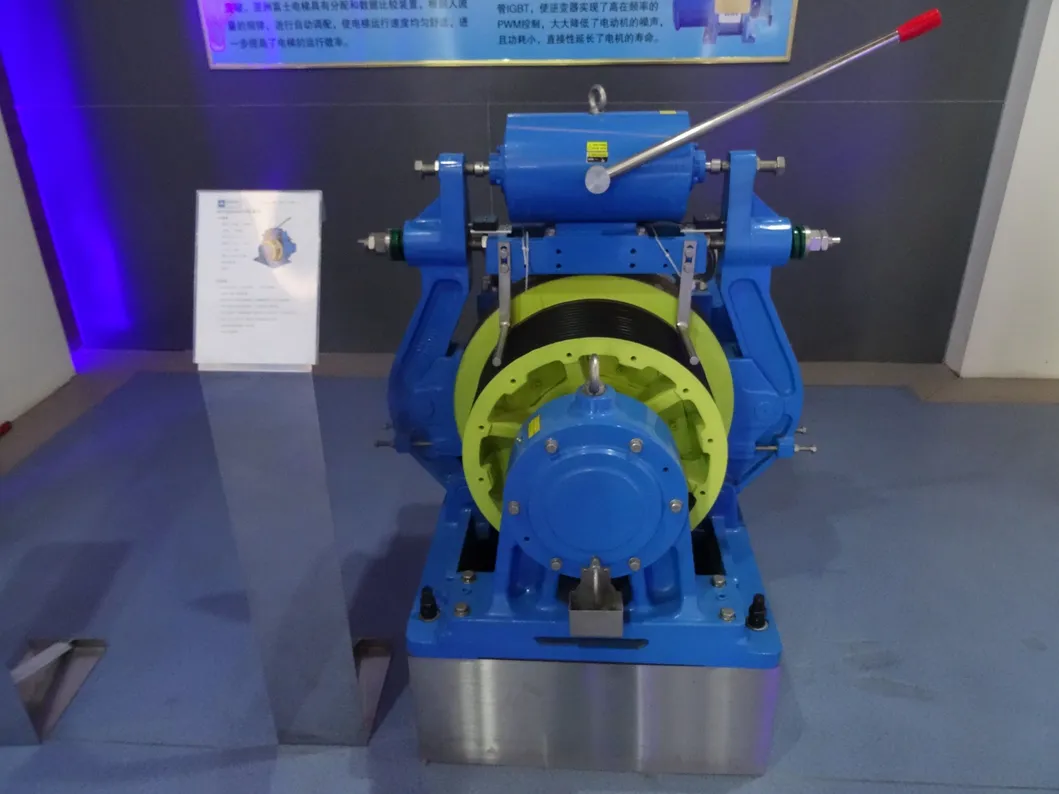

Utilizes the latest permanent magnet gearless technology, replacing traditional worm gear traction. This allows for miniaturization, lighter weight, and eliminates mechanical loss. Saves more than 60% energy compared to previous technology, achieving environmental protection with no oil and minimum vibration.

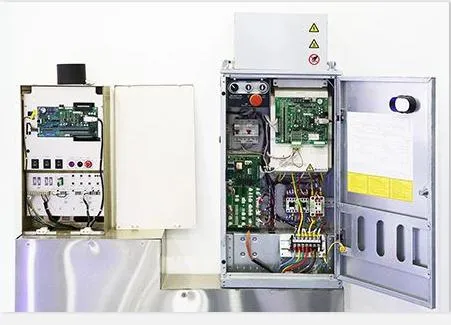

Adopts low noise vector control inverter frequency regulation (VVVF). Utilizing advanced IGBT, it realizes PWM control of high load frequency, greatly reducing motor noise and prolonging the equipment lifespan.

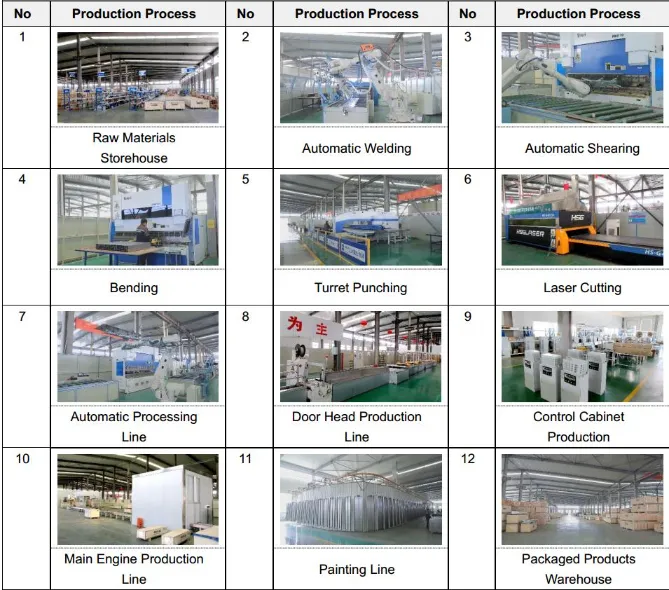

Our workshop integrates R&D, design, production, and installation. We possess 15 patents in the elevator industry and have established cooperation with partners in more than 40 countries.
We use fumigation-free wooden boxes with disinfection, ensuring a thickness of at least 100mm for transportation safety. A modular packing system with detailed lists simplifies on-site installation.
