1. Integrated with the building and the surrounding environment, it not only becomes a part of the building, but also adds a moving beautiful landscape.
2. The smooth and comfortable ride feeling and multi angle landscape outside the ladder bring users enjoyment and novelty.

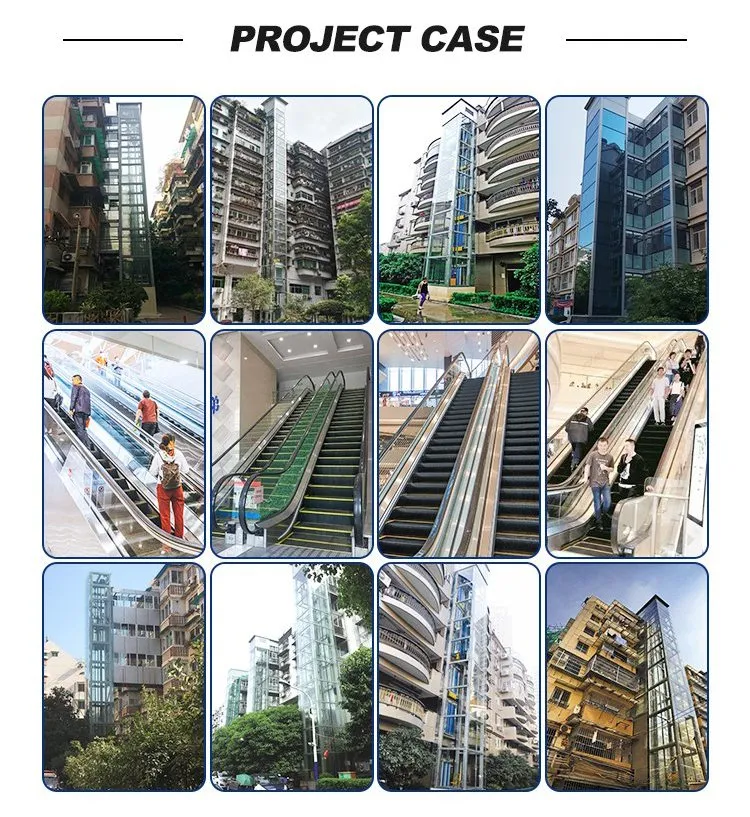

3. Widely used in all kinds of public and private buildings, such as shopping malls, hotels, office buildings, tourist attractions, high-end residential, and so on.
| Capacity (Kg) | Person | Speed (m/s) | Entrance (mm) | Clear Car Dimension (mm) | Hoistway Dimension (mm) | Pit Depth (mm) | Overhead Height (mm) | Rated Power (KW) |
|---|---|---|---|---|---|---|---|---|
| 450 | 6 | 1.0 / 1.5 | 700 | 1200x1100 | 1800x1800 | 1500 | 4400 / 4500 | 3 / 4.8 |
| 630 | 8 | 1.0 / 1.5 | 800 | 1400x1100 | 2000x1800 | 1500 | 4400 / 4500 | 4.3 / 6.8 |
| 800 | 10 | 1.0 - 2.0 | 800 | 1400x1350 | 2000x2050 | 1500 - 1800 | 4400 - 4700 | 5.4 - 11 |
| 1000 | 13 | 1.0 - 4.0 | 900 | 1600x1450 | 2200x2200 | 1500 - 3800 | 4400 - 5900 | 6.4 - 27.7 |

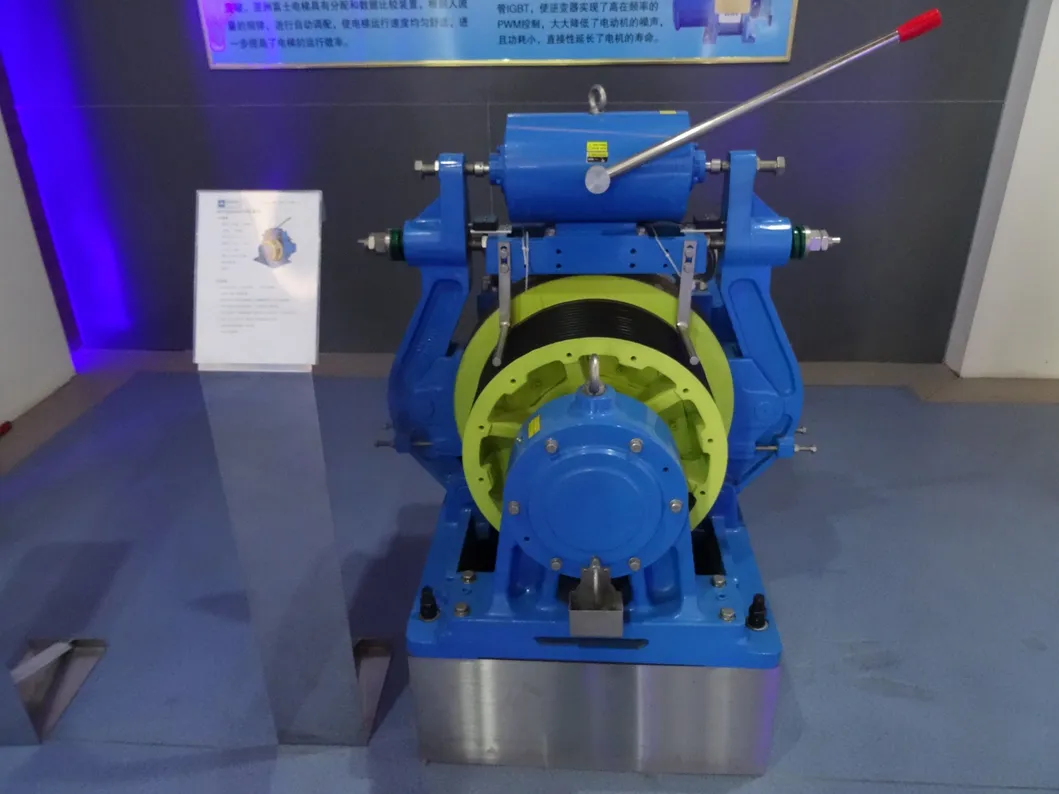

The system uses the latest permanent magnet gearless instead of the traditional worm traction machine. It realizes miniaturization and light weight, eliminates mechanical loss of the gear room, and saves more than 60% energy. It achieves environmental protection requirements: no oil, no maintenance, minimum noise, and minimum vibration.
The drive system is equipped with a regenerative braking unit, which can feed energy back to the power grid, saving 50% energy compared to ordinary AC elevators.

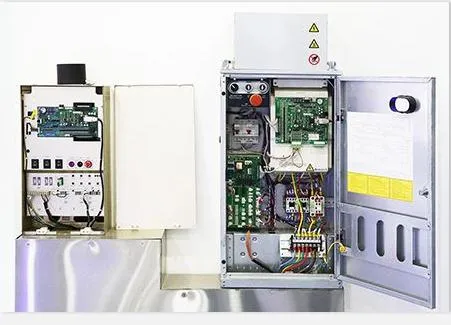

Adopts low noise vector control inverter speed regulation (VVVF). Using advanced IGBT realizes PWM control of high load frequency, greatly reducing motor noise and power consumption, while extending motor life.
We offer a Unified High Standard Configuration for all elevators to guarantee extraordinary performance, attractive decoration, higher safety, and operation stability, achieving almost 0% failure rate.
1. Save space: Customize for mini shafts or no-shaft buildings.
2. Humanized design: Customize COP, LOP and door handle positions according to regional ergonomics.

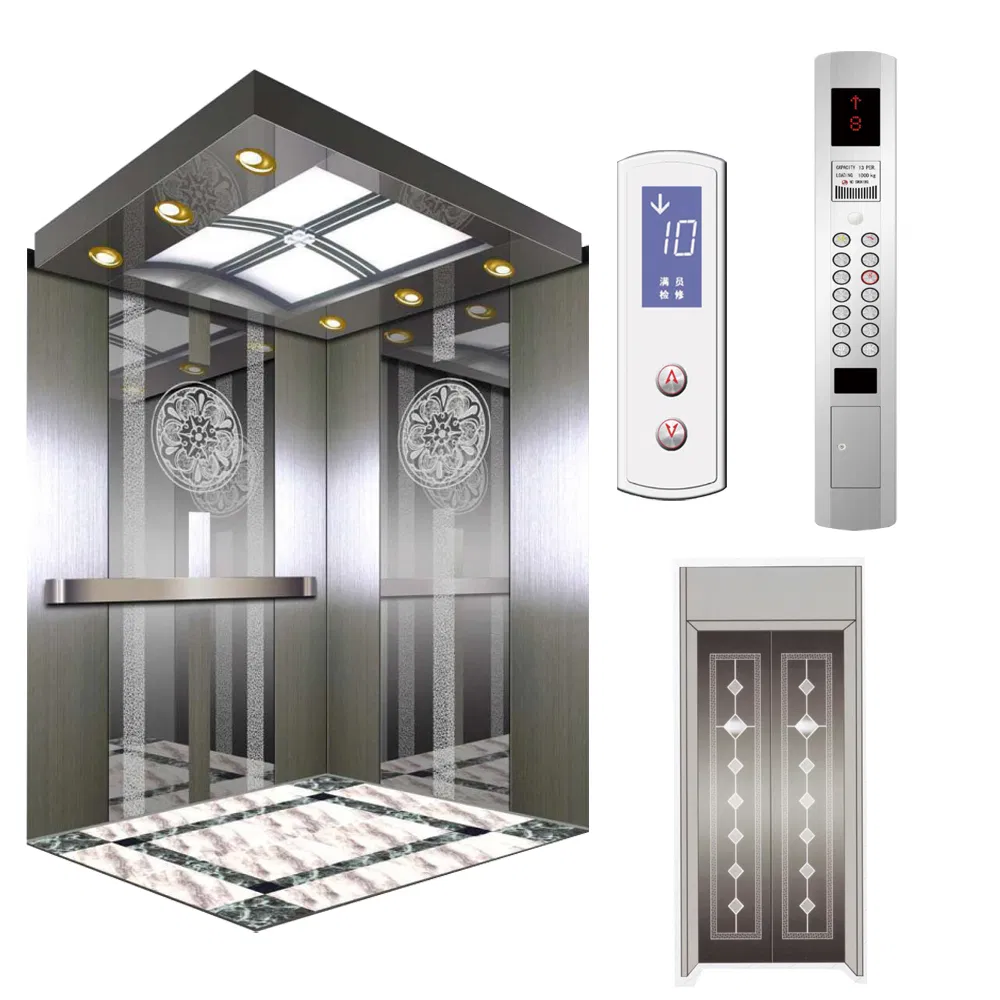

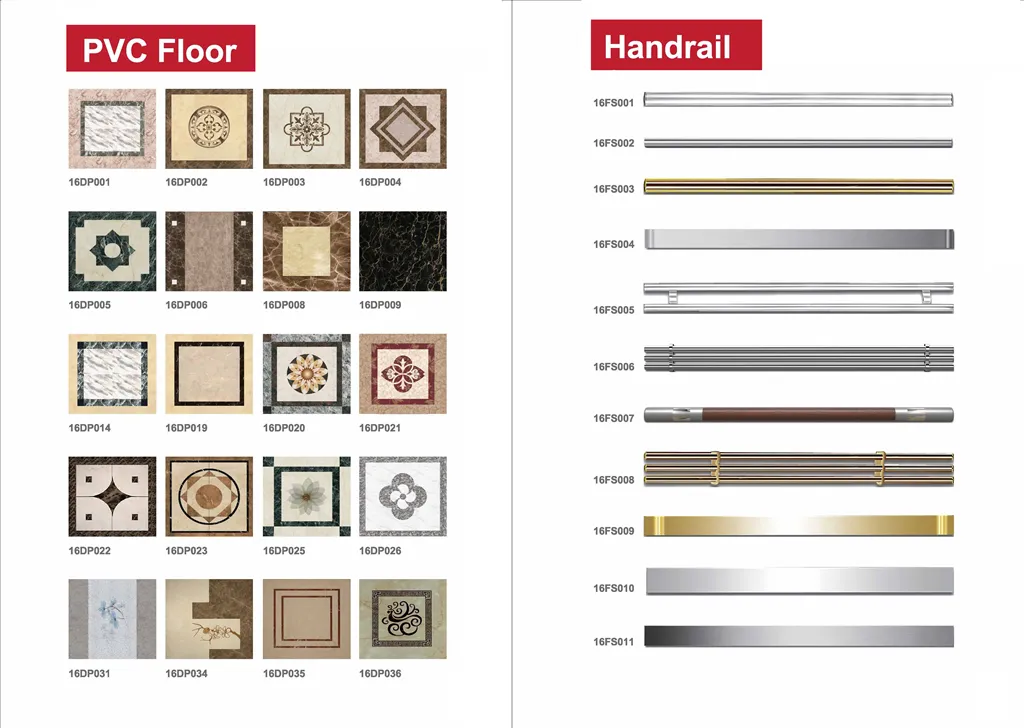

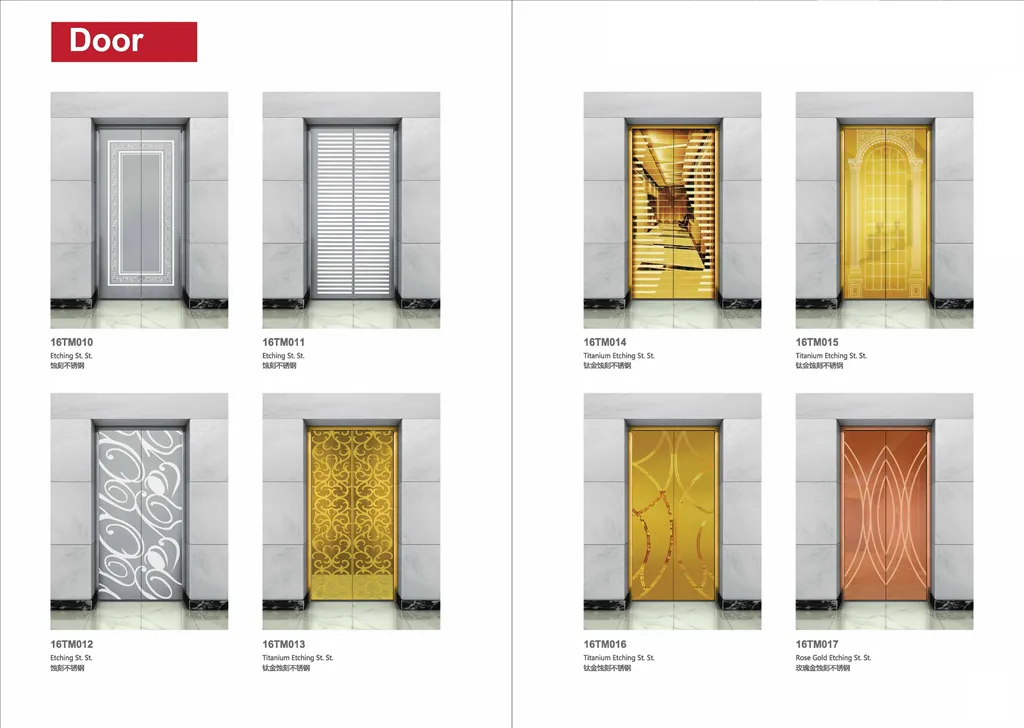

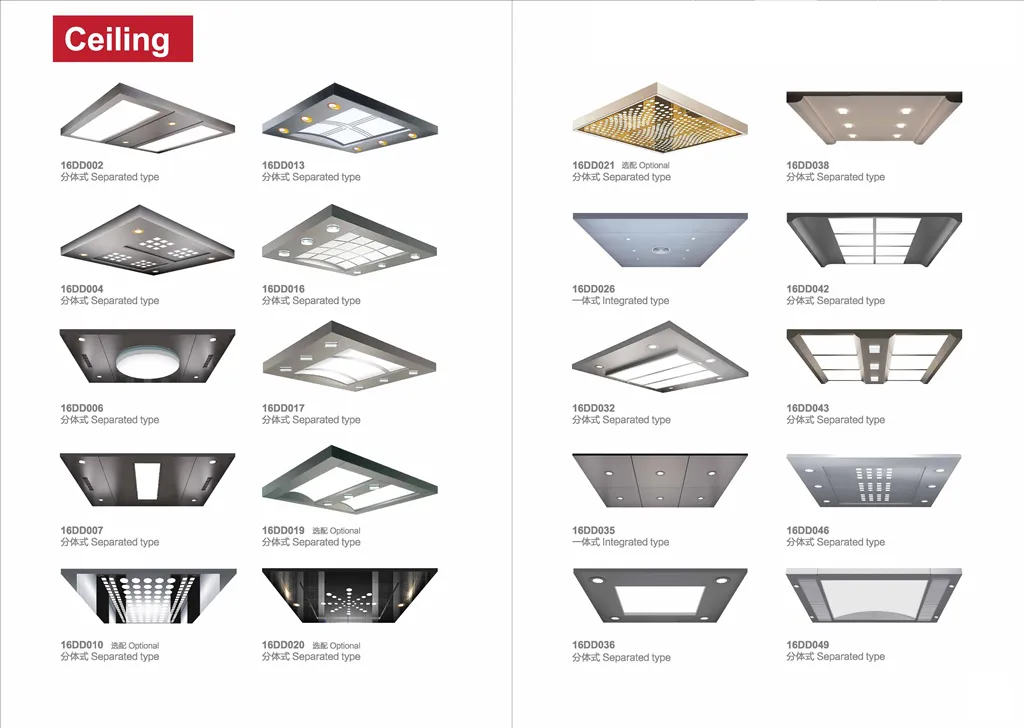

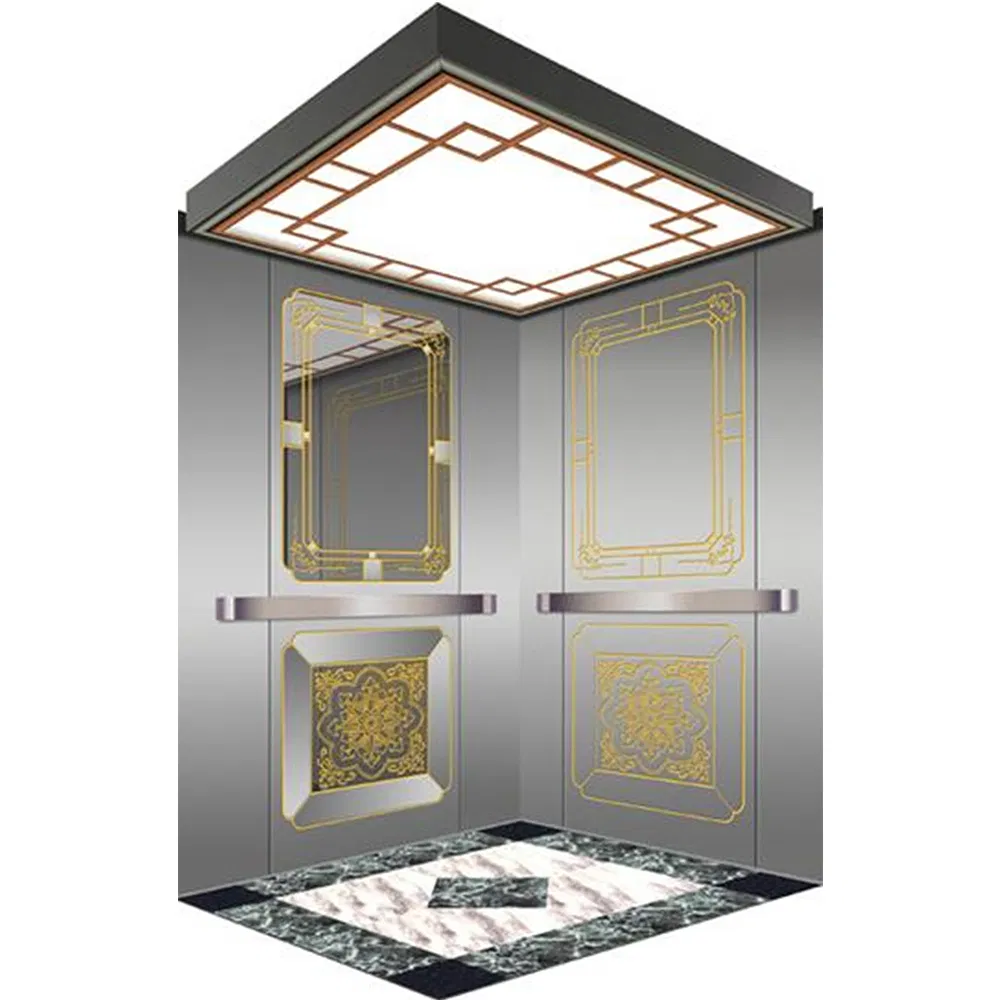

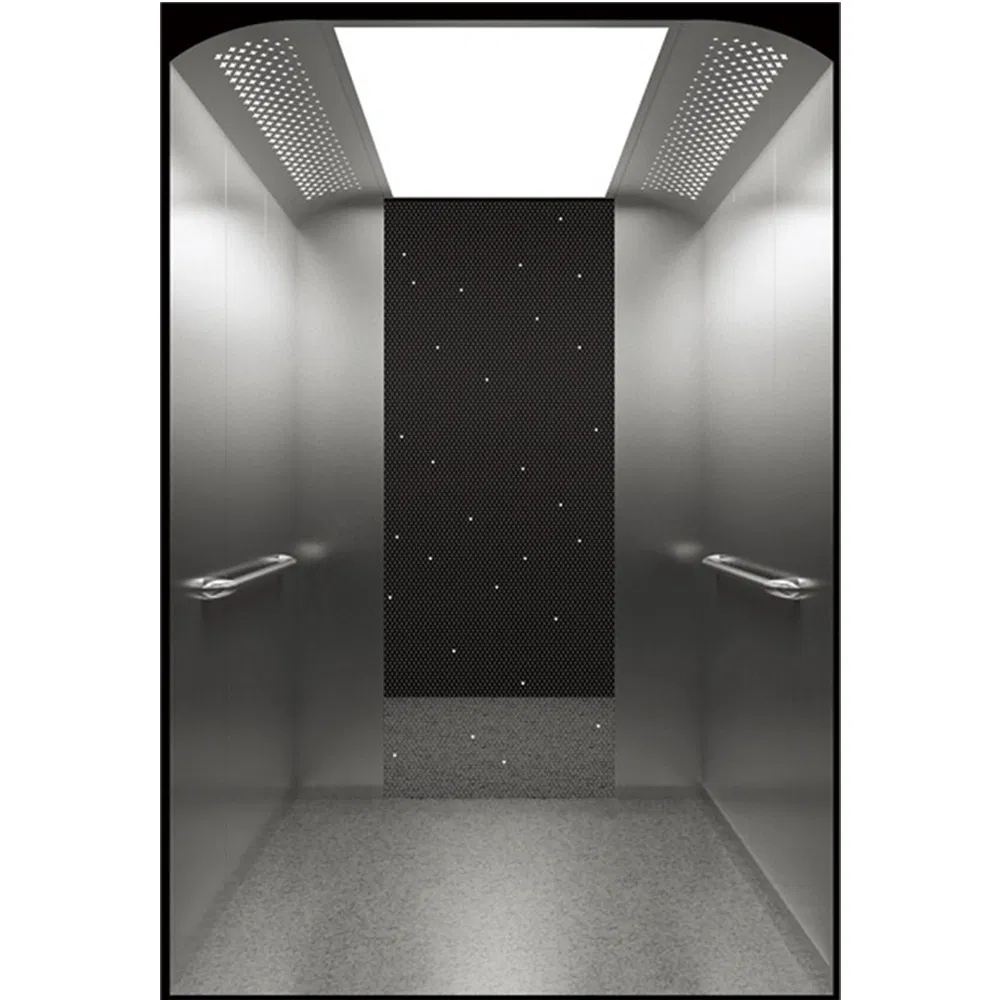

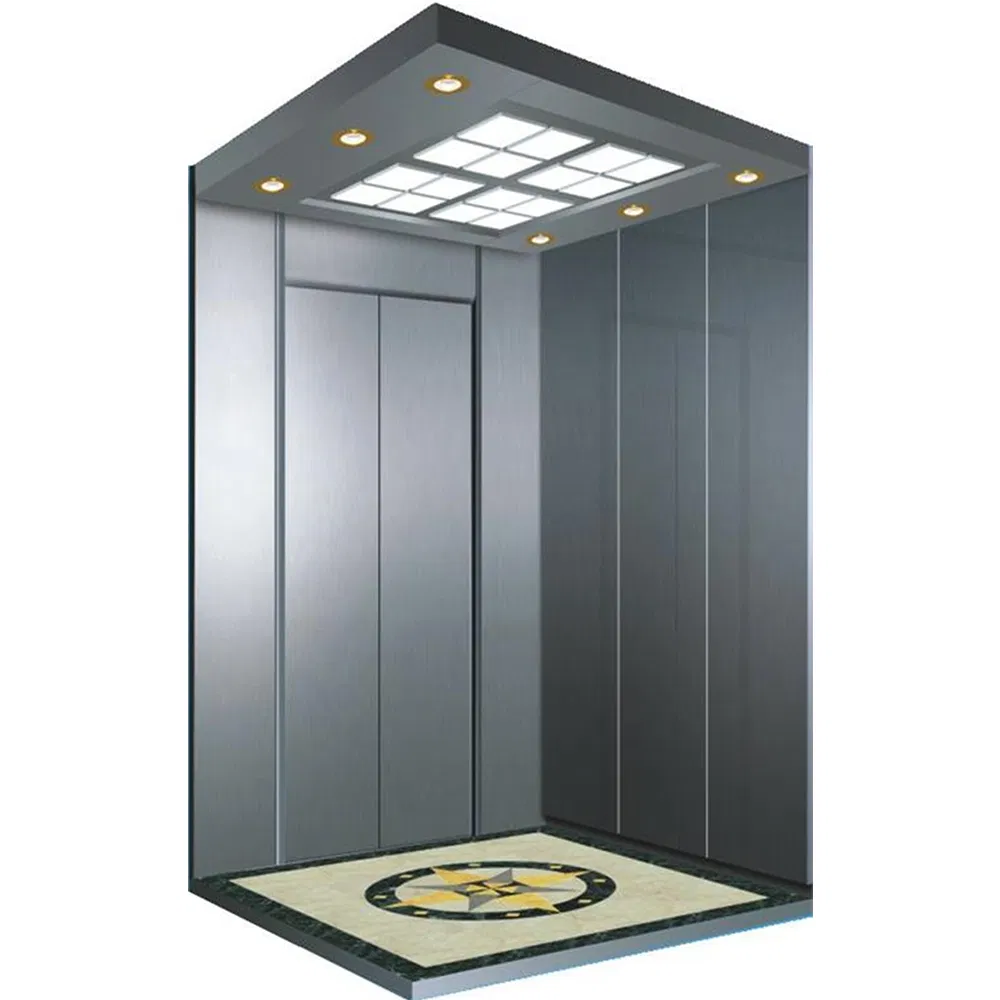

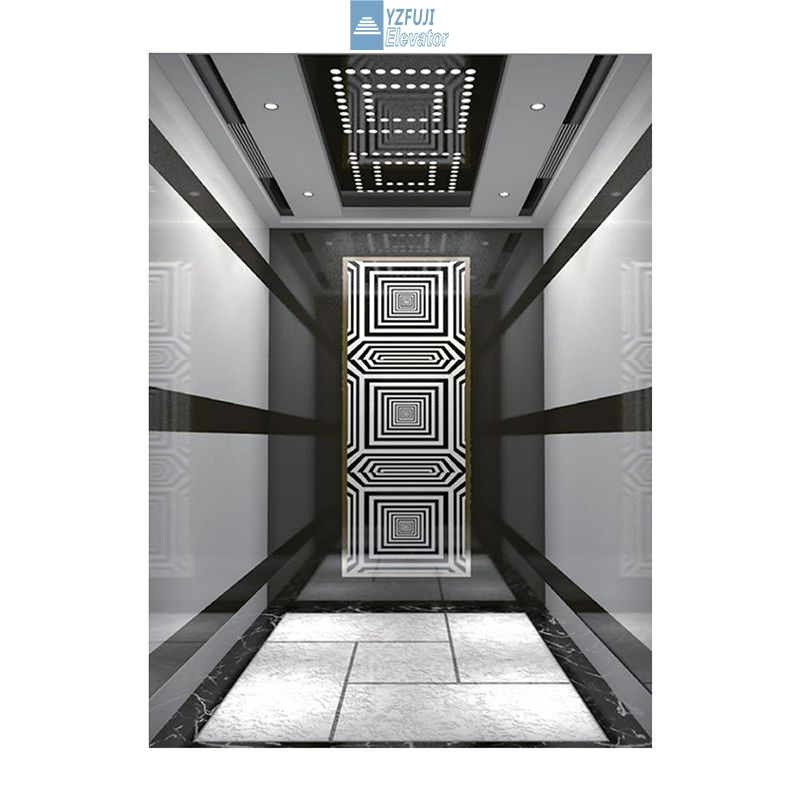

3. Decoration: Various styles including post-modern, traditional Chinese, European, and technical styles.
Fumigation-free Packaging: Wooden boxes with disinfection, thickness no less than 100mm. Modular packing system with detailed lists for clear on-site installation.
◈ 24/7 Online Support in English
◈ On-site Installation by professional teams
◈ Systematic Packing & Modular installation
◈ Complete Pre-Installation Documentation
