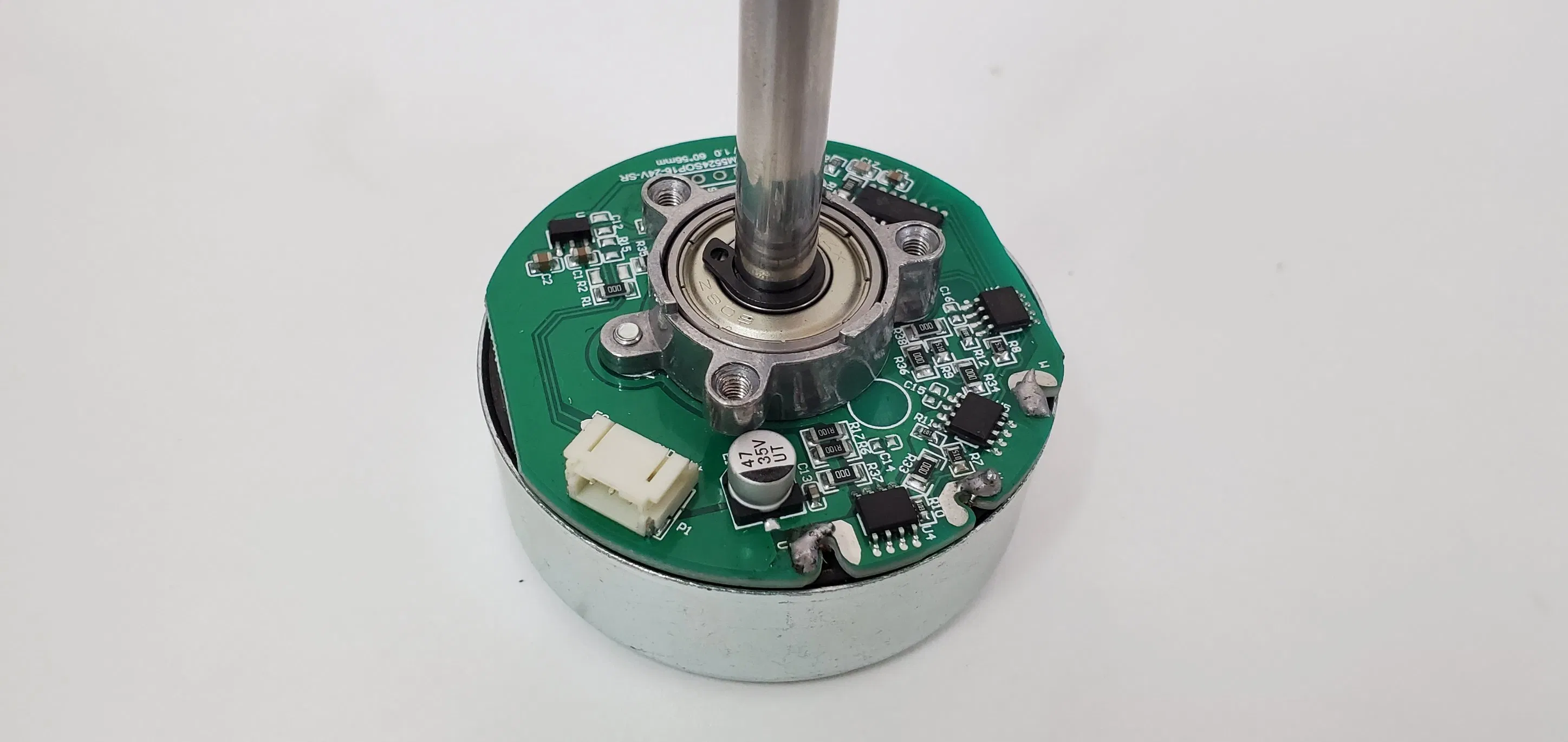

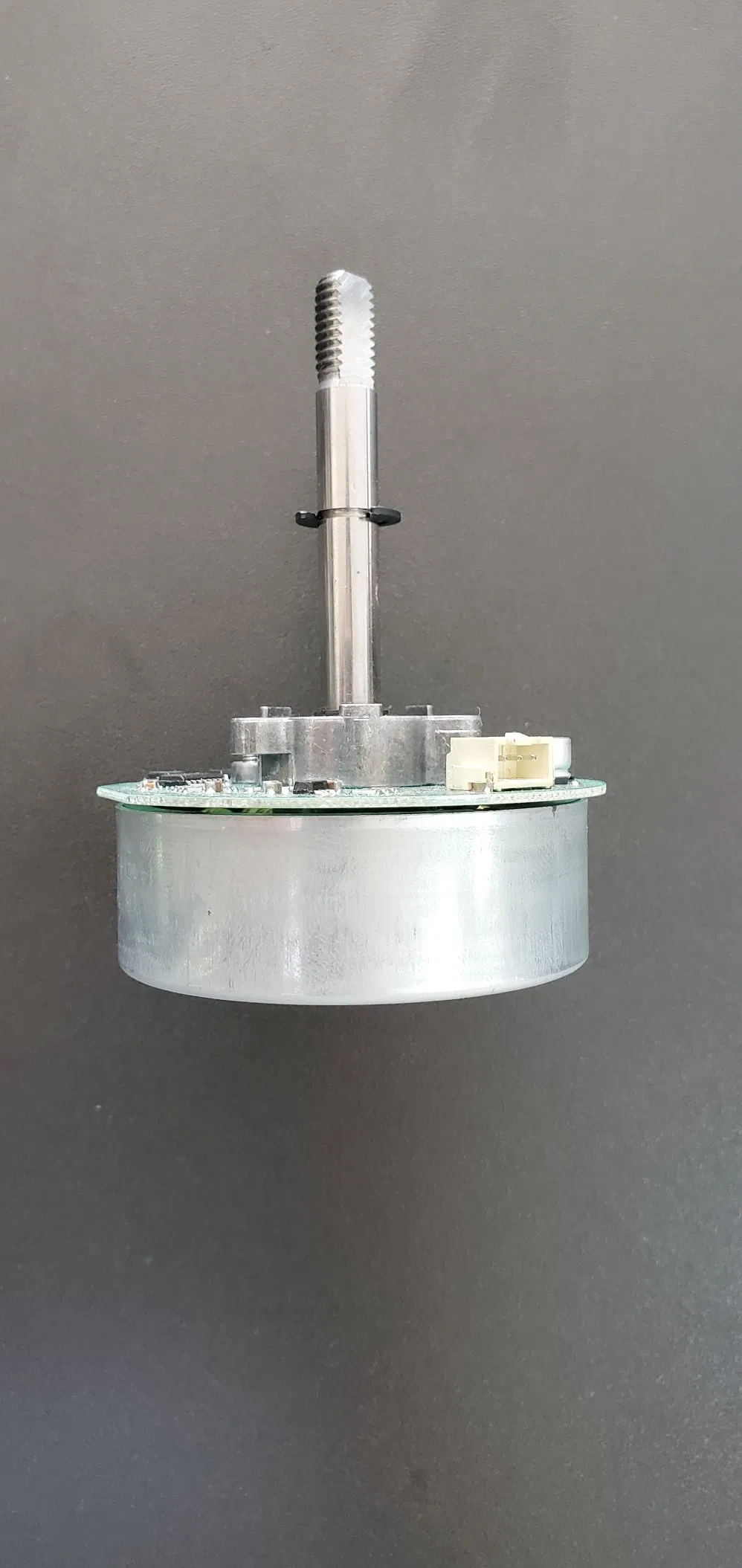

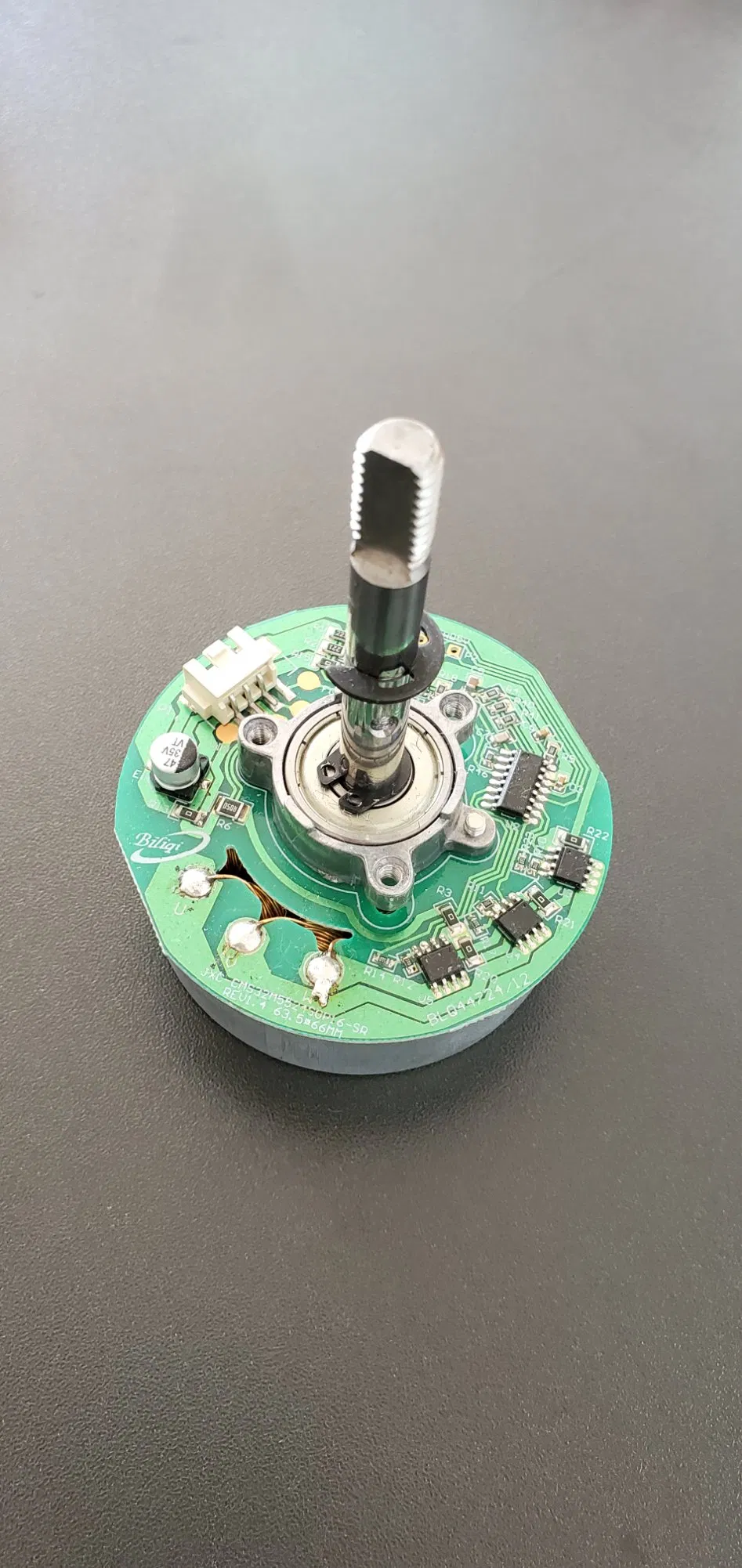

BL97- fan motor adopts automatic production process, and the processing of all parts is controlled by computer, accepted by computer, with meticulous quality.
BL97-DC fan motor deeply loved and adopted by the home appliance industry at home and abroad, can be debugged and customized according to the requirements, welcome to inquire.
| Parameters | Fast Mode | Middle Mode | Slow Mode | Remarks |
|---|---|---|---|---|
| Electric current ( A ) | 1.2 | 0.86 | 0.66 |
The BLDCM can be used for multiple gears, and only three gears are designed for the display motor. Test equipment includes: AC frequency converter, AC to DC power supply, control board. |
| Power ( W ) | 28.8 | 20.64 | 16.0 | |
| Rotational speed ( RPM ) | 1400 | 1150 | 868 | |
| Air volume ( m/s ) | 8.0 | 6.6 | 5.4 | |
| Temperature rise ( K ) | - | - | - |
Compared to traditional AC motors, the BL97-DC motor offers significant energy savings, environmental friendliness, prolonged durability, higher speeds, lower power consumption, and greater torque output.
Yes. The efficiency of the motor can be adjusted within range values using different driver program settings. This allows the motor to achieve constant speed or locked power parameters under various load configurations, matching different product requirements.
The motor is highly versatile and widely used in home floor fans, desk fans, and wall pedestal fans. It is also designed to easily integrate four-way blowing functions depending on appliance positioning requirements.
The motor relies on an automated computer-controlled production process. Key stages—including machine winding, wire drop, wire binding, soldering, and final quality acceptance—are entirely regulated by computers to ensure consistent, premium quality.
The performance metrics are tested at 24V under three designed gears (Fast, Middle, and Slow). The assessment is executed using advanced testing equipment, including an AC frequency converter, AC to DC power supply, and control board.
