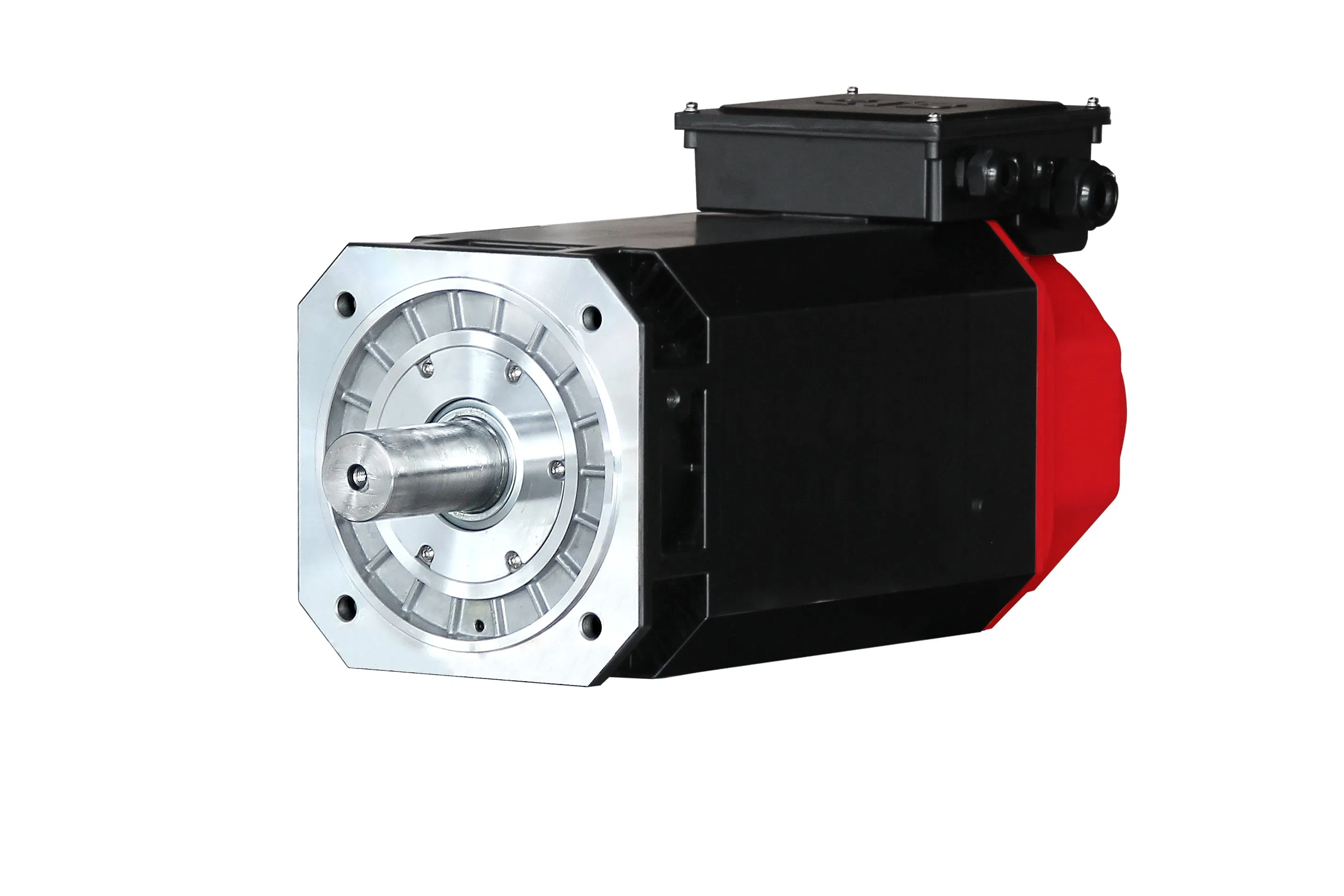

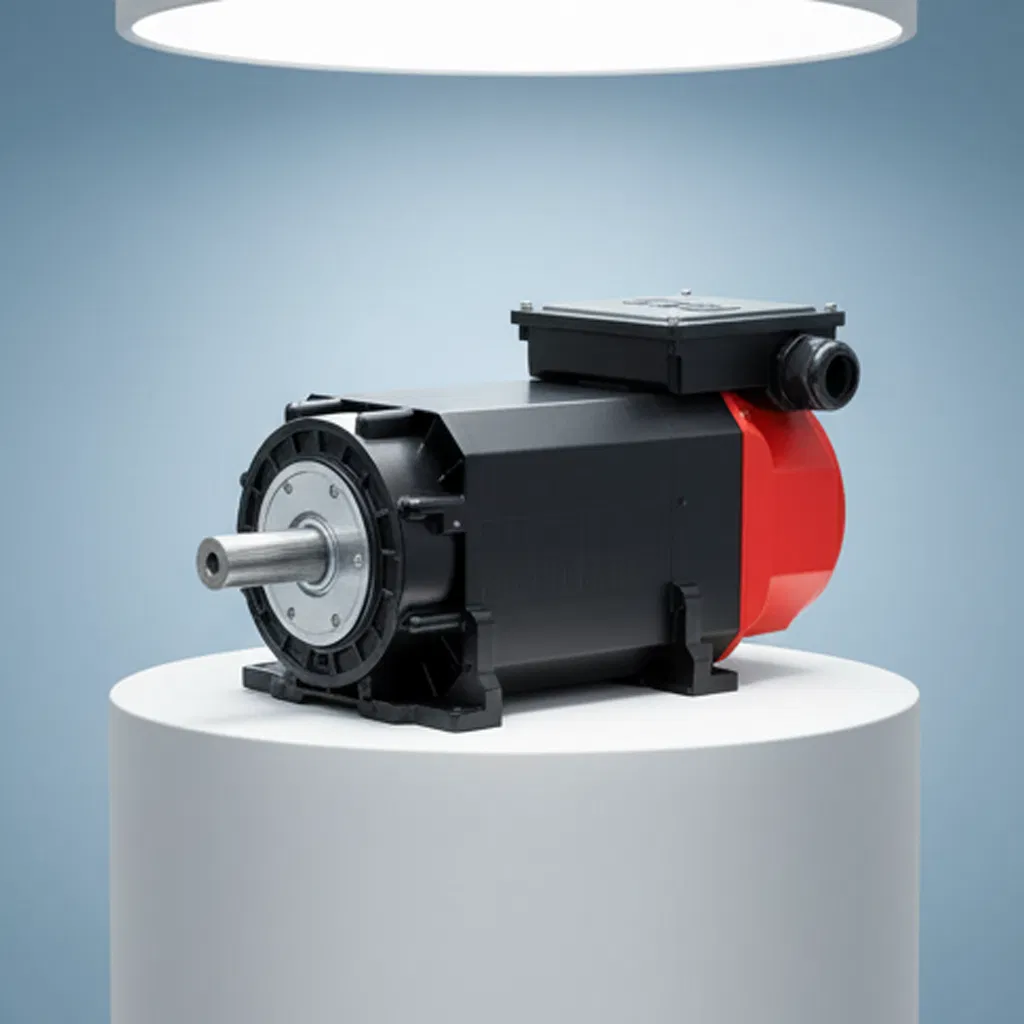

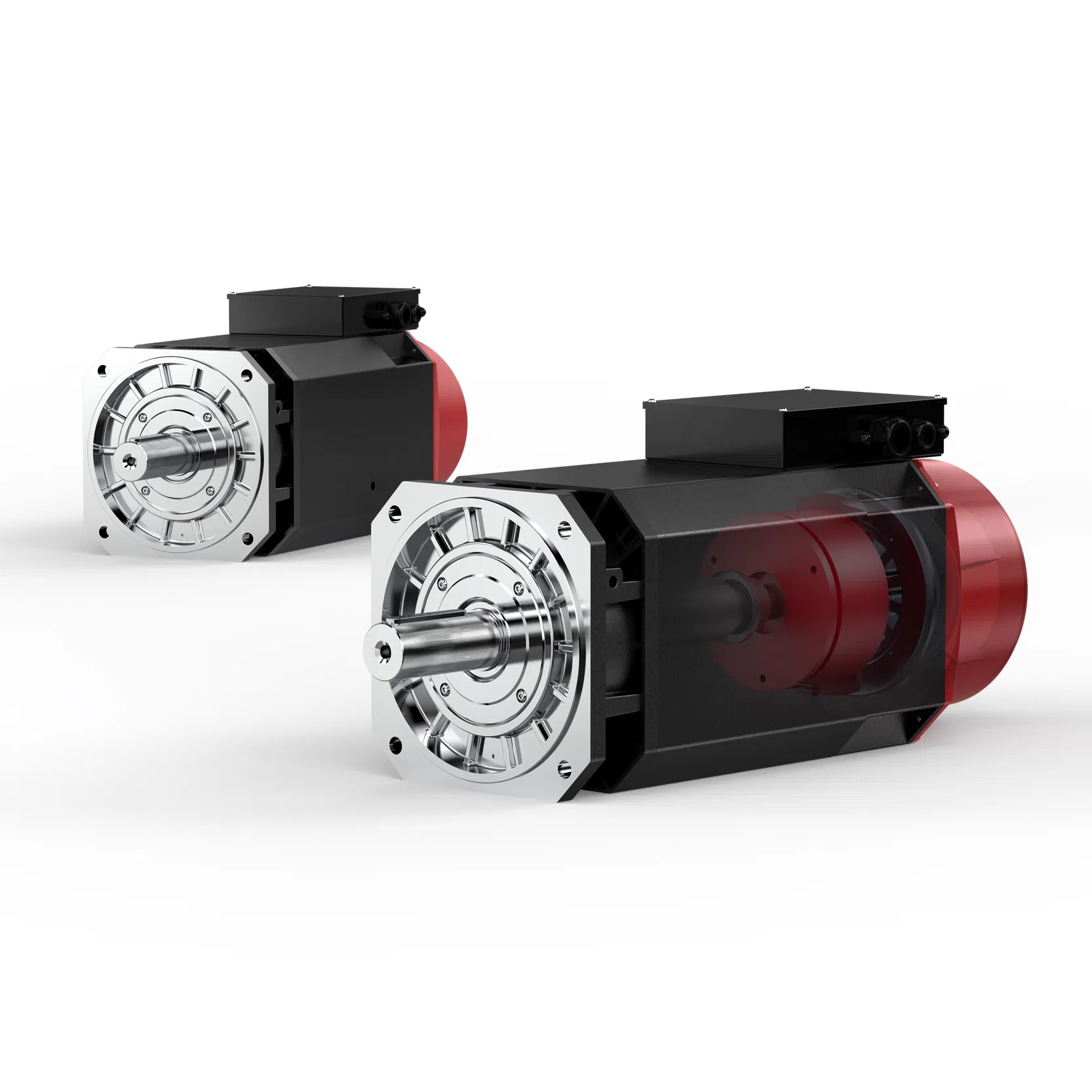

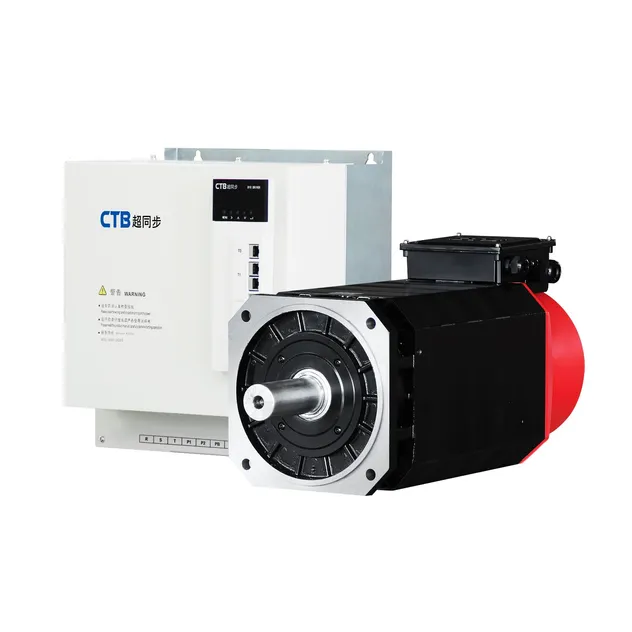

CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa

Customization: Available
Application: Industrial, Machine Tool, Testing Machine,...
Speed: Low, High,Constant, Variable Speed

Product Description

Basic Information

Model NO.
Z18
Starting Mode
Variable Frequency and Direct on-Line Starting
Number of Stator
Single-Phase, Three-Phase
Certification
ISO9001, CE
Function
Driving
IP Rating
IP55
Casing Protection
Open Type
Class of Insulation
Class F
Number of Poles
4, 6, 8
Cooling
Forced Air Cooling
Power Range
1.1kw~400kw
Production Capacity
20,000 PCS/Year

Product Features

⚙️
Optimized Structure: Stator and rotor models are precision-engineered for maximum performance.
🔇
Low Noise: Closed rotor slots reduce high harmonics and high-speed operation noise.
❄️
Efficient Cooling: Built-in air paths facilitate high-efficiency heat radiation.
🎯
Precision: Built-in high precision magnetic encoder ensures minimal speed fluctuation.
🛠️
Maintenance-Free: Equipped with a smart motor data card for easy management.
Servo Electric Motor Features

Technical Specification

Power Range: 1.1~400kW Noise: ≤70dB(A)
Pole Number: 4, 6, 8 IP Rating: IP55 (IEC40034-5)
Max. Speed: 8000r/min Dielectric Strength: AC1800V
Encoder: Built-in (Magnetic, Incremental, SinCos, Absolute) Class of Insulation: Class F
Cooling: Forced Air Cooling Class of Vibration: A
Duty Type: Continuous (S1) Ambient Temp: -15 to 45℃

Detailed Product Display

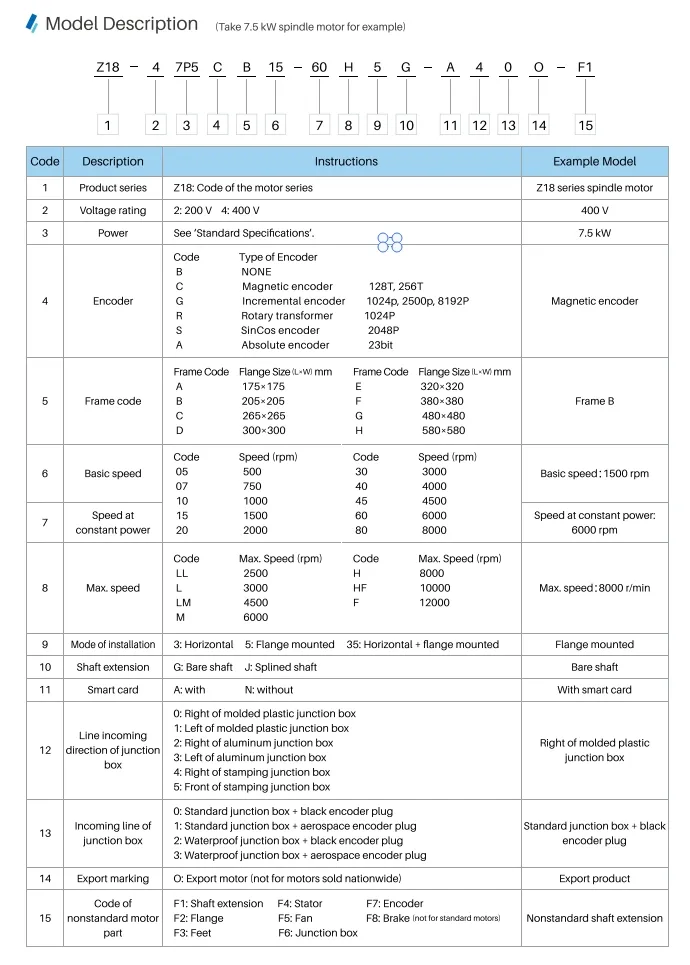

Product Description 1

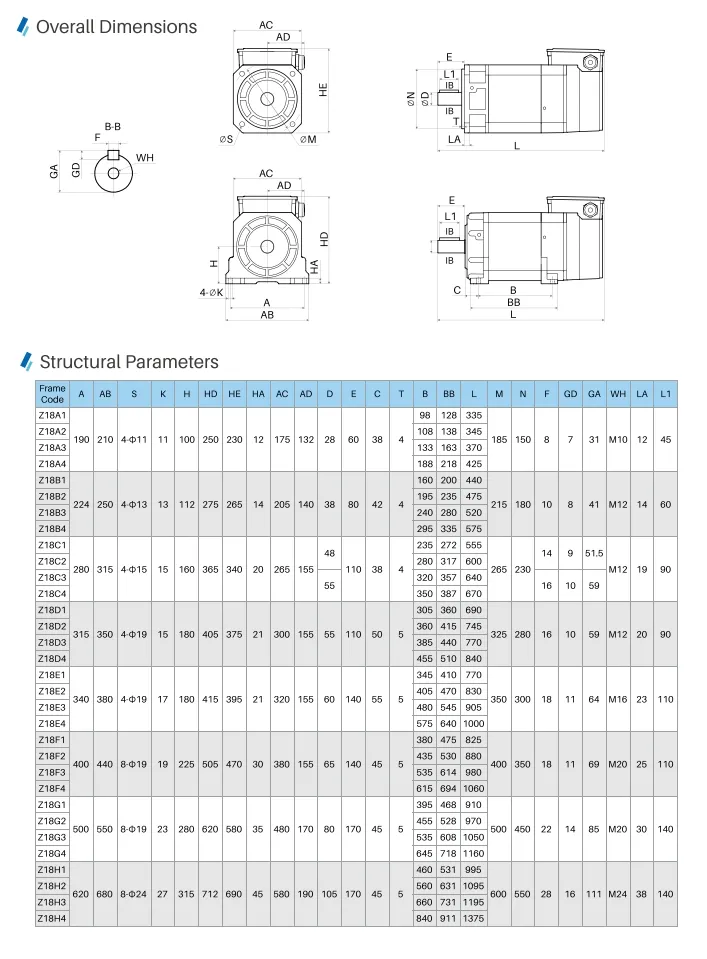

Product Description 2

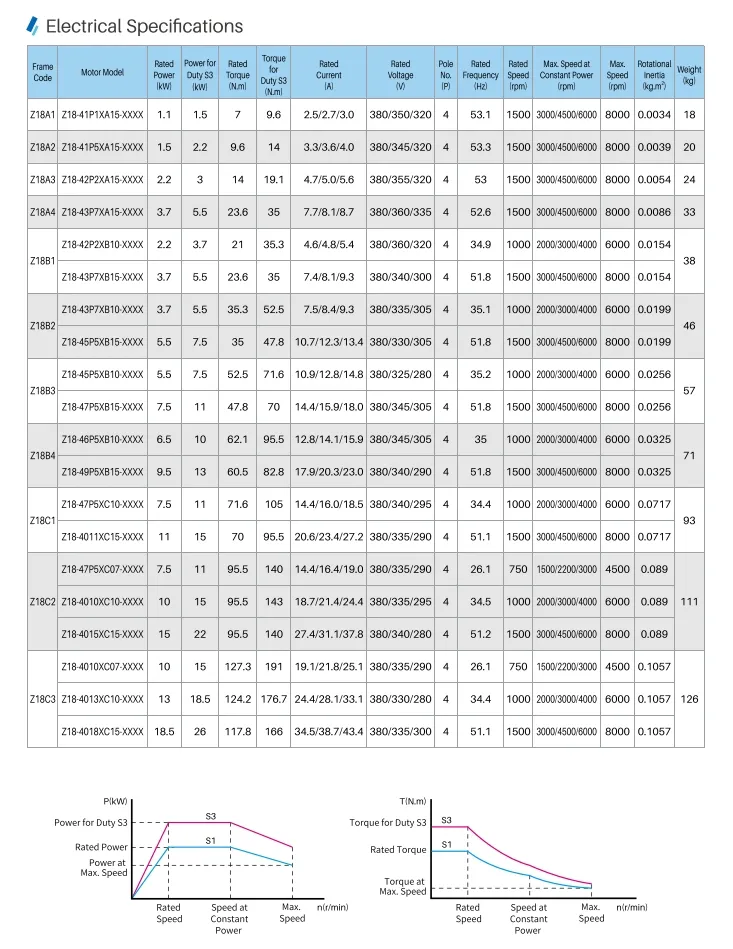

Product Description 3

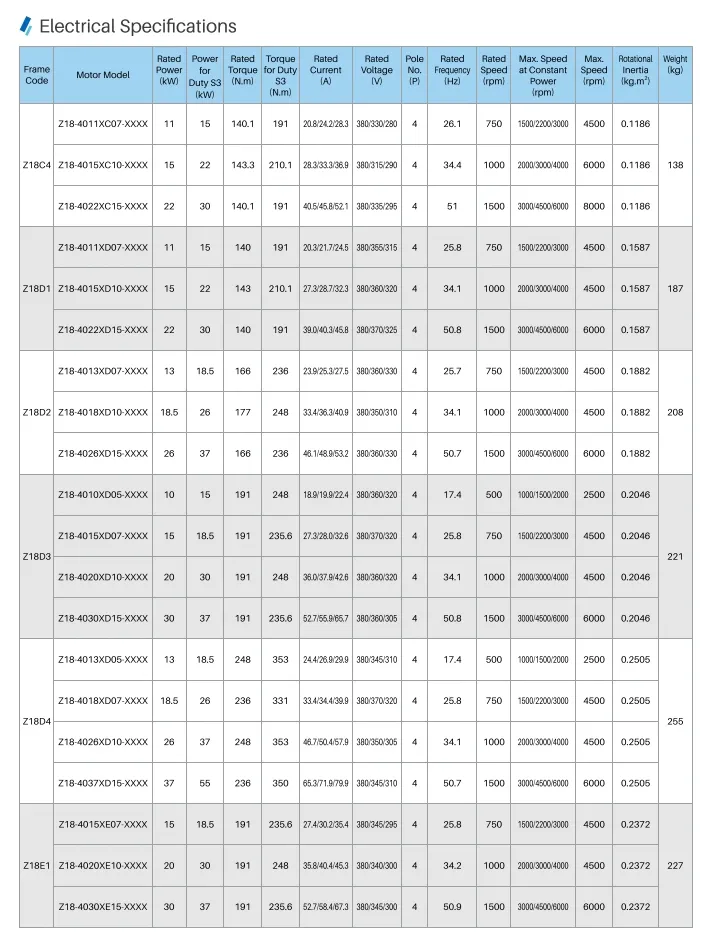

Product Description 4

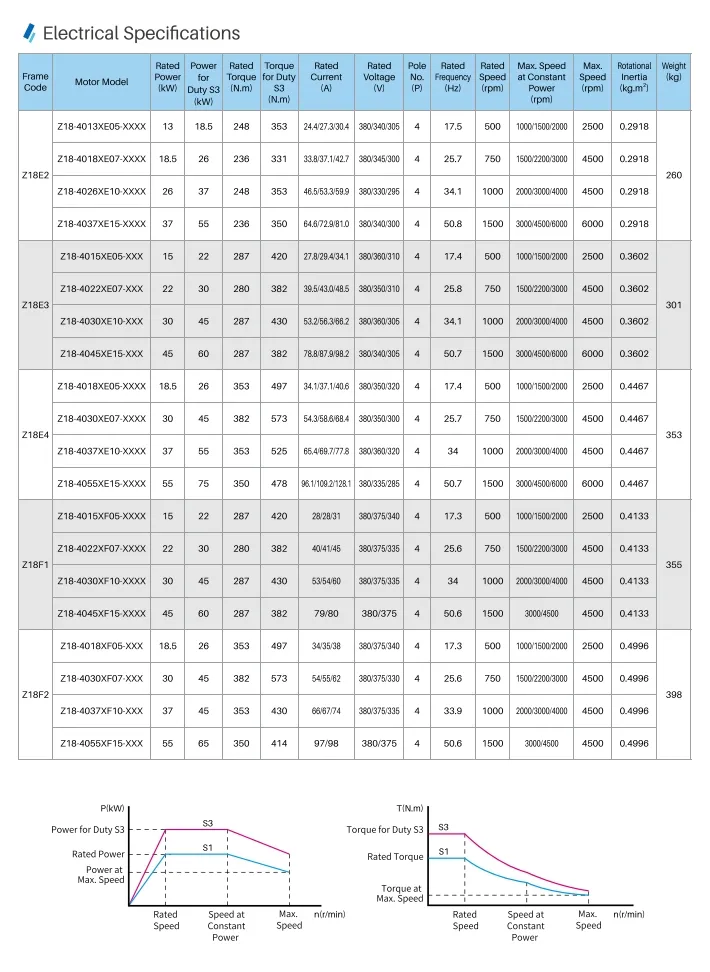

Product Description 5

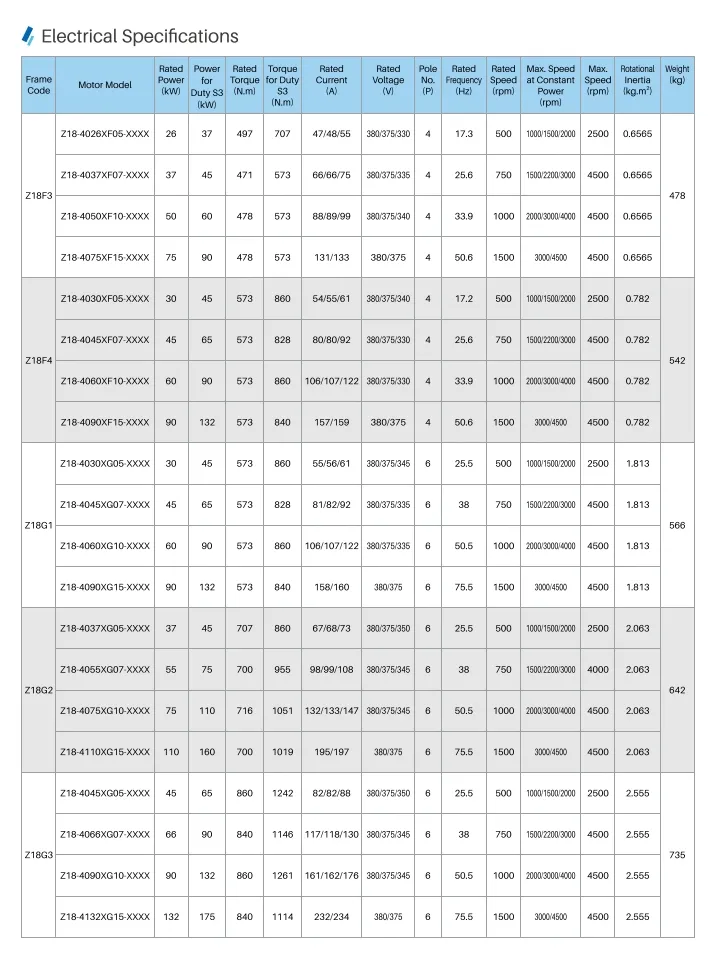

Product Description 6

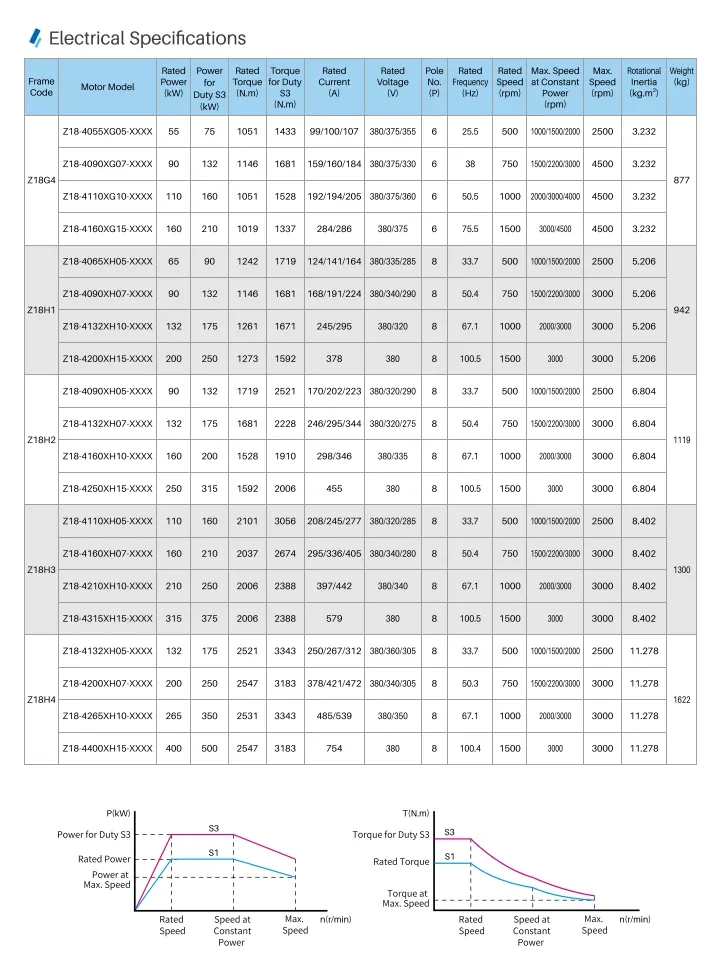

Product Description 7

About Our Company

We are an integrated industrial supplier that combines in-house manufacturing with strategic distribution. With a professional team and an annual output of about RMB 50 million, we focus on high-quality power transmission components. Our product range includes standard lines of disc, high-elastic, jaw, and gear couplings, along with rapid production for non-standard requests.

Backed by over twenty years of experience in Metal-Cutting and Metal-Forming Machine Tools, our core team possesses deep system-level knowledge of complete machine supply chains. We provide customers with one-stop access to linear guides, ball screws, servo motors, and drives. Choosing our company means plugging into a proven, stable supply chain that delivers cost performance, convenience, and fast technical support.

Factory & Workshop

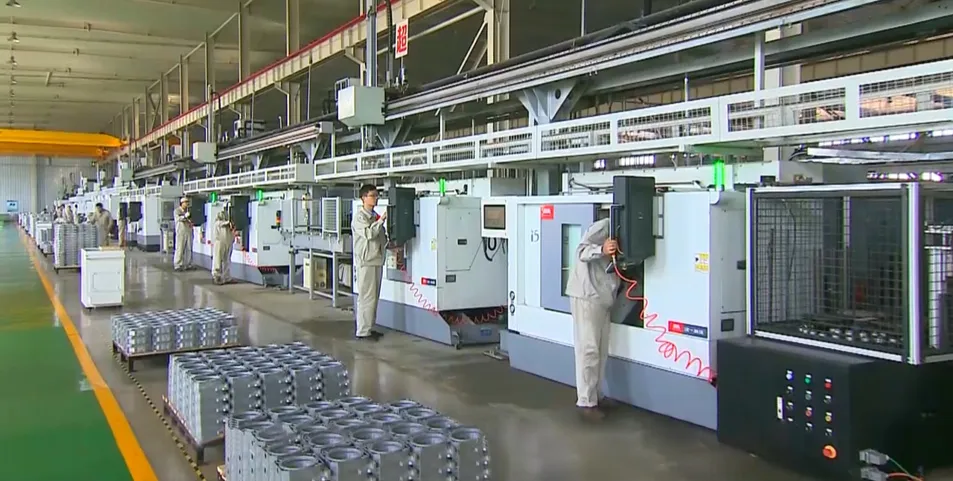

Automation Line

Automation Line

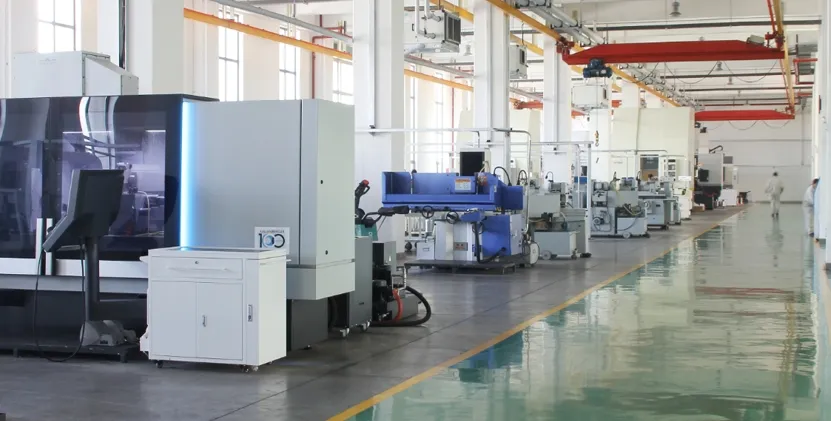

Grinding Machine Workshop

Grinding Machine Workshop

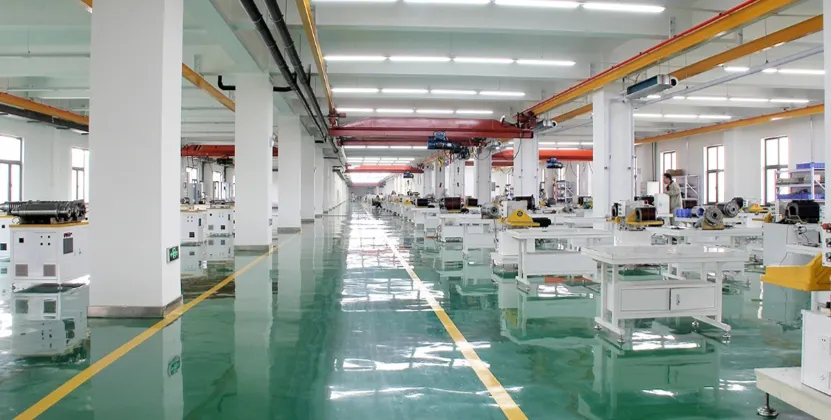

Functional-component Assembly Line

Functional-component Assembly Line

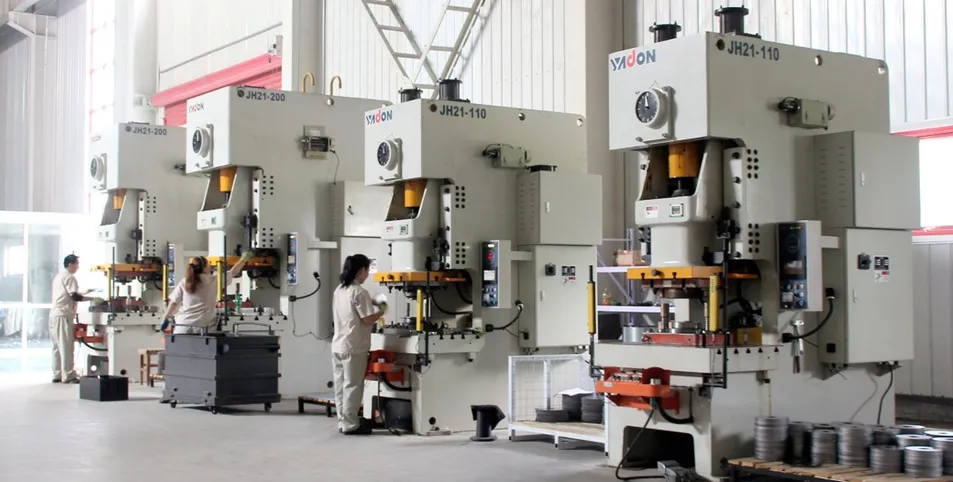

Stamping work Cell

Stamping work Cell

Exhibition and Showroom

Exhibition 1

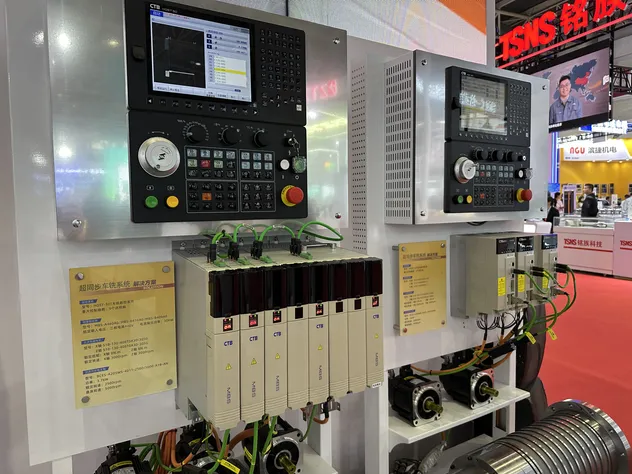

Exhibition 2

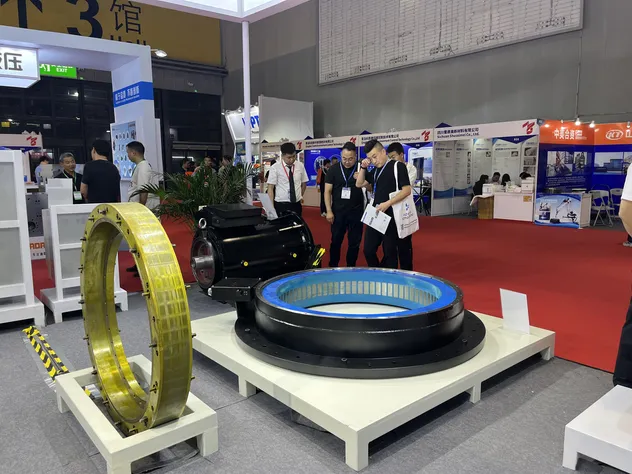

Exhibition 3

Main Products & Partners

Partners 1
Partners 2

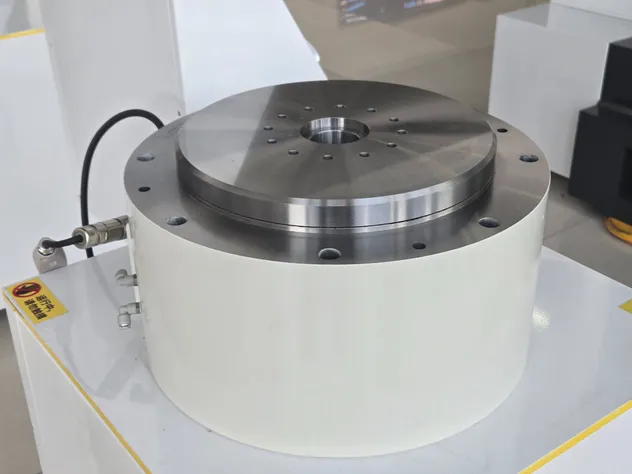

Spindle Axis
AC Drive Servo Motor

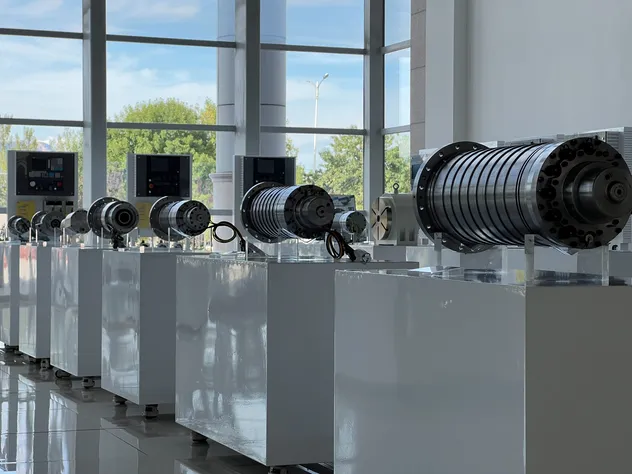

Electric Motor

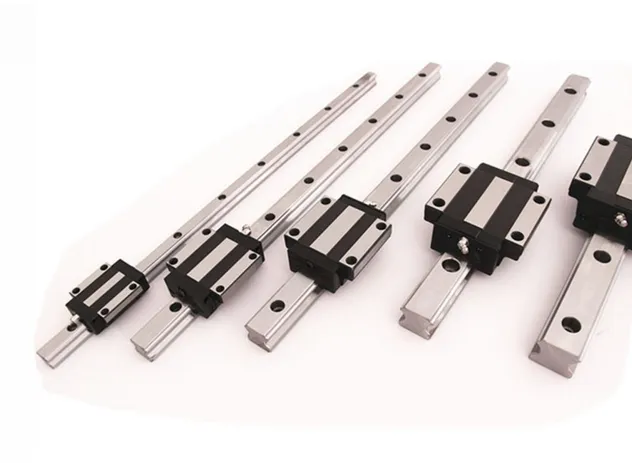

Linear Guide Rail

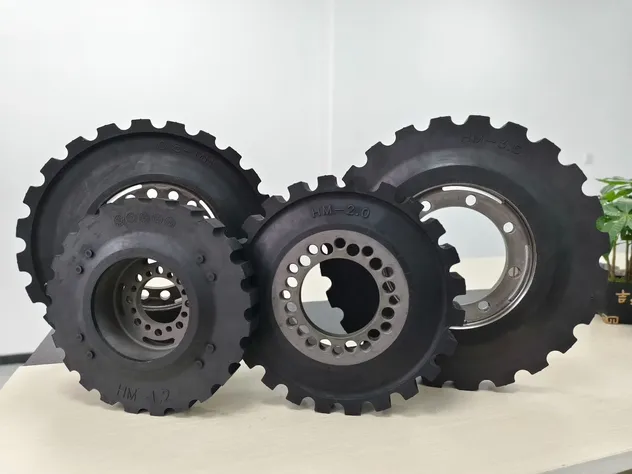

Flexible Coupling

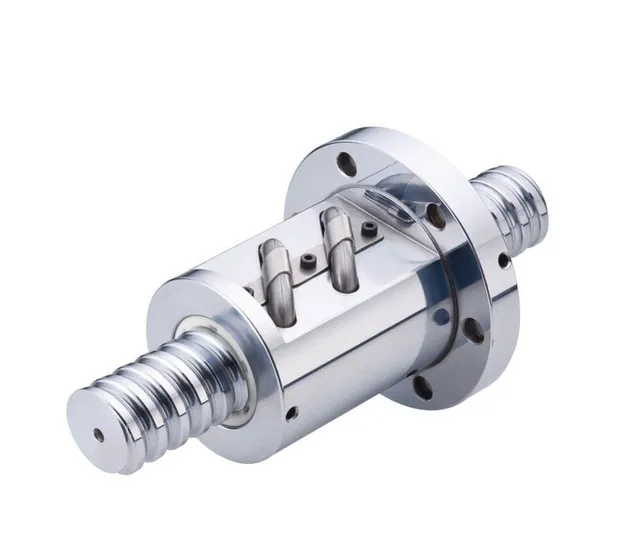

Ball Screw

Frequently Asked Questions

Q1: Why choose us for your industrial needs?
With over 20 years of hands-on experience in the machinery industry, we provide comprehensive, one-stop solutions that cover all your power transmission and automation procurement needs efficiently.
Q2: What are your primary product lines?
Our main products consist of high-precision ball screws, linear guides, industrial couplings, servo motors, servo drives, and direct-drive functional assemblies.
Q3: Do your products support non-standard customization?
Yes, our facilities have strong product R&D and manufacturing capabilities. we can customize products based on your specific technical requirements and drawings.
Q4: What are your standard payment terms?
For orders under US$5,000, 100% prepayment is required. For orders over US$5,000, we require 70% in advance, with the balance settled before shipment.
Q5: How do you ensure the quality of the motors?
Our motors are ISO9001 and CE certified. Every unit undergoes rigorous testing for vibration, noise, and dielectric strength before leaving the factory.
Q6: What is the typical lead time for an order?
For standard products, lead time is usually within 7-15 days. For customized or large-scale orders, it typically ranges from 20-30 days depending on the specification requirements.
