Brogen Ev Drivetrain 100kw 160kw Car Motor Kit 10-18m Electric Bus Pmsm EAxle Powertrain System

1 / 5

Brogen Ev Drivetrain 100kw 160kw Car Motor Kit 10-18m Electric Bus Pmsm EAxle Powertrain System

Send Inquiry

Product Description

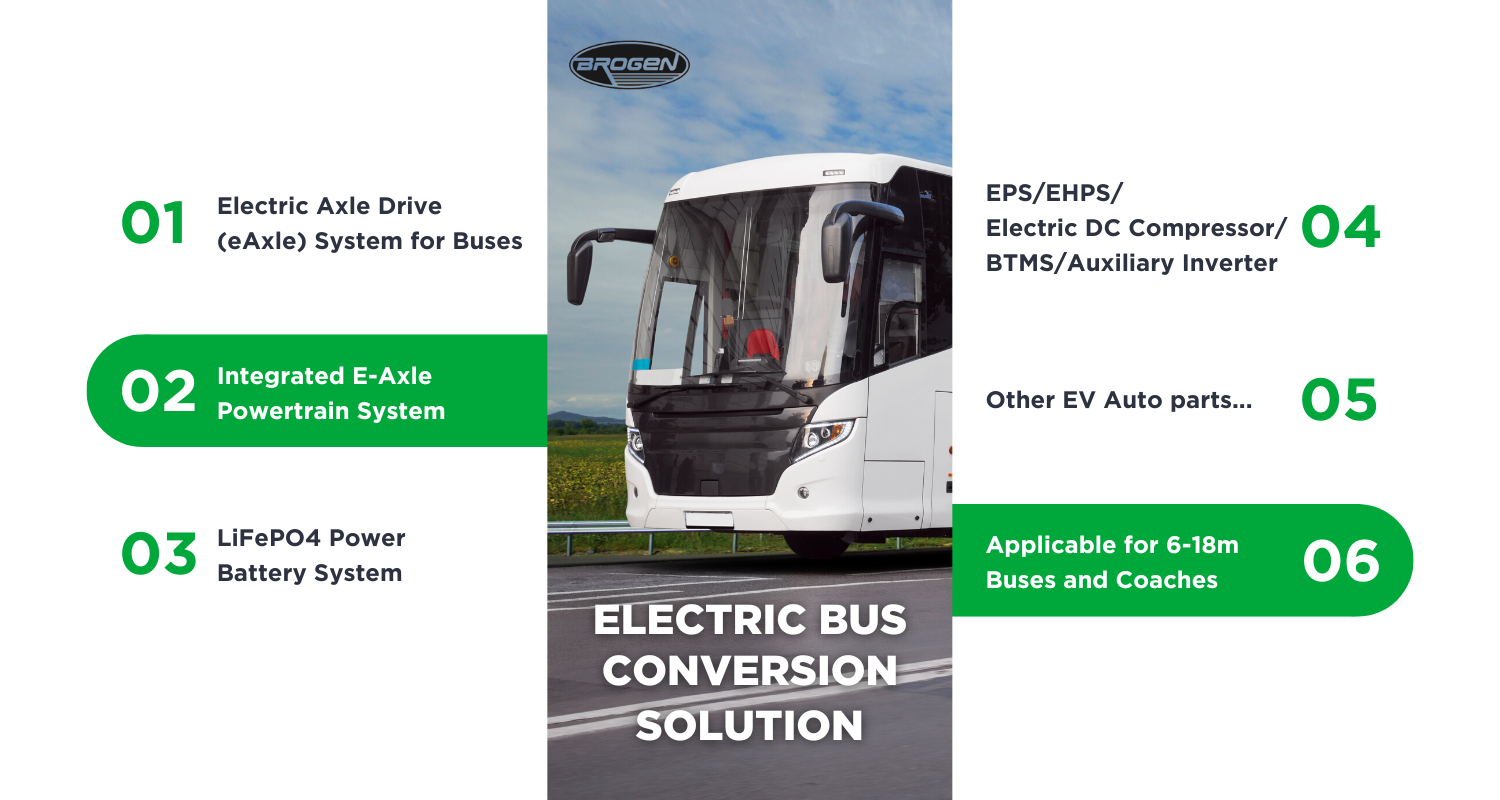

🔹 Electric Buses Powertrain Solution

1. E-Powertrain System for 6-7m Bus/Coach

*Battery System Customizable

Eaxle drive unit	Rated/Peak Power	Rated/Peak Torque	Peak Speed	Level of IP	Battery Voltage	Peak Current
LK1000/6m bus	70/130kW	400/1000Nm	4500rpm	-	-	-
LK1100/6.6m bus coach	80/160kW	500/1100Nm	4500rpm	-	-	-
3H1600/6-7m coach	80/160kW	800/1600Nm	3000rpm	IP68	520VDC	420A
4H1600/6-7m coach	80/160kW	800/1600Nm	3000rpm	IP68	520VDC	420A

Integrated eaxle drive	Rated load (t)	Speed ratio	Rated/Peak Power (kW)	Rated/Peak Torque(Nm)	Rated/Max speed (rpm)	Brake form	Protection	Rated voltage (VDC)
OEA30/6m bus	3.5	15.22	60/120	160/350	3580/12000	hydraulic disc	IP68	540
OEA60/6-7m bus	6	16.279	80/160	170/355	3600/12000	hydraulic disc	IP68	540

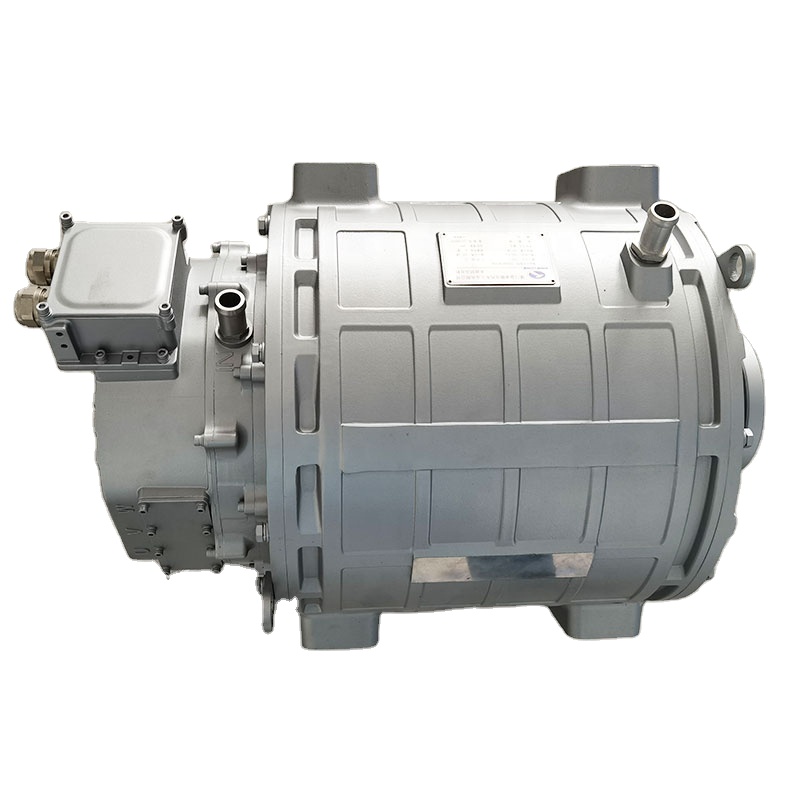

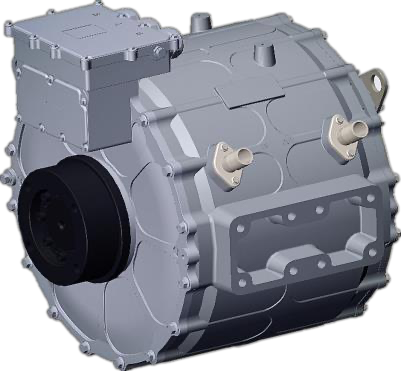

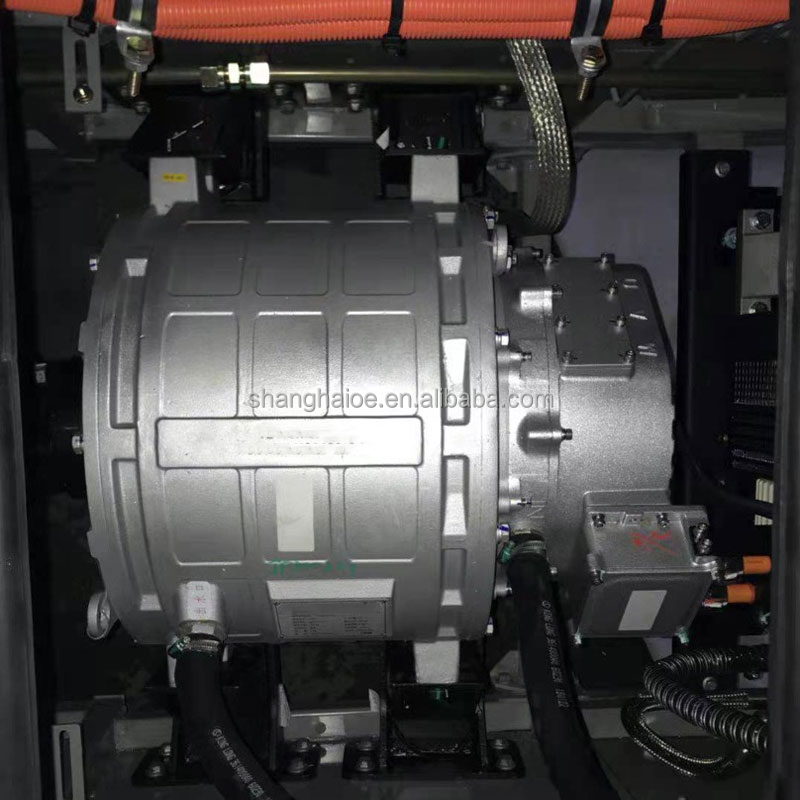

160kW Direct Drive Motor

Rated voltage (VDC): 520
Rated/Peak Power (kW): 80/160
Rated /peak torque (Nm): 800/1600
Protection class: IP68

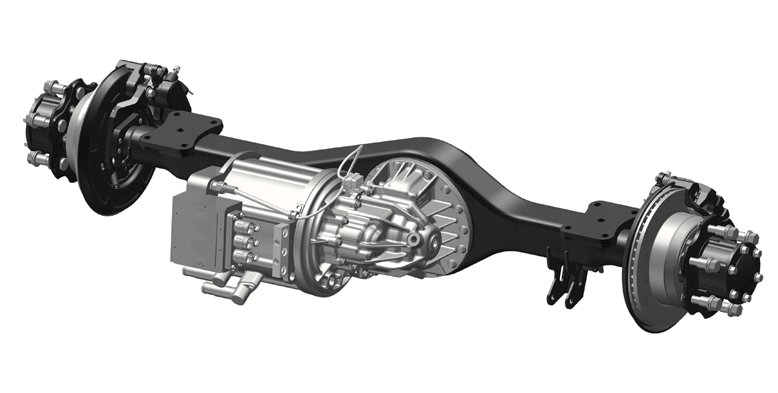

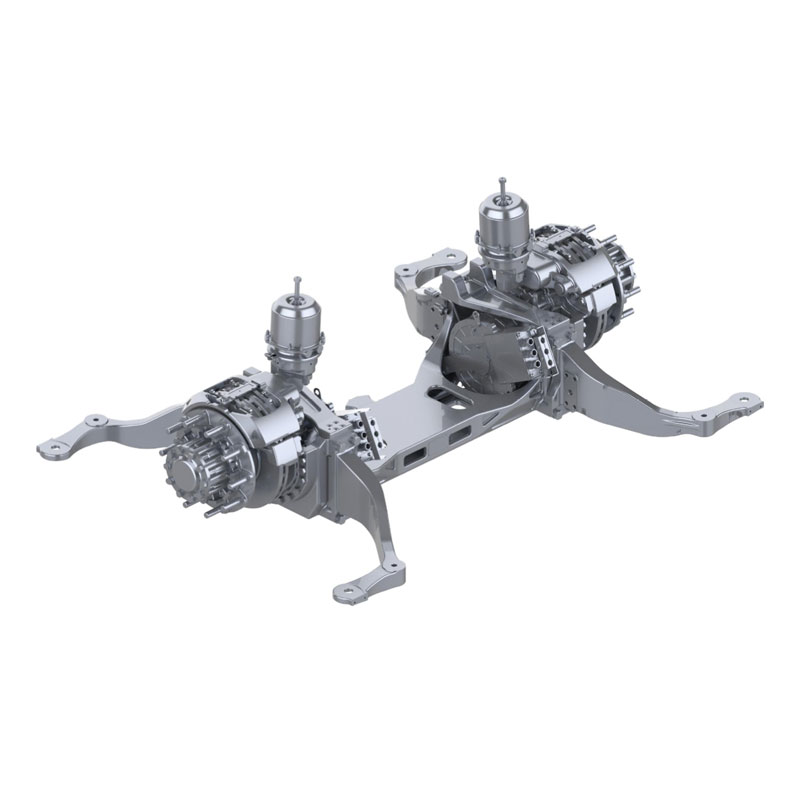

Parallel Shaft Drive Axle

Integrated motor, reducer and axle. High transmission efficiency.
Maximum output torque (N•m): 4433
Rated / Peak power (kw): 60/120

2. E-Powertrain System for 8-9m Bus/Coach

*Battery System Customizable

Eaxle drive unit	Rated/Peak Power	Rated/Peak Torque	Peak Speed	Level of IP	Battery Voltage	Peak Current
OE400xs-90-8m bus	90/150KW	636/1700Nm	1350/3000rpm	IP67	540VDC	420A
3H2000/8-9m coach	100/200KW	1000/2000Nm	3500rpm	IP68	520VDC	520A
LK1700/8m bus	80/150KW	750/1700Nm	3000rpm	-	-	-

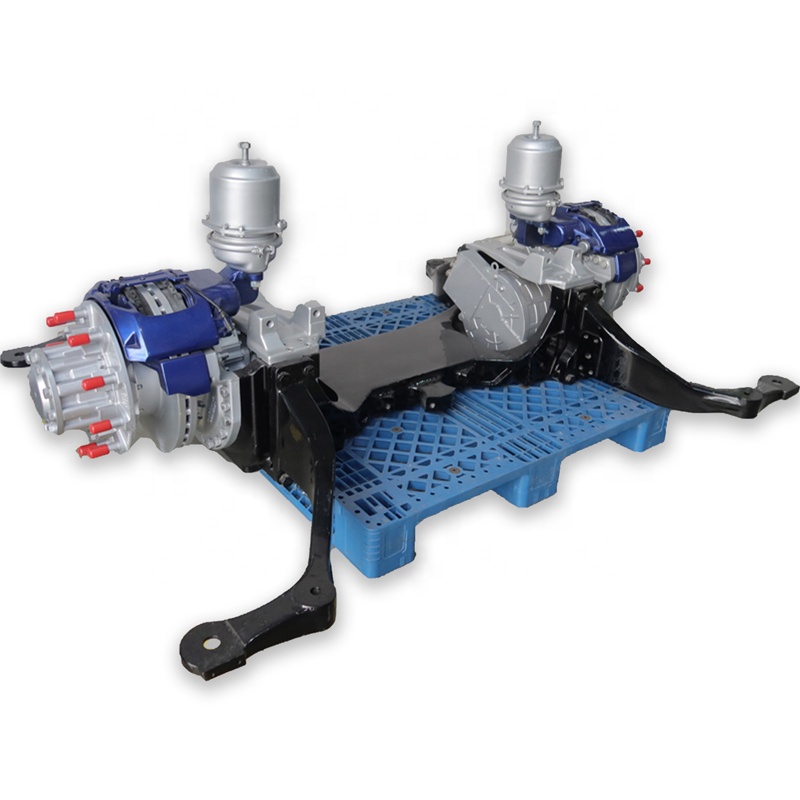

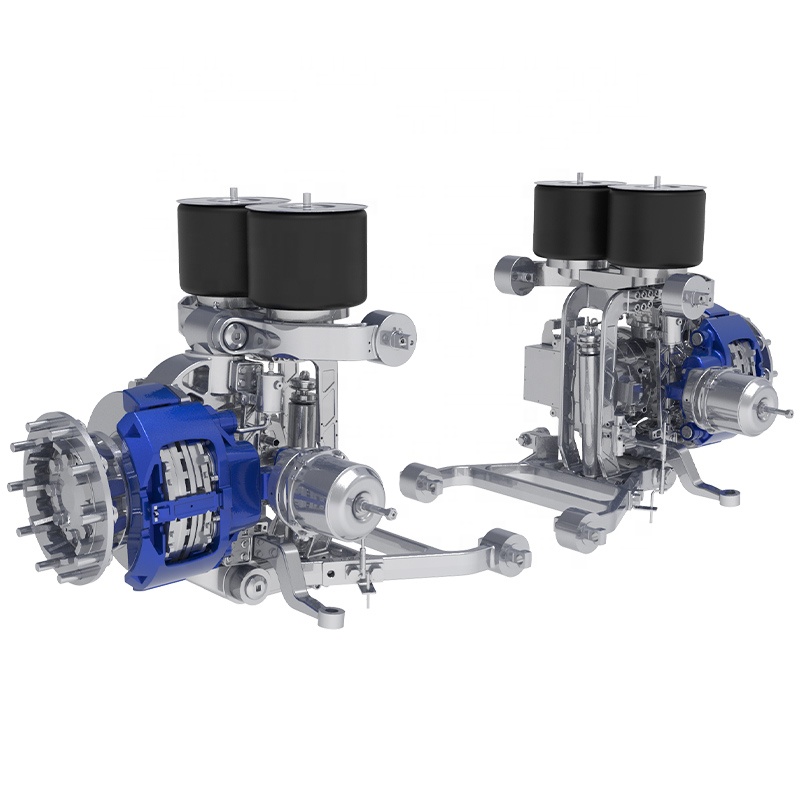

Electric Portal Axle (8-9m)

Axle Load (kg): 9000
Rated/Peak Power (kW): 2x60/2x120
Brake: Air disc brake

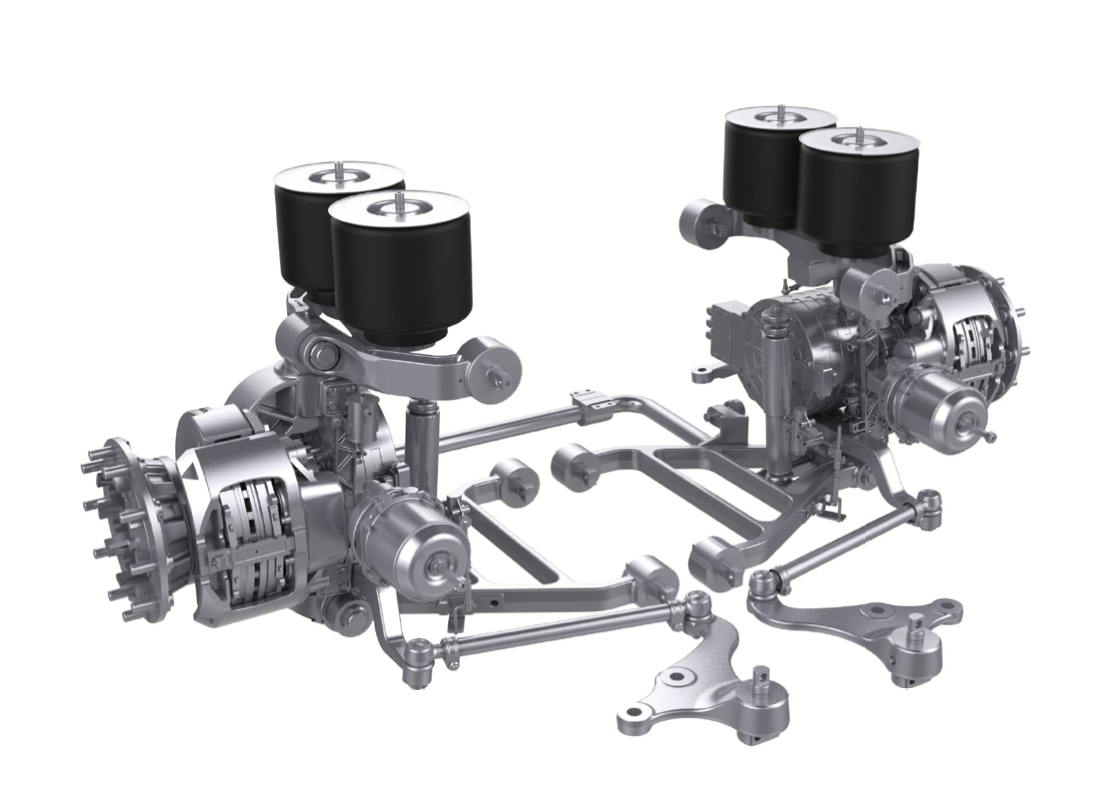

Steering Electric Portal Axle

Axle Load (kg): 9000
Rated/Peak Torque(Nm): 2x140/2x350
Protection class: IP67

3. E-Powertrain System for 10-18m Bus/Coach

Eaxle drive unit	Rated/Peak Power	Rated/Peak Torque	Peak Speed	Level of IP	Battery Voltage
OED3010S/10m bus	110/210KW	500/1100Nm	4500rpm	-	-
LK2800/12m coach	135/275KW	1200/2800Nm	3500rpm	-	-
OE400xs-180	180/240KW	688/1200Nm	2500/3000rpm	IP67	656VDC
3H4800/15m bus	250/500KW	2400/4800Nm	3000rpm	IP68	520VDC

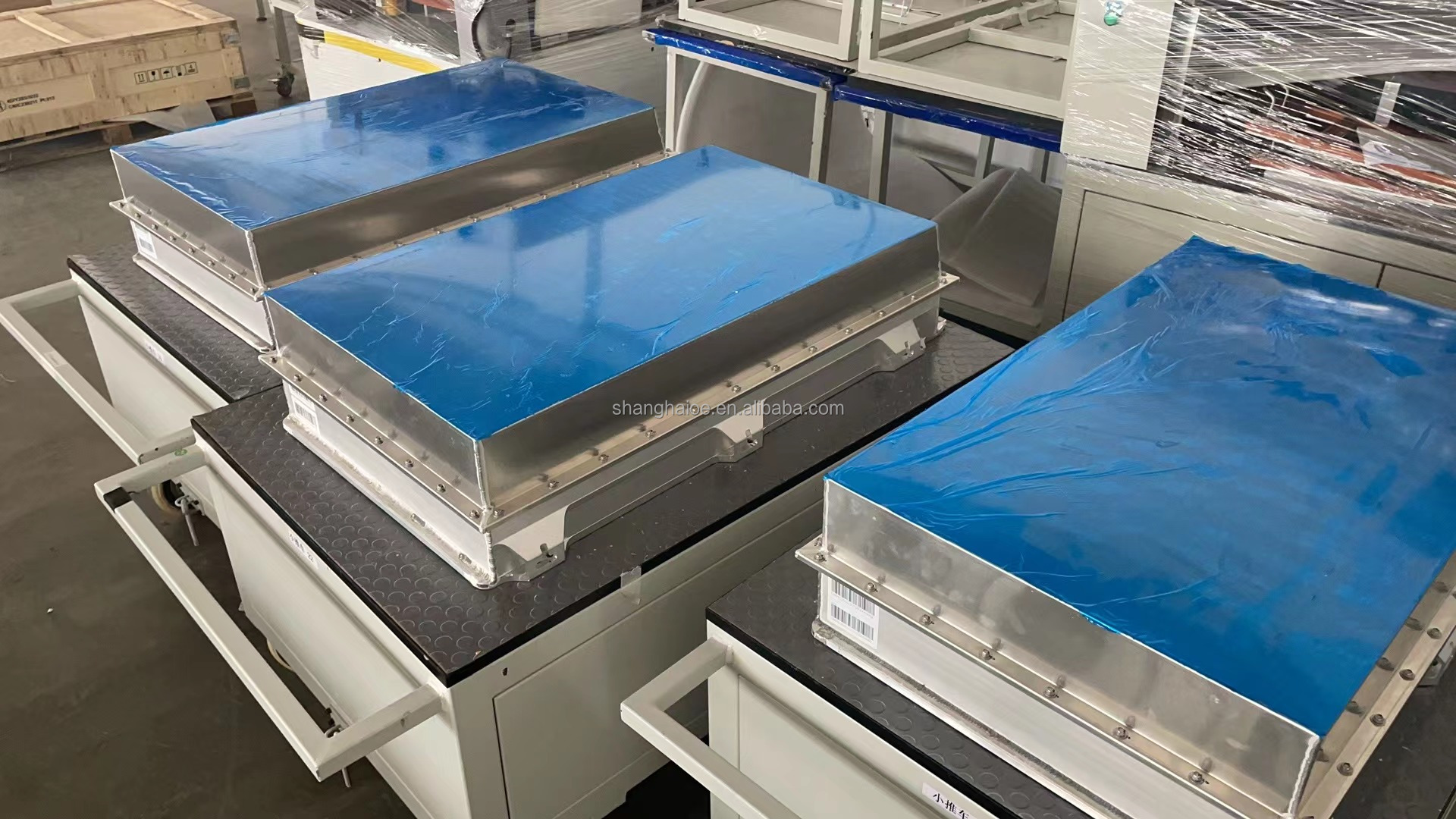

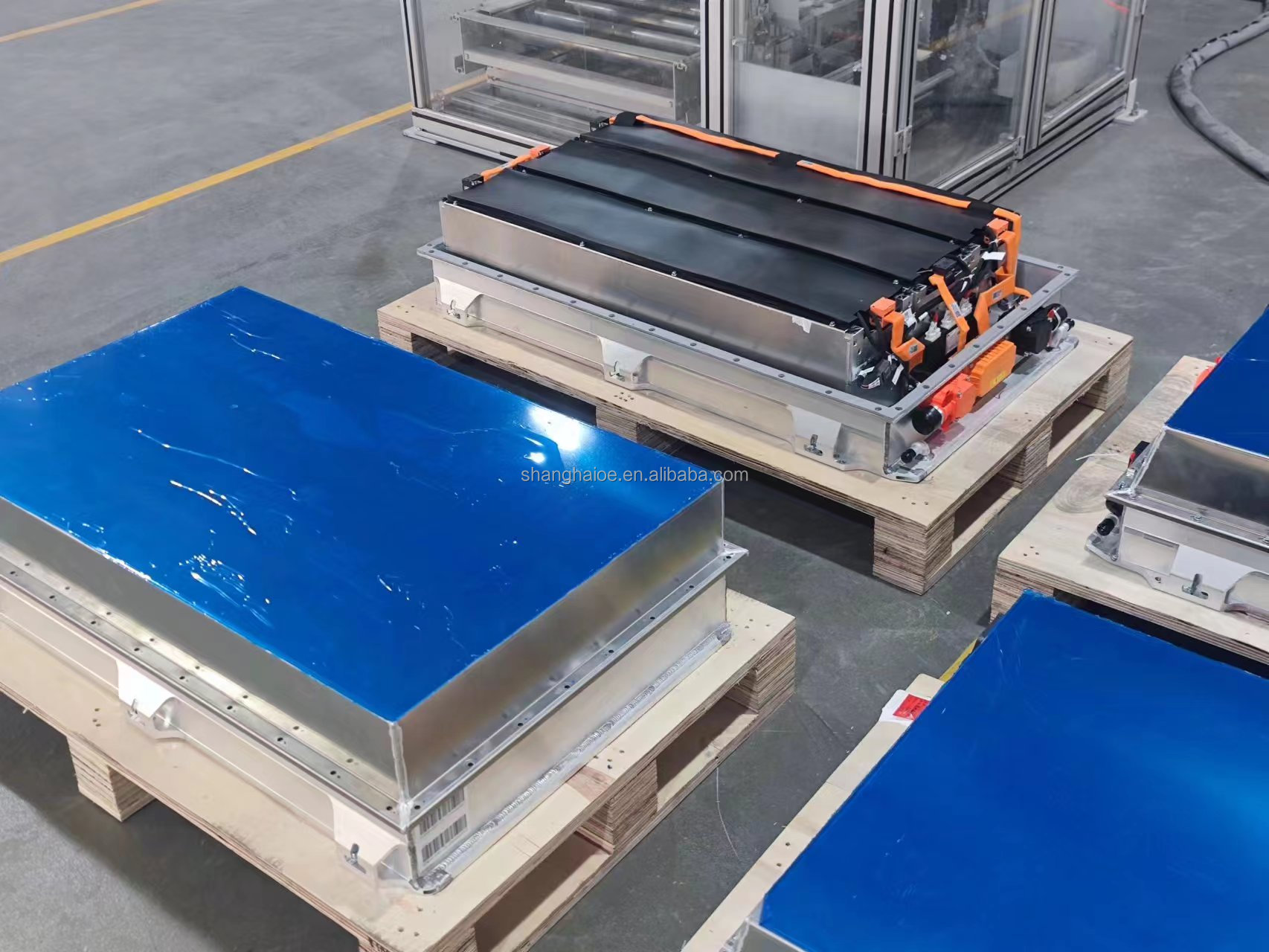

🔹 Battery System

Parameters	105Ah Cell	173Ah Cell	230Ah Cell	280Ah Cell	304Ah Cell
System capacity	210Ah	173Ah	230Ah	280Ah	304Ah
Rated system voltage	153.6V	202.86V	153.6V	115.2V	115.2V
System power KWh	32.256KWH	35.095KWH	35.328KWH	32.256KWH	35.020KWH

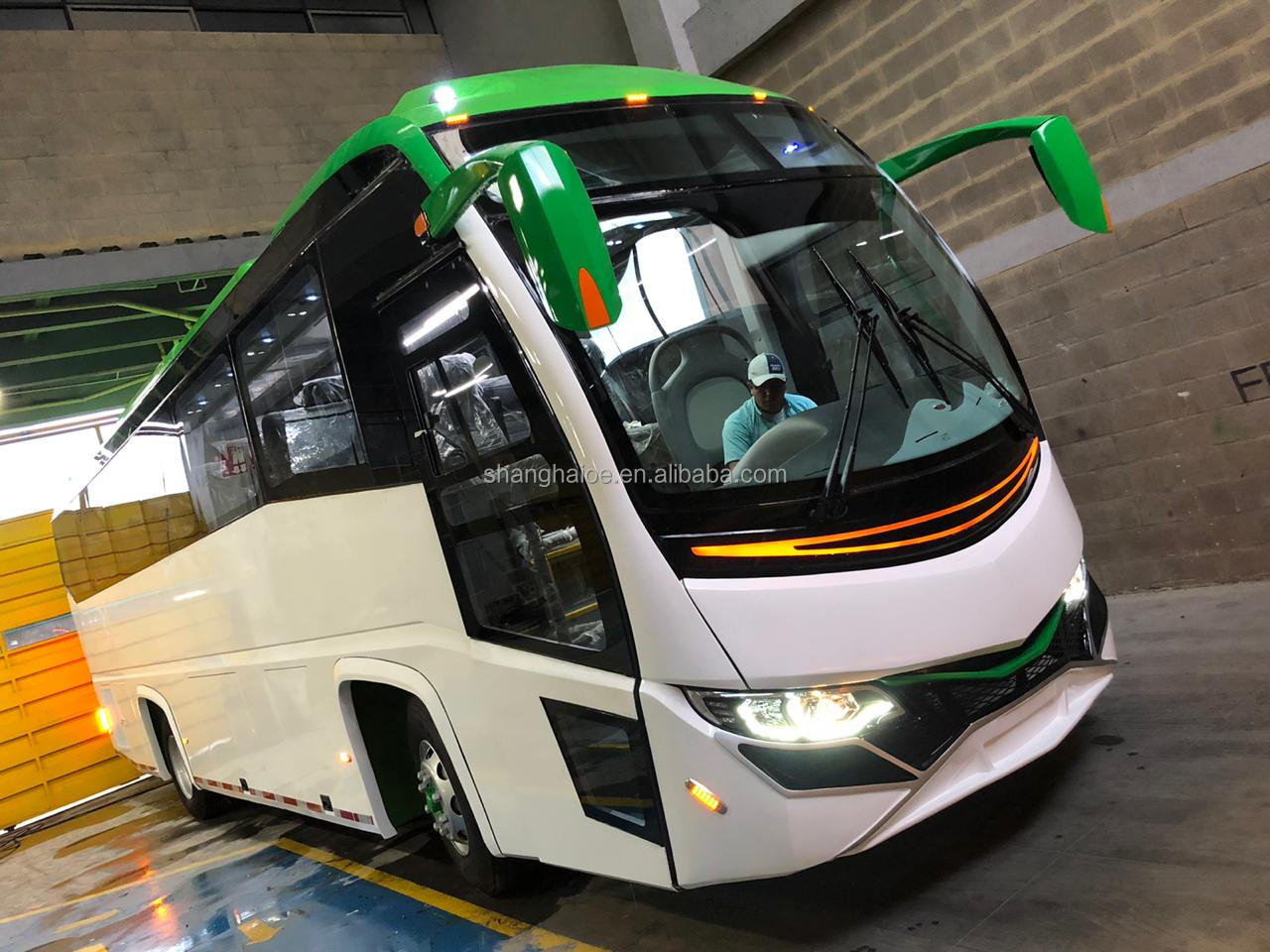

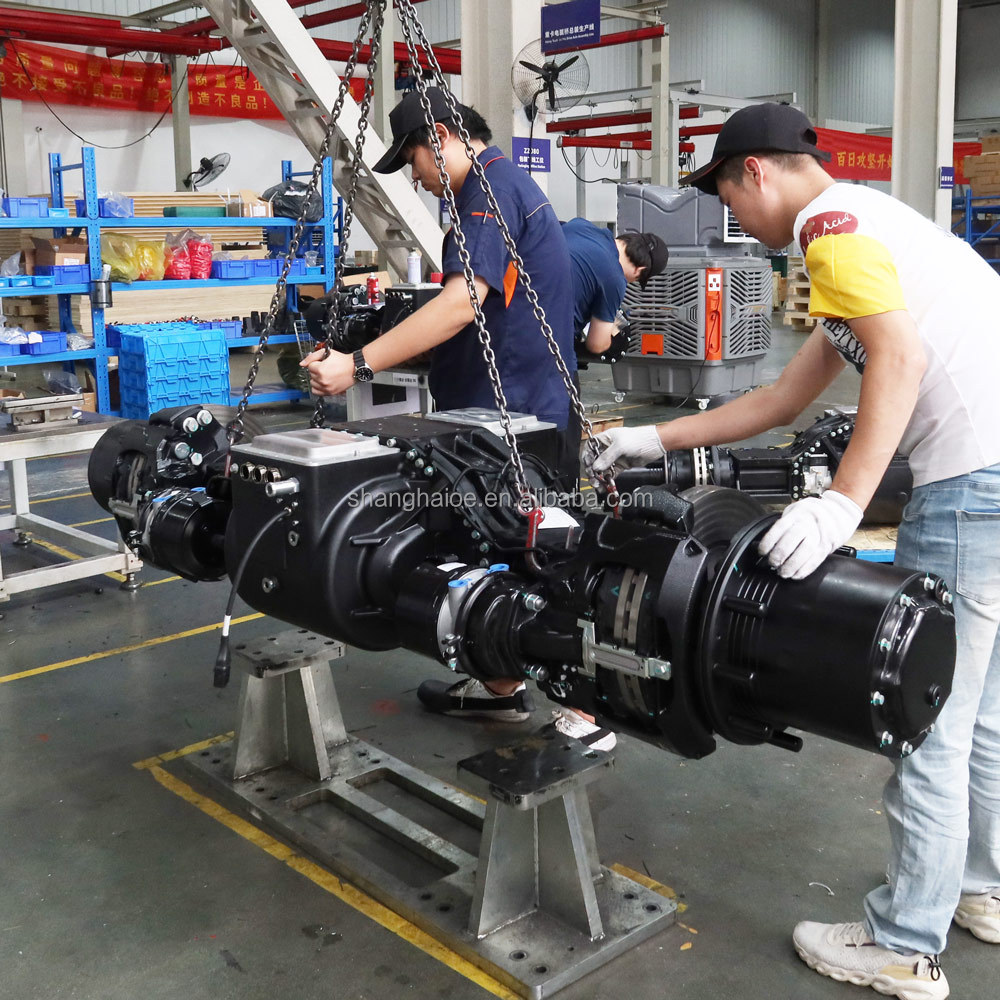

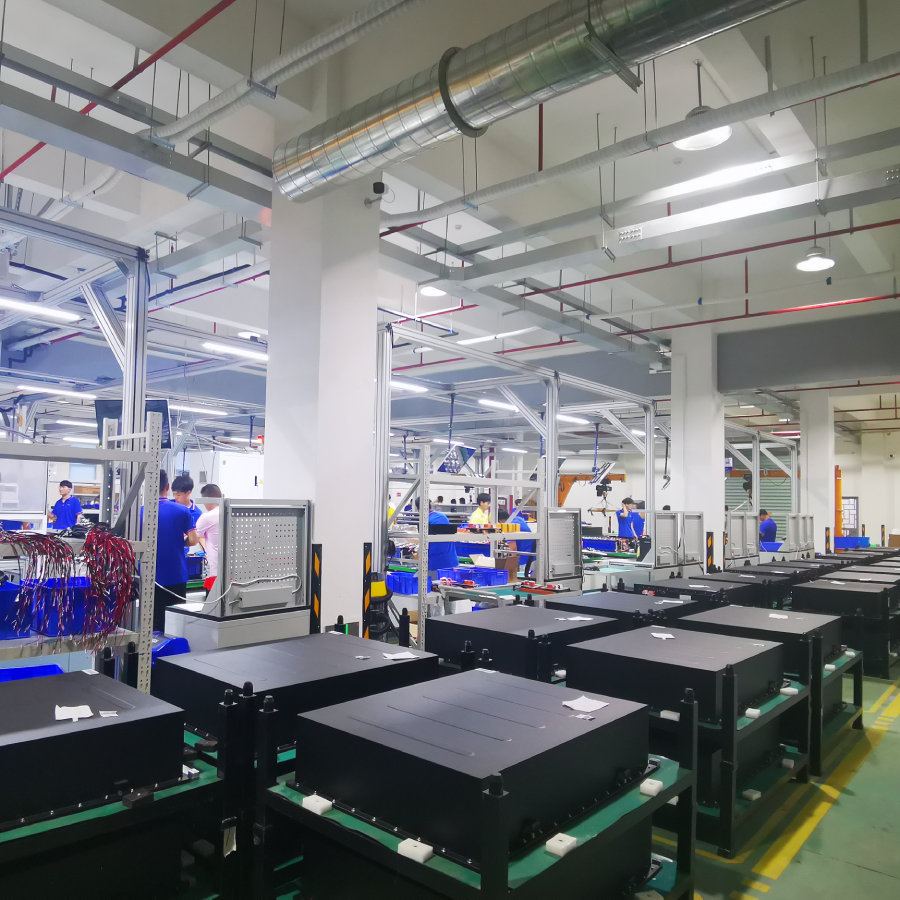

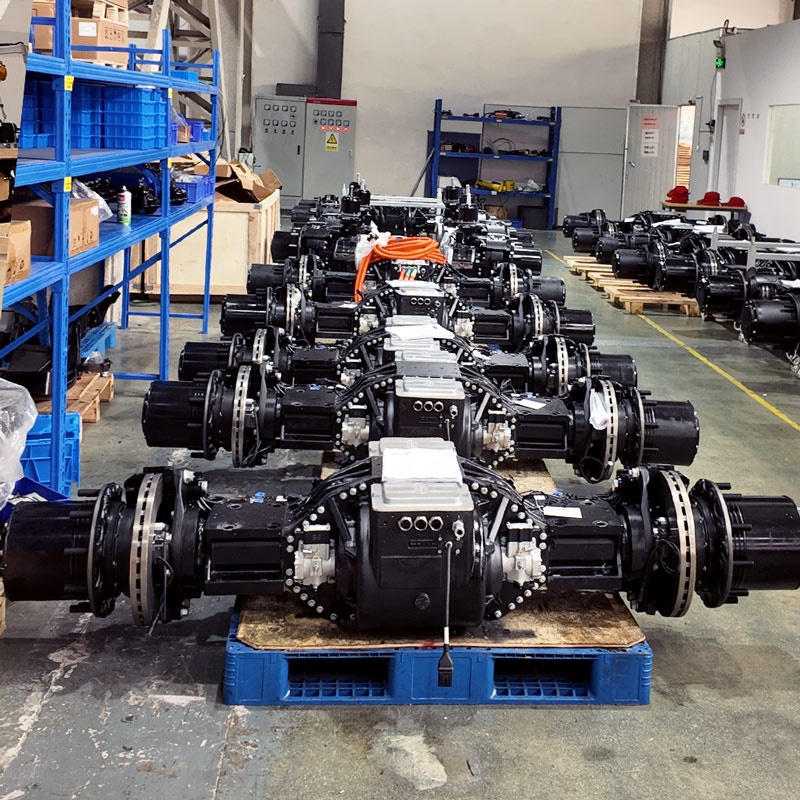

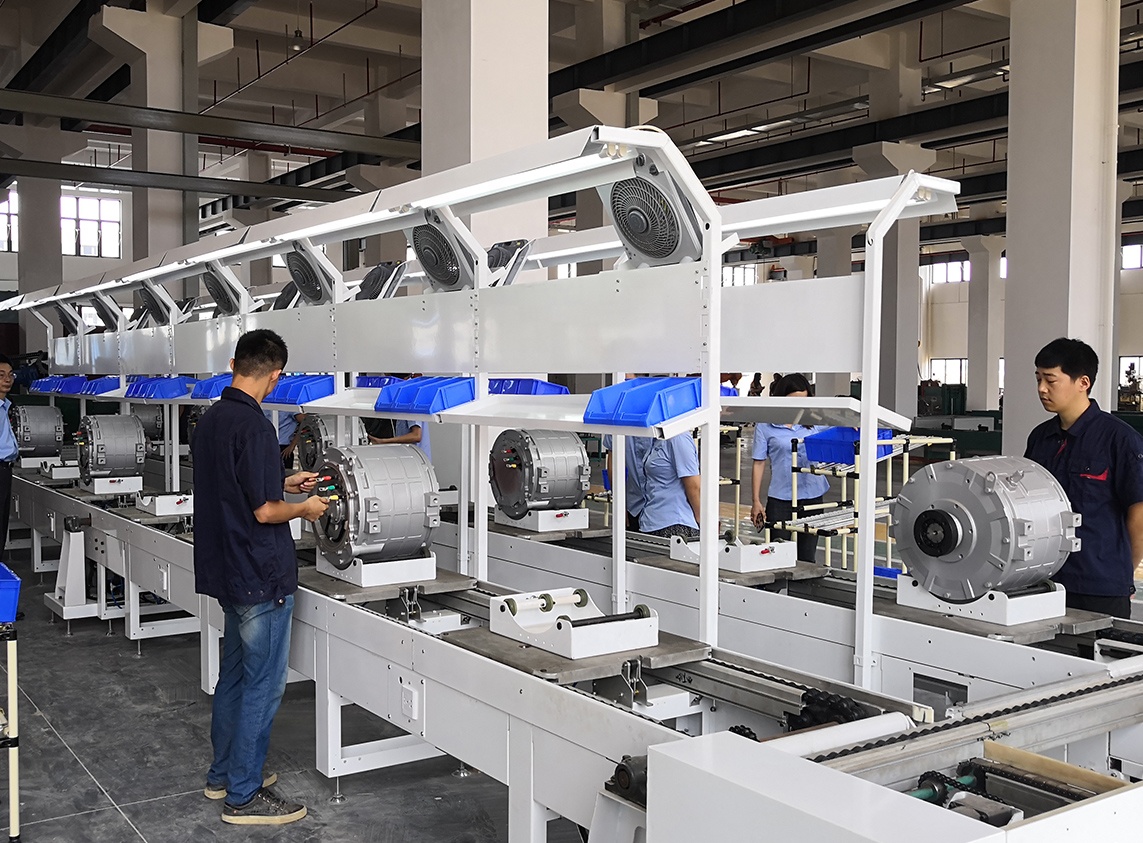

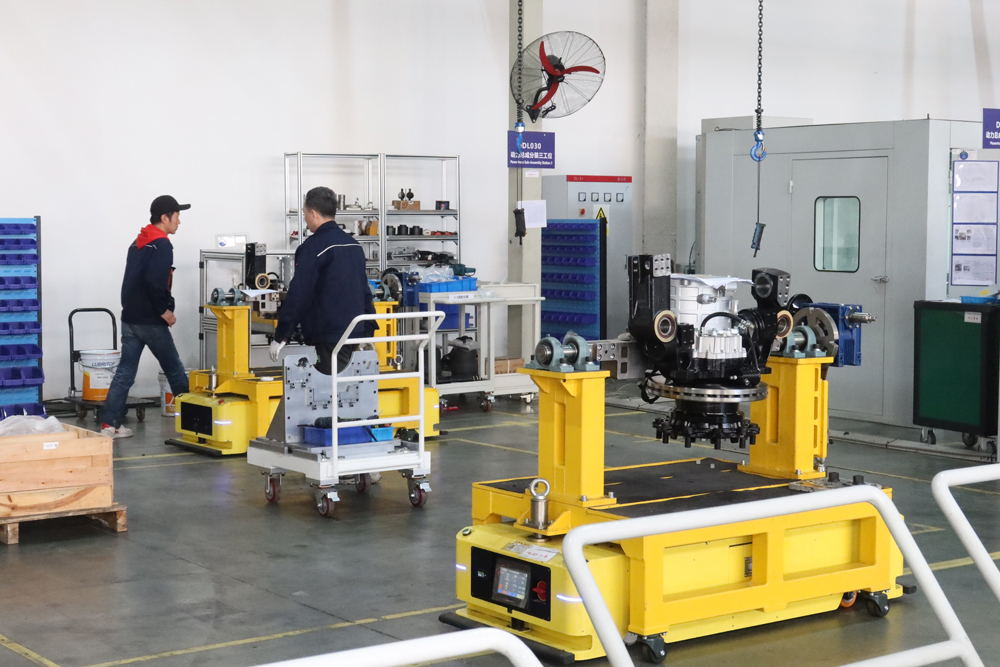

🔹 Customer Photos & Factory Show

🔹 OUR DISTINCT IDENTITY

A leading provider of customized EV powertrain solutions for cars, buses, trucks, boats, and more. We provide a wide range of complete EV solutions, tailored to the unique challenges faced by EV developers and brands.

12+ Years of Experience | 300+ Overseas Clients | 100+ Strategic Partners

✔ Responsive and Cost-effective solutions for OEM/ODM.
✔ Low MOQ: 100-1,000 EVs per year.
✔ Expert in custom product development and mass production.
✔ One-on-one service with full after-sales support.

*We DO NOT Offer Aftermarket Auto Parts.

❓ Frequently Asked Questions (FAQ)

1. What types of vehicles are your powertrain solutions suitable for?

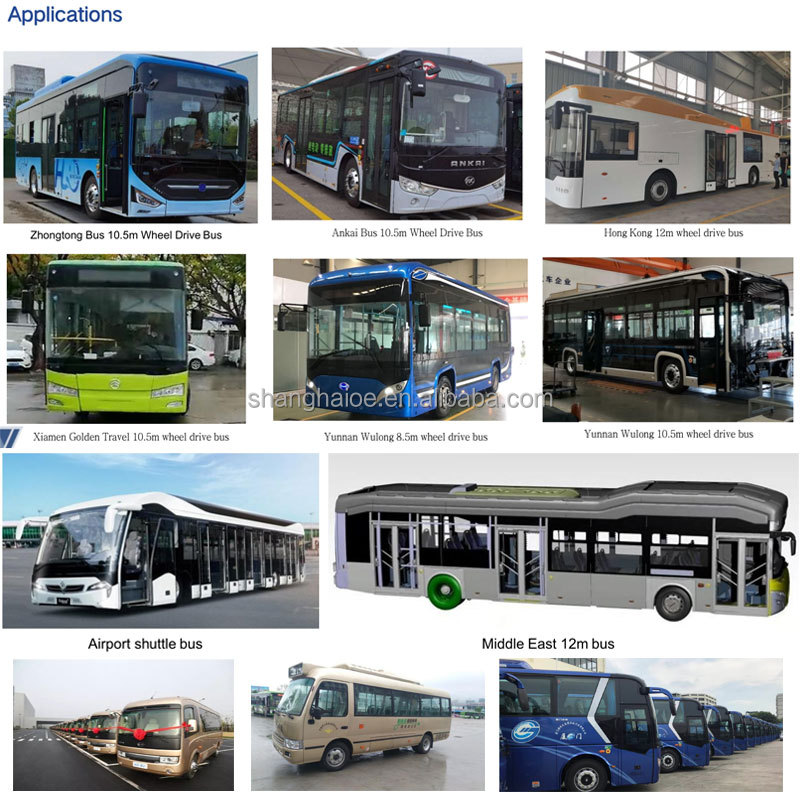

Our solutions are highly versatile and can be customized for electric cars, buses (from 6m to 18m), trucks, sanitation vehicles, and even electric boats.

2. Can the battery system be customized according to specific requirements?

Yes, we provide fully customizable battery systems including different cell capacities (105Ah to 304Ah) and various voltage configurations to meet your range and power needs.

3. What is the standard protection level for your electric motors?

Most of our motors and drive units carry an IP67 or IP68 rating, ensuring high durability and protection against water and dust ingress in demanding environments.

4. Do you support low volume production (Low MOQ)?

Yes, we specialize in supporting EV developers and brands with low MOQ requirements, typically ranging from 100 to 1,000 electric vehicles per year.

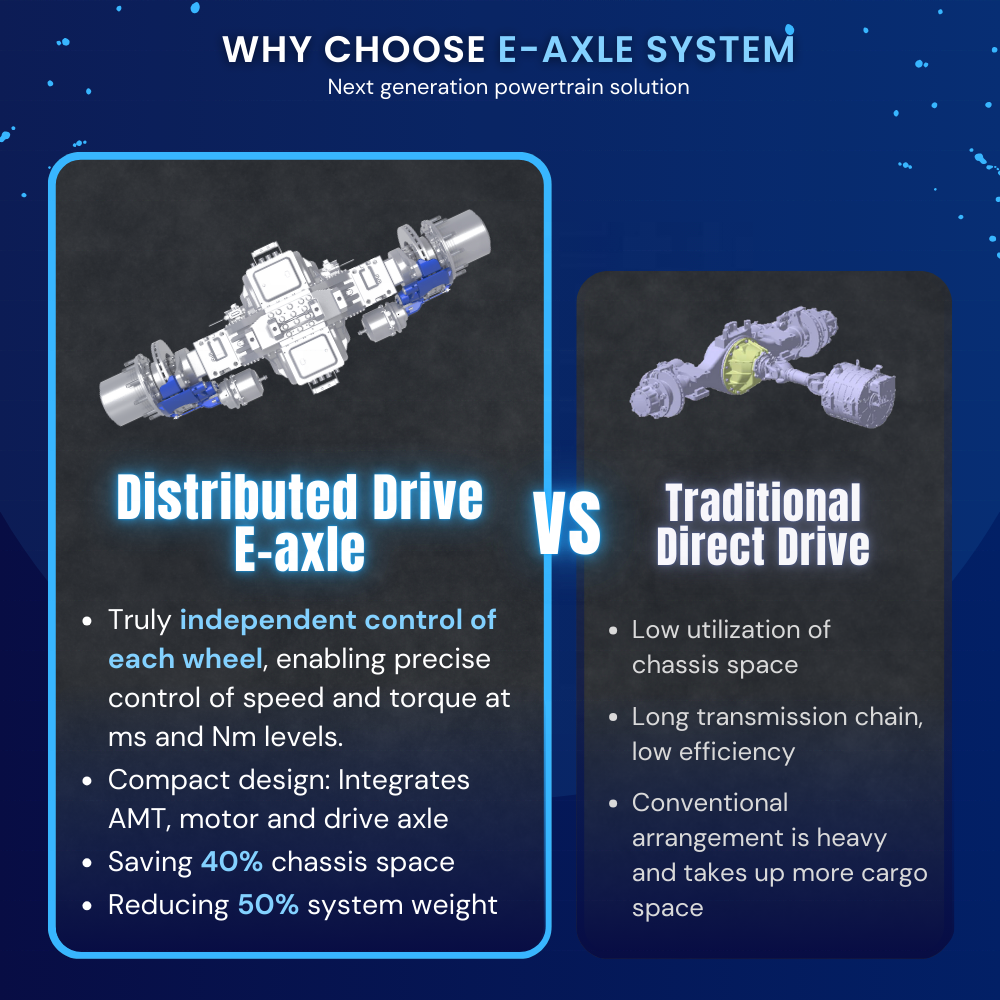

5. What are the advantages of your integrated electric drive axles?

By integrating the motor, reducer, and axle into a single unit, our systems are lighter in weight, more compact, and offer higher transmission efficiency compared to traditional layouts.

6. Do you provide after-sales support for overseas clients?

We offer comprehensive one-on-one service with full after-sales support to ensure our global partners can successfully maintain and operate their electric vehicle fleets.
