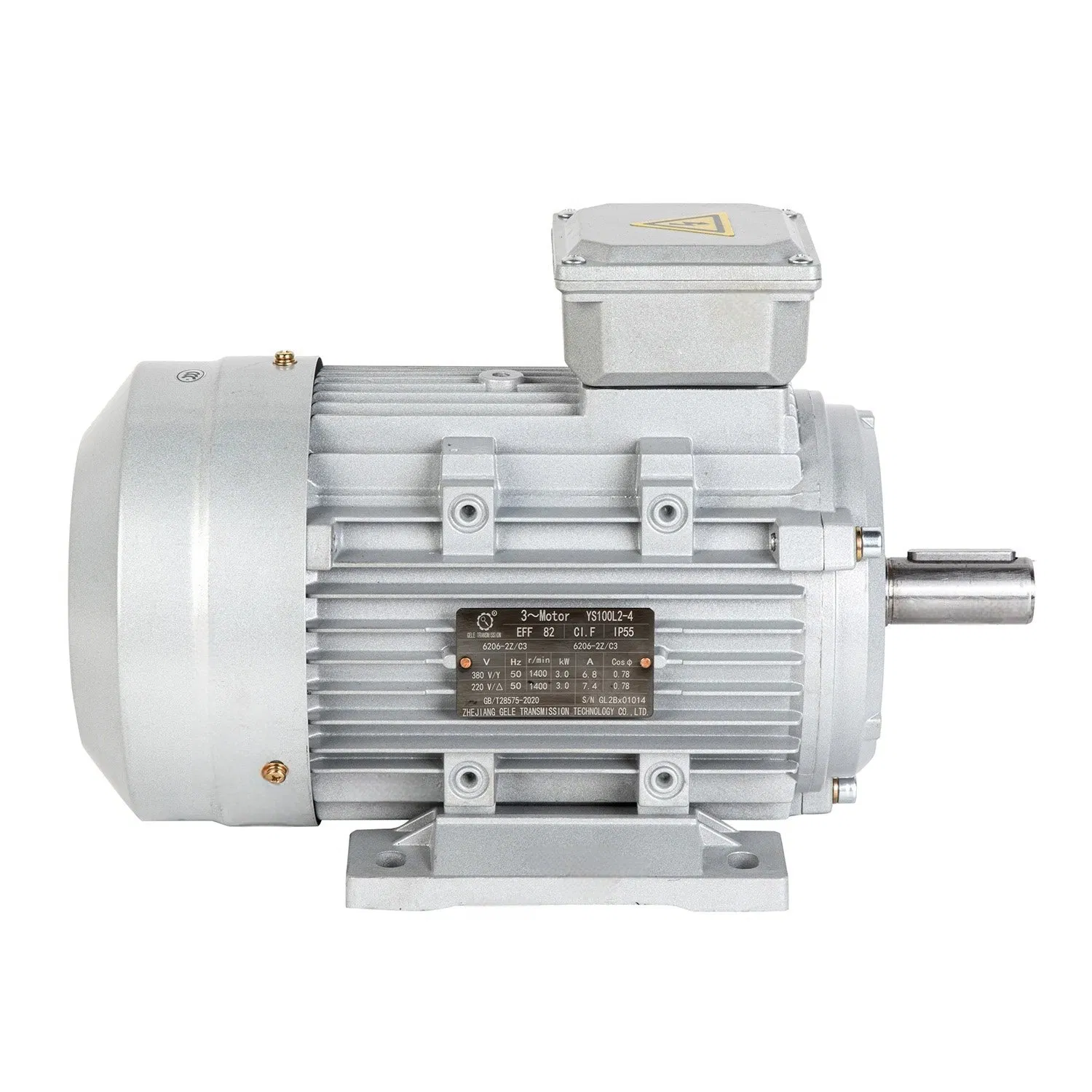

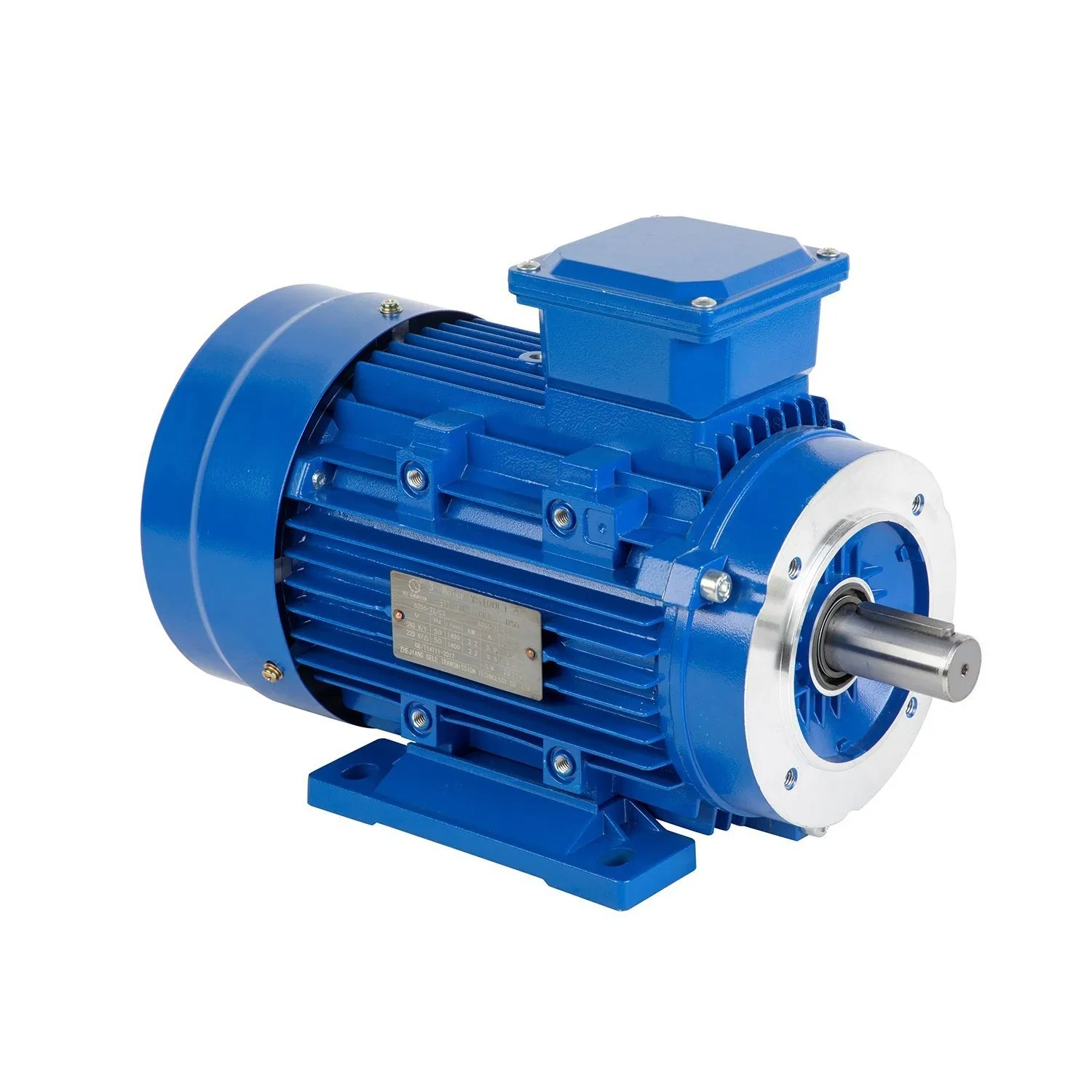

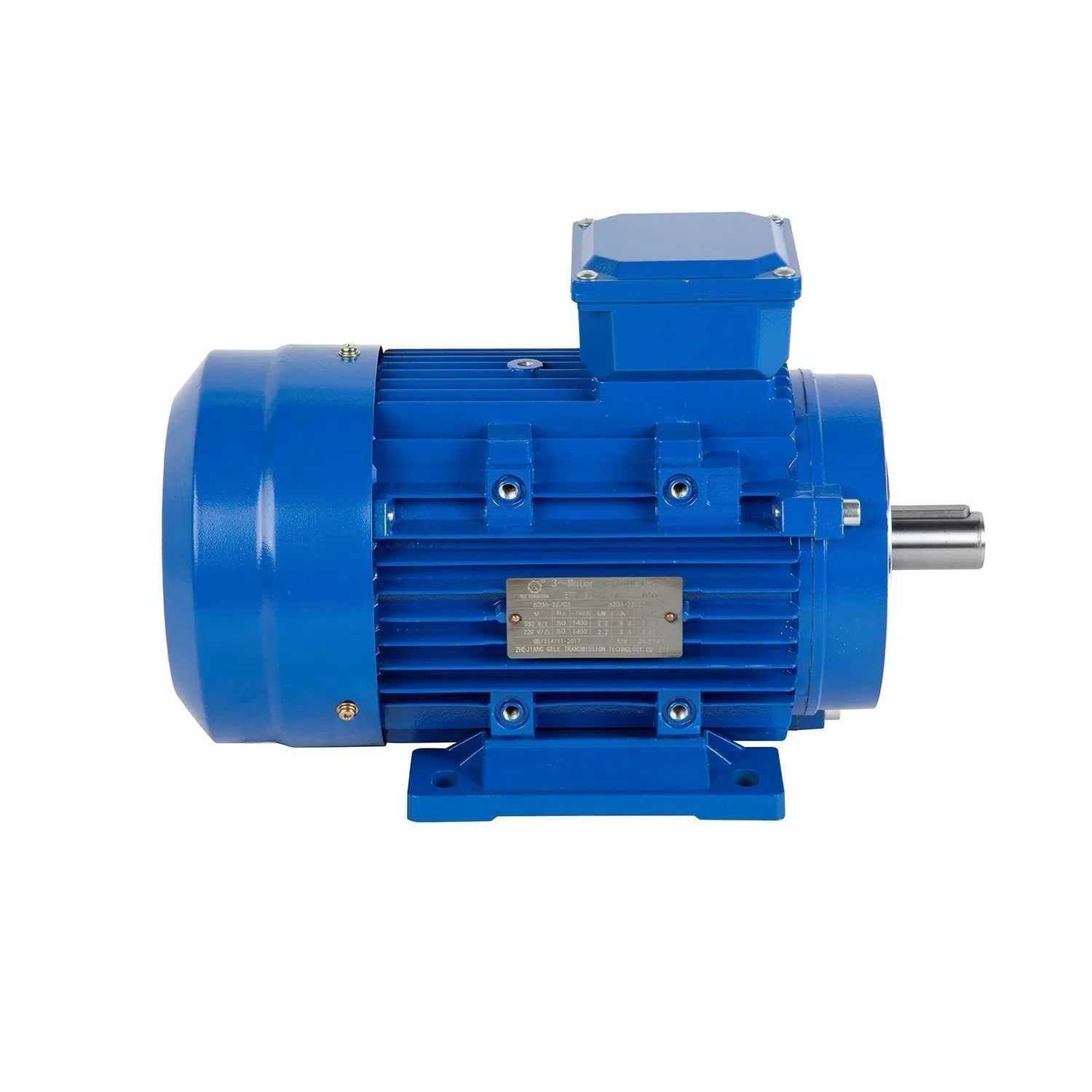

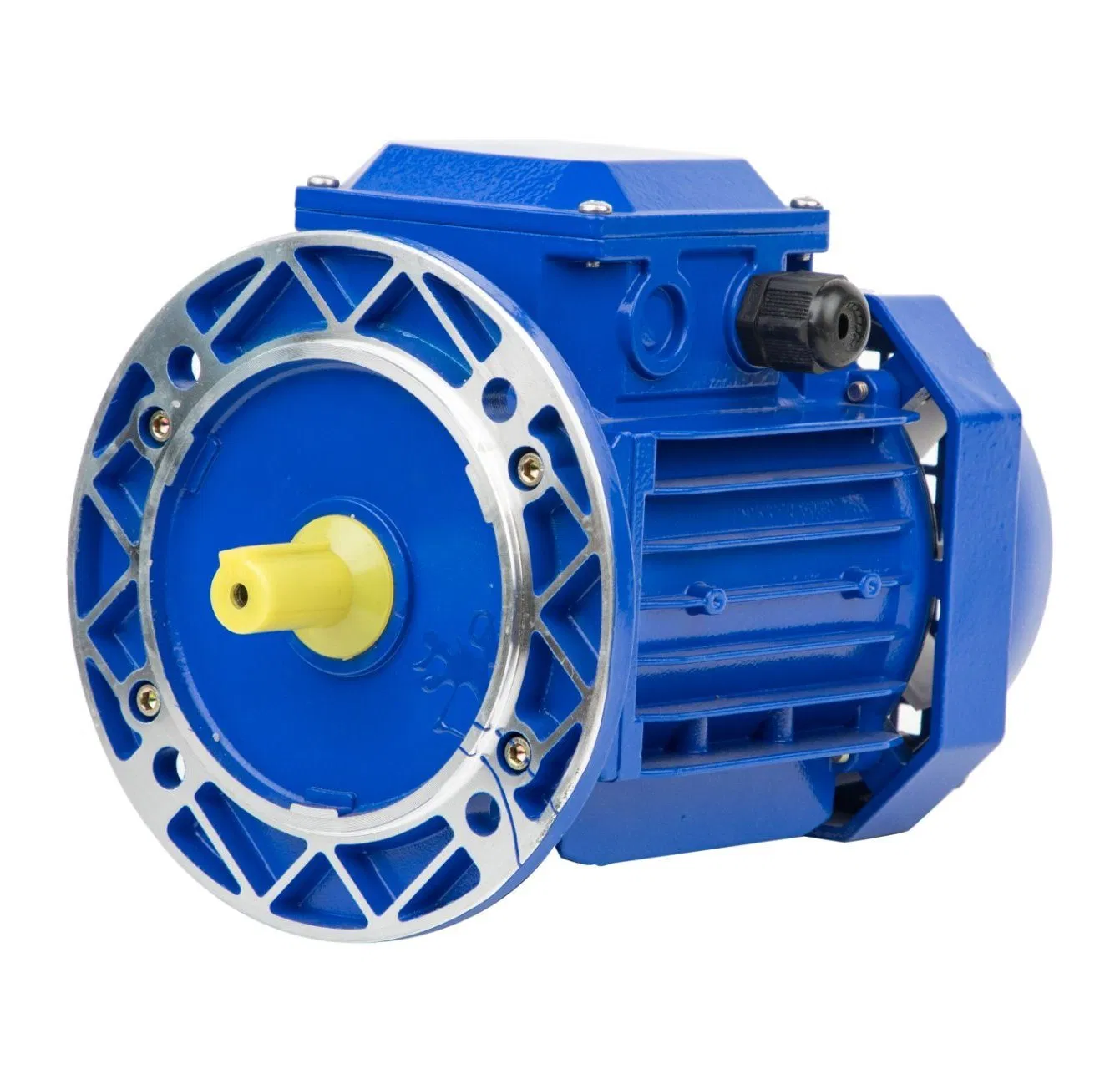

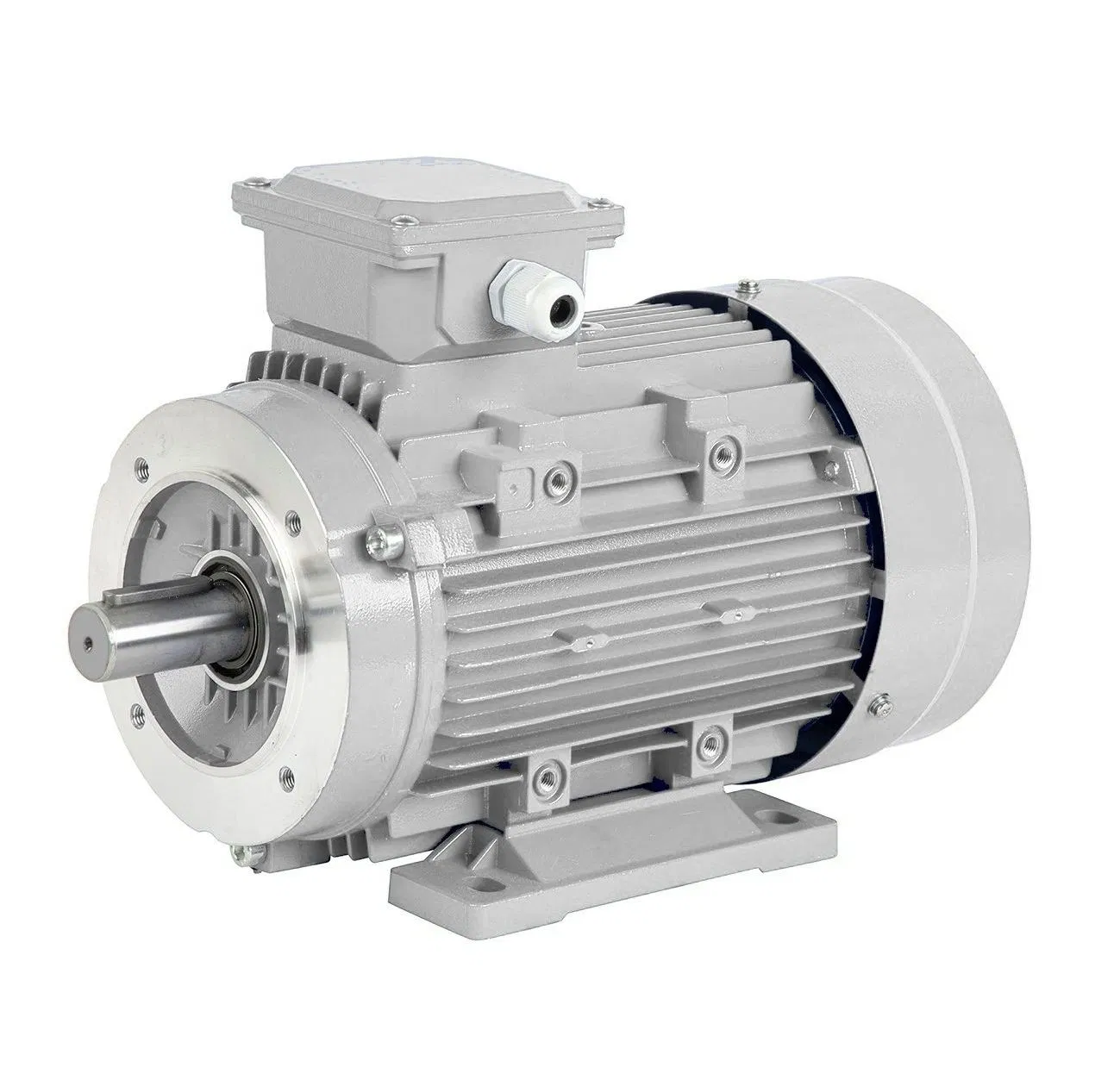

YS/Y2 Series aluminium housing three-phase asynchronous motors are the latest design, crafted from selected quality materials and conforming to the international IEC standard. These motors offer safe and reliable performance with an attractive appearance and easy maintenance. They feature low noise levels and minimal vibration while remaining lightweight with a simple construction.
| Type | Rated Output | Speed | Eff | P.F. | Current | Locked Torque | Max Torque | Locked Current | |
|---|---|---|---|---|---|---|---|---|---|
| KW | HP | (r.p.m) | (%) | (cosθ) | (A) | Tst/Tn | Tmax/Tn | Ist/In | |
| 3000 r/min (2 Poles) | |||||||||
| YS-5612 | 0.09 | 1/8 | 2680 | 62 | 0.68 | 0.32 | 2.3 | 2.3 | 6 |
| YS-6312 | 0.18 | 1/4 | 2710 | 69 | 0.75 | 0.53 | 2.3 | 2.3 | 6 |
| YS-7122 | 0.55 | 3/4 | 2770 | 75.5 | 0.82 | 1.35 | 2.3 | 2.3 | 6 |
| YS-8022 | 1.1 | 1.5 | 2800 | 77 | 0.85 | 2.55 | 2.2 | 2.3 | 7 |
| YE2-100L-2 | 3 | 4 | 2890 | 84.6 | 0.87 | 6.17 | 2.2 | 2.3 | 7.8 |
| 1500 r/min (4 Poles) | |||||||||
| YS-7124 | 0.37 | 1/2 | 1350 | 69.5 | 0.72 | 1.12 | 2.4 | 2.4 | 6 |
| YS-90L-4 | 1.5 | 2 | 1400 | 79 | 0.79 | 3.65 | 2.3 | 2.4 | 6.5 |
| YE2-132M-4 | 7.5 | 10 | 1450 | 88.7 | 0.84 | 15.3 | 2 | 2.3 | 7.5 |

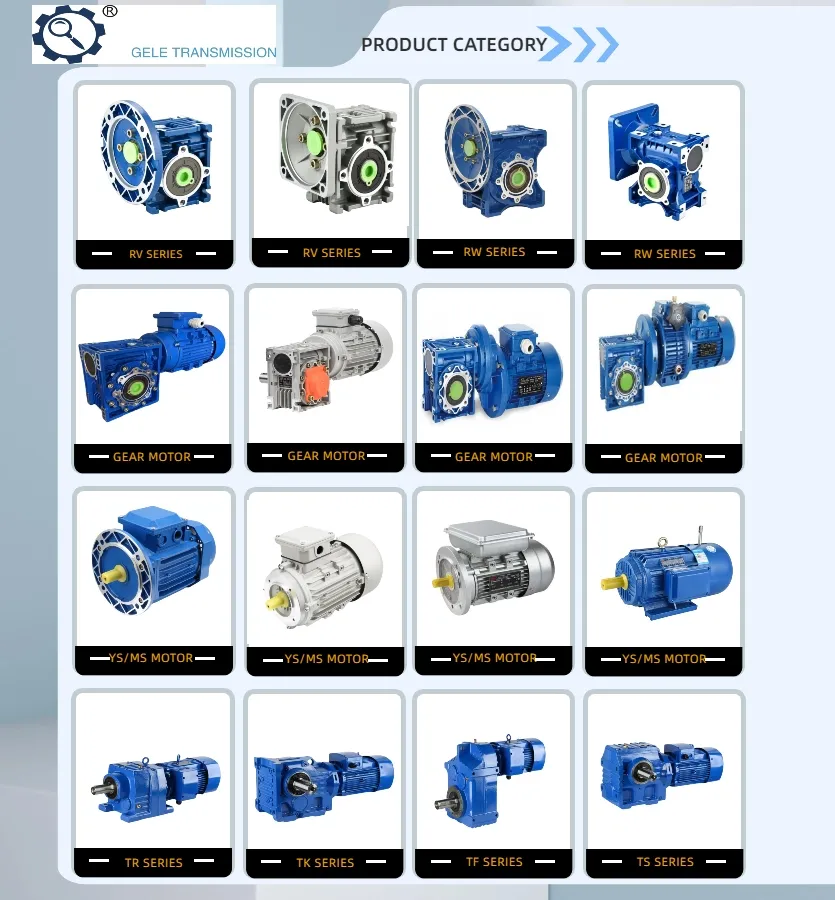

As a professional reducer manufacturer, our leading products include a full range of RV worm gearboxes (025-150), three-phase electric motors, single-phase motors, brake motors, VFD motors, helical gearboxes (R, K, F, S Series), and specialized mechanical transmission accessories. Our products are widely used in food, ceramics, packaging, chemicals, plastics, construction machinery, and environmental protection engineering.
Packing: Plastic Bags + Cartons + Wooden Cases (or on request).
Shipping: By Sea, Air, Train, or Express (DHL, TNT, UPS, FEDEX).
Warranty: One year after receiving goods.
Service: Includes modeling selection guide, installation guidance, and problem resolution.
