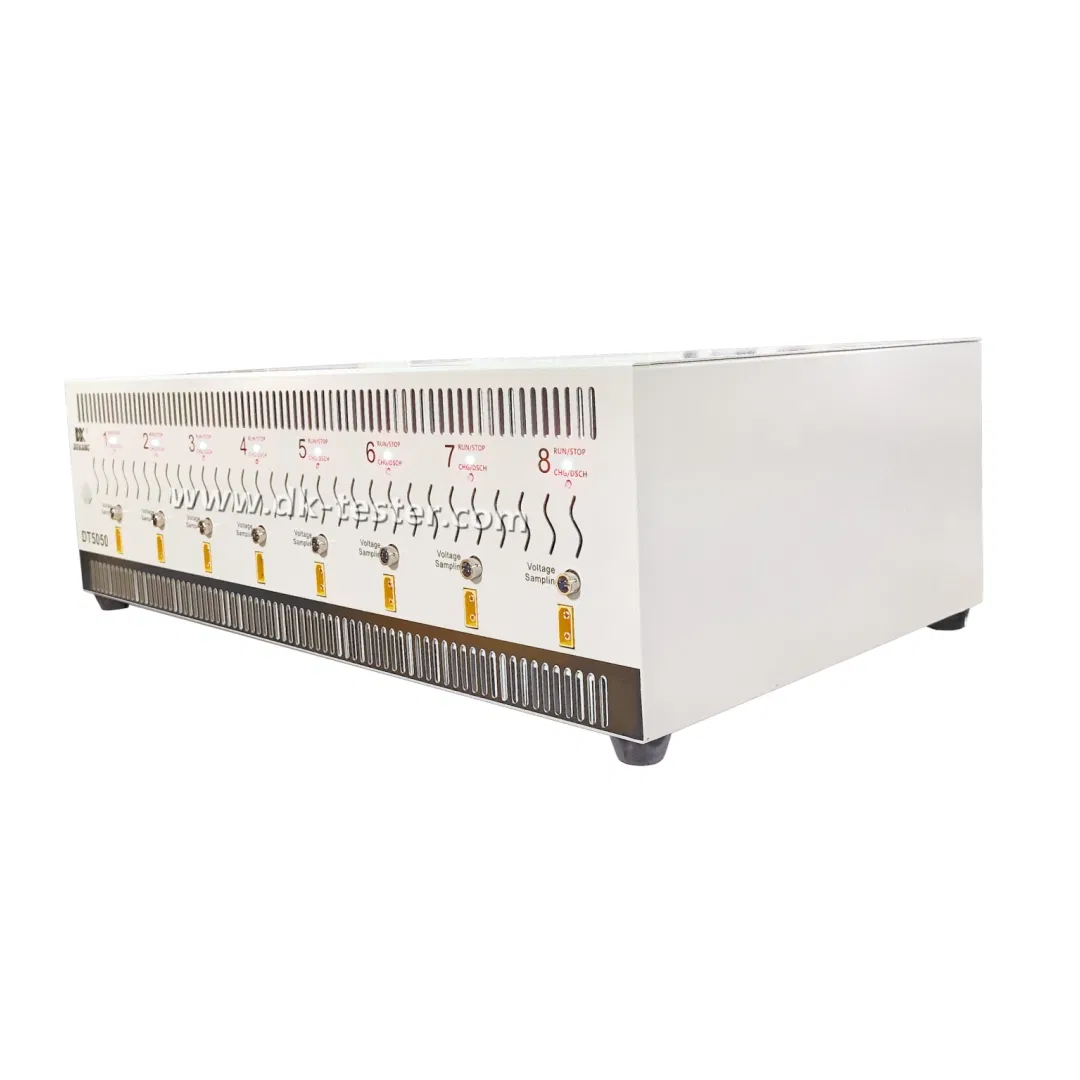

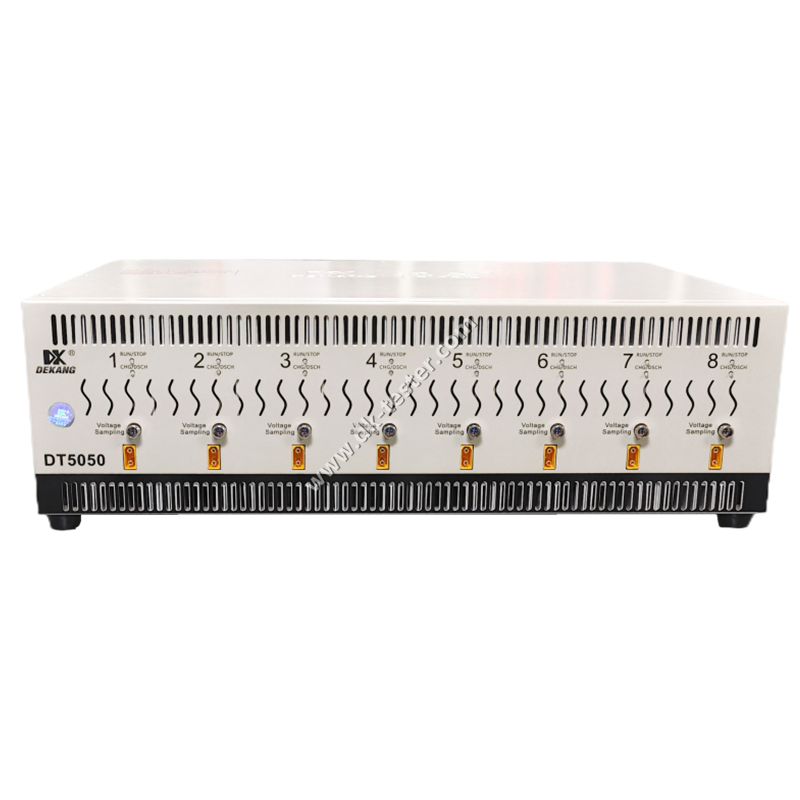

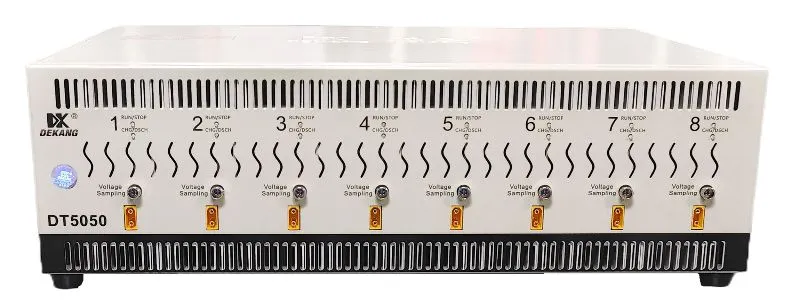

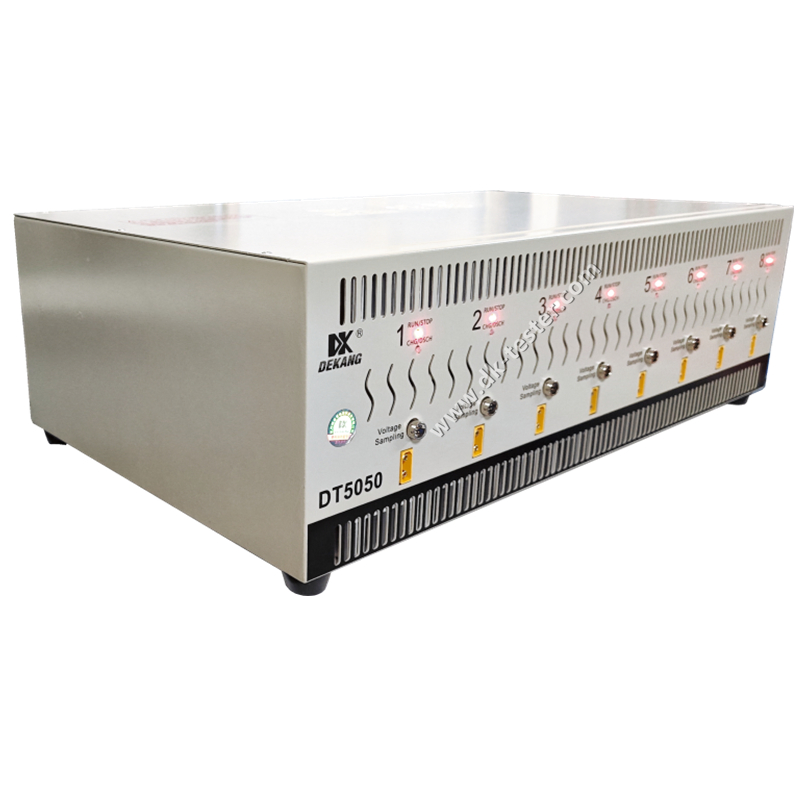

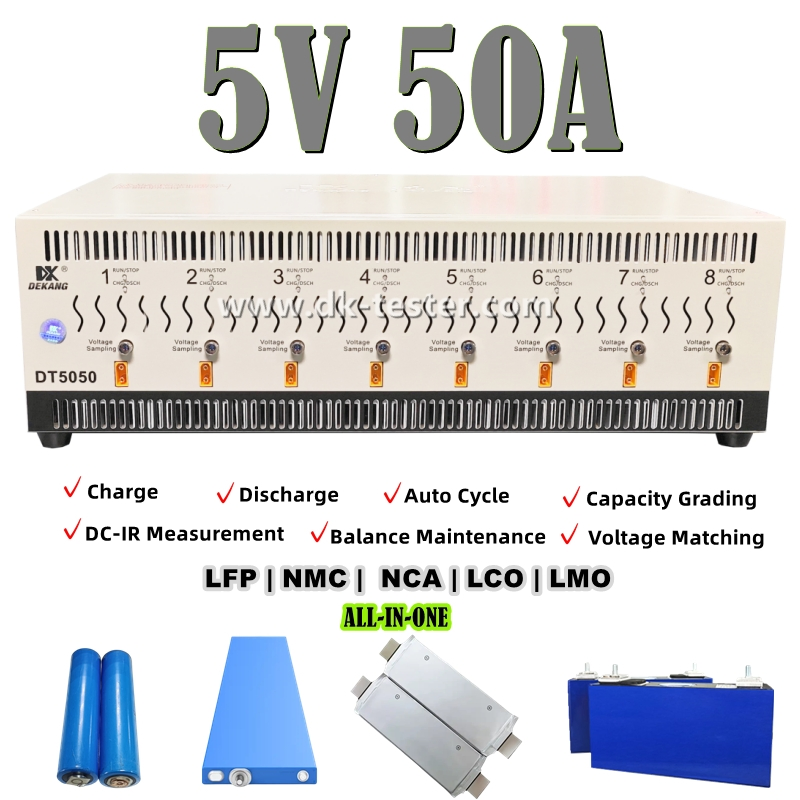

The DT5050-8 analyzer is designed for capacity testing, charging characteristic analysis, and balance maintenance of large-capacity lithium and lead-acid battery monomers. It is fully compatible with cylindrical, pouch, and prismatic cells. Each isolated channel can independently operate, identifying defective cells without disassembly. The integrated temperature monitoring system ensures safety by triggering step switches or shutdowns based on real-time data.

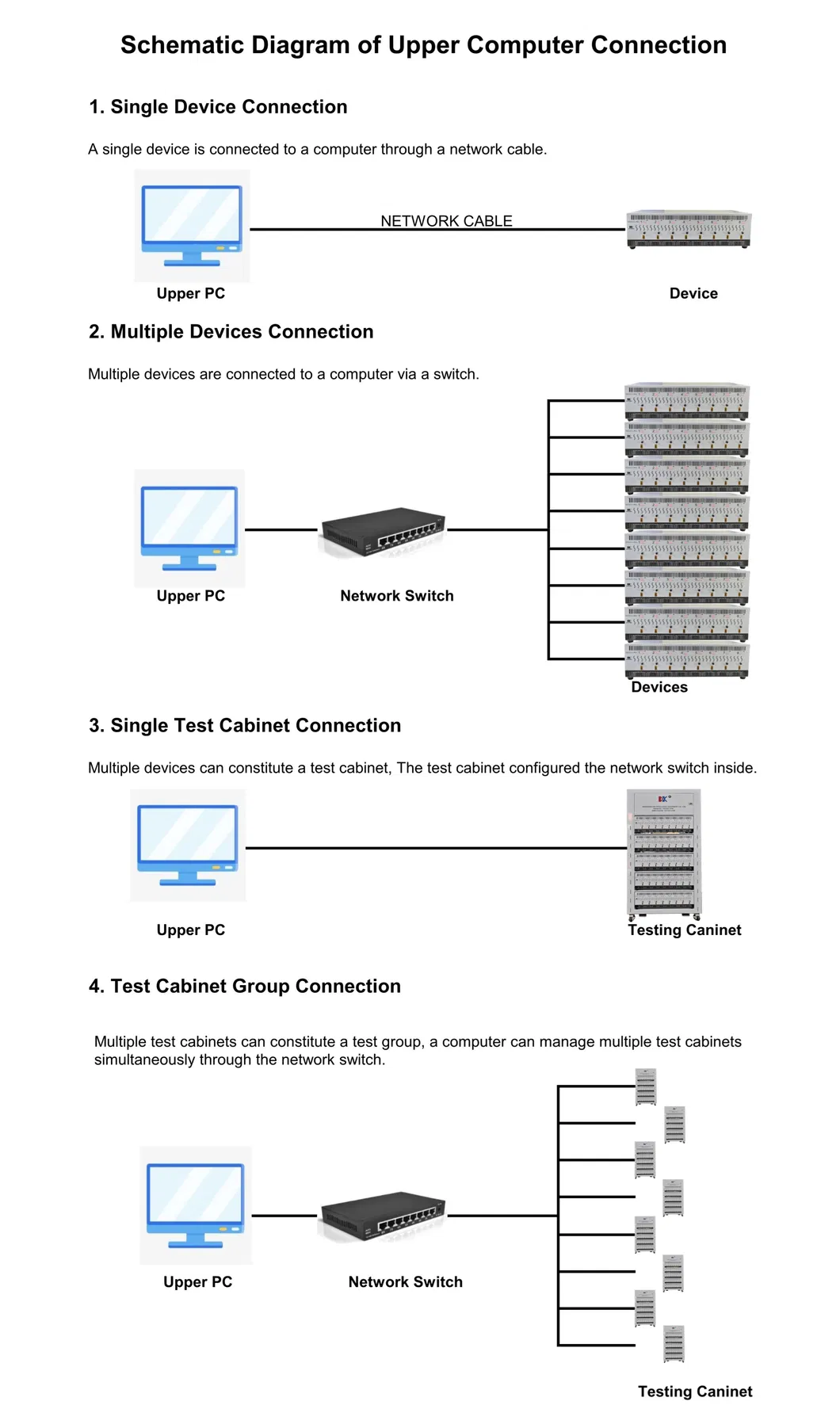

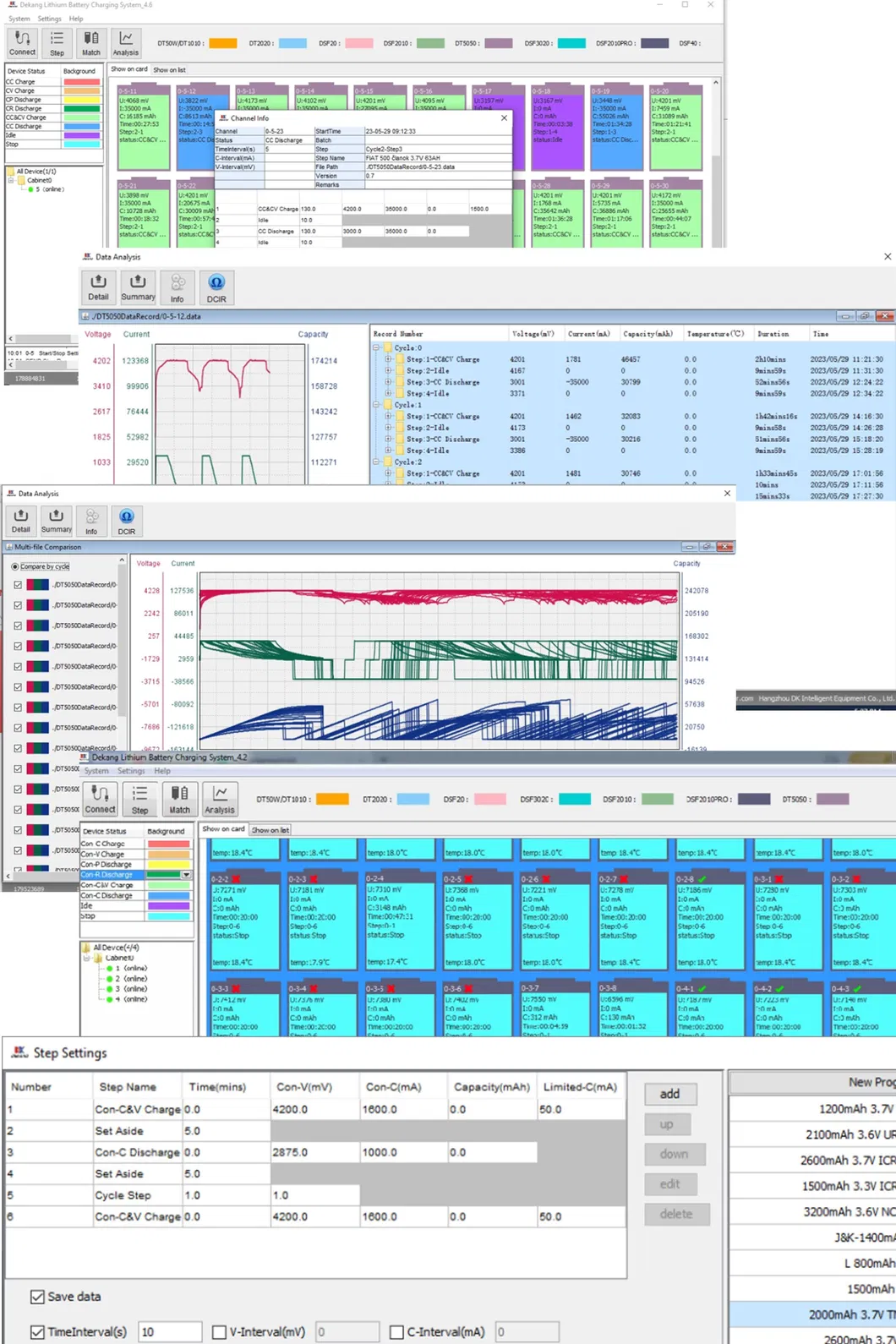

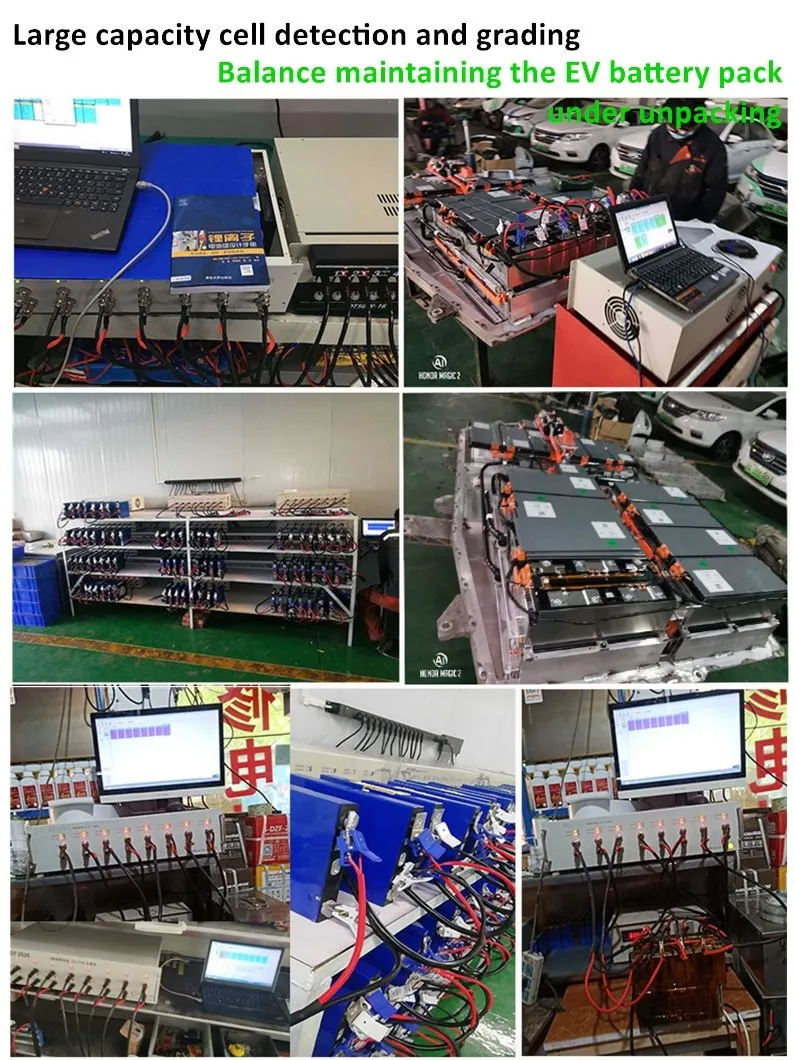

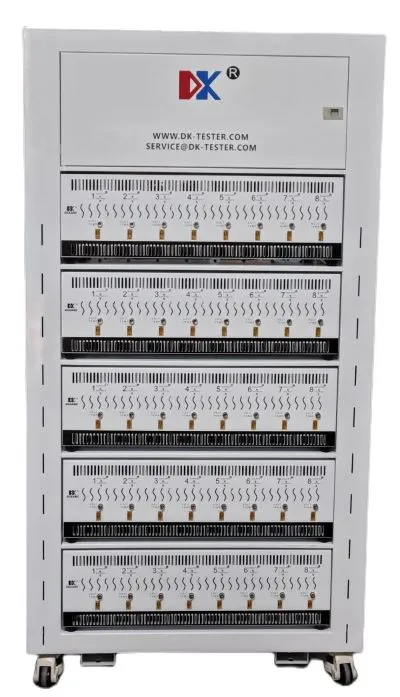

The dedicated software allows a single workstation to manage multiple devices simultaneously. Systems can be integrated into cabinets for large-scale batch testing and battery pack maintenance.
| Parameter | Details | |
|---|---|---|
| Input Voltage | AC 220V± 10% 50Hz/60Hz | |
| Input Power | No-load 80W, Full-load 1650W | |
| Voltage | Max. Constant Voltage | 5V |
| Min. Discharge Cut-off | 1V | |
| Tolerance | 0.02V | |
| Current | Max. Charge/Discharge | 50A |
| Min. Charge Cut-off | 0.05A | |
| Tolerance | 0.02A | |
| Output Power (Single Channel) | 200W | |
| Charge Modes | CC, CV, CC & CV | |
| Discharge Modes | CC, CP, CR | |
| Cycle Index | 1-254 times | |
| Communication Method | TCP/IP via LAN | |
| Data Output | Excel Report | |

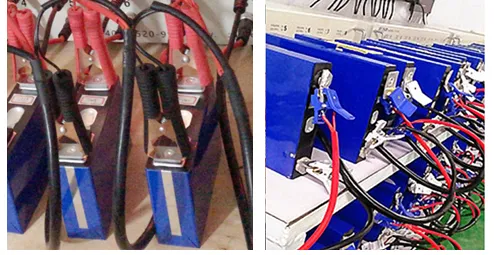

Cell Connection: Using customizable alligator clip cables for various battery structures.

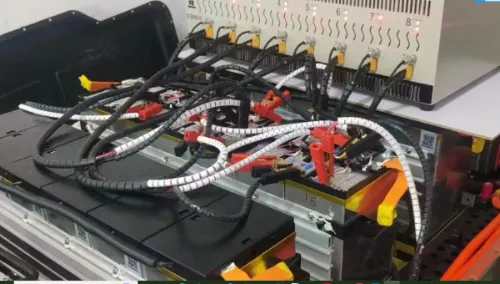

Pack Balance: Connecting positive and negative poles of each string for maintenance.
We provide comprehensive solutions for storage battery measurement and maintenance. With over 15 years of industrial experience, our products are utilized in over 50 countries.
