Significantly higher efficiency compared to traditional AC motors.
Built for long-term performance and environmental protection.
Large torque with low power consumption for optimal airflow.
Computer-controlled speed and power regulation.
Compared with AC motors, BLDCM offers the advantages of durability, high speed, and low power consumption. For the same motor, efficiency can be adjusted based on requirements through driver programs. It can achieve rated speed and rated power under different load conditions through self-regulation, realizing the concept of "the same motor, different products".

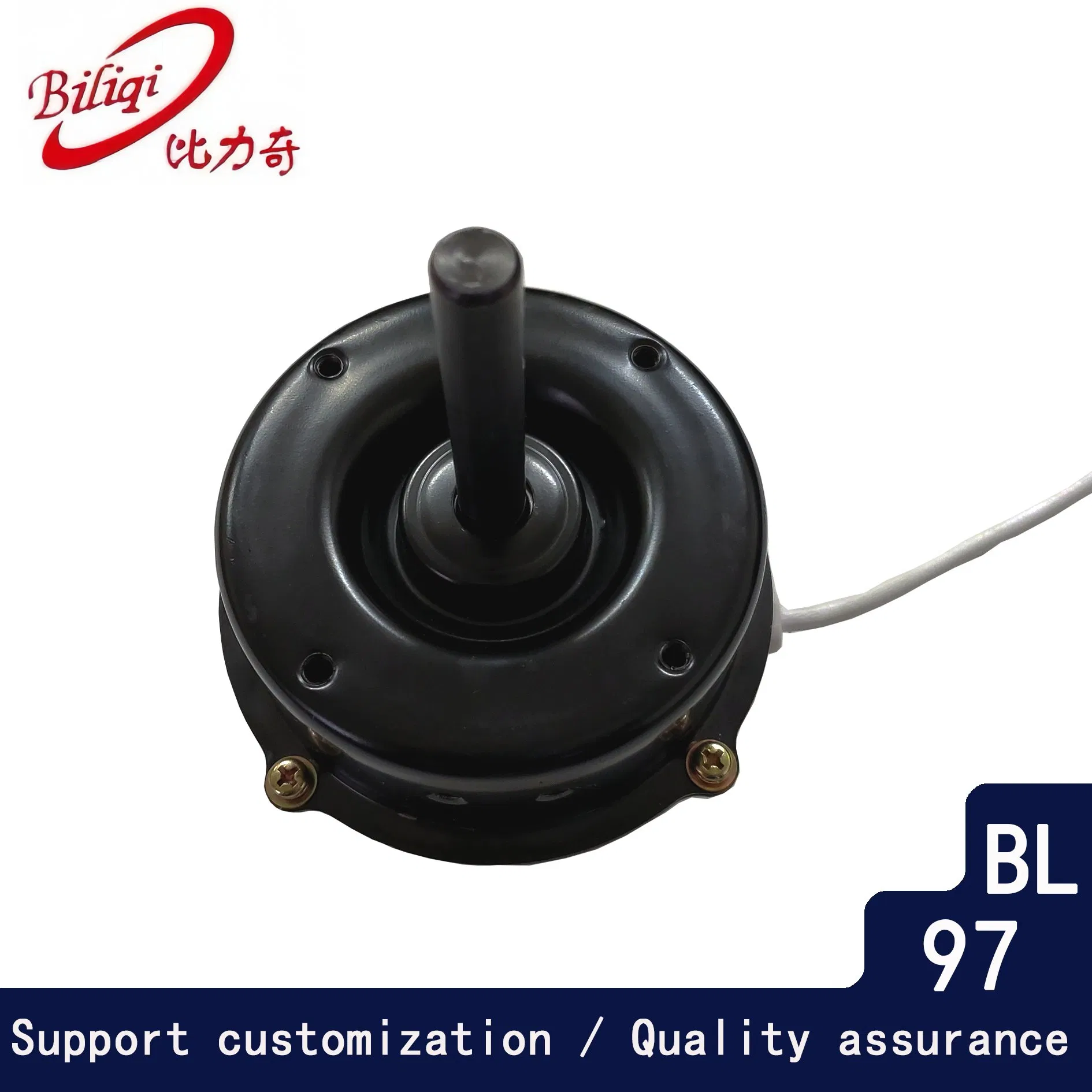

Applications: BL97 is widely used in household floor, desk, and wall-mounted fans. It supports four-way blowing functions, improving product positioning and user experience.
| Parameter | Fast Gear | Middle Gear | Slow Gear | Remarks |
|---|---|---|---|---|
| Electric Current (mA) | 483 | 432 | 389 |
The BLDCM can be used for multiple gears; three gears are shown here for display. Test equipment: AC frequency converter, AC to DC power supply, control board. |
| Power (W) | 45 | 38 | 25 | |
| Rotational Speed (RPM) | 1200 | 1050 | 868 | |
| Air Volume (m/s) | 8.0 | 6.6 | 5.4 | |
| Temperature Rise (K) | - | - | - |
Stamping workshops utilize high-speed and high-precision stamping equipment. Professional operators ensure stable operation and consistent product quality.
