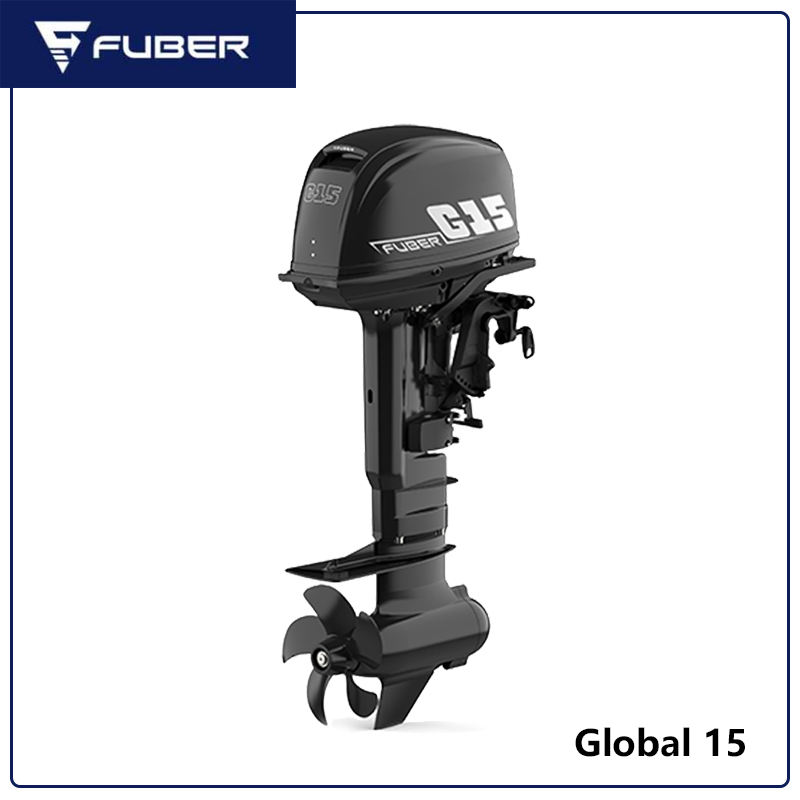

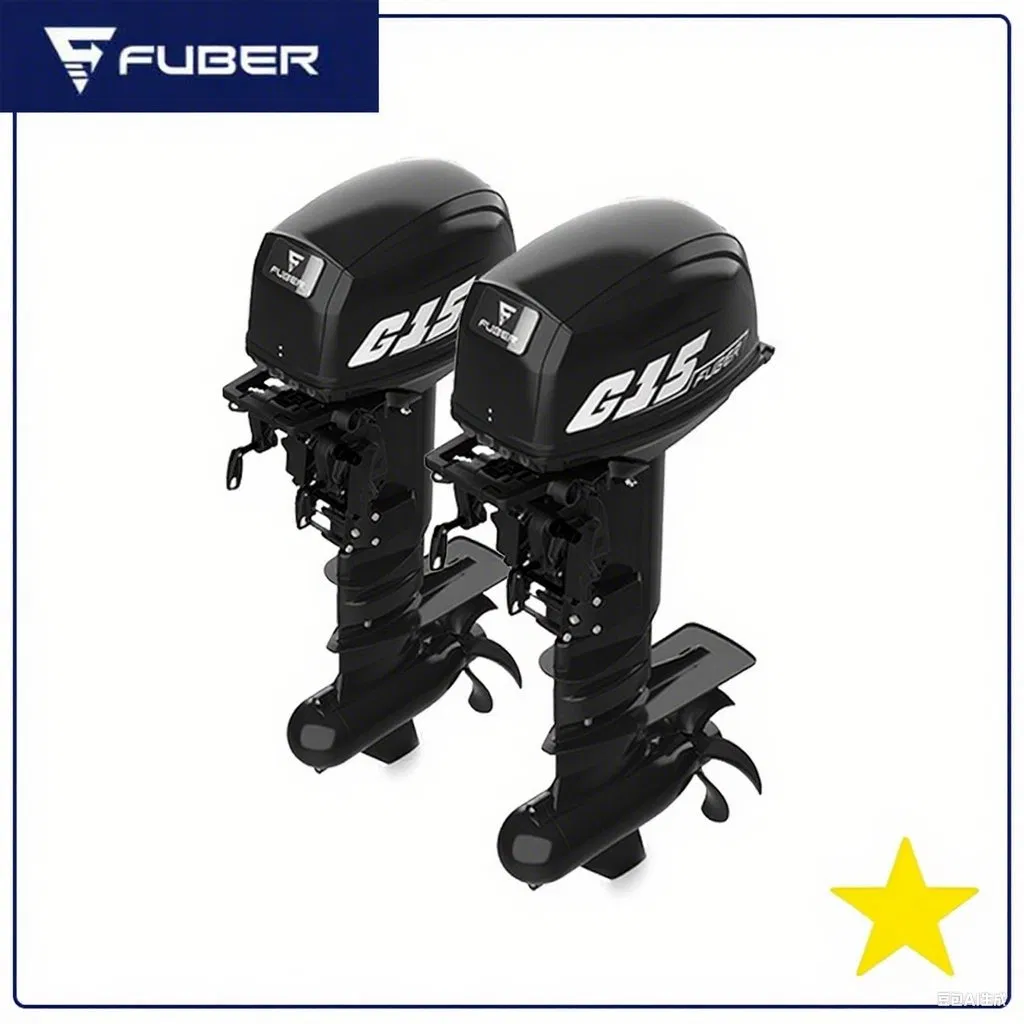

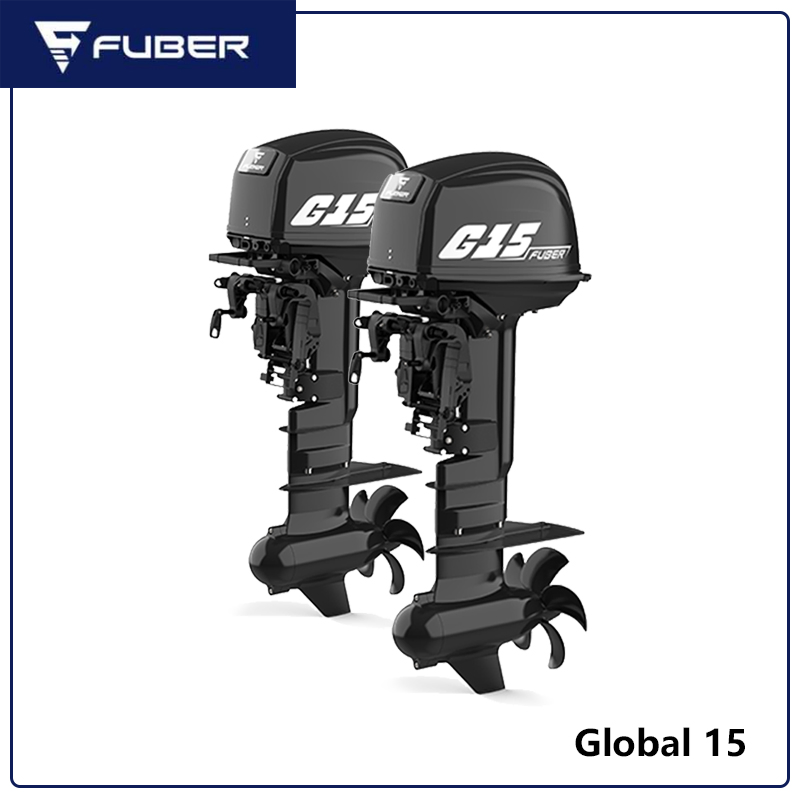

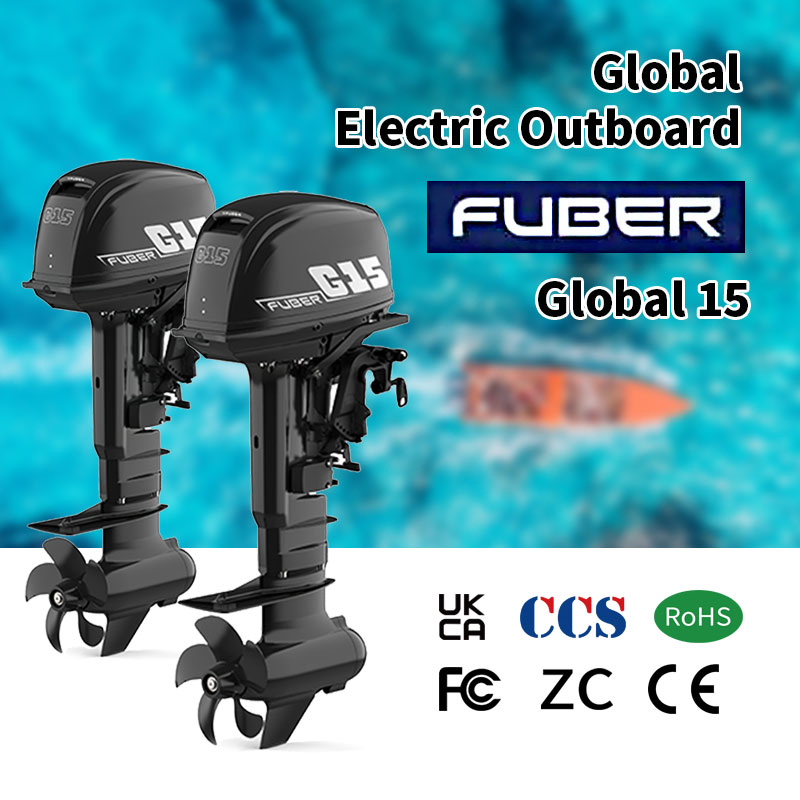

30HP Electric Boat Motor, Direct Drive CE & Ukca Approved

Customization: Available
After-sales Service: Yes
Warranty: Three Years

Product Description

📊
Basic Information
Model NO.
Global 15
Fuel Type
Electric
Engine Position
Outboard
Condition
New
Power
15kw (30HP Equivalent)
Voltage
96V / 125ah
Control Mode
Control Box
Full Load Speed
1450rpm
🚢
Product Description
Electric Boat Motor
ModelGlobal 12 Outboard
Energy TypeElectric 100%
Rated Voltage/Current96V / 125Ah
Input Voltage Range82V - 108VDC
Max Input Power12KW / 10KW
Equivalent Fuel Outboard24hp - 30hp
Maximum Efficiency56%
Full Load Speed1450rpm
Control ModeControl Box (Cable Communication)
Dimensions (LxWxH)713 × 361 × 1386 (mm)
Axis Length742mm
Net Weight68kg
Lifting Angle0°, 15°, 30°, 45°, 60°
Propeller Diameter300mm
Working Temperature-25°C ~ 50ºC (-13°F ~ 122°F)
Our Advantages
1Multiple Protections for Built-in Drivers

Integrated power isolation, overcurrent, and overheat protection. Ramp linear processing on control signals allows for frequent, rapid direction switching and handles voltage fluctuations of ±15% for long-term durability.

2Water-Lubricated Alloy Bearings

Utilizing high-quality alloy bearings with water lubricating effects, providing superior wear resistance and extended service life in marine environments.

3Magnetically Coupled Drive Technology

Achieves contactless and leak-free torque transmission. The magnetic coupling structure prevents mechanical damage by producing a ratchet effect in case of propeller jamming or overload.

4Professional Rigorous Testing

Thrusters undergo over 3,000 hours of total fatigue testing in simulated marine environments (including sand and shells) to ensure reliability before production.

5Five-Axis Precision Machining

Propellers are precision-cast and integratedly molded using professional five-axis machining centers with high-grade stainless steel (SS) materials.

🌟
Successful Case

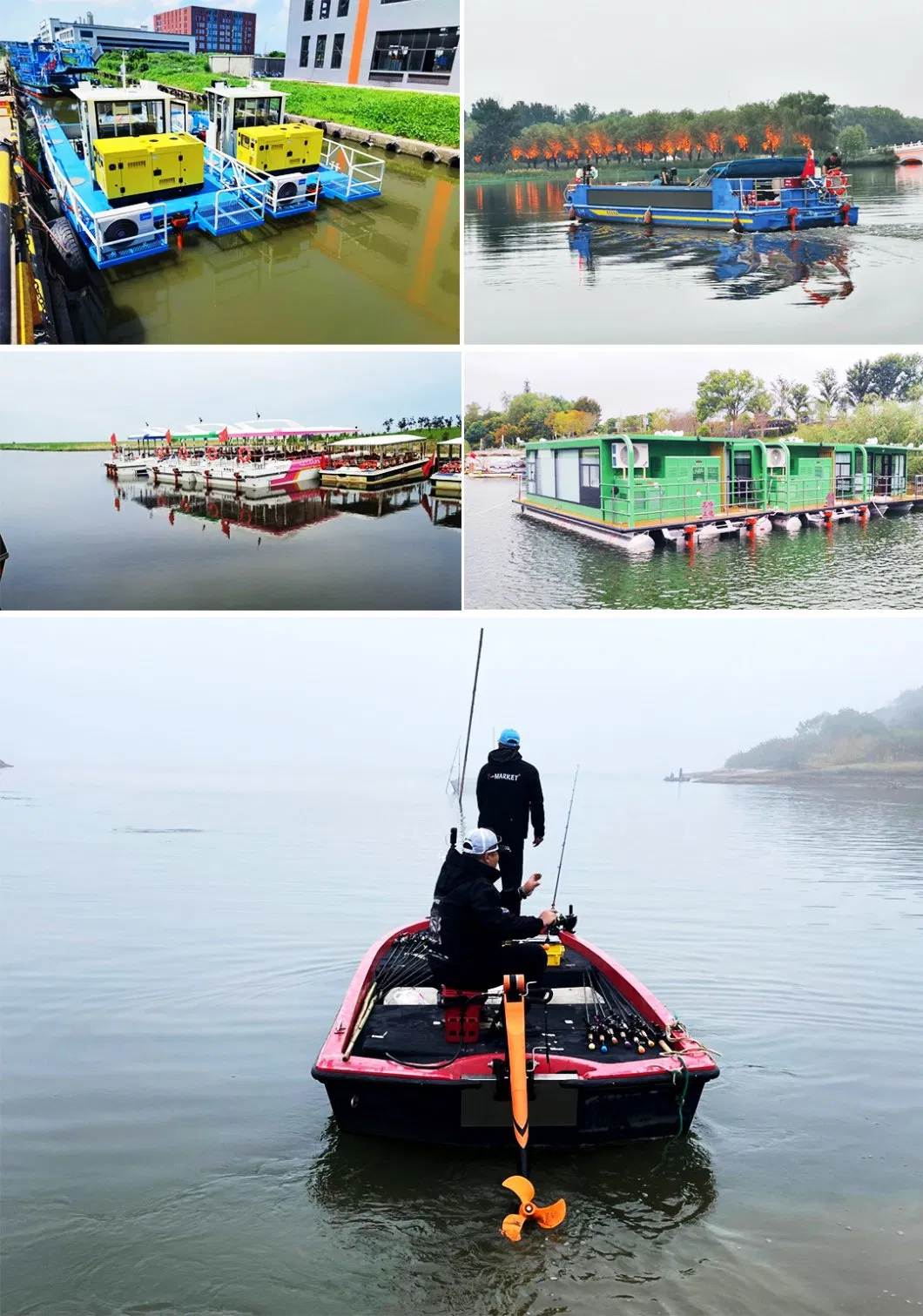

Successful Implementation
🏢

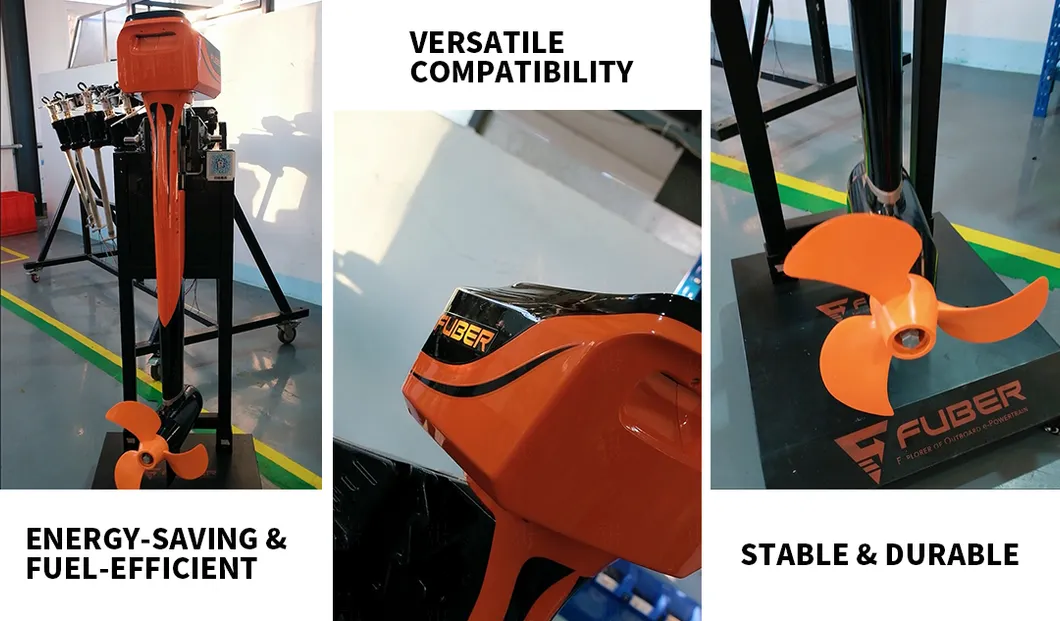

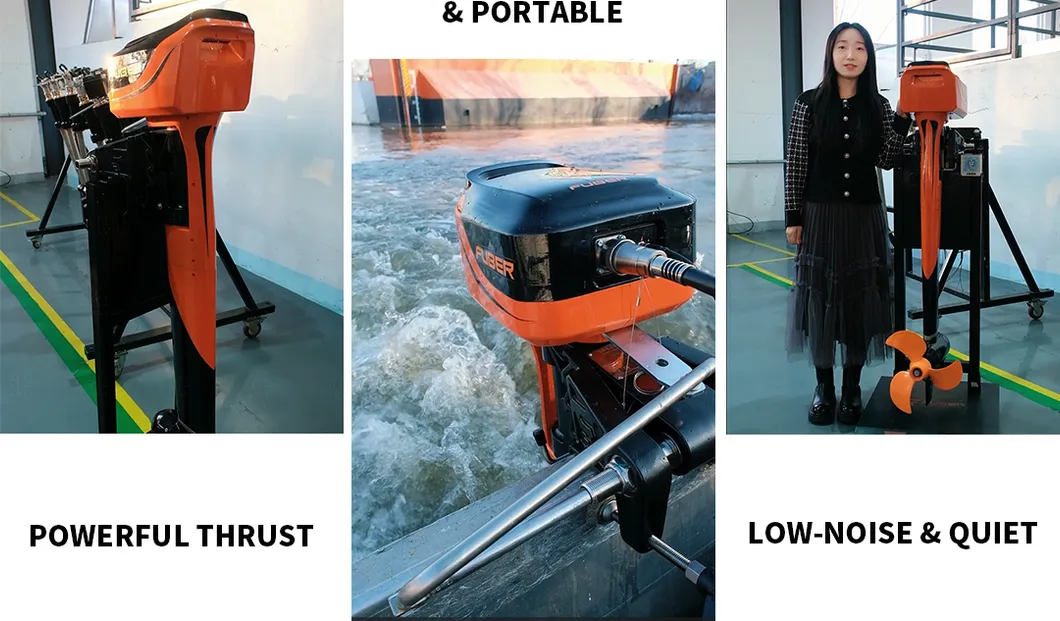

Manufacturing & Facilities
📦
Packaging & After-Sales
Frequently Asked Questions
Q: Is this boat motor fully electric? A: Yes, it is 100% electric, designed to replace traditional fuel outboard motors with zero emissions.
Q: What is the equivalent horsepower of the Global 15? A: The Global 15 provides power equivalent to a 30HP fuel outboard motor.
Q: What is the minimum order quantity (MOQ) for samples? A: The MOQ is just one set, allowing customers to test the performance as a sample.
Q: How do you handle technical issues during use? A: We provide remote guidance via video conference or email. If a problem persists, products can be sent back for immediate repair.
Q: Are your products tested for marine durability? A: Yes, our motors are tested in specialized pools for over 3,000 hours, simulating real marine conditions with sand and shells.
Q: What makes your drive technology different? A: We use magnetically coupled drive technology which ensures no-leak torque transmission and protects the motor during propeller jams.
