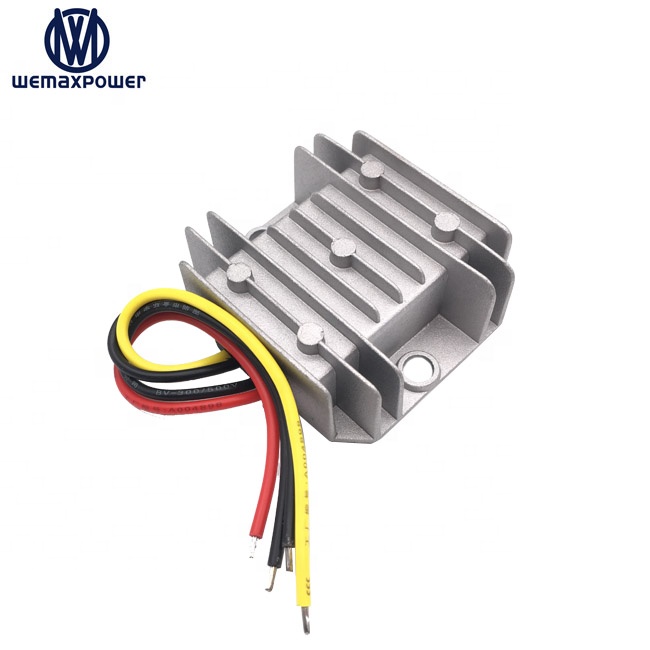

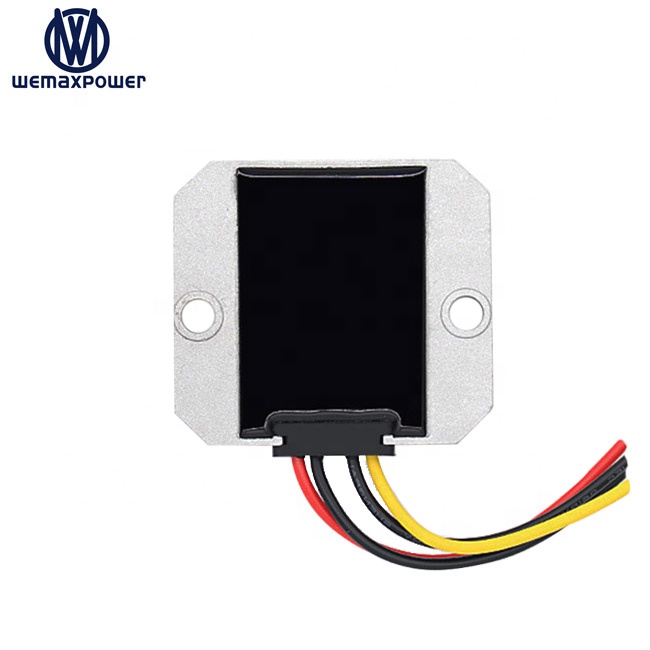

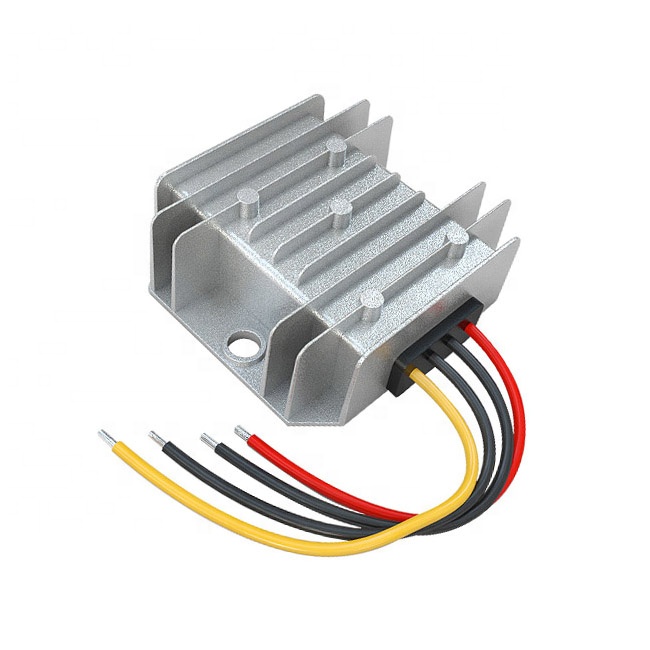

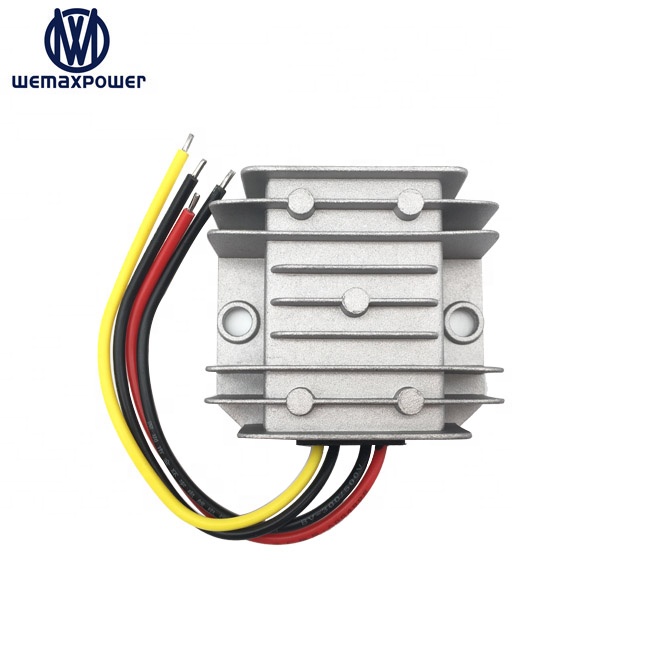

Waterproof Car Dc 12vdc Step up 24vdc Voltage Regulator 3A boost Module 12v to 24v Dc Dc Converter

1 / 5

Waterproof Car Dc 12vdc Step up 24vdc Voltage Regulator 3A boost Module 12v to 24v Dc Dc Converter

Send Inquiry

Product Description

Waterproof Car DC 12V to 24V Step Up Converter

Key Features

✓ High quality components

✓ Full power, stable voltage & current output

✓ Wide input voltage range

✓ Waterproof & anti-shock protection

✓ Ultra compact size, light weight

✓ Industry grade product, efficiency up to 96%

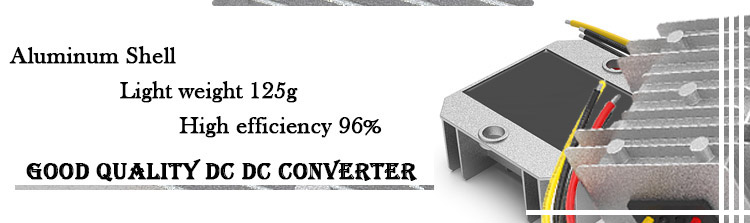

✓ Die-cast aluminum shell, epoxy potting

✓ Non-Isolated Module

Technical Specifications

Series NO.	WMX-D12D24
Model NO.	WMX-DSD12S2403
Product Name	12v to 24v step up converter
Input rated voltage	12Vdc
Input voltage range	9-16Vdc
Conversion Efficiency	96%
Output voltage	24Vdc
Output current	3A
Output rated power	72W
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-load, Over-current, Over-temperature, Over-voltage

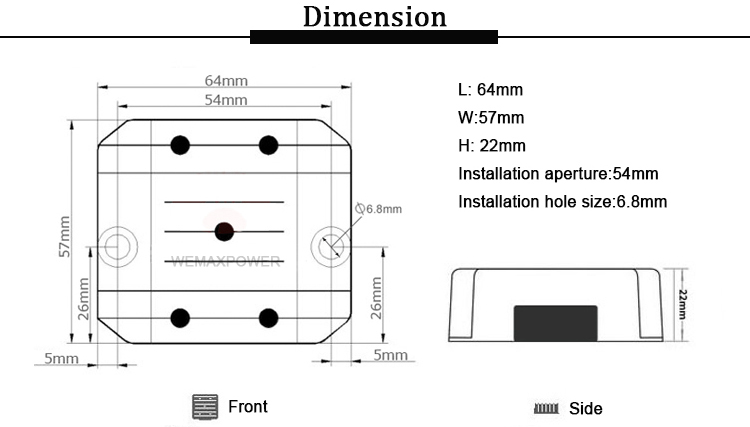

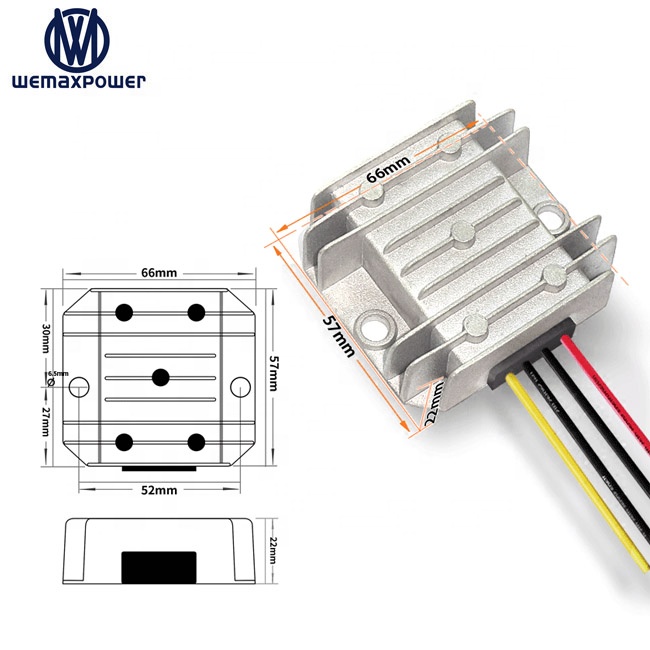

Machine size	576422mm
N. Weight	125g
Cooling way	Free air convection
Other	White box packing

Product Detailed Display

Frequently Asked Questions

Why should I choose this DC-DC converter?

We provide converters with over 10 years of manufacturing experience. Our products feature high stability and updated technology every year to ensure consistent performance.

Can this converter be used to charge batteries directly?

No, these DC-DC converters have a fixed voltage output and are not designed for direct battery charging. For charging applications, please select specialized DC-DC chargers.

What makes your product different from cheaper alternatives?

While some suppliers use low-cost components that result in insufficient power output, our products utilize imported high-quality components designed for long-term full load operation.

What protections are integrated into the module?

The module includes multiple protection layers: Over-load, Over-current, Over-temperature, and Over-voltage protections to ensure device safety.

What is the Minimum Order Quantity (MOQ)?

We support low MOQ requirements. Samples for testing are available starting from 2 to 5 units.

Is the module suitable for harsh environments?

Yes, the converter features an IP68 waterproof rating and anti-shock protection, housed in a die-cast aluminum shell with epoxy potting, suitable for environments from -40°C to +80°C.
