Product Description

Basic Information

Model NO.

MC34063S8

Cooling Method

Naturally Cooled Tube

Function

Switch Transistor

Working Frequency

Low Frequency

Structure

Step-up, Step-Down

Encapsulation

Plastic Sealed Transistor

Power Level

Small Power

Material

Silicon

Specification

40V 1.2A

Capacity

10000 Pieces/Day

Product Description

1.2 A, Step-Up/Down/Inverting Switching Regulators MC34063S8 IC components

The MC34063S8 series is a monolithic control circuit containing the primary functions required for DC-to-DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch.

📋 Key Features

Operation from 3.0V to 40V
Short circuit current limiting
Low standby current
Output switch current of 1.2A without external transistors
Frequency of operation from 100Hz to 100kHz
Step-up, step-down or inverting switch regulators
Package: SOP8

🚀 Applications

Battery Chargers
NICs/ Switches/ Hubs
LCD TV & DSL Modem
Access Point Router
Negative Voltage Power Supplies
Set Top Box

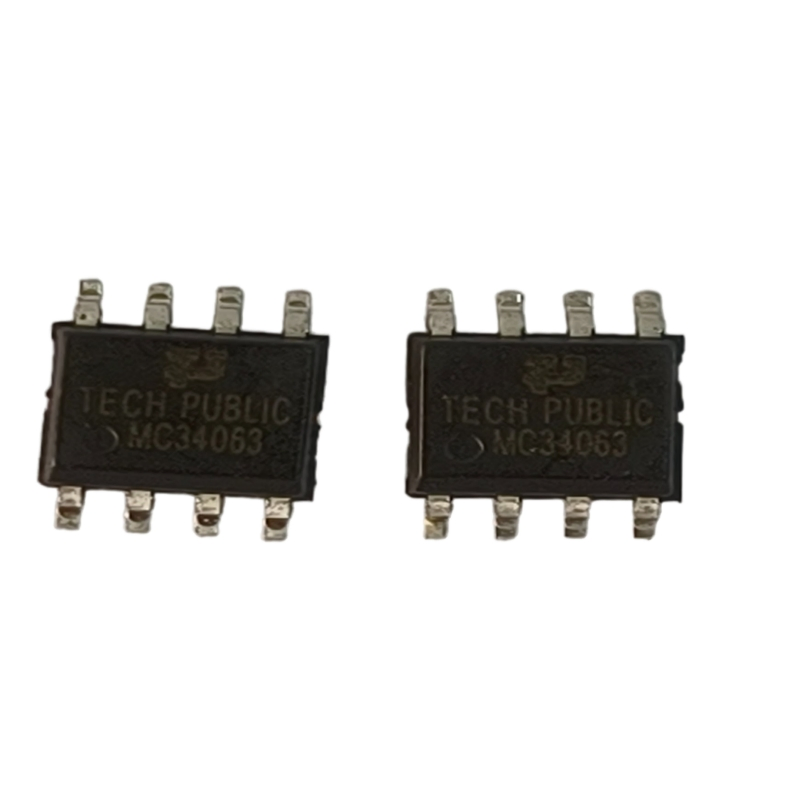

Product Visuals

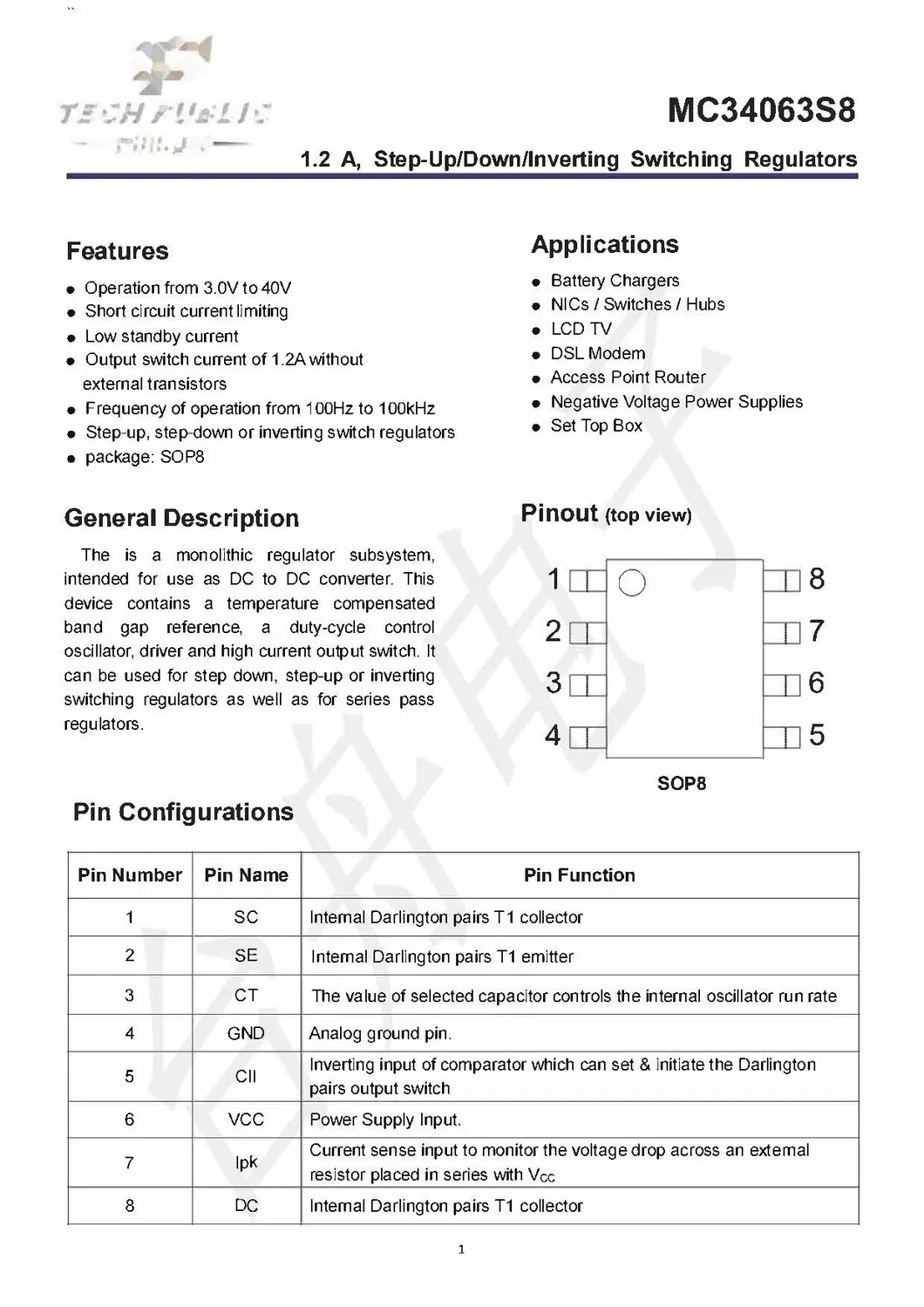

Technical Specifications & Data

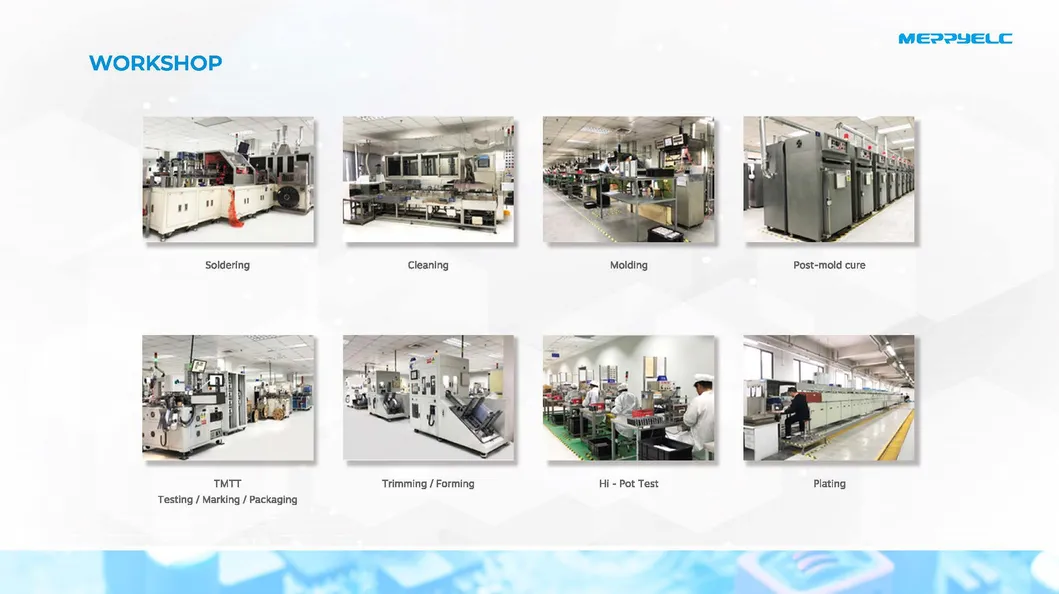

Manufacturing Excellence

Professional Magnetic component manufacturer with over 10 years of experience in designing and producing.
Strict QC inspecting rules: 100% inspection before delivery.
OEM/ODM services are available.
Independent order system with full tracking from raw materials to finished goods.

Quality Certification

Frequently Asked Questions

What services do you provide?

We provide turnkey solutions including RD, PCB fabrication, SMT, testing, and other value-added services.

What are the main industries you serve?

Our services mainly cater to industries including Medical, Automotive, Energy, Metering/Measurements, and Consumer Electronics.

Can we inspect the quality during production?

Yes, we are transparent with each production process. Customers are welcome to inspect our production process and check in-house.

What files are required for a quotation?

For PCB, please provide Gerber files. For PCBA, please provide Gerber files and a BOM (Bill of Materials). Instruction for function tests is also helpful.

What is the standard delivery term?

We offer various delivery terms including EXW, FCA, FOB, and DDU based on each specific quote.

Do you have a Minimum Order Quantity (MOQ)?

No, we do not have a strict MOQ requirement. We support projects ranging from prototypes to mass production.
