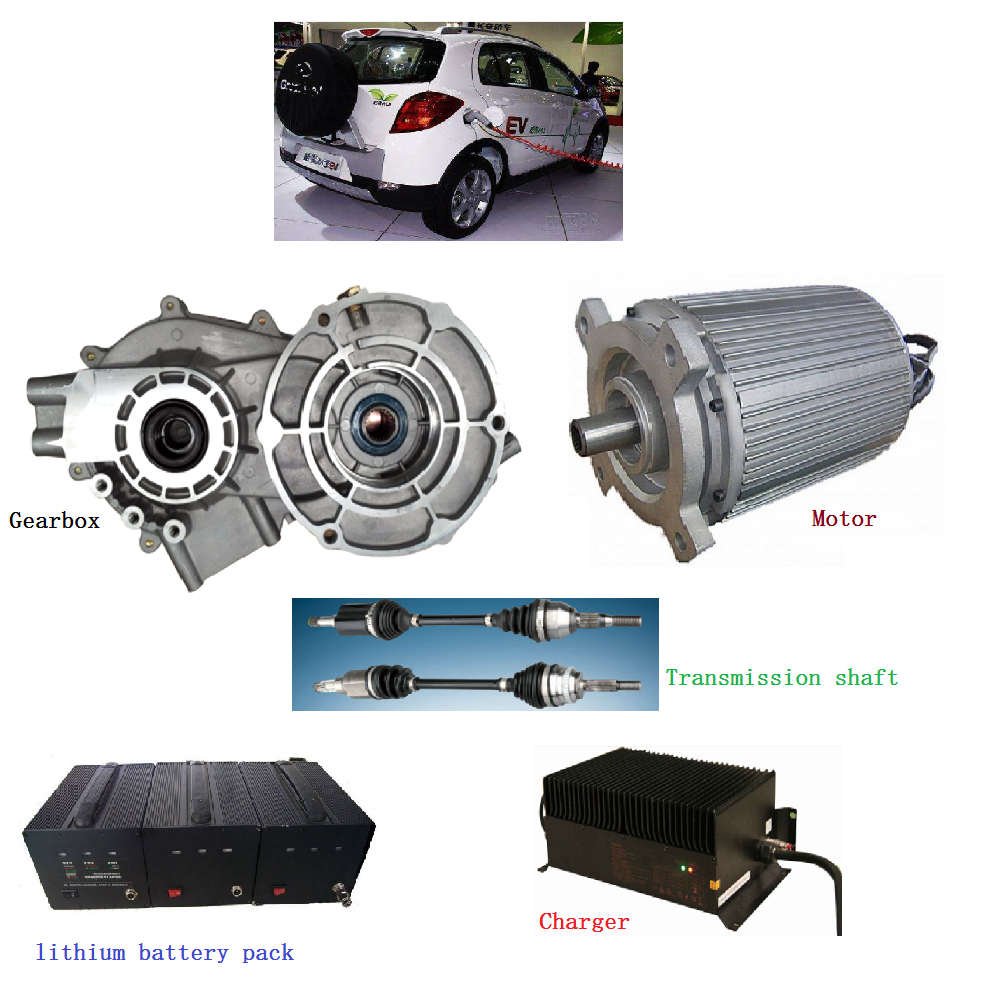

What does a conversion kit include?

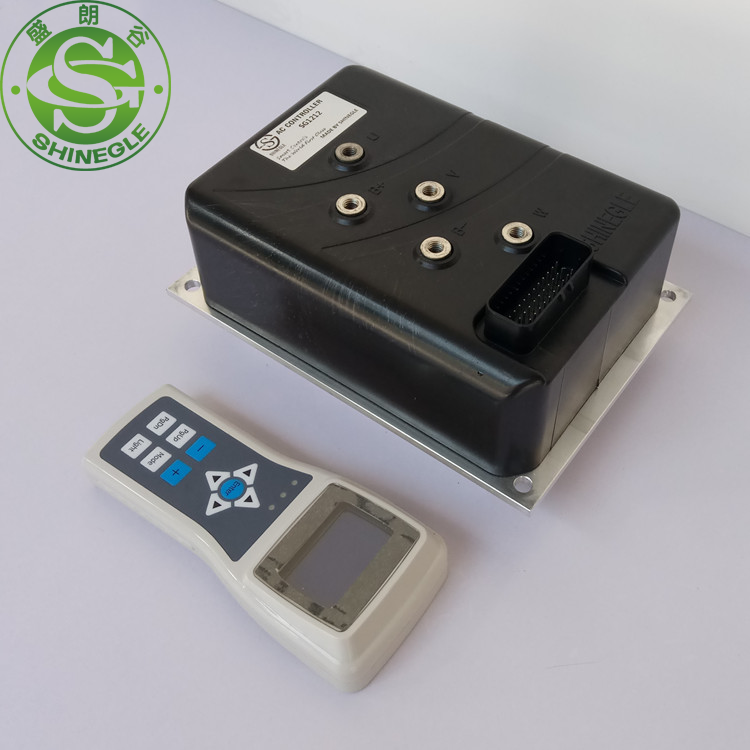

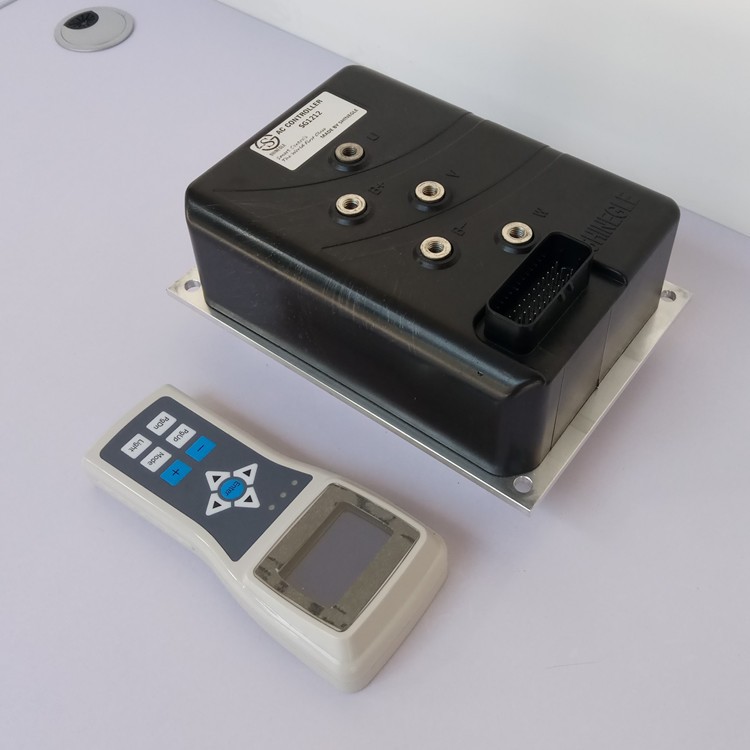

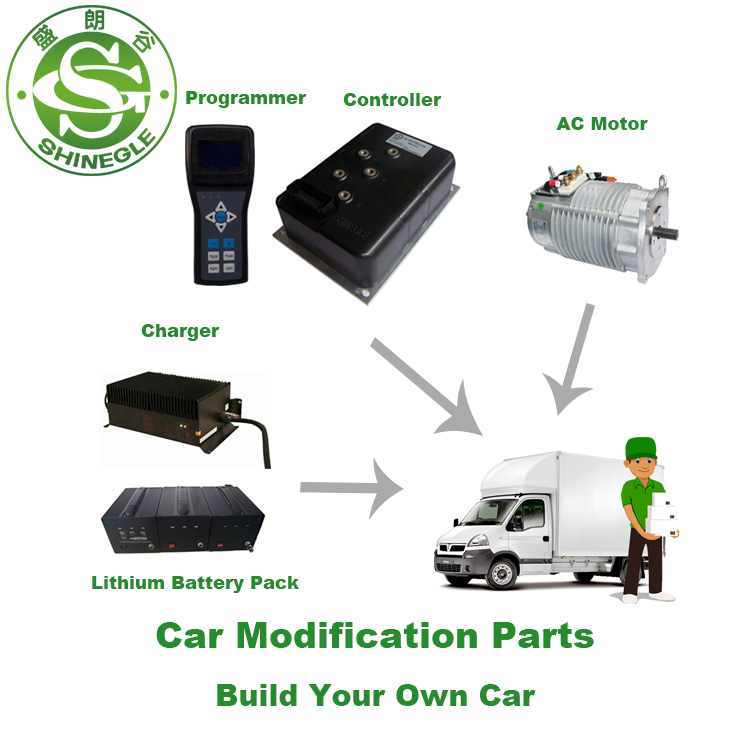

Normally, a conversion kit for electric vehicle is comprised of a motor and controller assembly (includes key switch, stall switch, accelerator and 4m wire harness). Thus, our price does not include battery pack and charger or other parts.
We have devoted ourselves in motor control system for more than 10 years. Our products are sold to all over the world.
We can provide electric ac motor, motor controller (both ac motor controller and bldc motor controller), dashboard, dc-dc converter, etc.

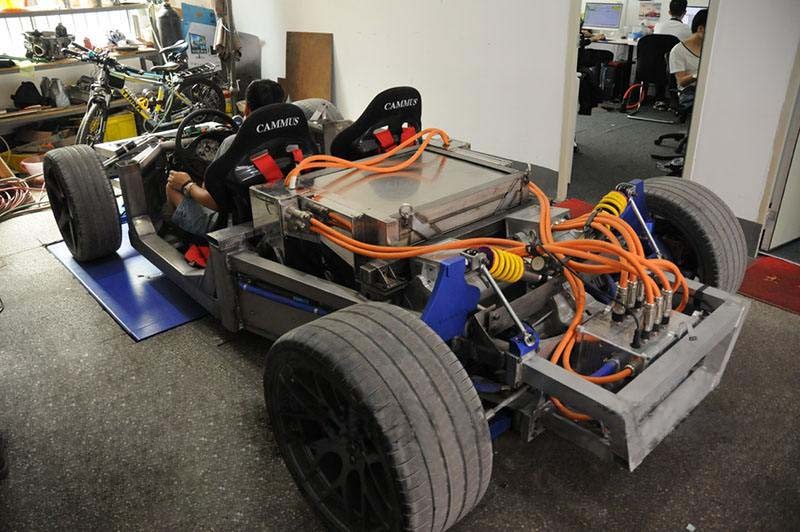

Our driving system is suitable for various types of electric vehicle, like golf cart, electric tricycle, electric tuk tuk, electric atv or utv, electric car (both for cargo or passenger).

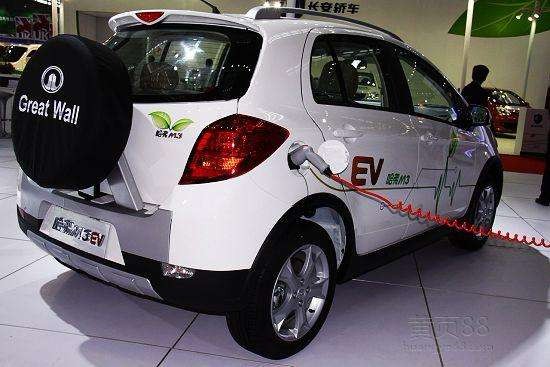

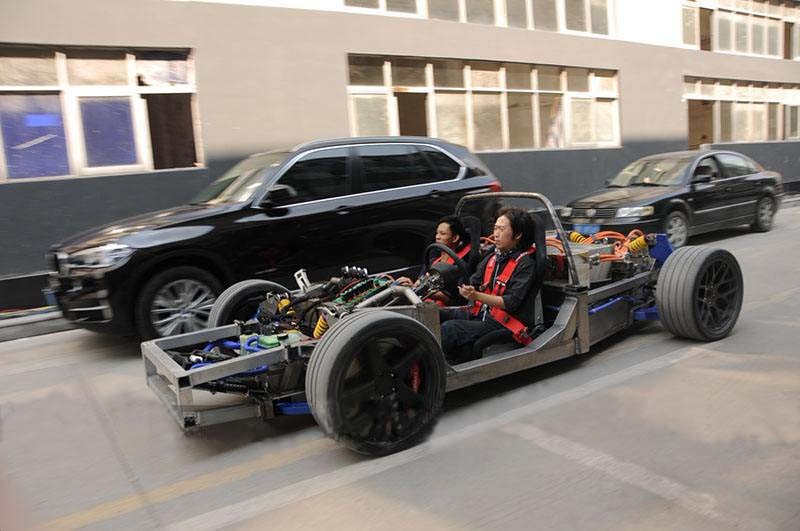

Our 7.5kw/10kw/15kw electric vehicle conversion kit are especially for those who want to retrofit their fuel cars to EVs.
Moreover, Our controller and motor can be applied to electric boat.
As an enterprise with full ability to develop and produce. Our products can be customized according to clients’ needs.
| SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | |||
|---|---|---|---|

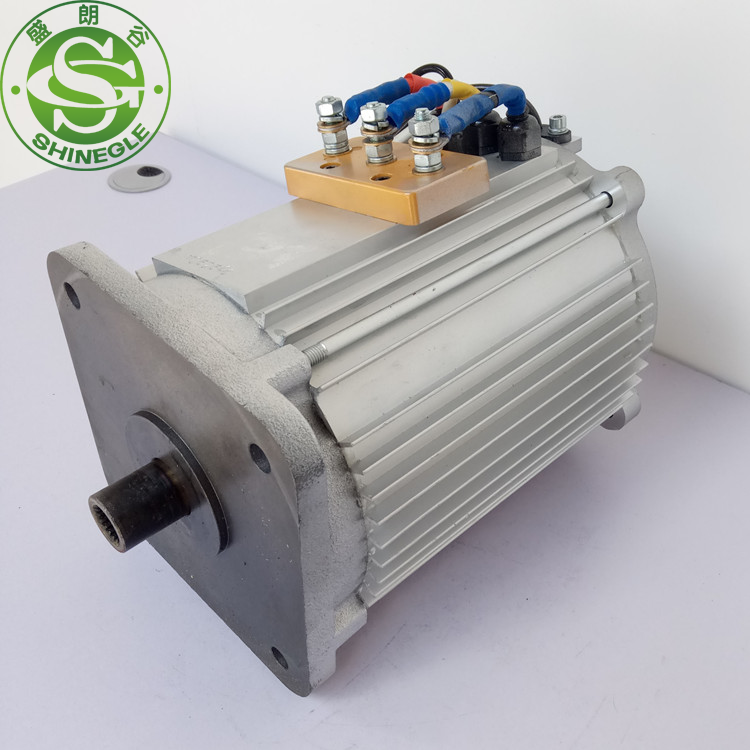

| Motor | |||
| Rate power: 7.5/10/15KW | Duty: S1 | Max speed: 7500 rpm | Rate voltage: 72/96/108V |
| Net weight: 35~50kg | Speed sensor: 64 Pulse | Rated speed: 3000~4500rpm | |

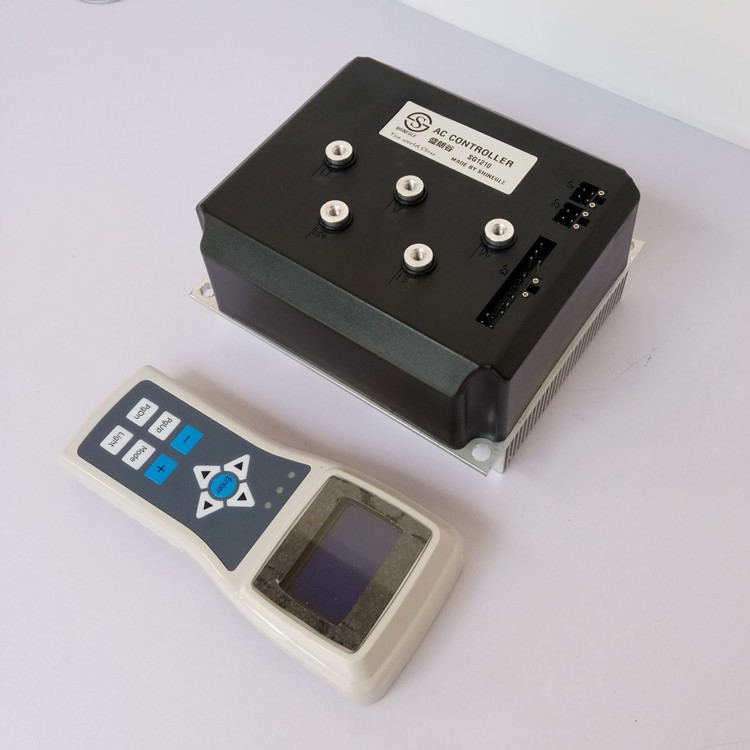

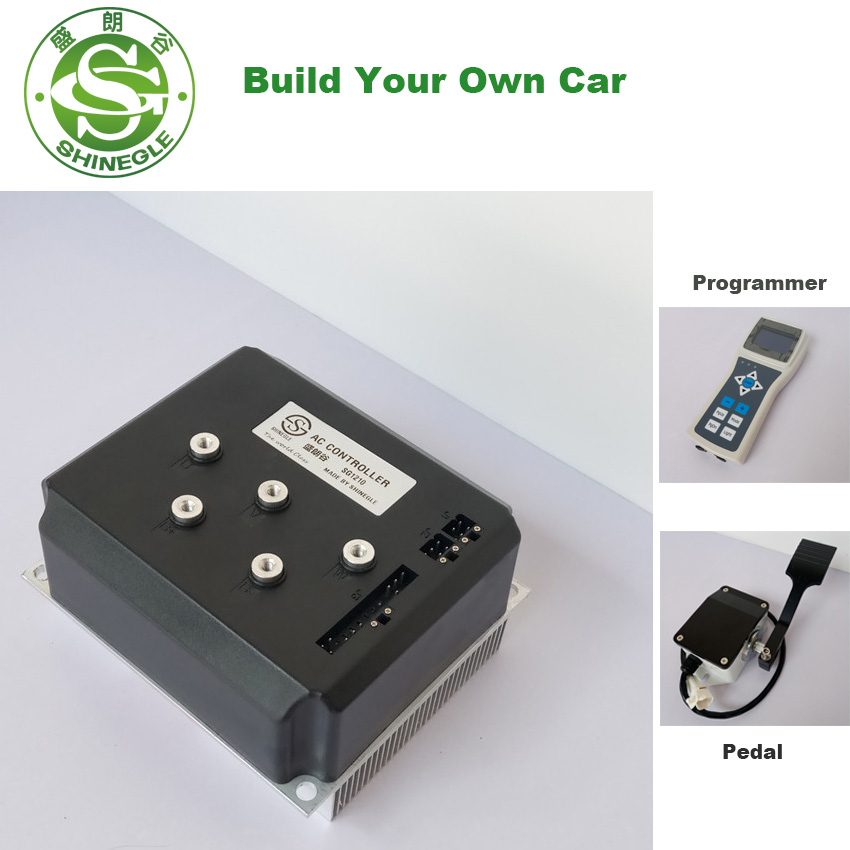

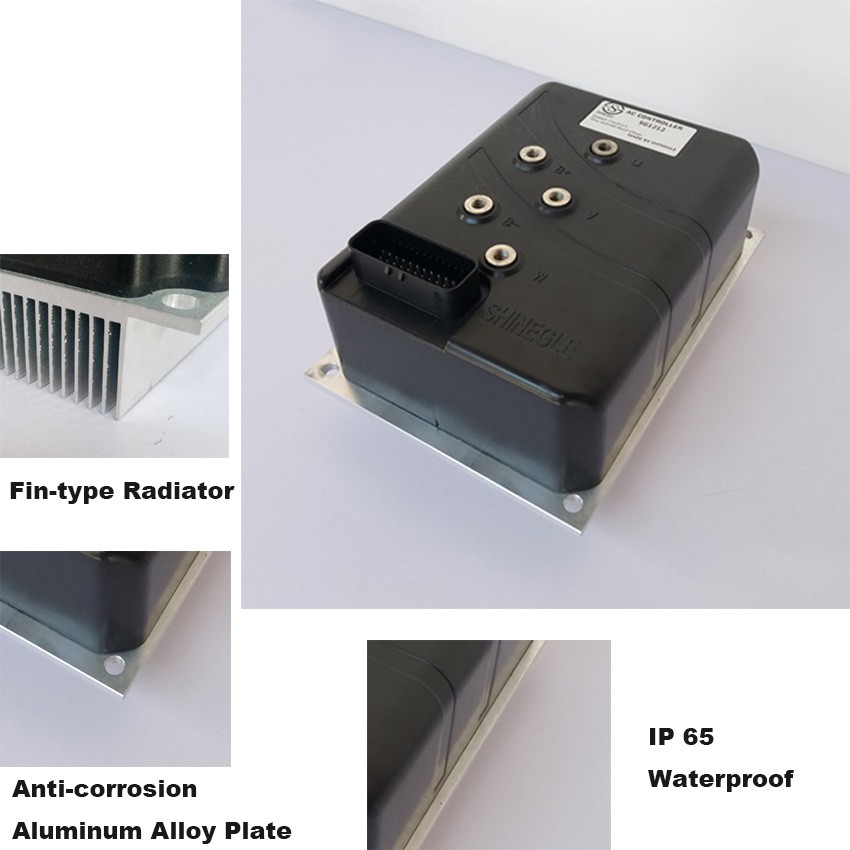

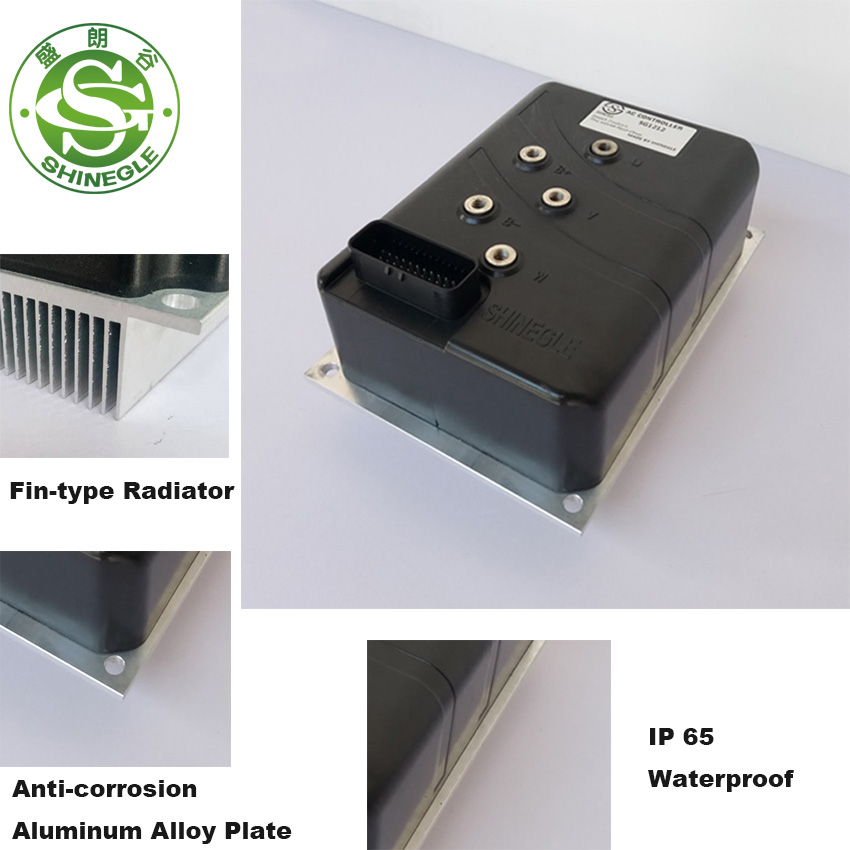

| Controller | |||
| Rated voltage: 72/96/108V | Rated output current: 100/120A | Max output current: 500A | Efficiency: 98% |
| Protection grade: IP65 | Packing: wooden box | Net weight: 5~10kg | Ambient temperature: -40 ~ 50℃ |
| HS: 8714990000 | |||

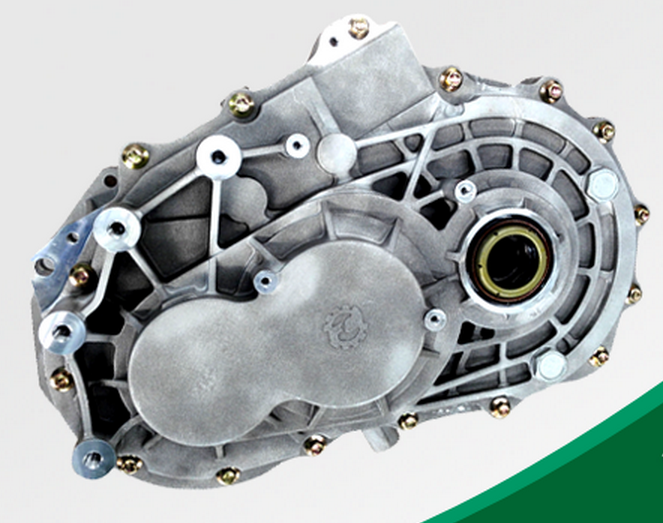

| Gearbox | |||
| Speed capacity: 9000 rpm | Ratio: 6:1/8:1/10:1/12:1 | Packing: wooden box | Torque capacity: 180N.m |
| Center distance: 50~106mm | HS: 7326909000 | Noise: ≤65dB | Est. net weight: 15~30kg |

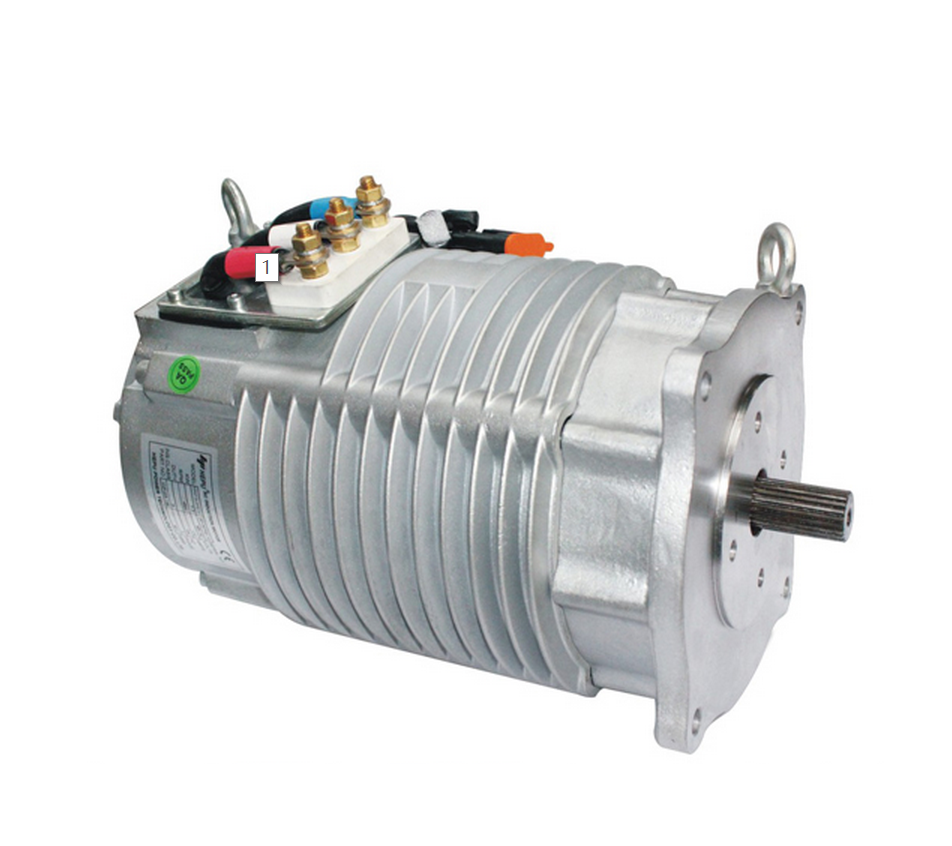

Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motor, AC motor has more advantages, like larger torque.
Vector control is one of the best ways to control motor. We have tested this system for more than 10 years, and the current stability is very high.
Low noise and high transmission efficiency are the two main advantages of the gear box.
At present, China's lithium-ion battery cell production technology is in the world's leading position. We can provide 100,000 km protection for our customers.
| Packing Details (System Kits) | |
|---|---|
| Size | 1280 (L) * 456 (W) * 789 (D) mm |
| Weight | 1.2 T |

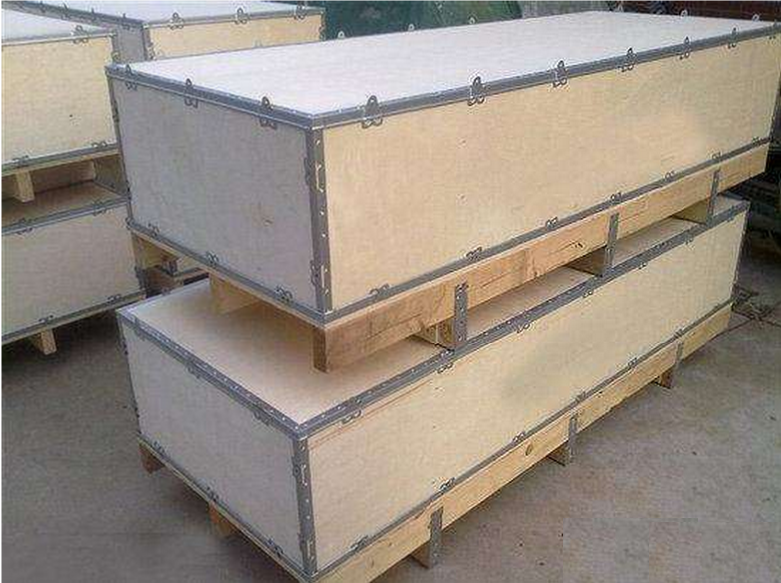

| Details | Normal packing is wooden box (Size: L*W*H). If exported to European countries, the wooden box will be fumigated. If the container is too tight, we will use PE film for packing or pack it according to customers' special request. |
| Packing Details (Standard Components) | |
|---|---|
| Size | 123 (L) * 456 (W) * 789 (D) mm |
| Weight | 100 kg |
| Details | Normal packing is wooden box (Size: L*W*H). Sometimes we choose cartons when shipped by air. |
AC motor does not need routine maintenance, but DC motor needs. AC motor has larger torque comparing with DC motor at the same power. But from the perspective of performance, they have no difference. Both of them have the same function and can use in same application.
Yes. Which means it can be used in both AC and DC motor.
We will provide instruction and technical support online to help clients to make it work.
Although we are the supplier of electric vehicle components, we are determined to solve problems for clients. If you need system support or custom engineering, we are happy to assist with calculated and tested solutions.
Our driving system is ideal for a broad range of vehicles including golf carts, electric tricycles, electric tuk tuks, electric ATVs/UTVs, and electric cars used for passenger or cargo transport.

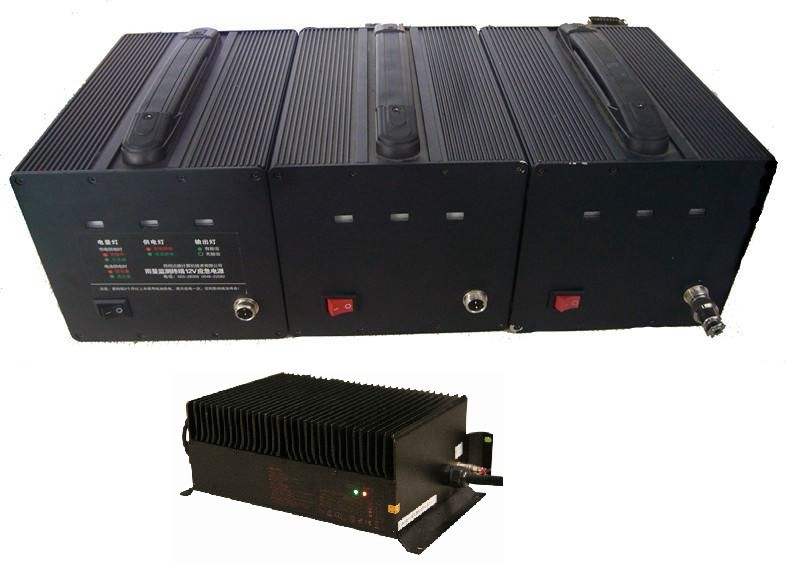

No, standard kit packages include the motor and controller assembly (key switch, stall switch, accelerator, and 4m wire harness). Battery and charger parts are configured separately based on customized range and power requirements.
