| Item | Specification Parameter |
|---|---|

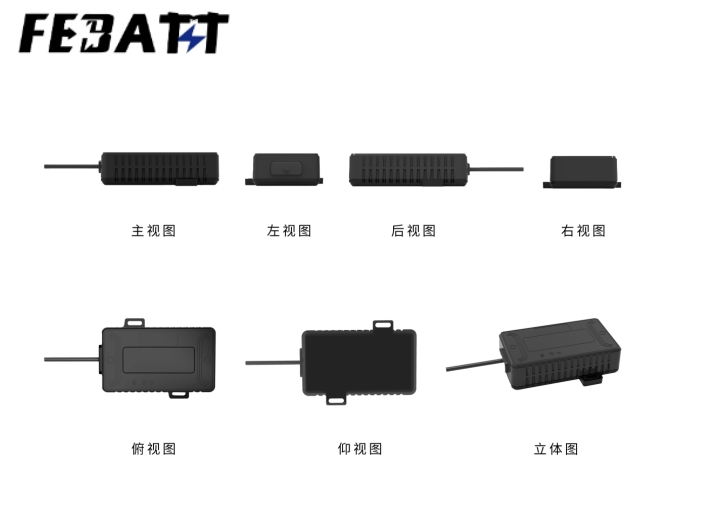

| Dimensions | 104.96mm (L) * 59.96mm (W) * 28.4mm (H) (±1mm) (Based on actual size) |
| Working voltage | 12-100VDC |
| Power dissipation | Operation mode: 65mA @12V; Low power mode: 5mA @12V |
| Pilot lamp | Power source (Red), GPS (Blue), GSM (Green) |
| LTE antenna | Bracket antenna, FPC |
| GNSS antenna | 25x25x4 Ceramic antenna, FPC |
| Bluetooth antenna | FPC |
| Acceleration sensor | Triaxial G sensor |
| Removable SIM card | Nano SIM card |
| Operating temperature | 0℃~65℃ |
| Storage temperature | 0~40℃ |
| Built-in battery | 1200mA polymer lithium battery |
| Functional Category | Function Description |
|---|---|
| GNSS positioning | Real-time positioning, supports GPS+Beidou, supports AGPS. By default, the device uses GPS for positioning after power-on. If the positioning is not successful, it will report a set of base station positioning data. |
| Real-time positioning | When continuous vibration is detected, the continuous positioning mode is turned on. It supports inflection point supplementation and blind zone supplementation. |
| Platform access | TCP |
| Location data reporting | Positioning data reporting and query, static 30s/time, dynamic 10s/time, backup power 30min/time (inflection point supplementation does not follow this rule) |
| Data reporting | Protection board data upload, host parameter upload, static 30s/time, dynamic 5s/time, backup power 30min/time (inflection point supplementation does not follow this rule). |
| CAN communication | Upload entire vehicle CAN messages, host messages, fault messages. Query host parameters. Read protection board and controller data from the CAN port in real-time and transmit data to the server in real-time. |
| Device upgrade | SMS upgrade, Offline upgrade, FOTA upgrade |
| SMS | Support host parameter query and modify parameter configuration. |
| Bluetooth communication | Host parameter query, modification, firmware download and upgrade. |
| Terminal activation/Binding | Activation binding/unbinding process (Bluetooth/Platform), report binding information. |
| Remote command issuing | Platform issues control/query information/upgrade commands/parameter configurations |
| Low power management | 1. Without main power supply, turn off the CAN bus. 2. When there is no main power and no vibration, and GPS is turned off (uploads every 30 min). 3. No vibration, turn off LED. 4. GSM stay on standby. 5. Report data immediately when main power supply changes. |
| Terminal self-Alarm | 1. Vibration alarm. 2. Main power low voltage alarm (<11.5V). 3. Backup power low voltage alarm (<3.2V). 4. Communication failure: No bus message within 10s after power on. |
