Three-phase AC 340V-460V: 0.75kW-710kW
660V-690V: 18.5kW-800kW

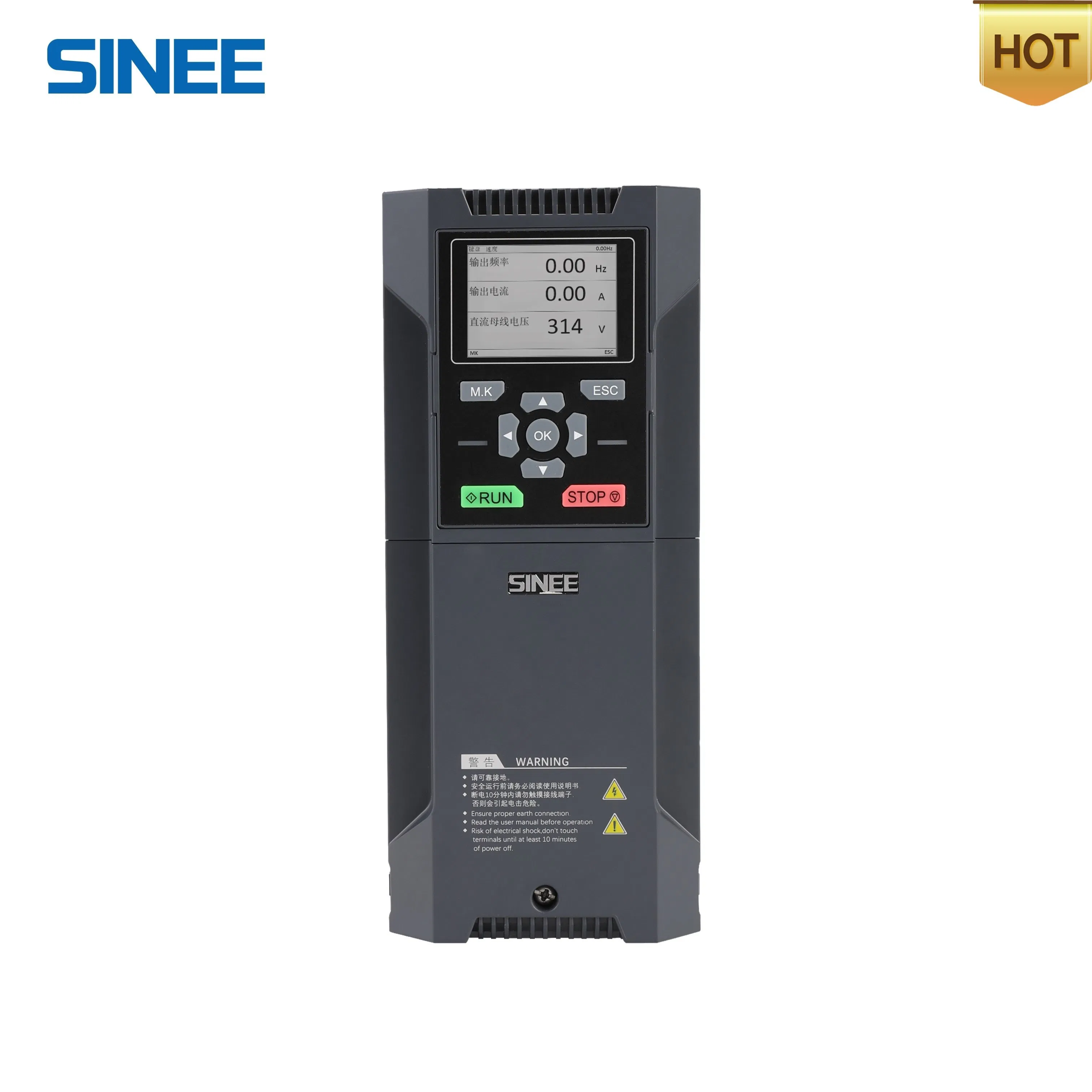

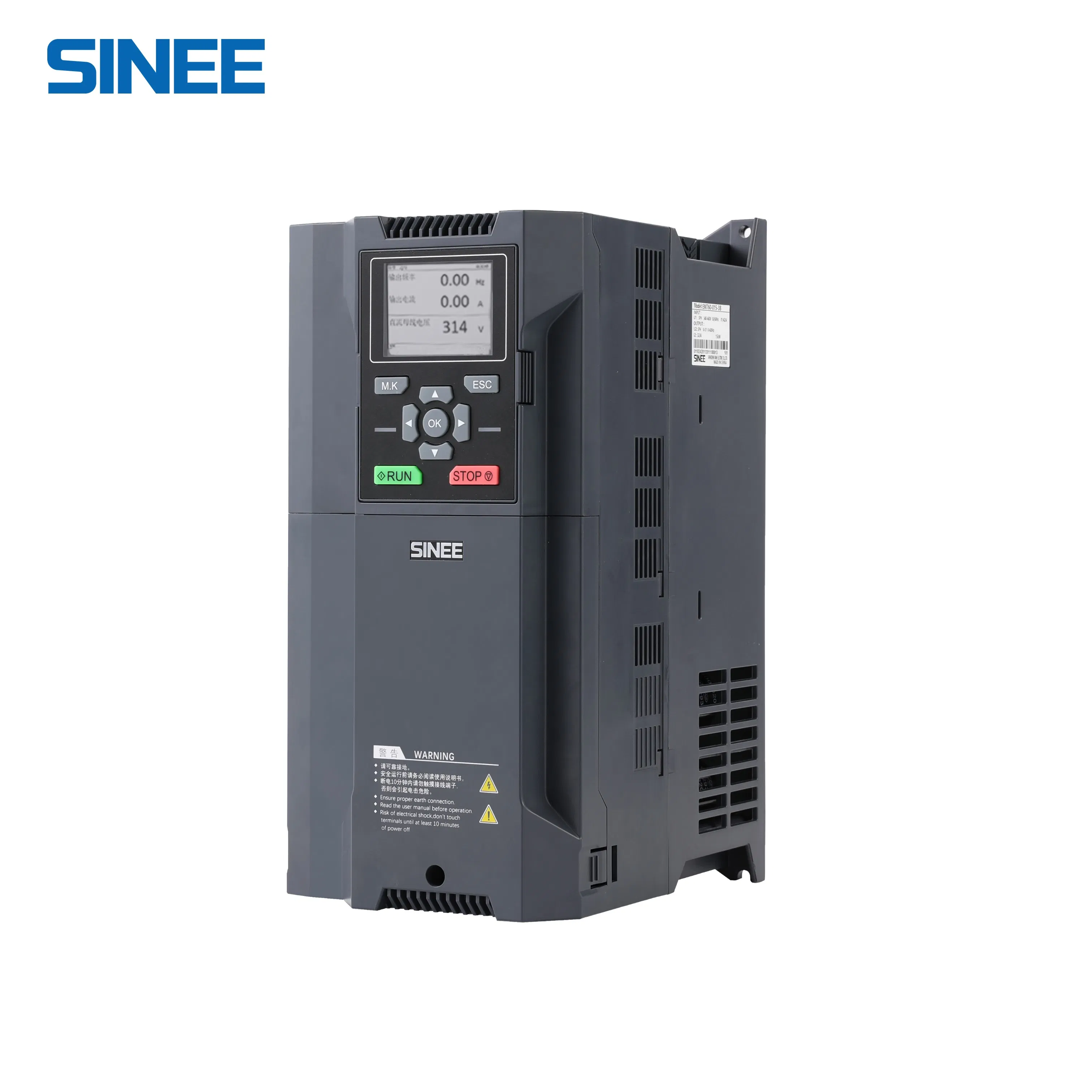

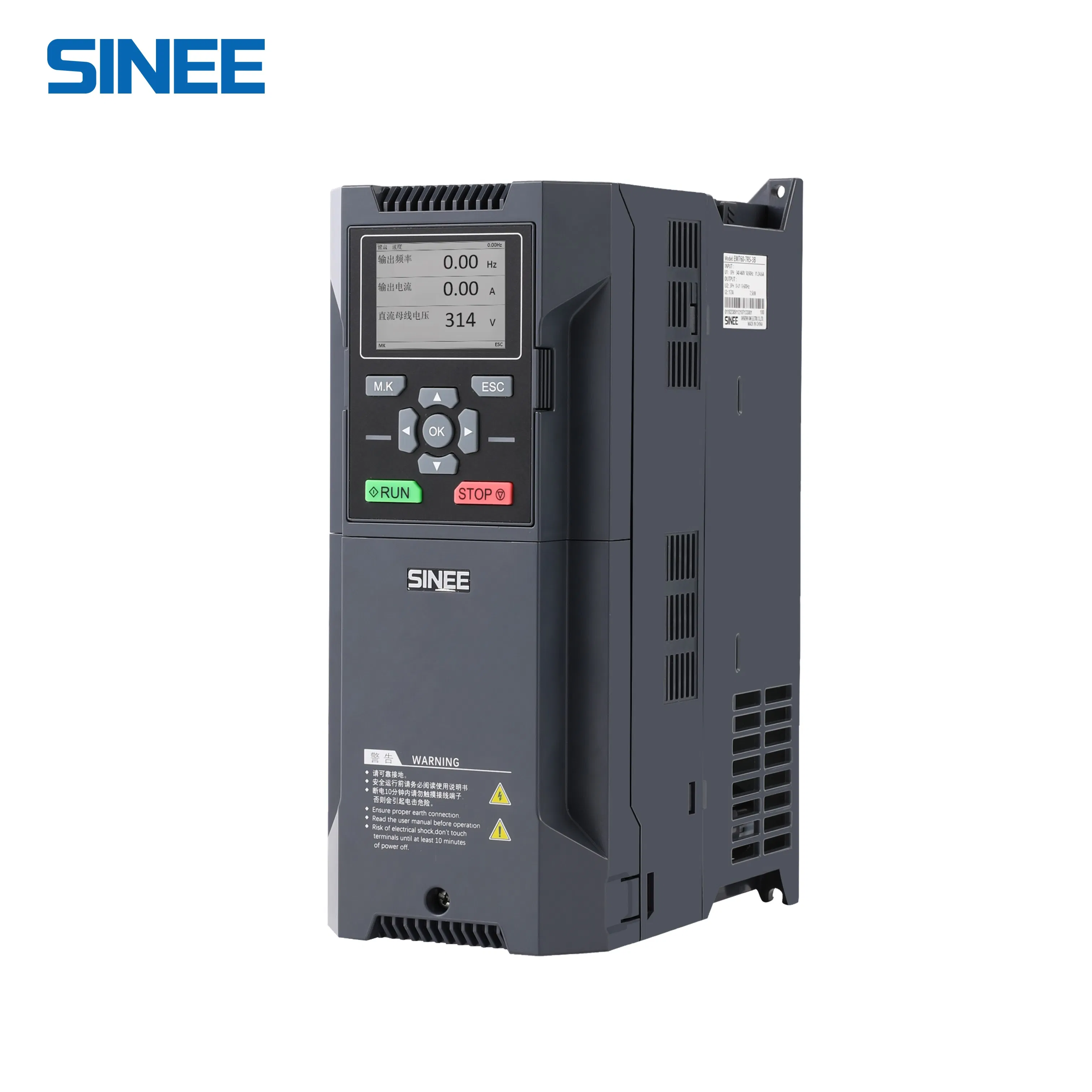

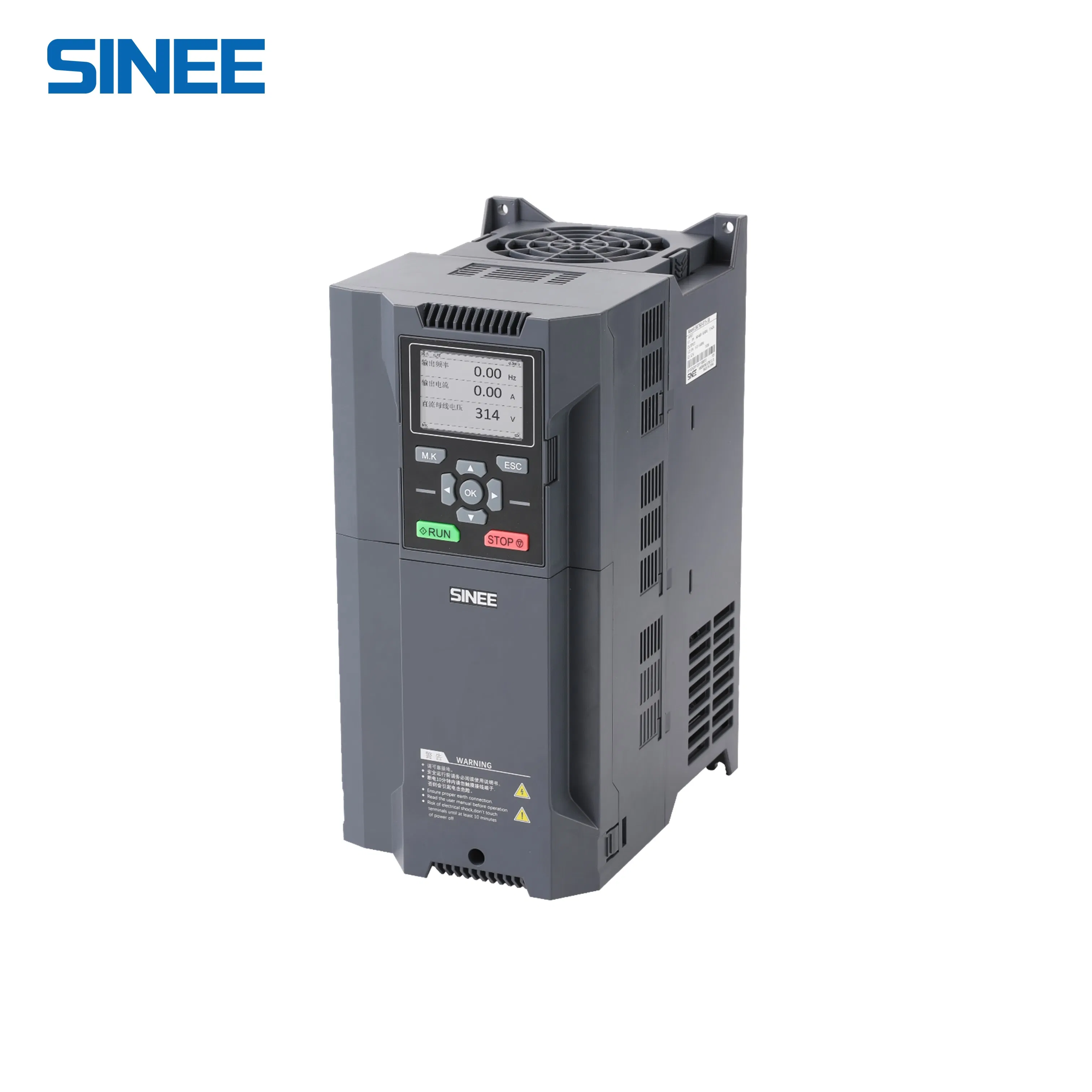

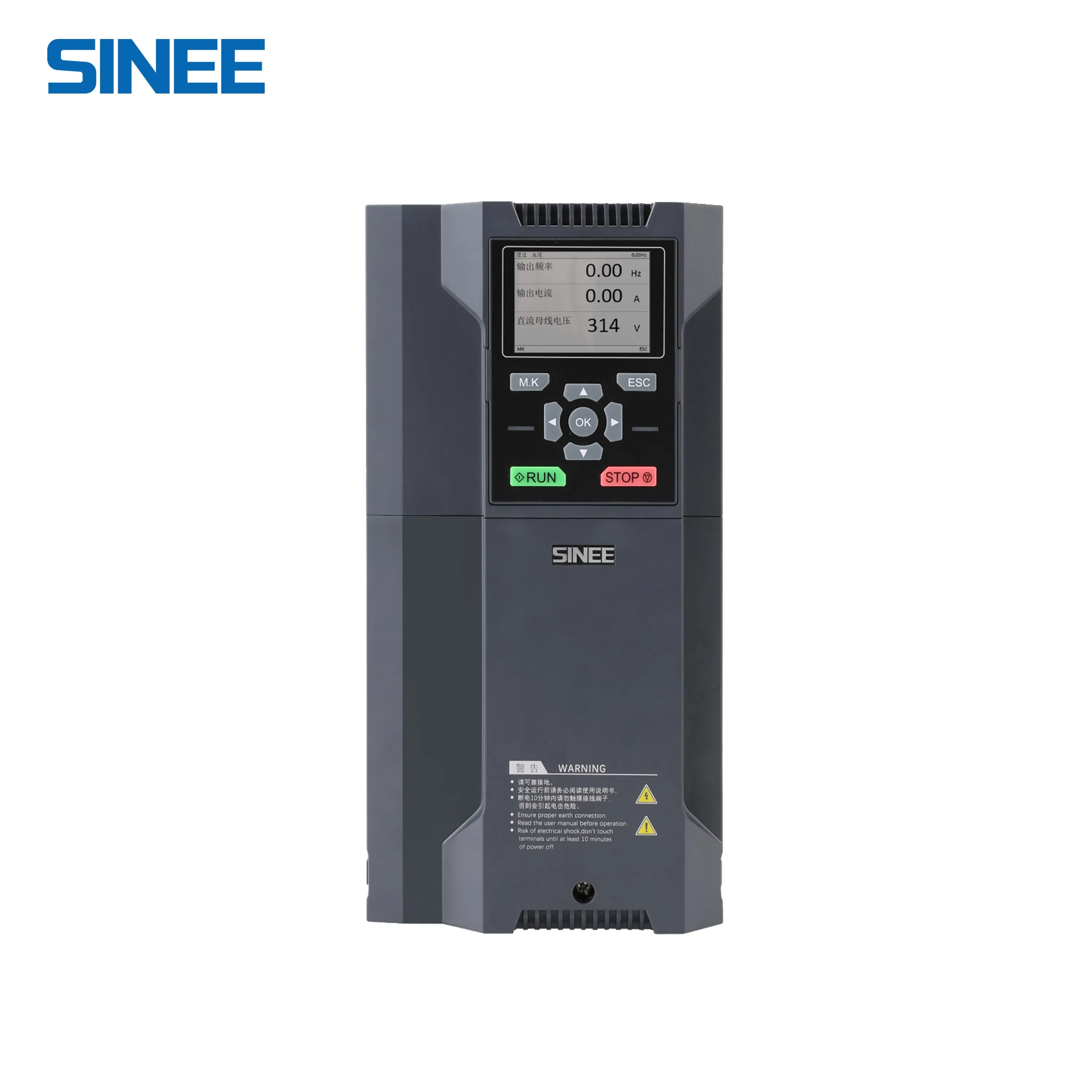

The EM760 series inverter is a high-performance vector control inverter, which integrates synchronous motor drive and asynchronous motor drive. It supports three-phase AC asynchronous motors and permanent magnet synchronous motors. The system incorporates advanced technologies including improved vector VF control (VVF), speed sensorless vector control (SVC), and speed sensor vector control (FVC).
| Item | Specification | |
|---|---|---|
| Power supply | Rated voltage | Three-phase 340V-10% to 460V+10% 50-60Hz ± 5% |
| Output | Max voltage | Same as input power voltage |
| Rated current | Continuous output of 100% rated current | |
| Overload | G model: 150% for 60s; P model: 120% for 60s | |
| Control | Driving mode | V/F (VVF), Sensorless Vector (SVC), Speed Sensor Vector (FVC) |
| Frequency Range | 0.00~600.00Hz / 0.0~3000.0Hz | |
| Speed Accuracy | ±0.5% (VVF), ±0.2% (SVC), ±0.02% (FVC) | |
| Starting Torque | 150%/3Hz (VVF), 150%/0.25Hz (SVC), 180%/0Hz (FVC) | |
| Interface | Analog Input | 3 Standard (AI1-AI3) + 1 Extension (AI4); Supports 0-10V, -10-10V, 4-20mA |
| Environment | Temp/Humidity | -10ºC to +50ºC; 20% to 90%RH (non-condensing) |
