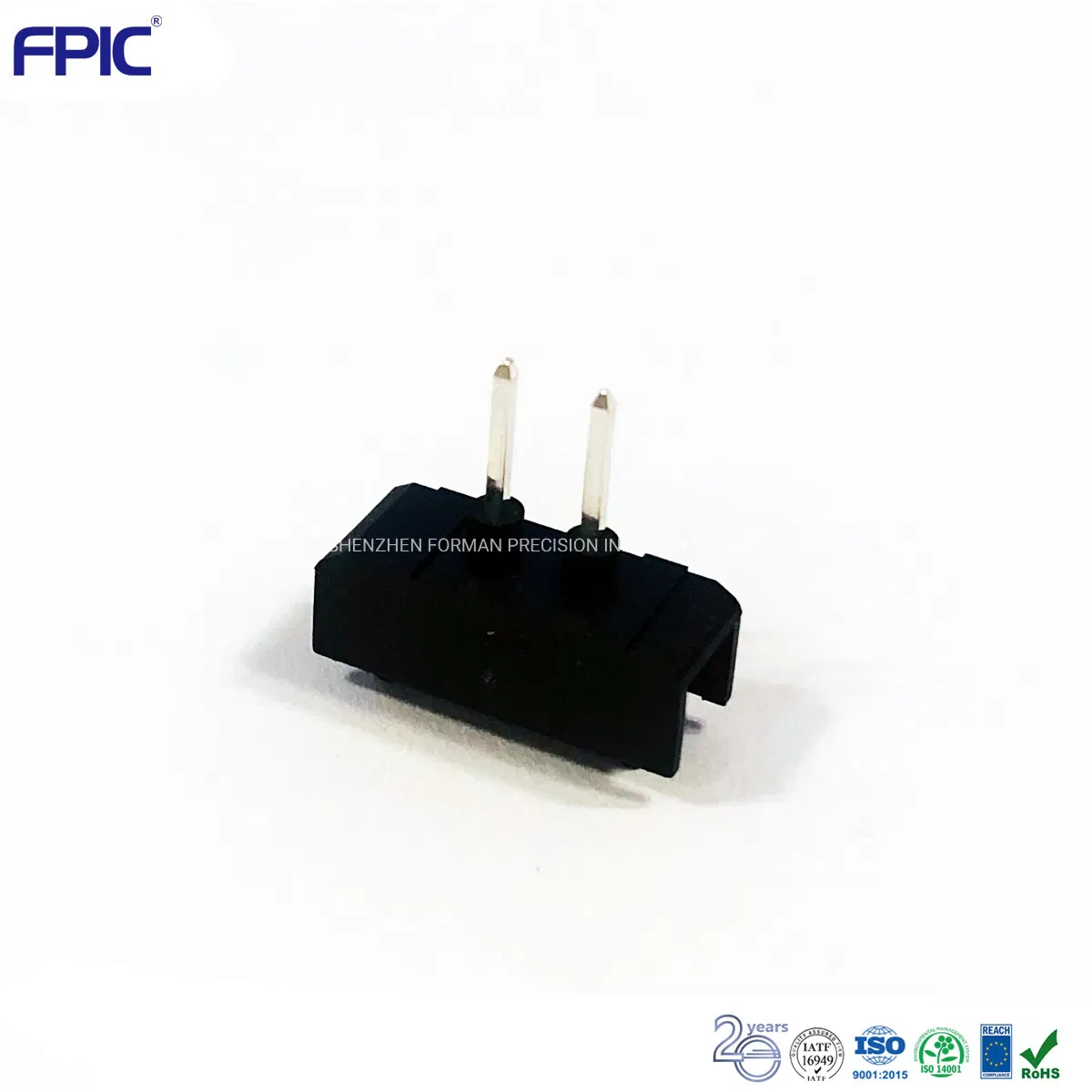

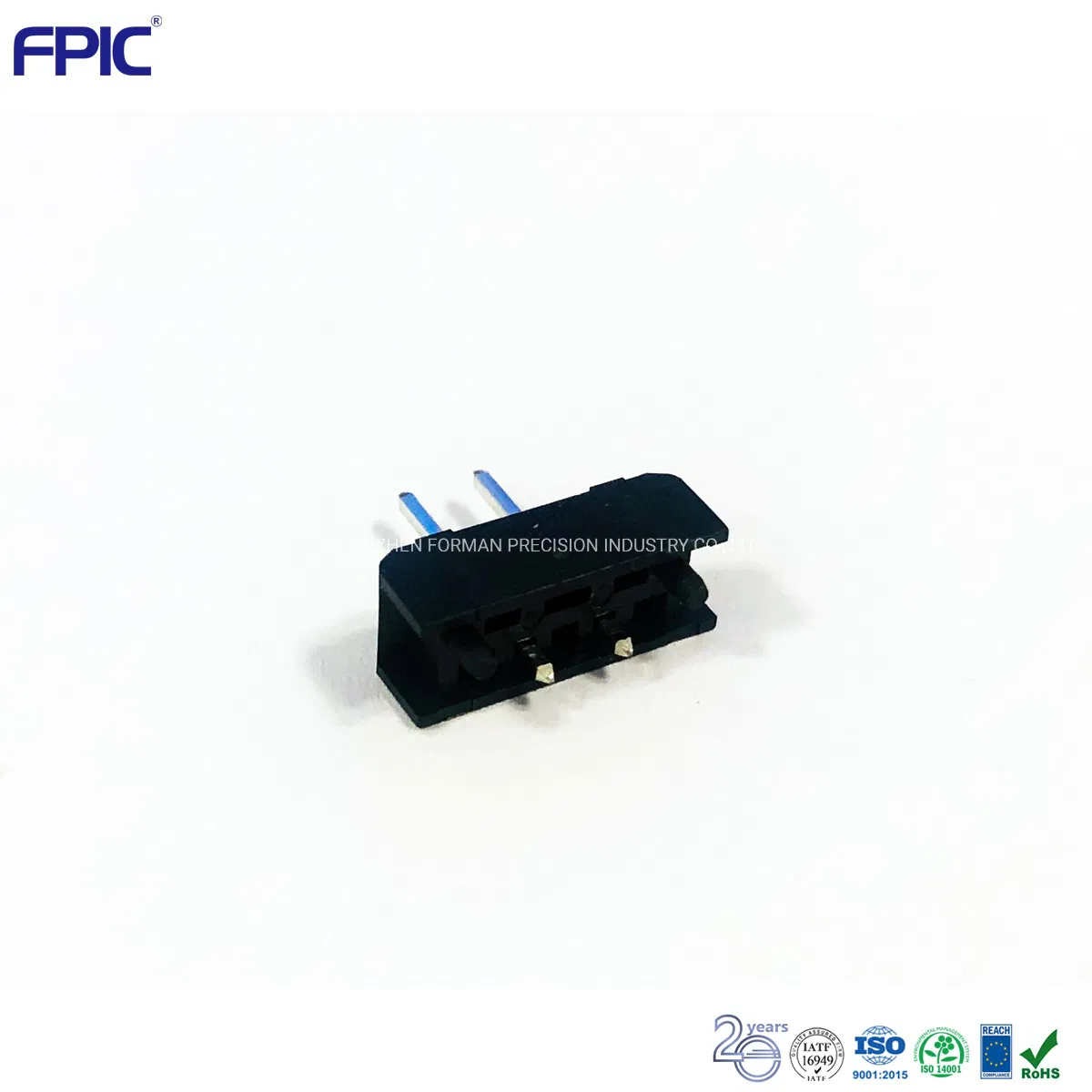

Low Voltage 7A Automobile Customized Connector Components for Internal PCB Board

1 / 5

Low Voltage 7A Automobile Customized Connector Components for Internal PCB Board

Send Inquiry

Product Description

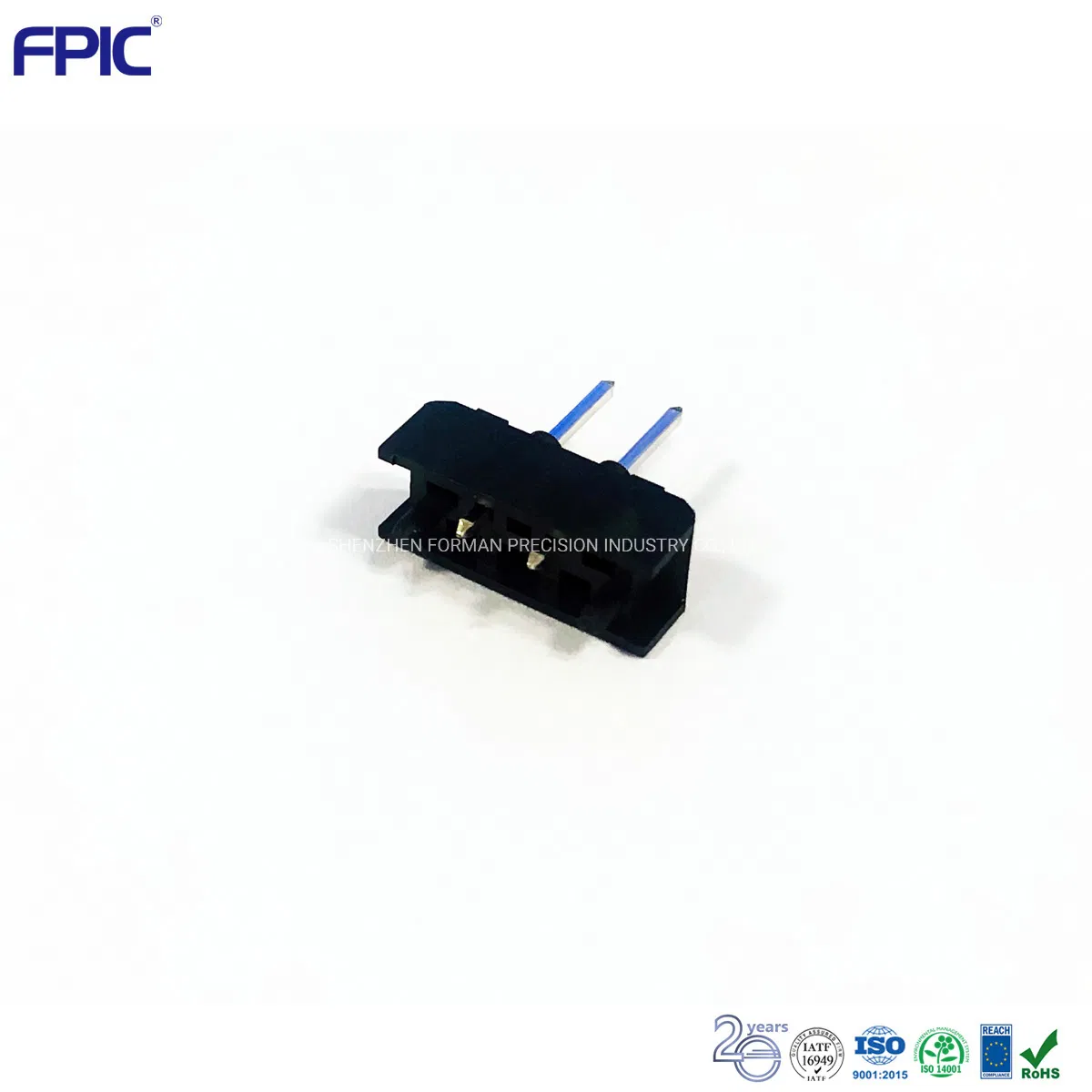

Low Voltage 7A Automobile Customized Connector Components for Internal PCB Board

Since 1999, we have been fabricating high-quality electronics components, offering comprehensive one-stop services. Our expertise spans from initial design concepts and mold manufacture to plastic injection, metal stamping, and final assembly services.

Product Specifications

Description	Customized automotive/automobile electric connector components
Material Option	Insulator: PBT, LCP, PA66, PA66+GF 30%, PA9T Terminal: C7025, C5191, C2680, H65 Ground lug: C5191, C2680
Plating Option	High Temperature Matt Tin over Nickel, Gold contact area plating, Tin soldering area plating
Assembly Method	Automatic Pin/Terminal Inserting or Injection molding terminal/pin
Applications	Automotive OBD Module, window lifting system PCB panels, Wireless Charging, etc.
Development Schedule	30 days for mould/prototype + 30 days for PPAP and testing. Initial batch: 10-15 days.

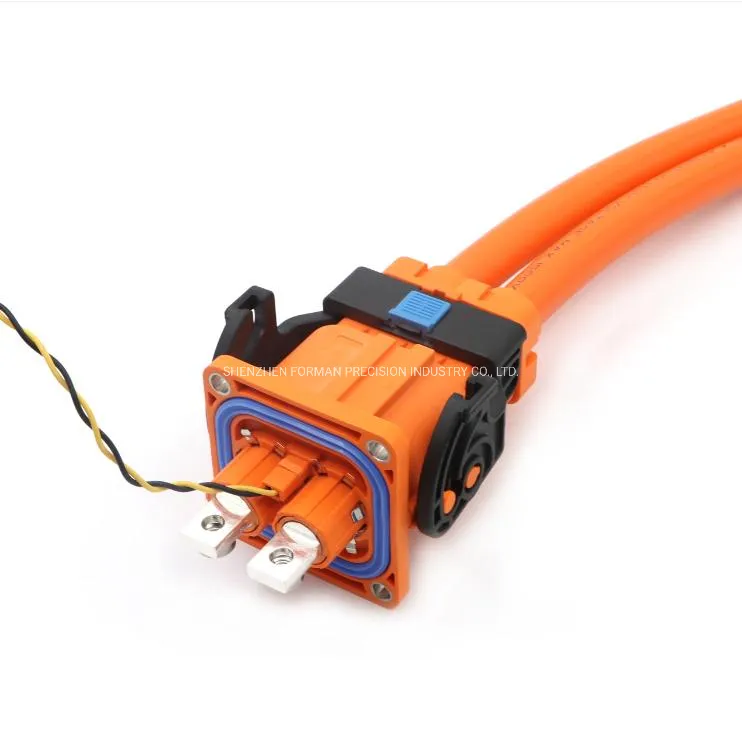

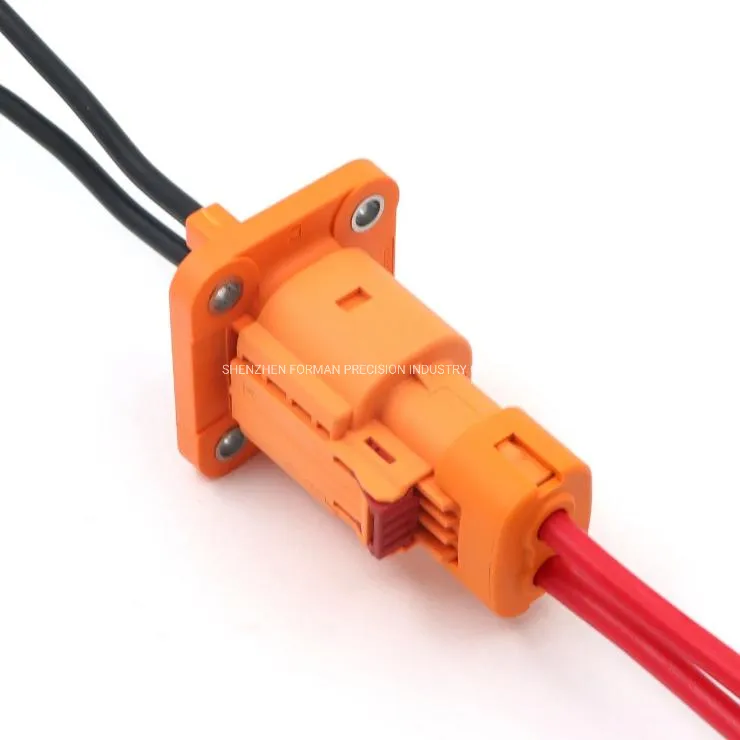

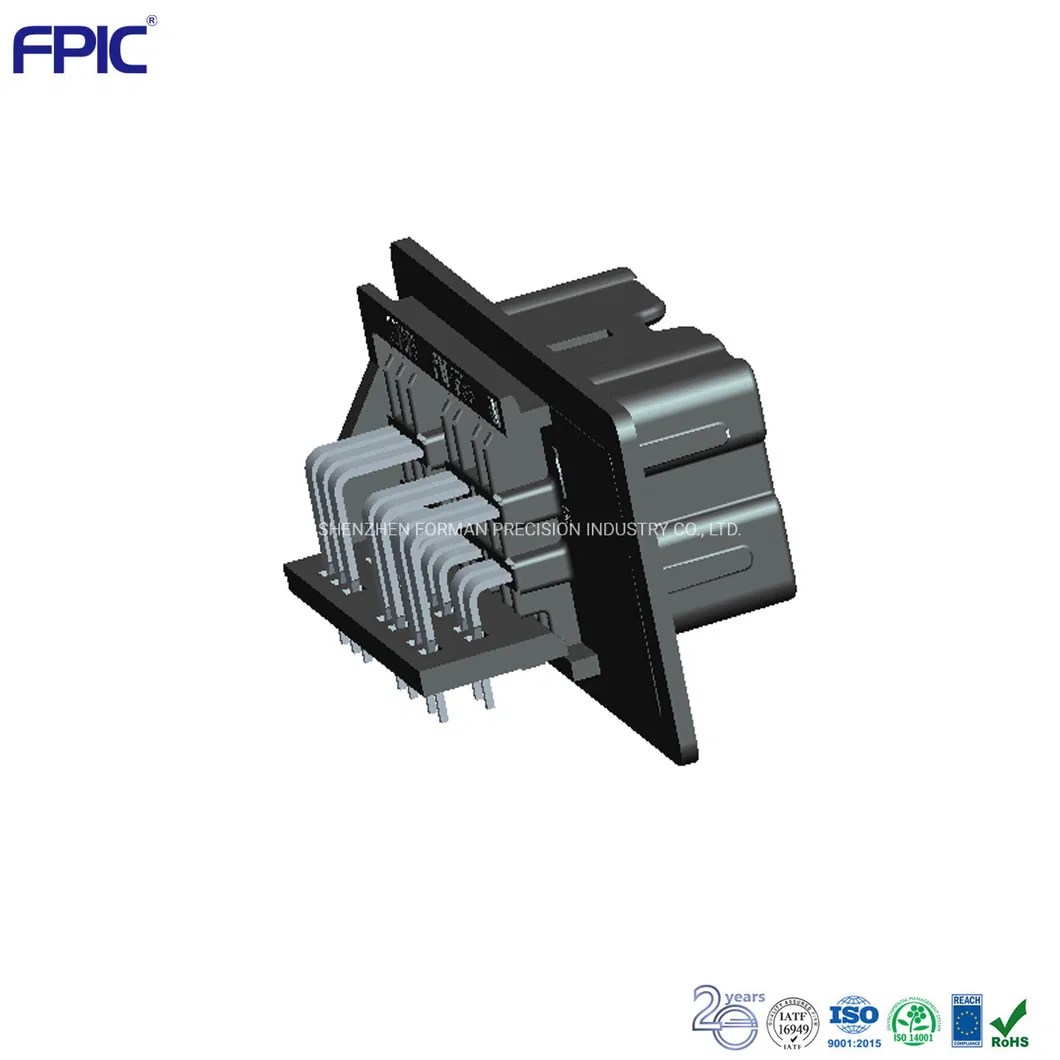

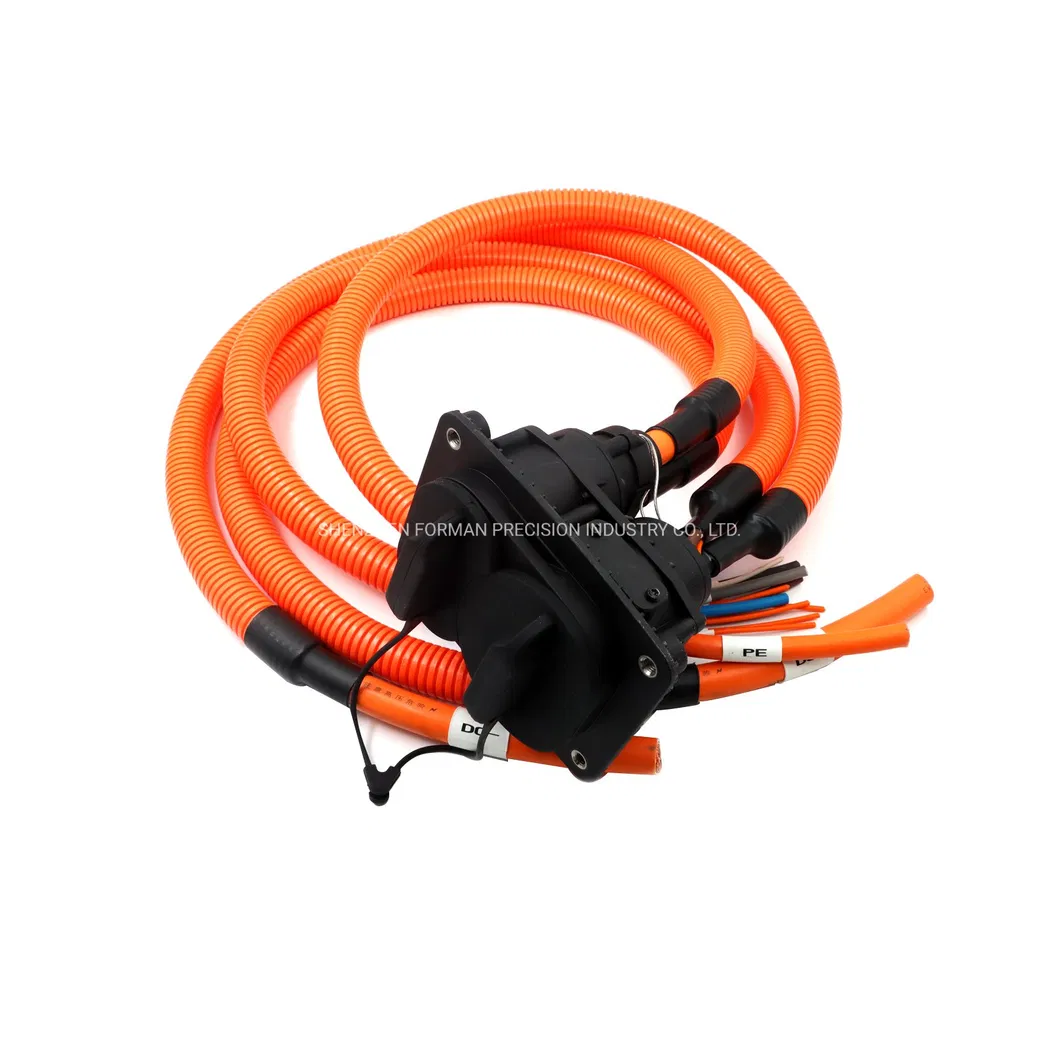

Product Sample Range

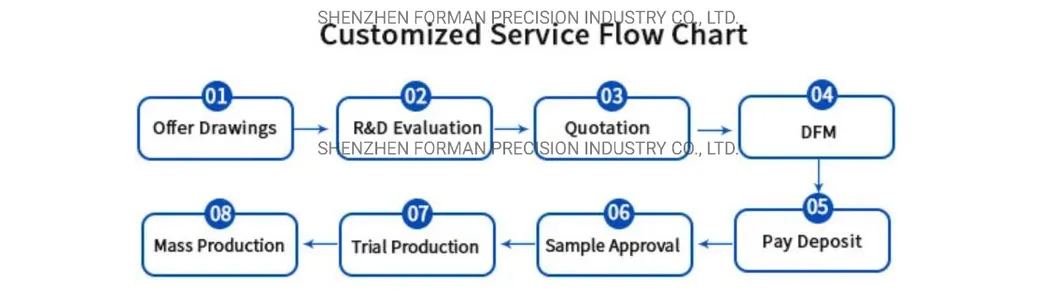

Development Flow & Process

Evaluation Process

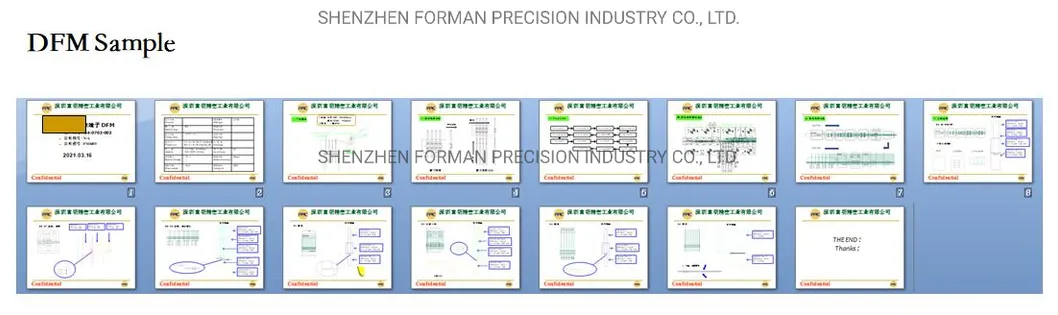

Evaluation Details & Schedule

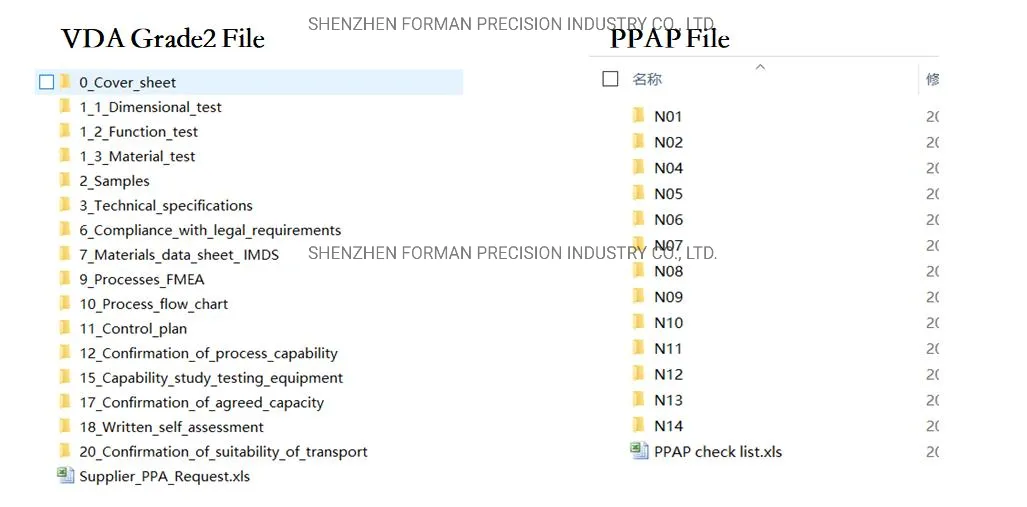

PPAP Documentation Sample

Manufacturing Capabilities

We are committed to the research, development, and manufacture of OEM automotive components, energy storage connectors, and wire harnesses. With ISO9001, ISO14001, and IATF16949 management systems in place, we utilize ERP and MES for efficient production control.

Total Employees	More than 200 professional staff
Core Services	Design concepts, Plastic injection, Metal Stamping, and Assembly
R&D Expertise	30 experienced engineers dedicated to electronics R&D

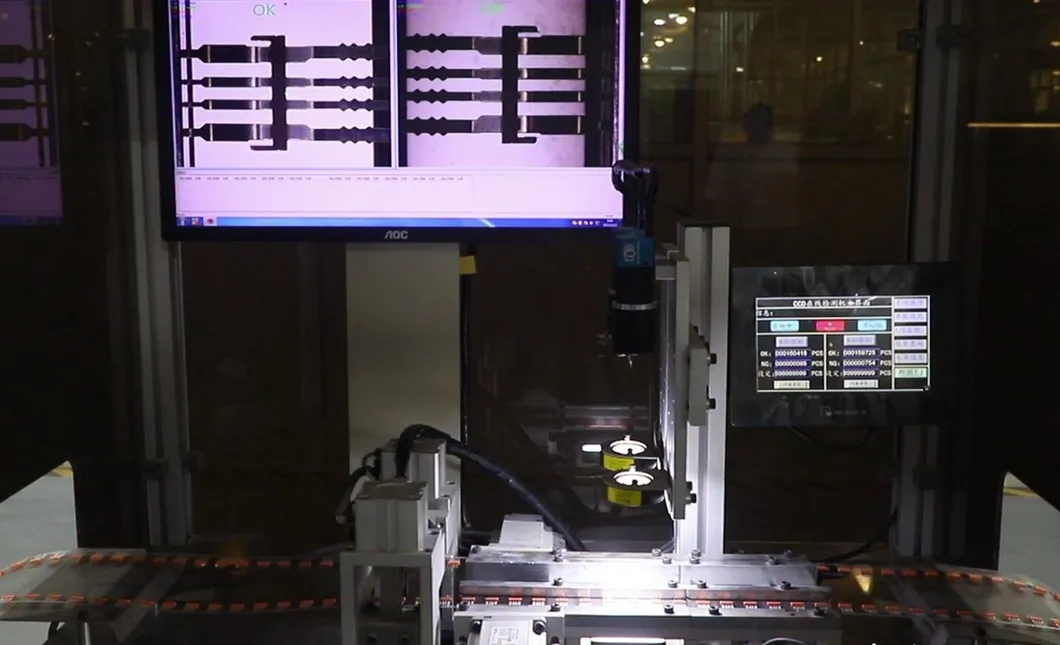

Quality Assurance	100% CCD quality inspection, professional laboratory testing, and strict QC spot checks

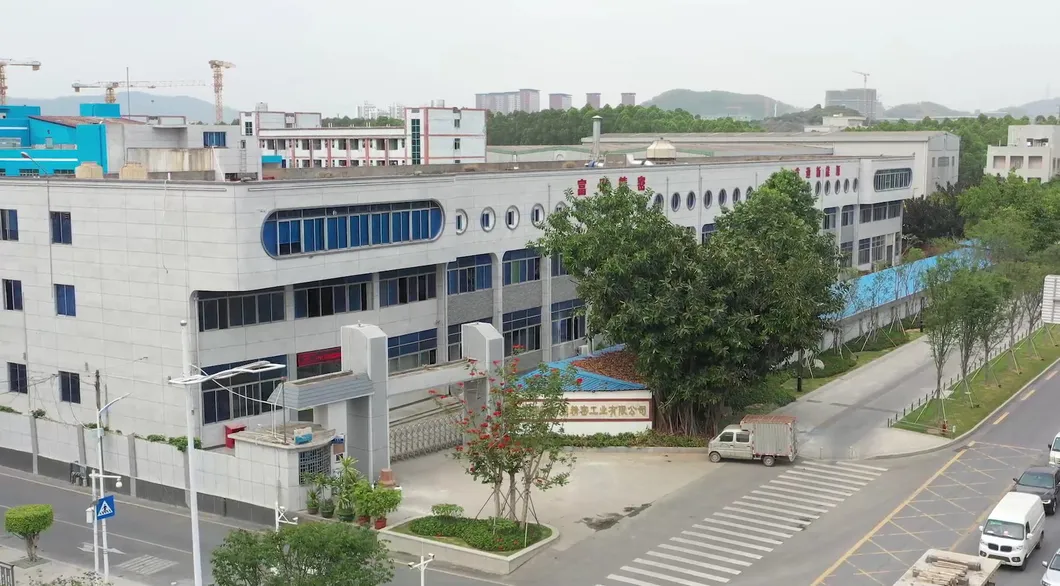

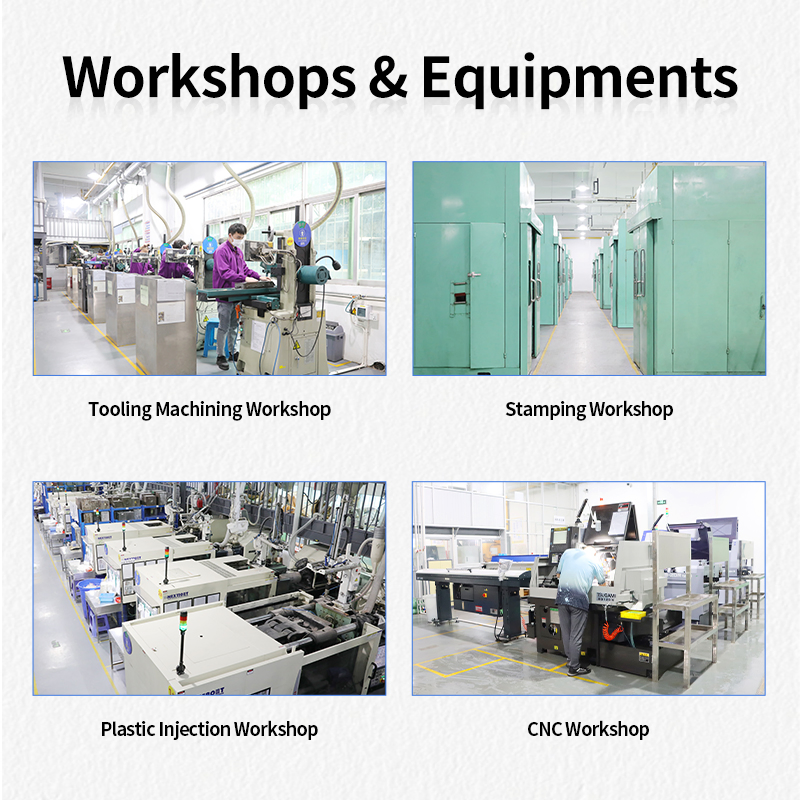

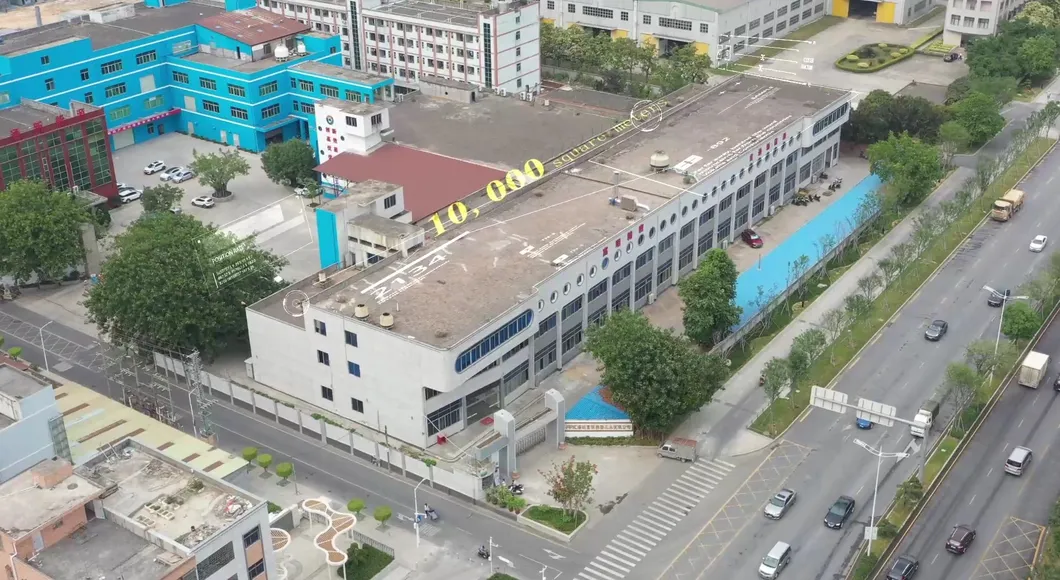

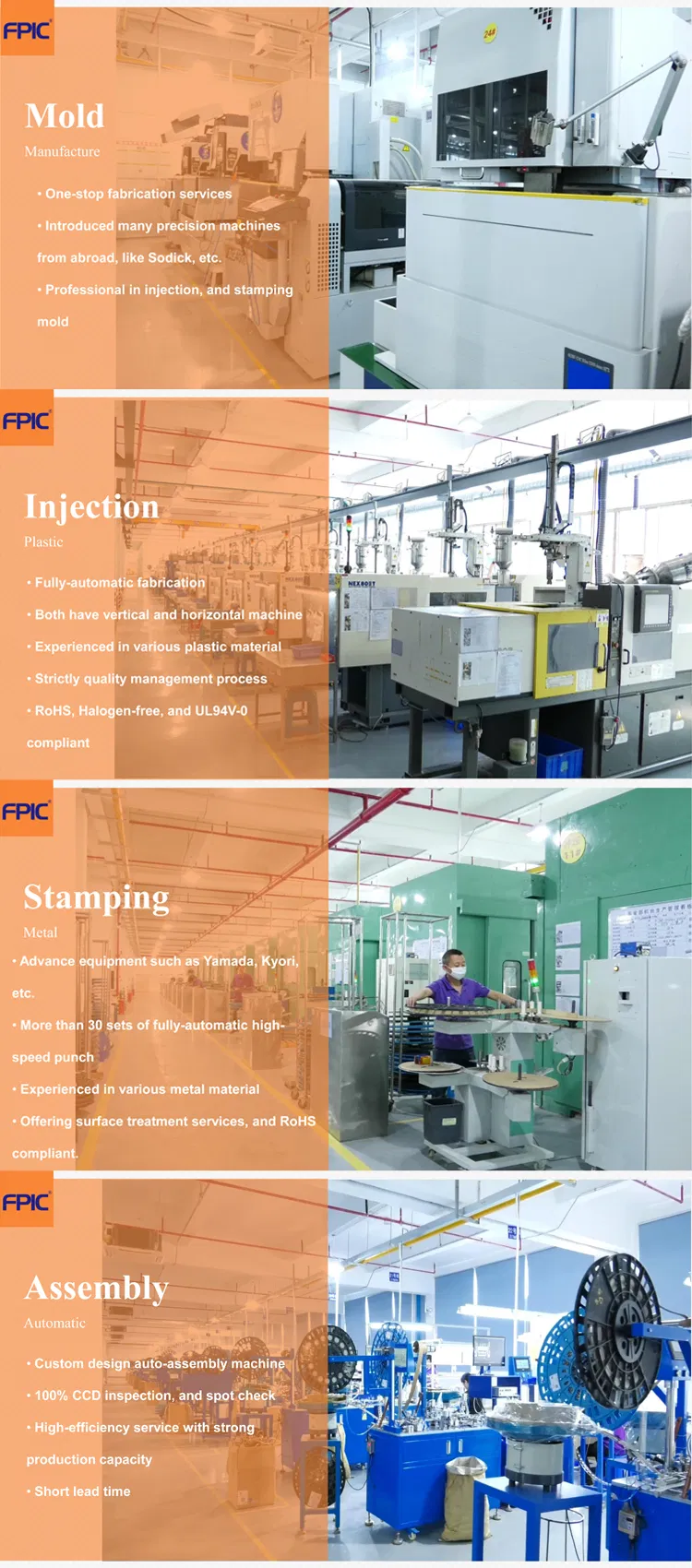

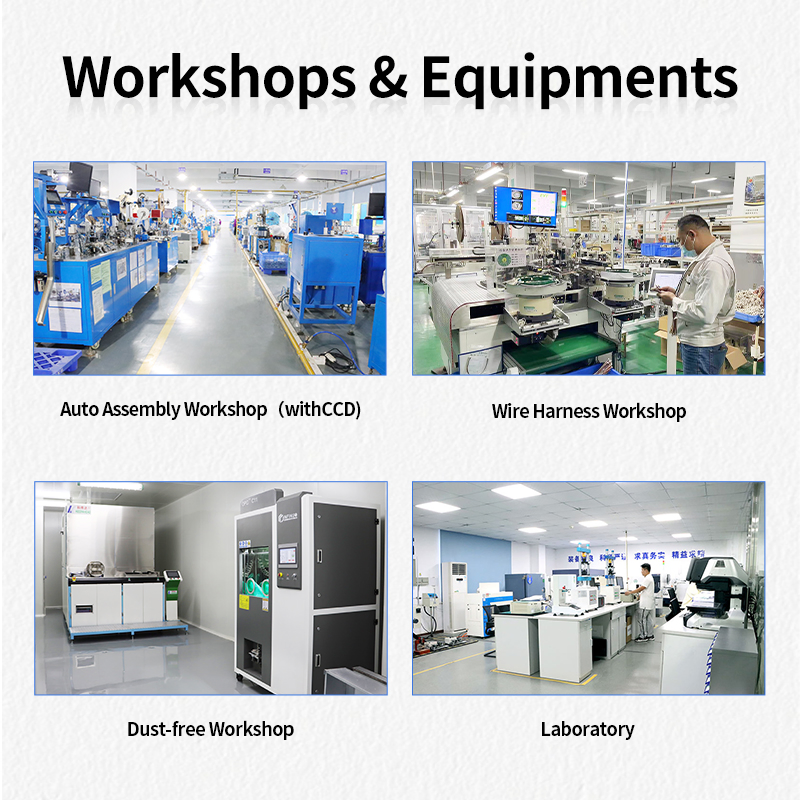

Plant & Workshop Display

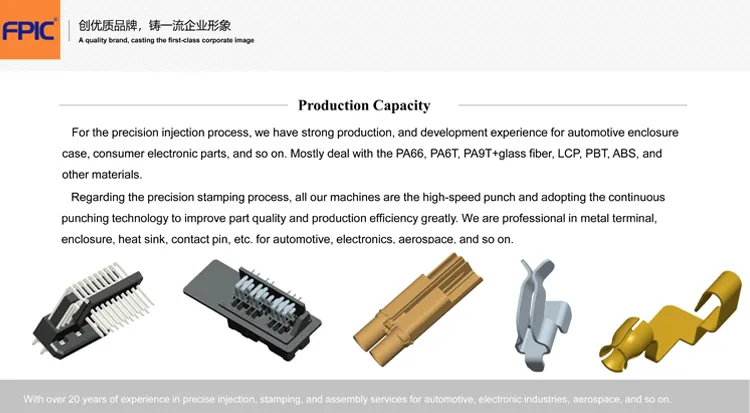

Production Capacity

Quality Management

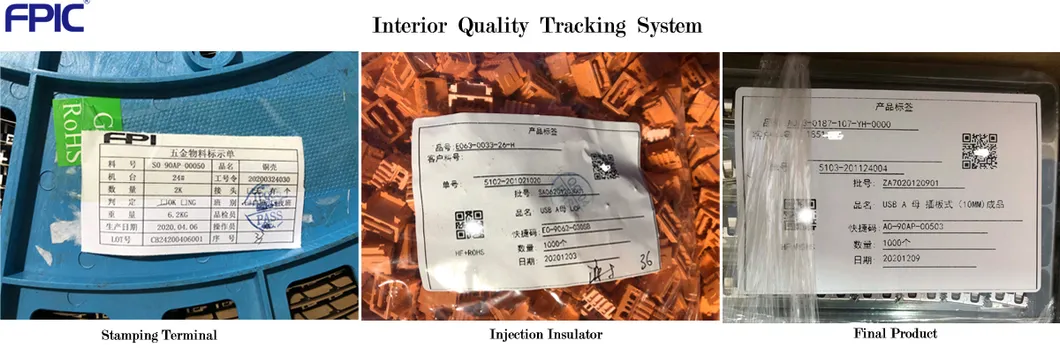

Material Tracking: Every material is labeled upon completion for full traceability of part numbers, quantity, and dates.

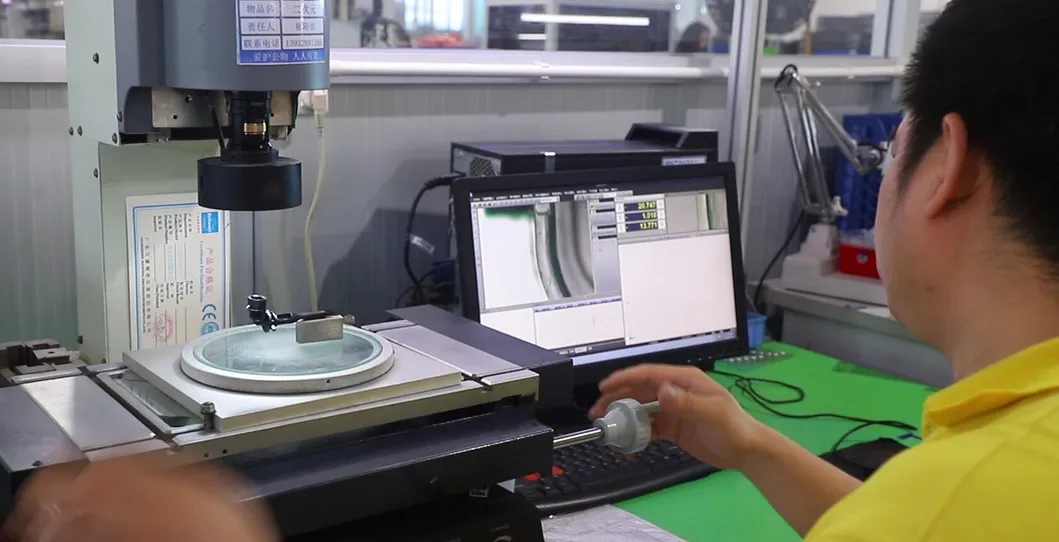

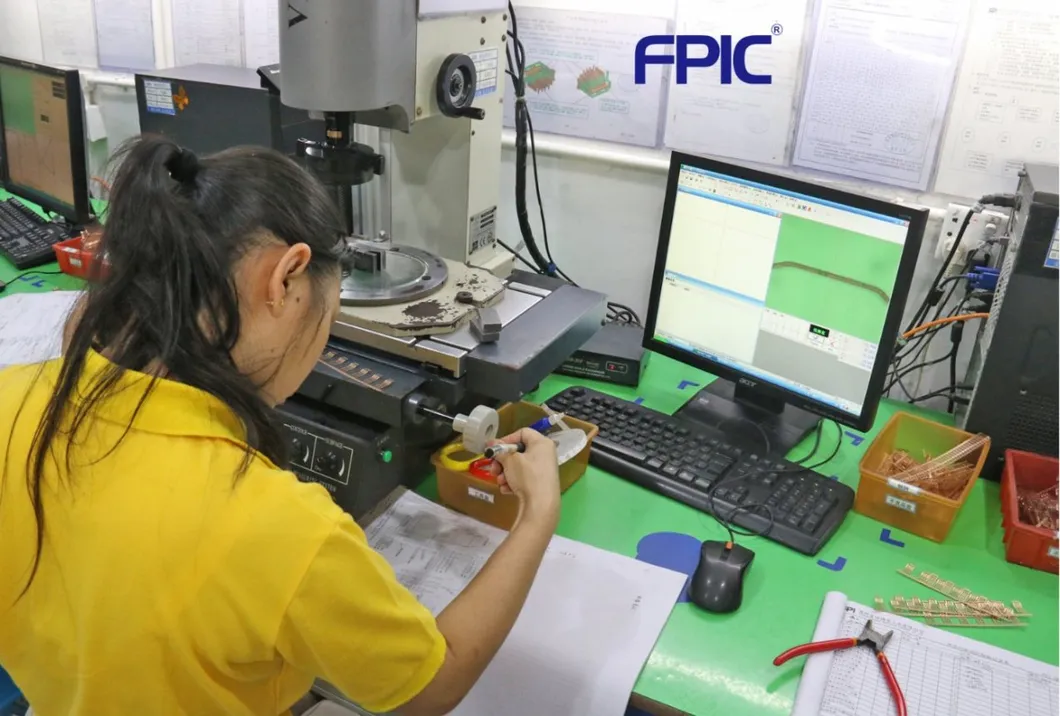

Process Inspection: Reliability is verified at the design stage. Every production step strictly complies with quality systems.

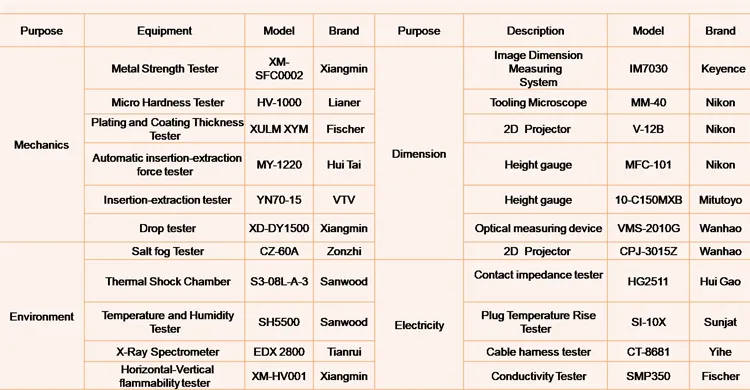

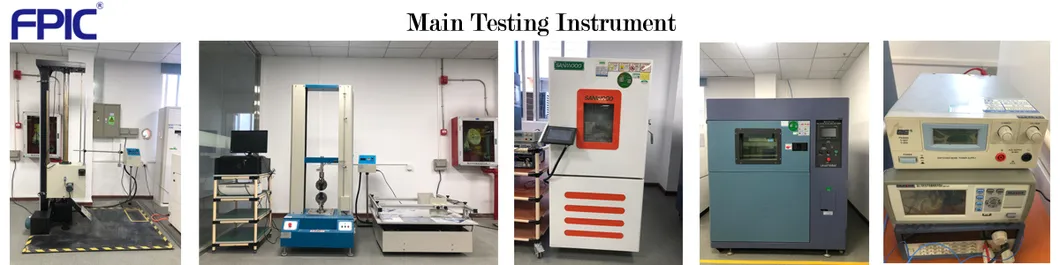

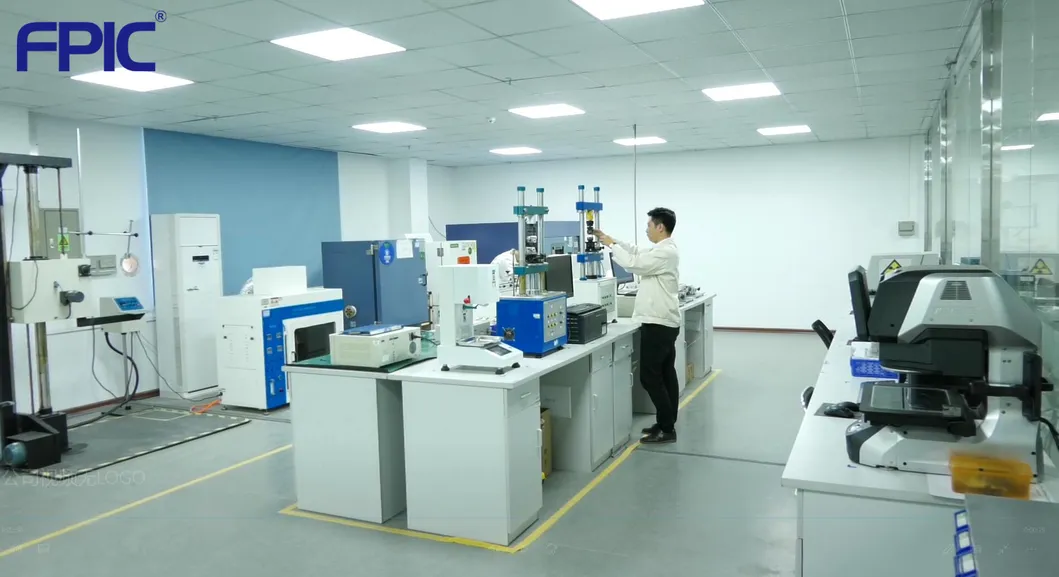

Testing Center & Equipment

Frequently Asked Questions

Q: What certifications does your facility hold?

A: Our facility is fully certified with ISO9001, ISO14001, and IATF16949 standards to ensure the highest management and quality control.

Q: How do you handle quality assurance during production?

A: We implement 100% CCD inspection and instrument checks. QC teams perform spot checks at least every 2 hours in every process, followed by a final OQC inspection before shipment.

Q: What information is required for a custom quote?

A: Please provide 3D drawings (STEP, CAD, etc.), material requirements, surface treatment details, and your expected order quantity.

Q: Do you offer one-stop manufacturing services?

A: Yes, we provide full-service solutions including design concepts, mold making, plastic injection, metal stamping, and final assembly.

Q: What is the typical development schedule for new components?

A: Typically, it takes 30 days for mold making and the first prototype, plus another 30 days for PPAP documentation and rigorous testing.

Q: Is there a minimum order quantity (MOQ)?

A: For stock items, we can arrange shipment based on your needs. For specialized or custom parts, the MOQ depends on the specific production costs and requirements.

We warmly welcome your inquiries and visits for more details and technical information.
