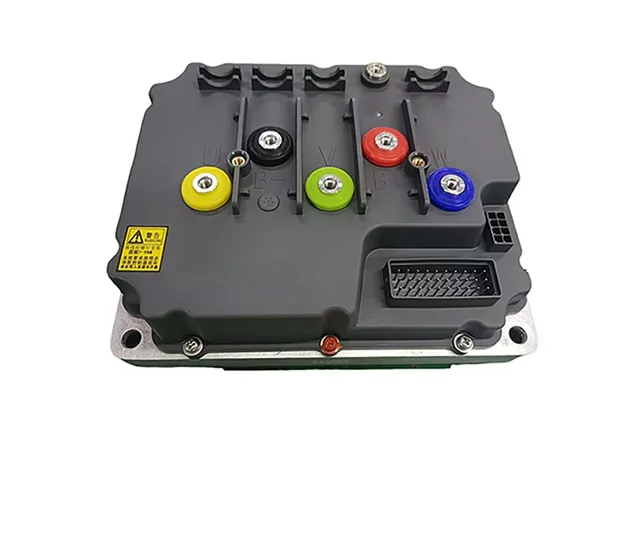

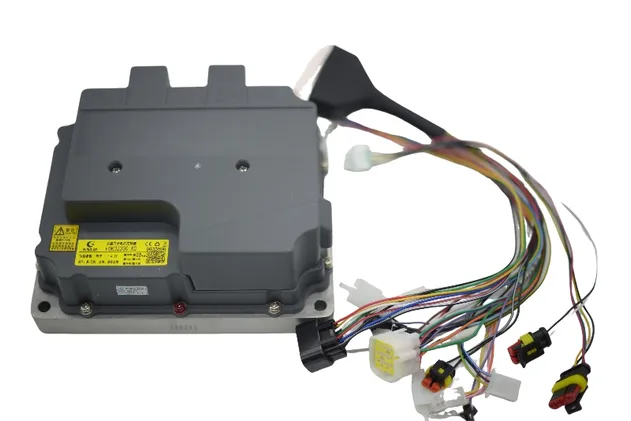

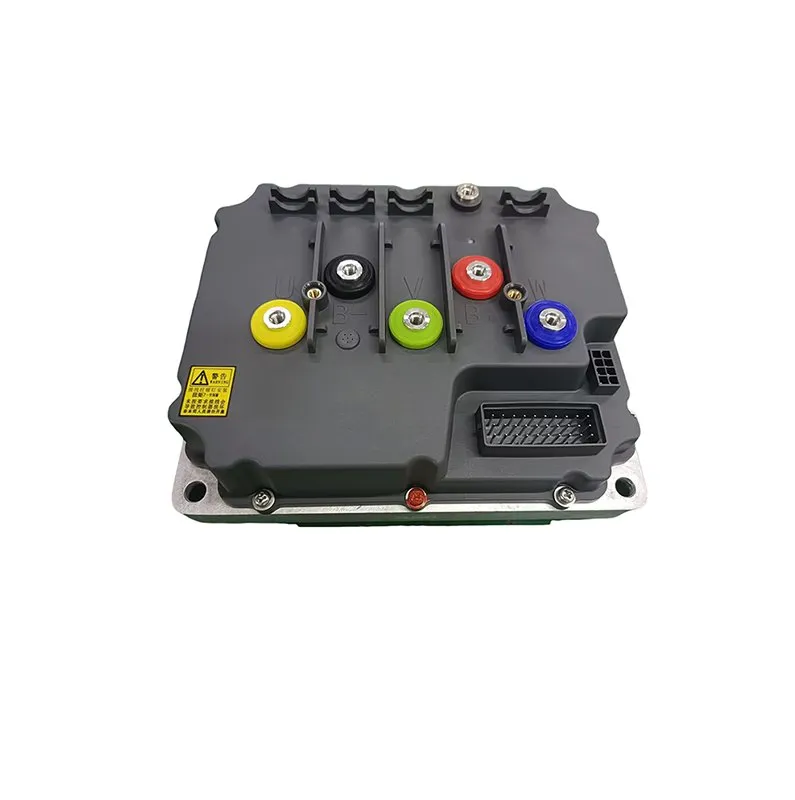

The FDK-XC Series Permanent Magnet Synchronous Controller is a newly developed rotary encoder feedback drive system specifically engineered for heavy-duty electric vehicles. It incorporates an embedded permanent magnet synchronous motor, offering high efficiency, high power density, compact size, and superior protection rating.
The newly upgraded MPTA algorithm delivers smoother torque, more linear acceleration, and a relatively higher efficiency point. Employing a speed control mode ensures a comfortable driving experience, while the proprietary thermal management system prevents system instability, enhancing safety performance.
| PMSM Motor Controller 33 Series Product List | |||||
| P/N | FDK2433C-XC | FDK2733C-XC | FDK3233C-XC | FDK3533C-XC | FDK4033C-XC |
| Input voltage(V) | 16-96 | 16-96 | 16-96 | 16-96 | 16-96 |
| Rated voltage(V) | 24-72 | 24-72 | 24-72 | 24-72 | 24-72 |
| Min Starting voltage(V) | 16 | 16 | 16 | 16 | 16 |
| Rated input current(A) | 60 | 70 | 100 | 100 | 120 |
| Peak output current(A) | 240 | 275 | 320 | 350 | 400 |
| Efficiency | 98% | 98% | 98% | 98% | 98% |
| Feedback type | Rotary Encoder | Rotary Encoder | Rotary Encoder | Rotary Encoder | Rotary Encoder |
| Communication | CAN/Hall | CAN/Hall | CAN/Hall | CAN/Hall | CAN/Hall |
| Protection level | IP65 | IP65 | IP65 | IP65 | IP65 |

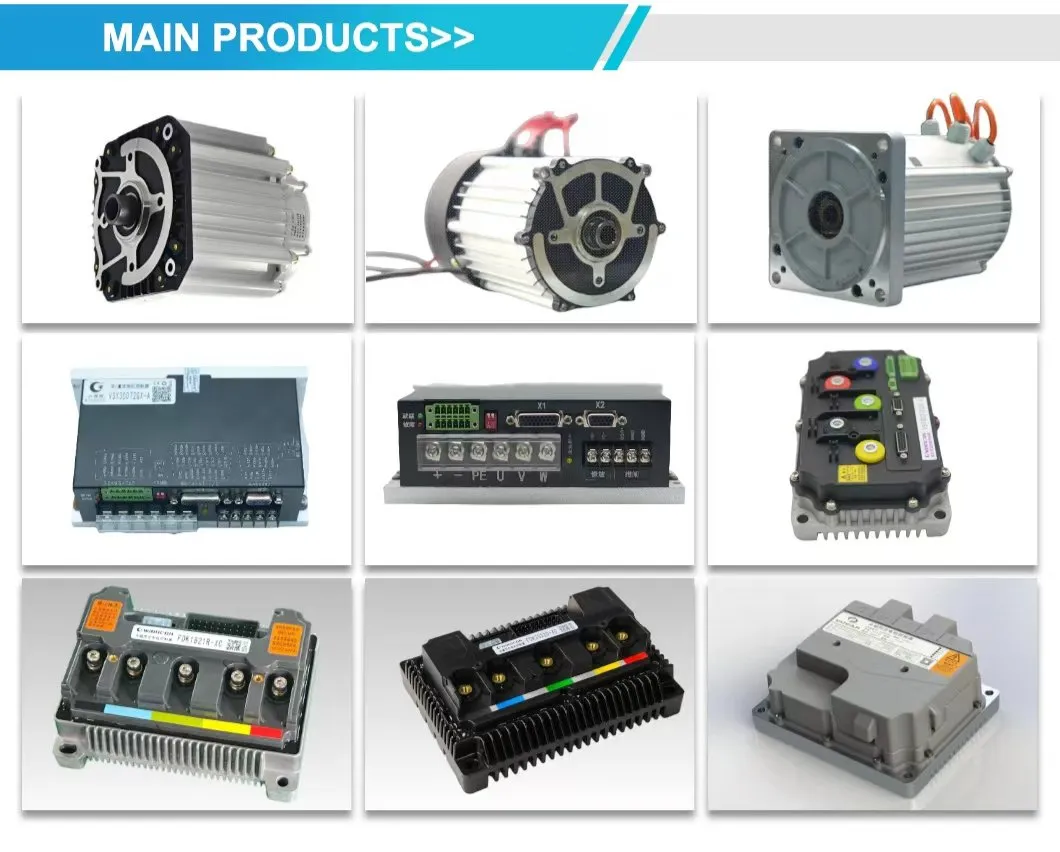

Permanent Magnet Synchronous Motor Controllers: Energy-efficient, responsive, and compatible with diverse electric equipment.
AC Induction Motor Controllers: Wide voltage input range, overload protection, suitable for heavy-duty applications.
High-Precision Servo Controllers: Precisely regulate position, speed, and torque for automated precision control.
Comprehensive Technology: Covers mainstream motor control technologies, delivering one-stop solutions.
Scenario Adaptability: Engineered for specialized operating conditions with strong compatibility.
High Reliability: Rigorous testing ensures stable operation in complex environments.
