| Model NO. | FDK3533C-M |
| Max Current | 350A |
| Protection Class (IP) | IP65 |
| Adaptable Motor | AC Induction Motor |
| Port of Shipment | Guangzhou/Shenzhen |
| Customize | Yes |
| Max Samples Per Take | 10 PC |
| OEM Service | Yes |
| Modes of Packaging | Standard Export Packing |
| Shipment Mark | According to Your Client's Request |
| Transport Package | Carton |
| Specification | 60V/72V 5KW |
| Origin | Guangxi |
| Production Capacity | 3000 Pieces/Month |
| Package Size | 51.20cm * 46.20cm * 24.20cm |
| Package Gross Weight | 21.600kg |

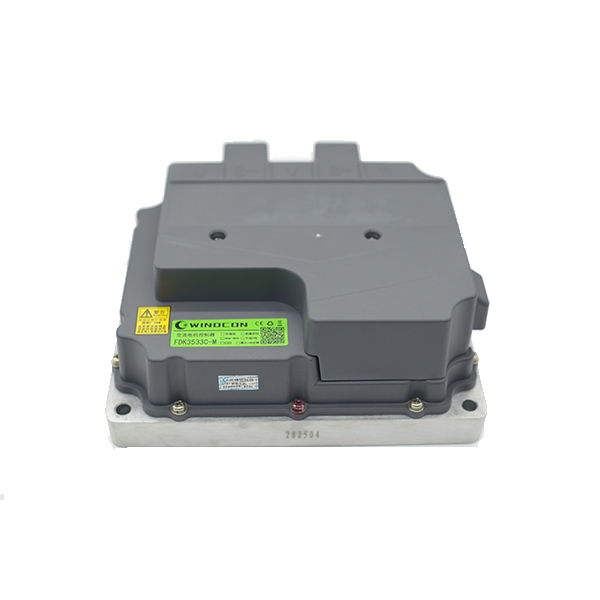

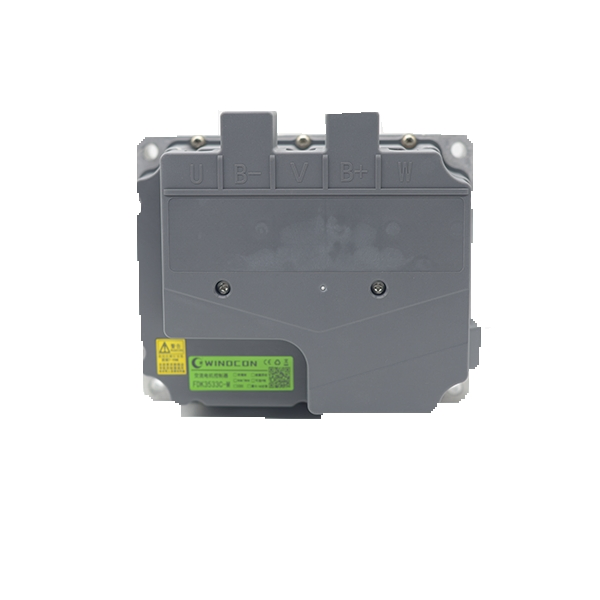

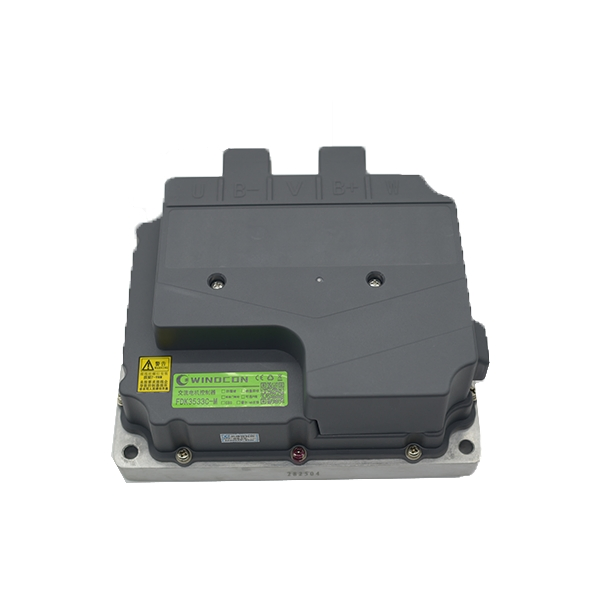

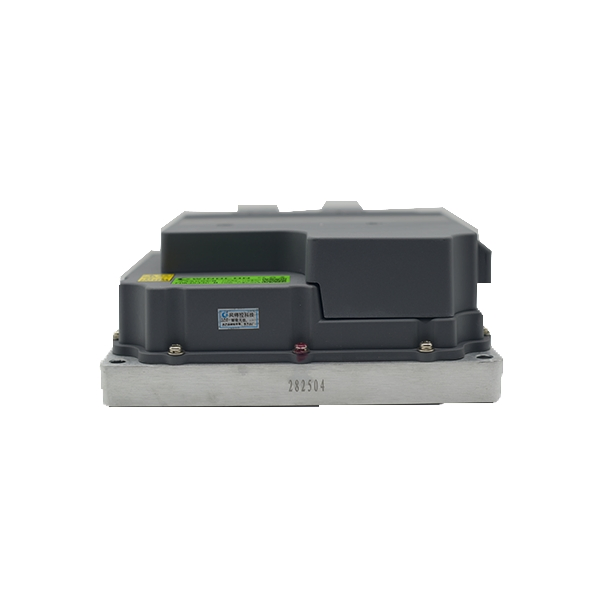

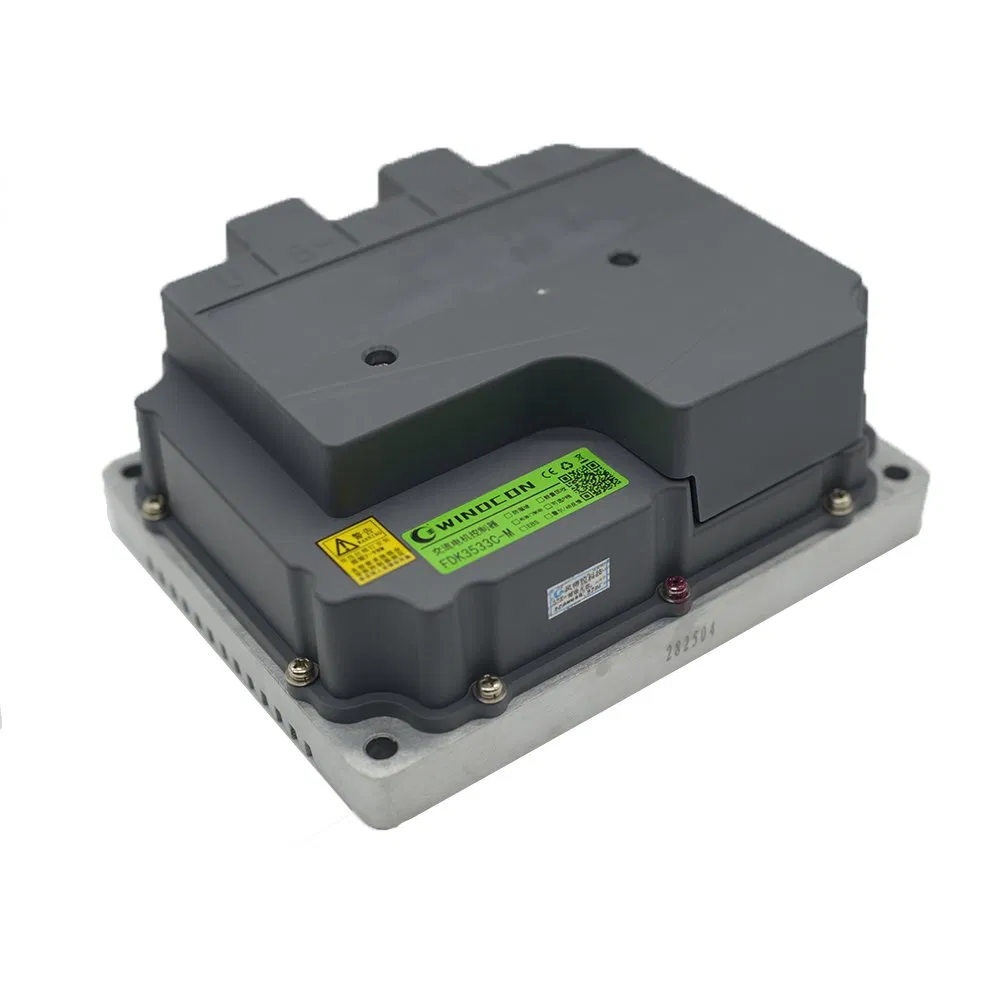

The FDK-M series is an AC asynchronous controller specifically designed for new energy electric vehicles, integrating both control and drive functions. It employs world-class AC motor control algorithms to achieve precise torque control across a wide speed range. Compared to DC motor drive systems, AC drive systems enable broader motor speed regulation, thereby increasing vehicle travel speeds. With brushless, fully enclosed, and maintenance-free AC motors, system reliability is significantly enhanced. It enables flexible energy regeneration control, effectively extending driving range. Widely applied in low-speed electric vehicles, patrol vehicles, sightseeing vehicles, sanitation vehicles, golf carts, electric ATVs, and various specialty vehicles.
| 33 Series AC induction Motor Controller Product Selection Table | ||||
|---|---|---|---|---|

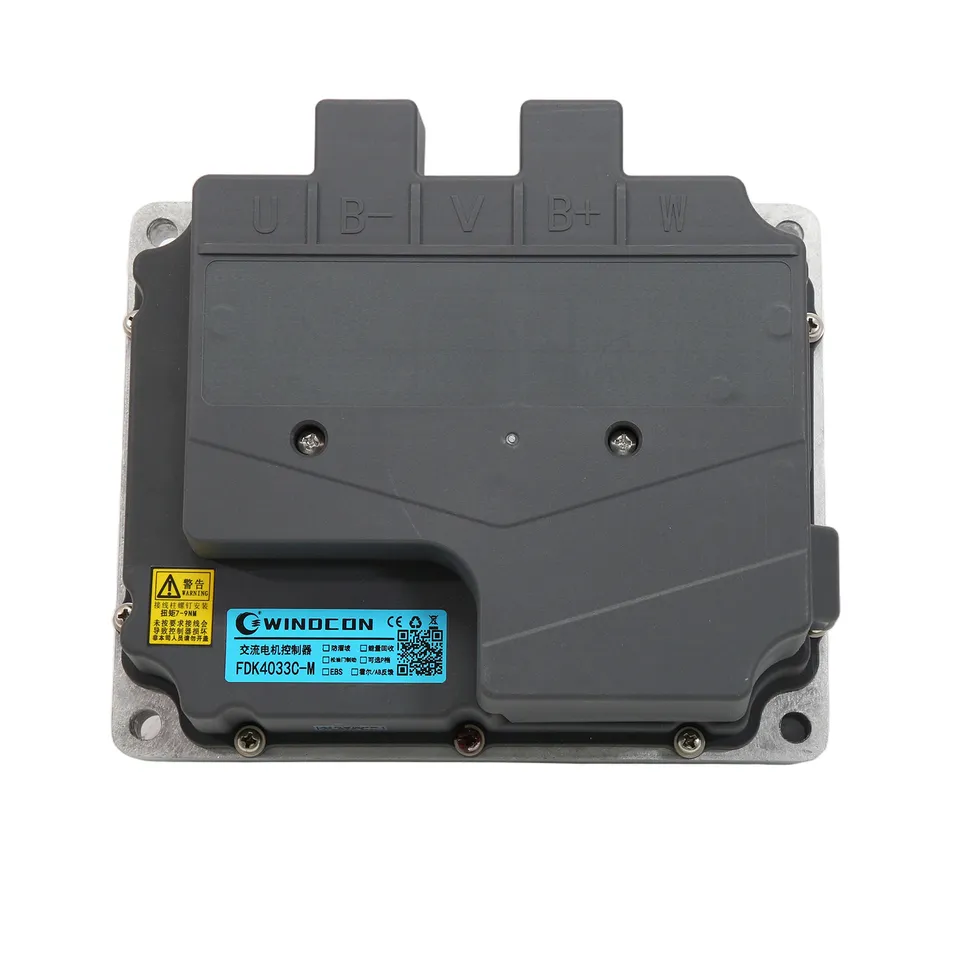

| Product Model | FDK2733C-M | FDK3233C-M | FDK3533C-M | FDK4033C-M |
| Nominal voltage | 48V/60V/72V | 48V/60V/72V | 48V/60V/72V | 48V/60V/72V |
| Current output | 275A | 320A | 350A | 400A |
| WorkingTemperature | - 25°C- 55°C | - 25°C- 55°C | - 25°C- 55°C | - 25°C- 55°C |
| Cooling mode | Free cooling | Free cooling | Free cooling | Free cooling |
| Size | 205X176.6X82.1(mm) | 205X176.6X82.1(mm) | 205X176.6X82.1(mm) | 205X176.6X82.1(mm) |
| Weight | ≤1.5KG | ≤1.5KG | ≤1.5KG | ≤1.5KG |
| IP Grade | IP65 | IP65 | IP65 | IP65 |
60-72V batteries are universal, and different battery combinations can be switched freely through voltage selection lines
The default P gear function can be added by selecting whether to add this function to the line
Equipped with a hill stop function, it does not slide back when parked, and stays for 5 seconds to gradually descend on steep slopes, making it safer and more reliable
Downward long slope can limit the maximum speed to ensure that the speed does not lose control, while downhill slope can limit the maximum speed to ensure that the rear slip does not lose control
Strictly monitor the temperature rise curve of the motor control, dynamically adjust the power during high temperatures, prevent thermal runaway and burnouts
Adopting speed sensors to accurately control speed, achieve higher energy recovery efficiency, and longer range. Electronic brakes assist mechanical brakes to prevent control loss

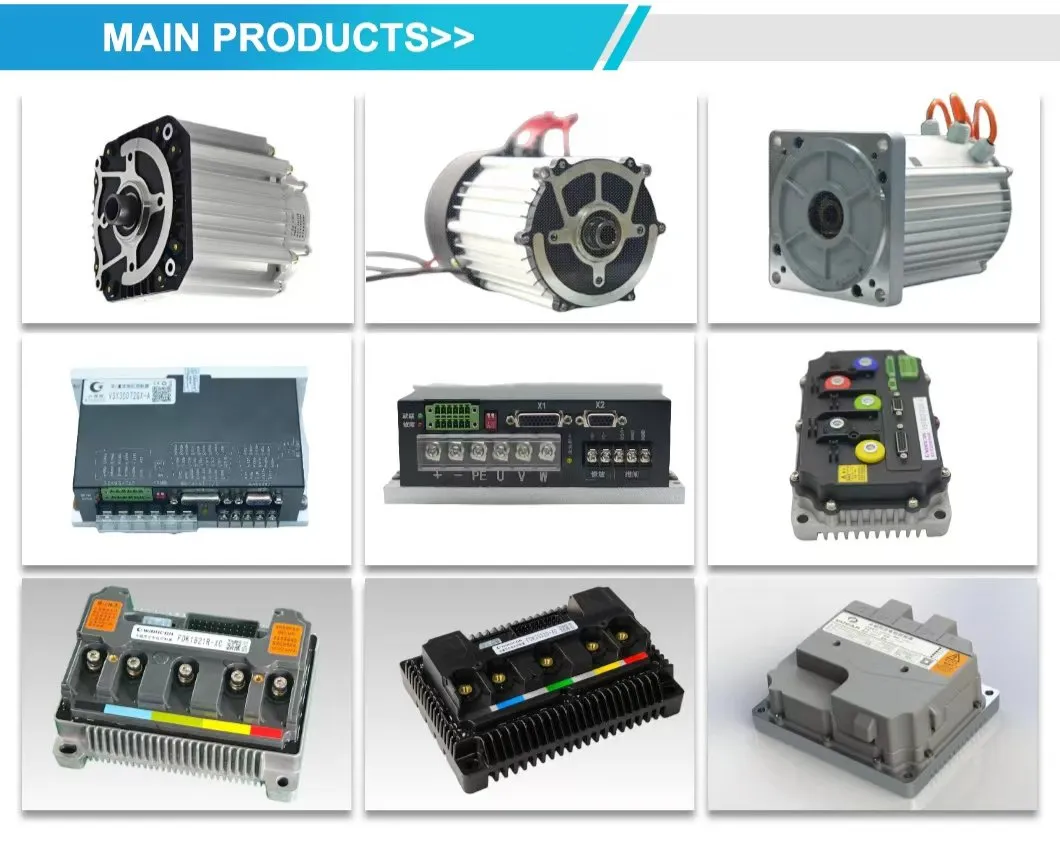

The core products encompass three major categories:
