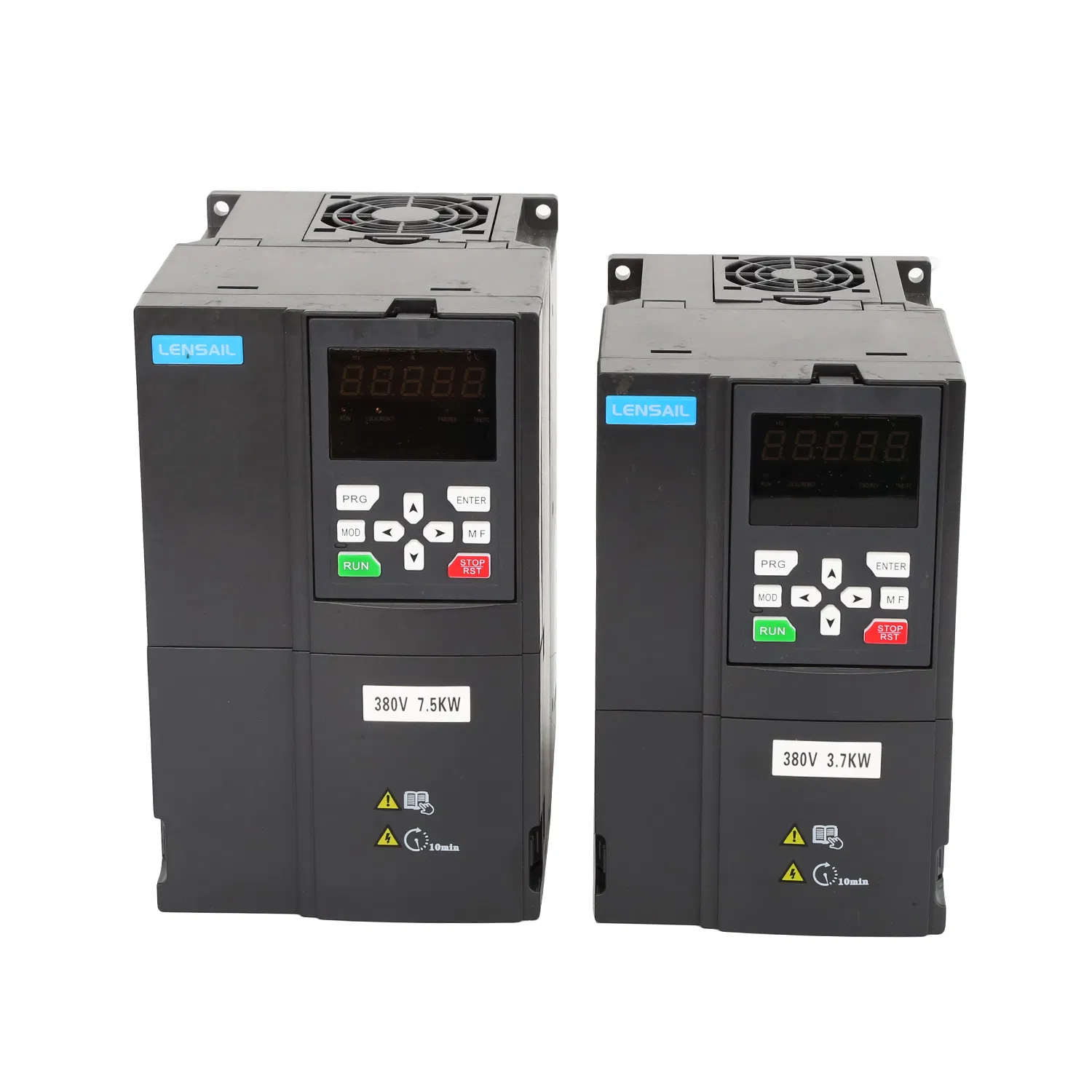

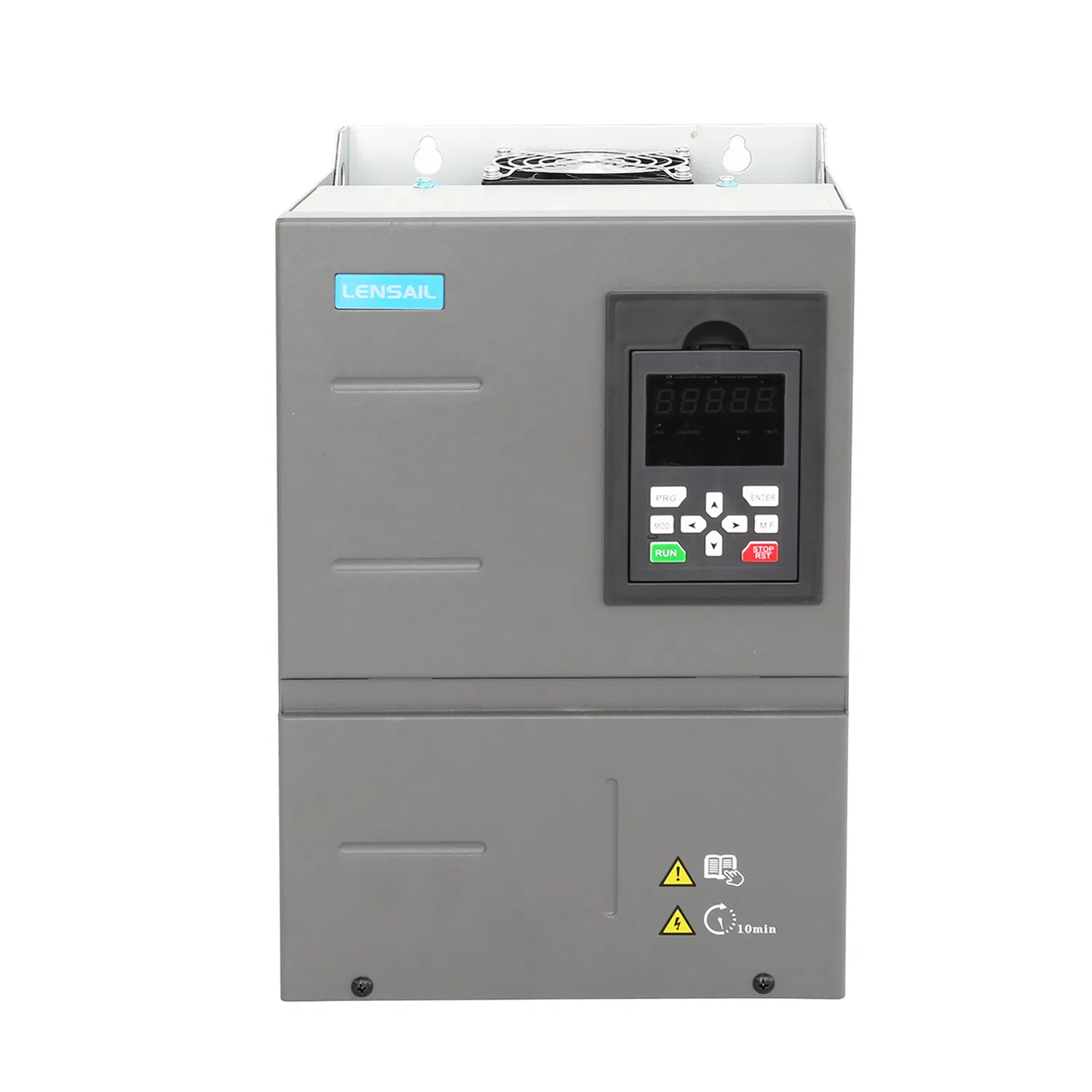

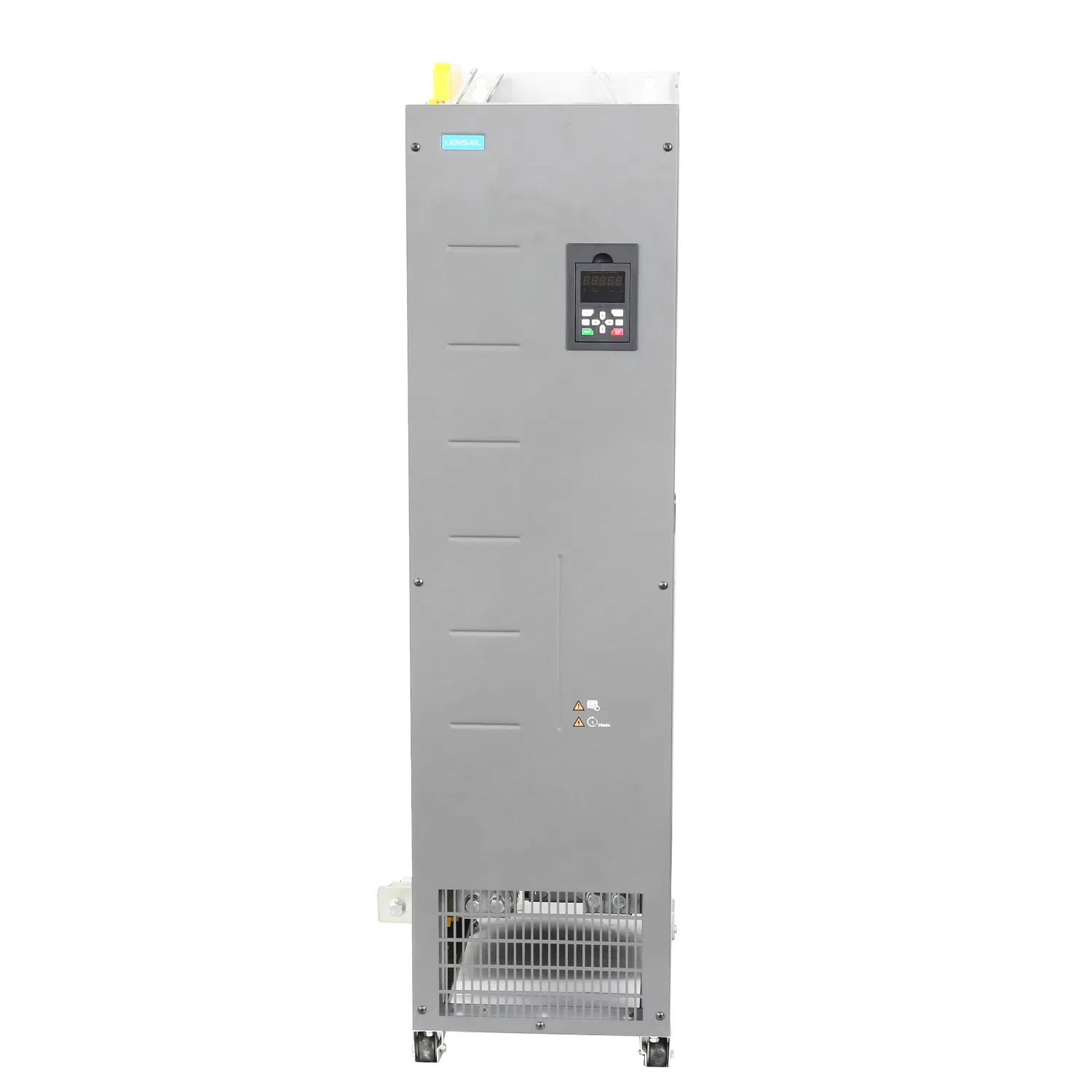

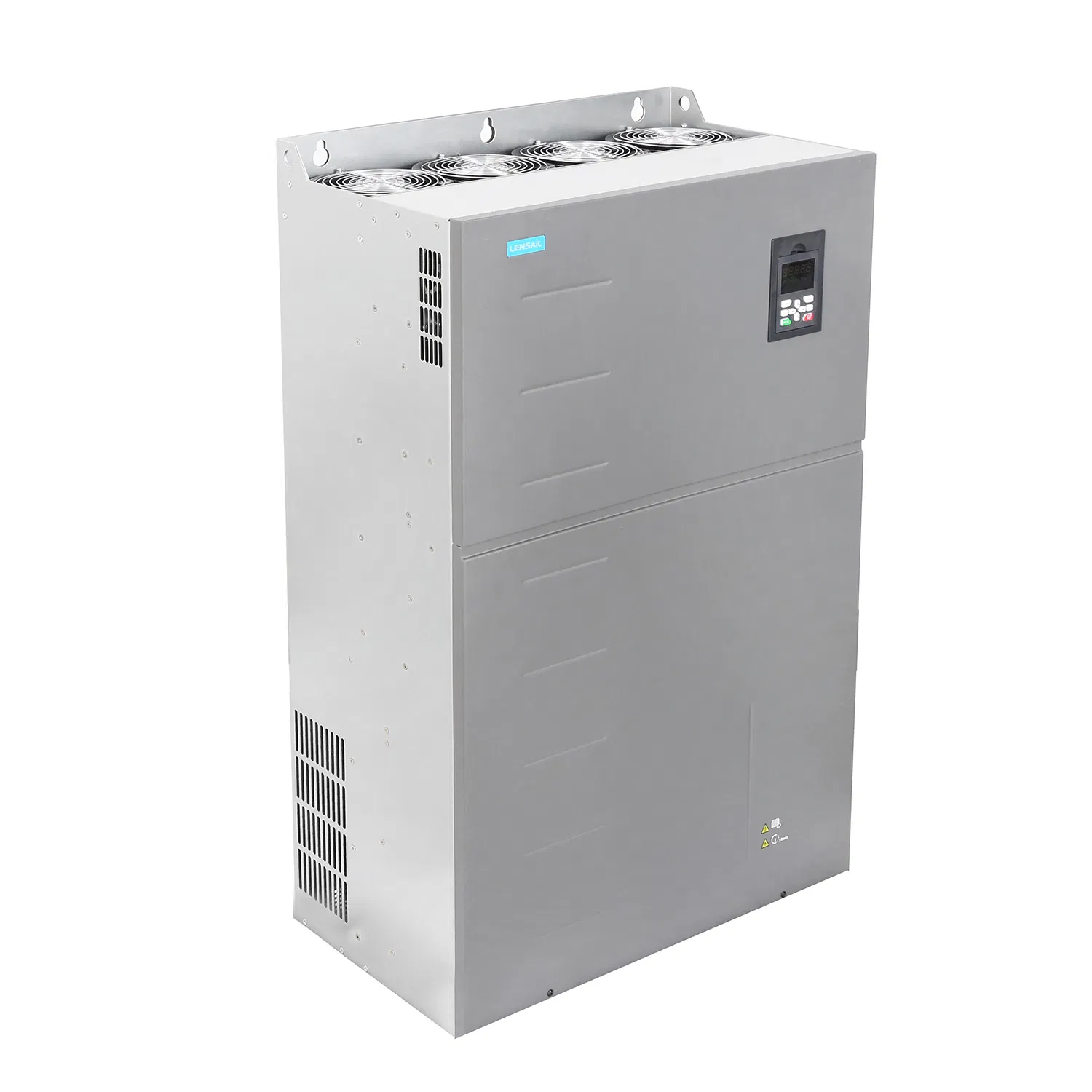

🔍 Product Description
LS500E series high-performance synchronous motor drivers are mainly used to control and adjust the speed and torque of three-phase AC synchronous motors. It adopts high-performance vector control technology, low-speed and high-torque output, good dynamic characteristics, and super overload capacity.
🌟 Key Features and Advantages
- Global Standards: Satisfies CE, UL, CUL certification and ROHS directive. Supports 380V to 480V three-phase grids.
- High EMC Specs: Designed to satisfy EU C3, C2 requirements for sensitive environments.
- Compact Design: Leading technology platform with volume reduced by 30%.
- Advanced Control: Synchronous motor control without encoder and high-precision closed-loop control.
- Reliability: Independent air duct design, H-class insulation, and automatic three-proof coating process.
- Flexibility: Built-in RS485 communication interface and adaptive PID function module.

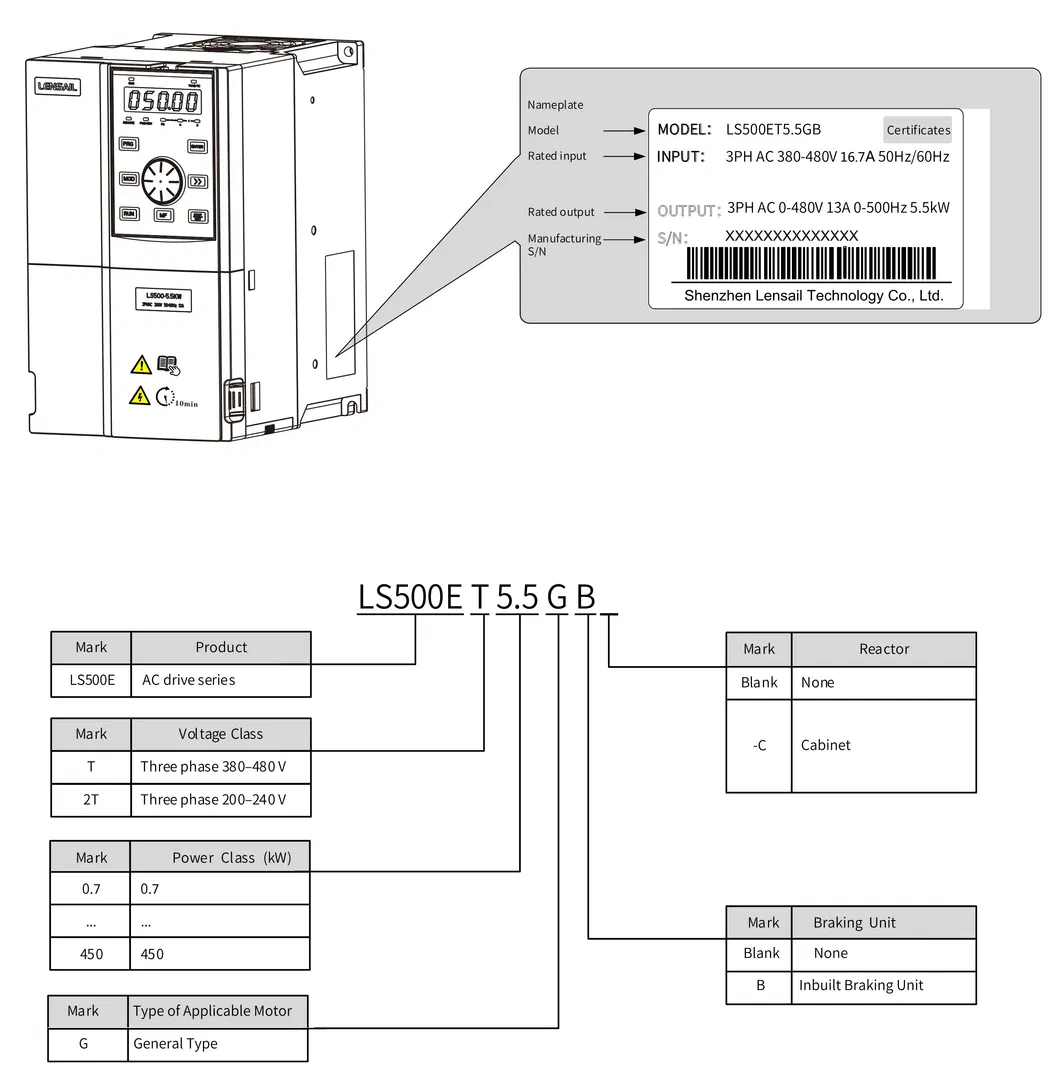

🏷️ Nameplate and Designation Rule

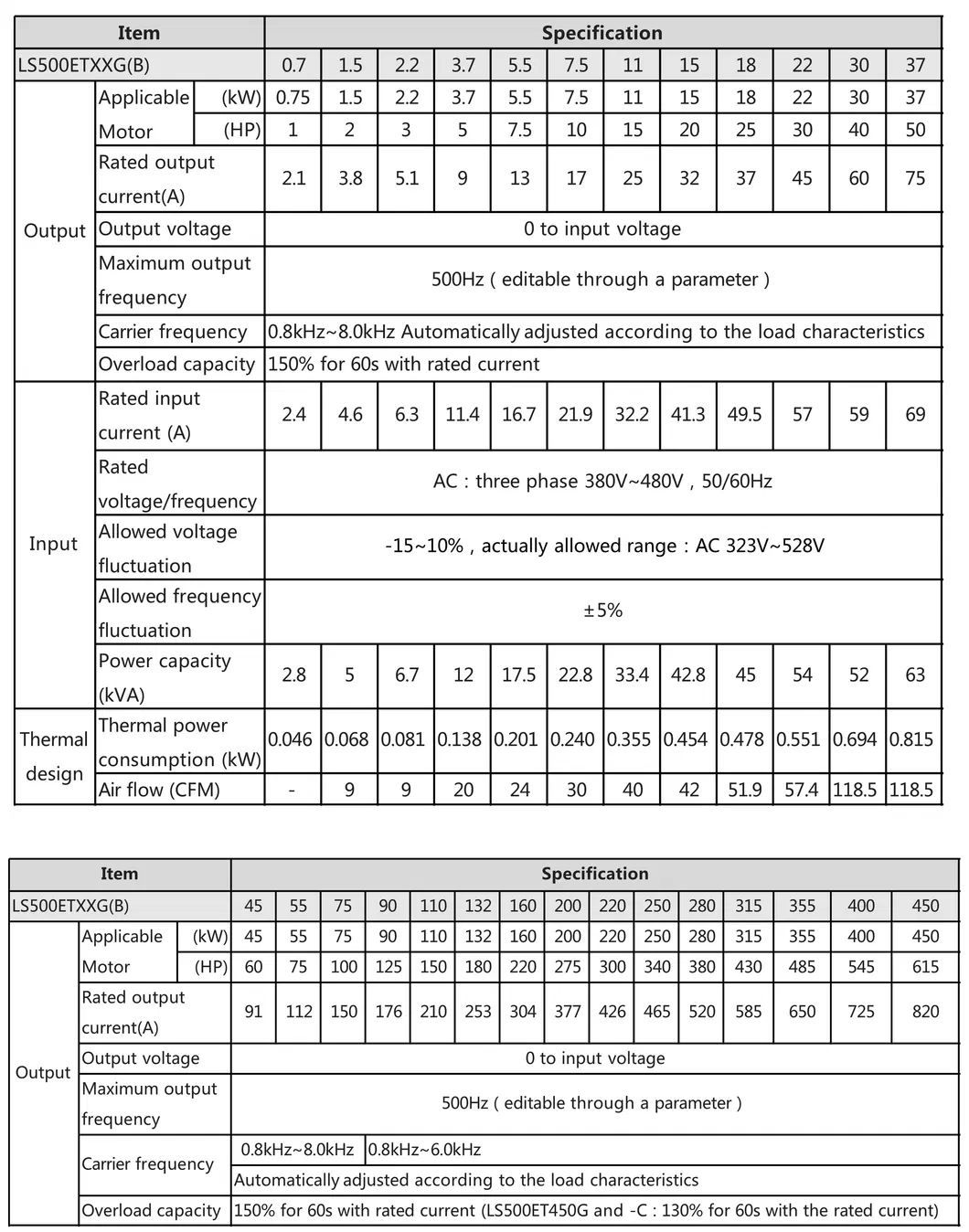

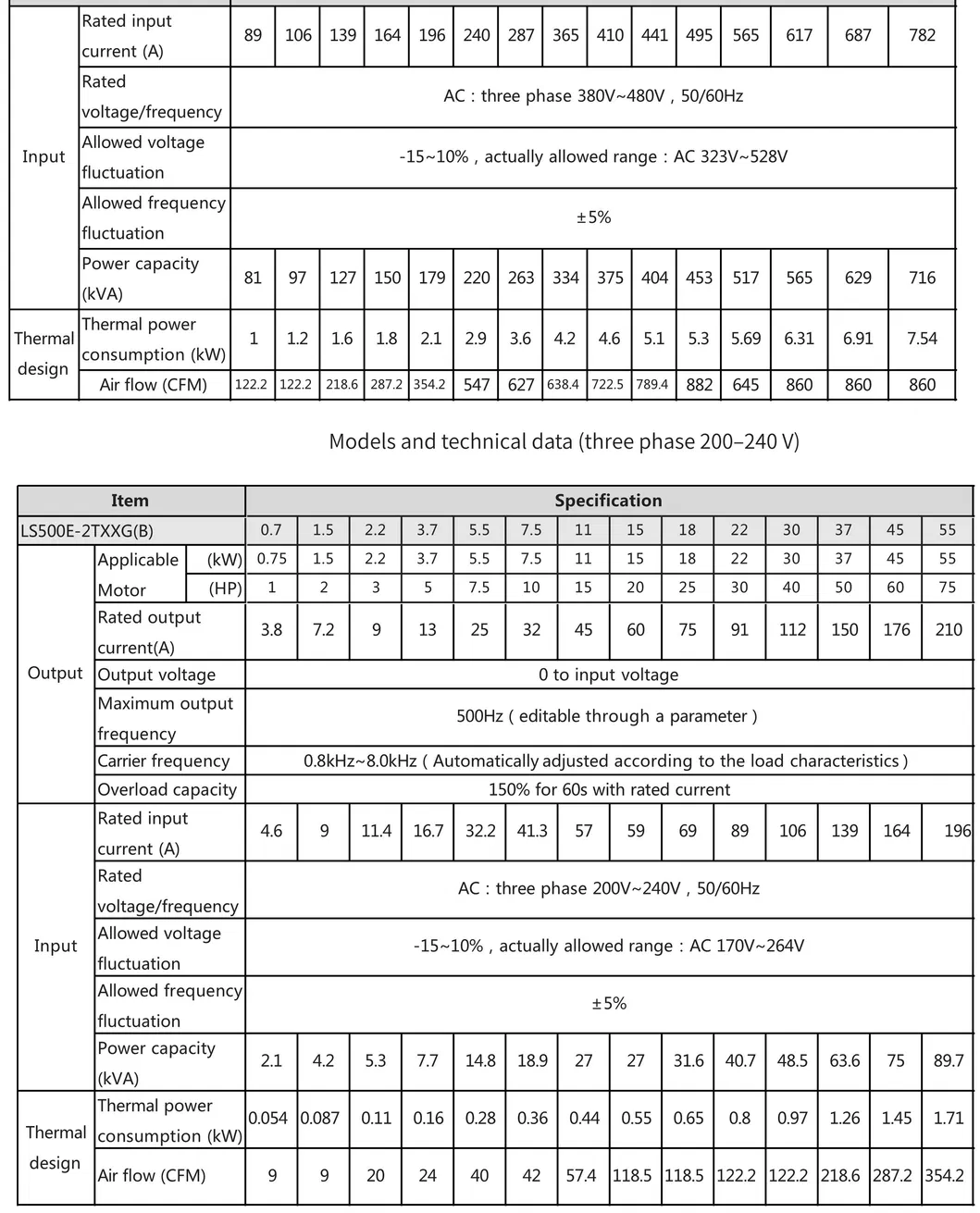

📊 Technical Data
Models and technical data for three-phase 380-480V and 200-240V configurations.

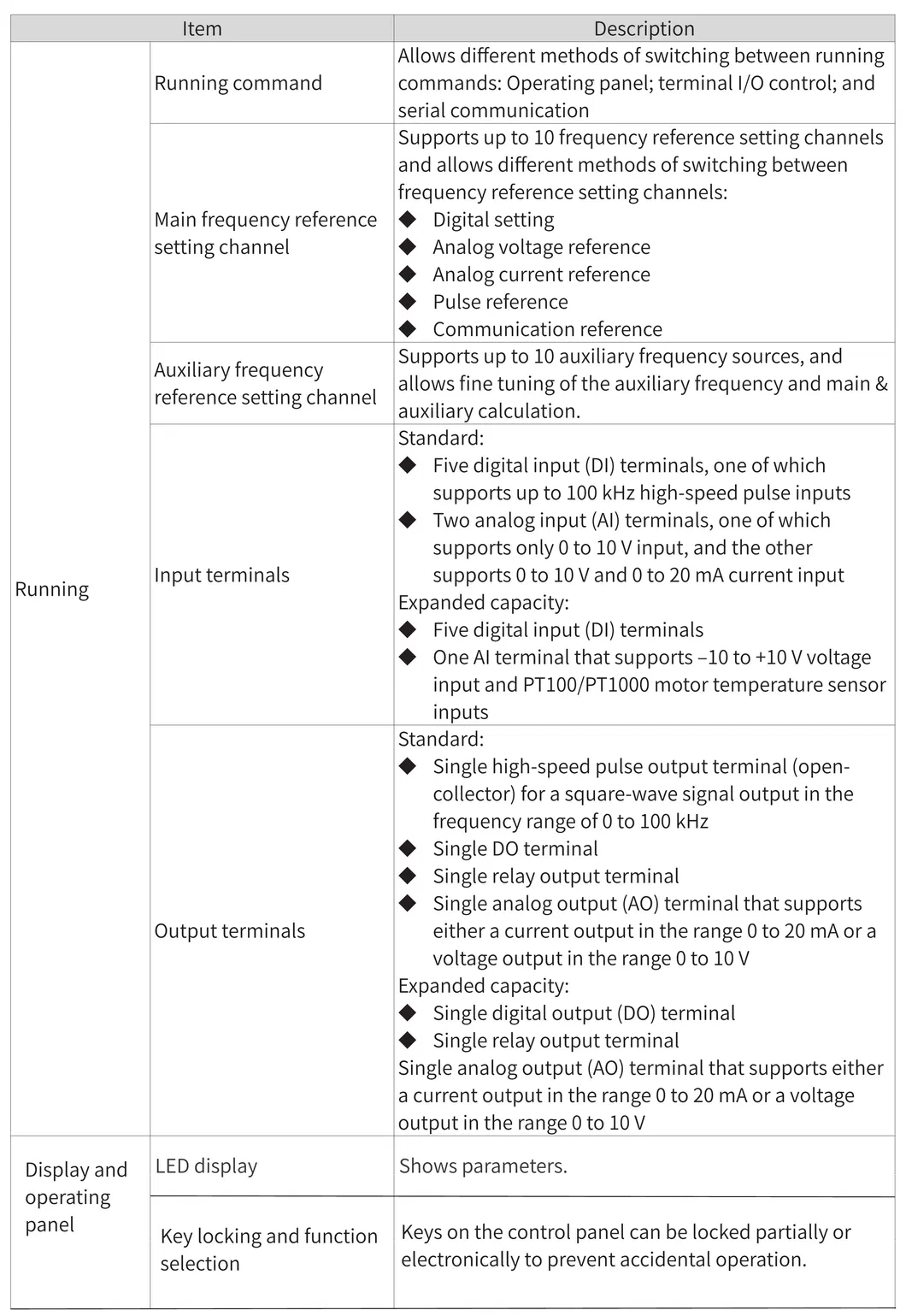

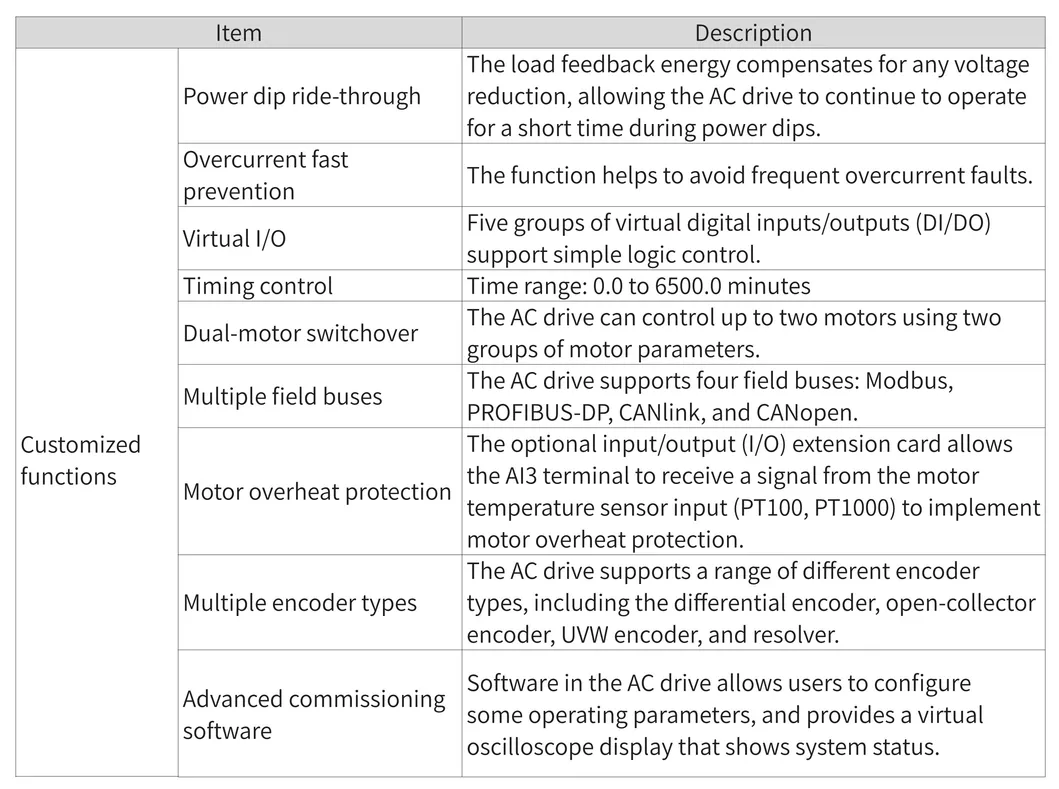

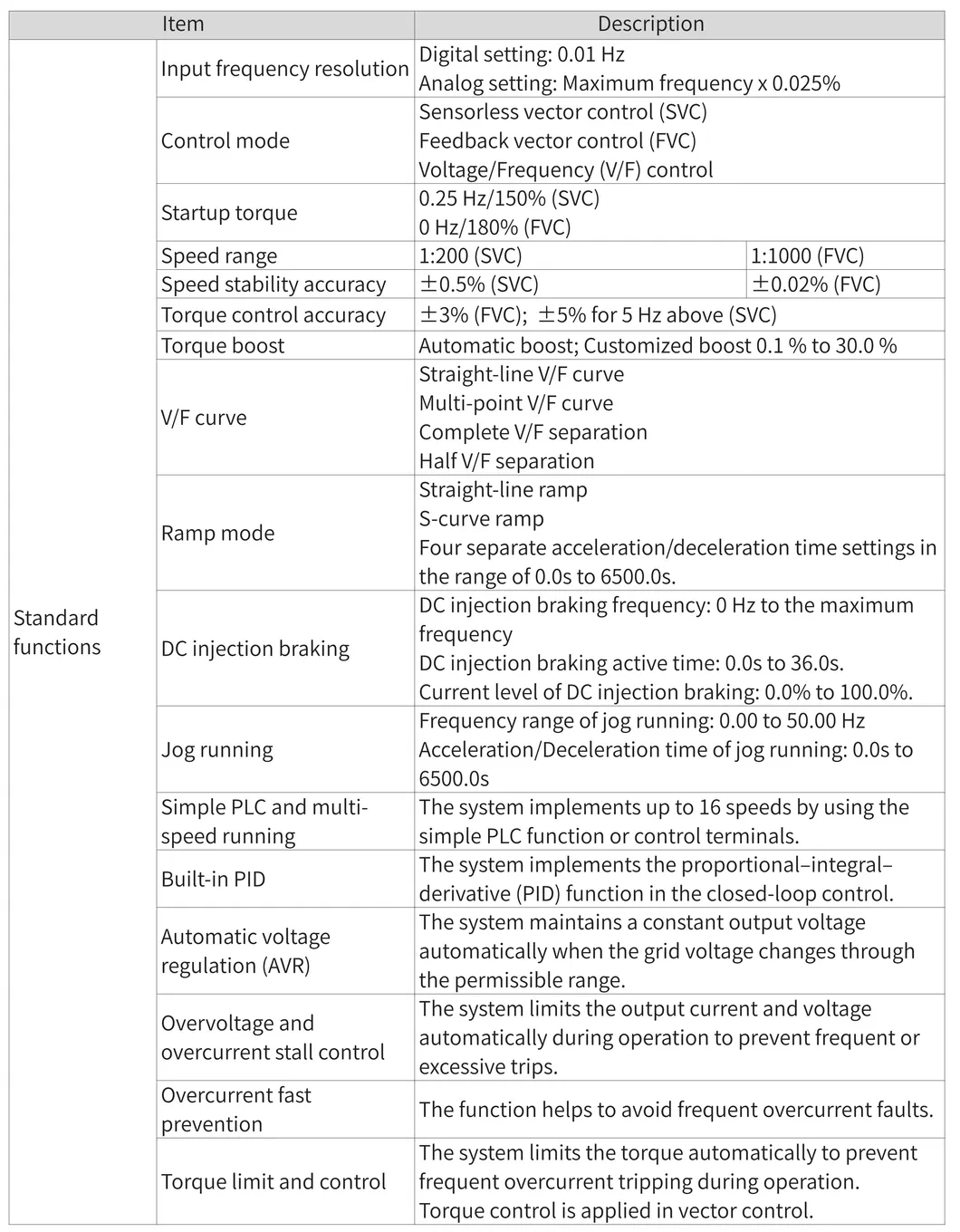

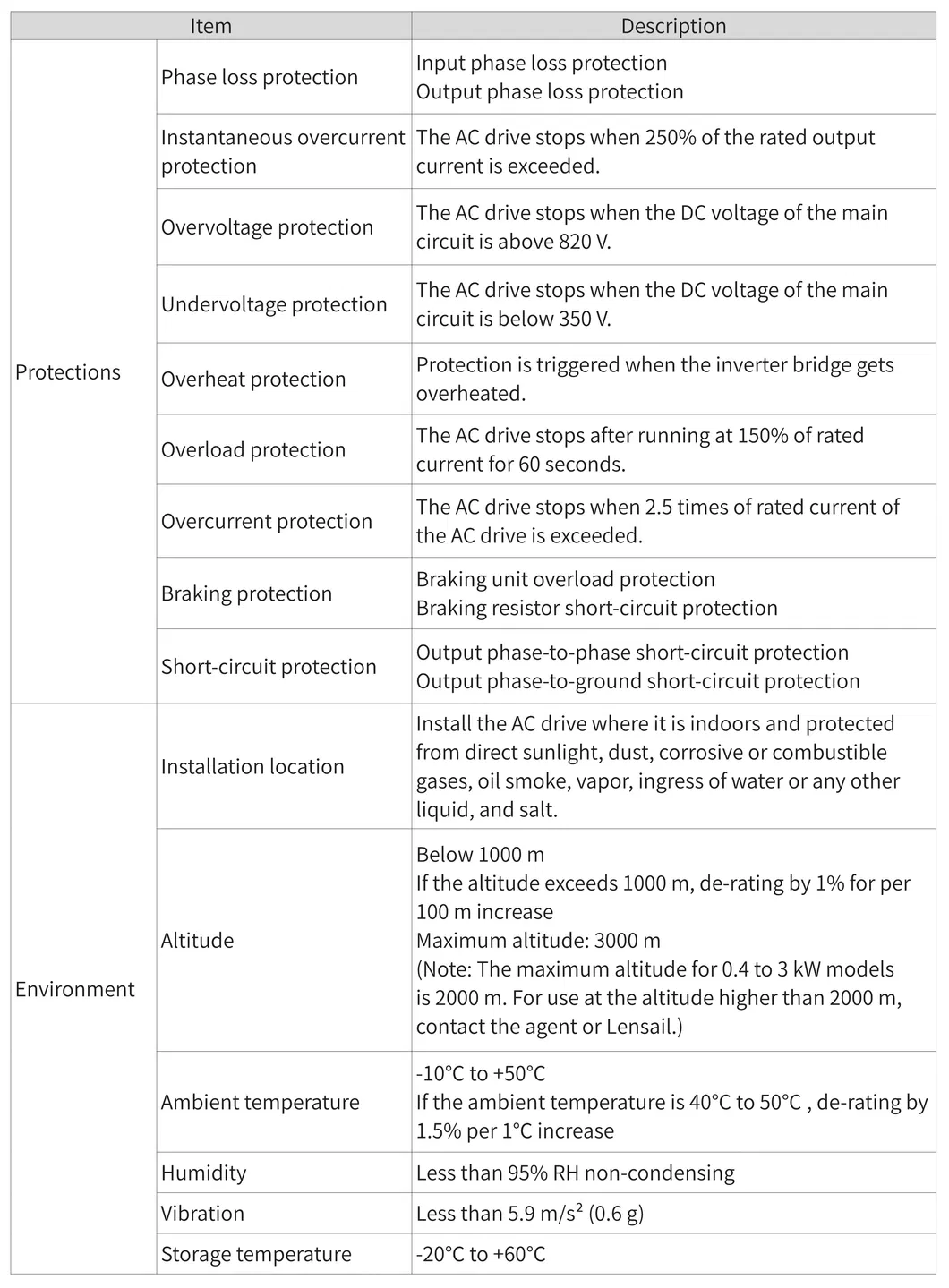

⚙️ Technical Specifications

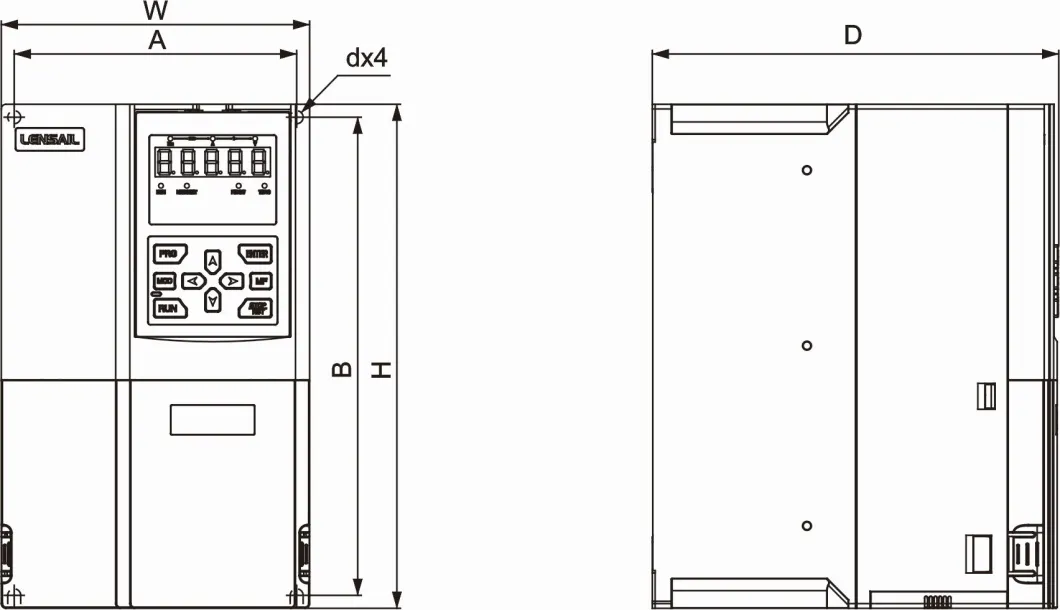

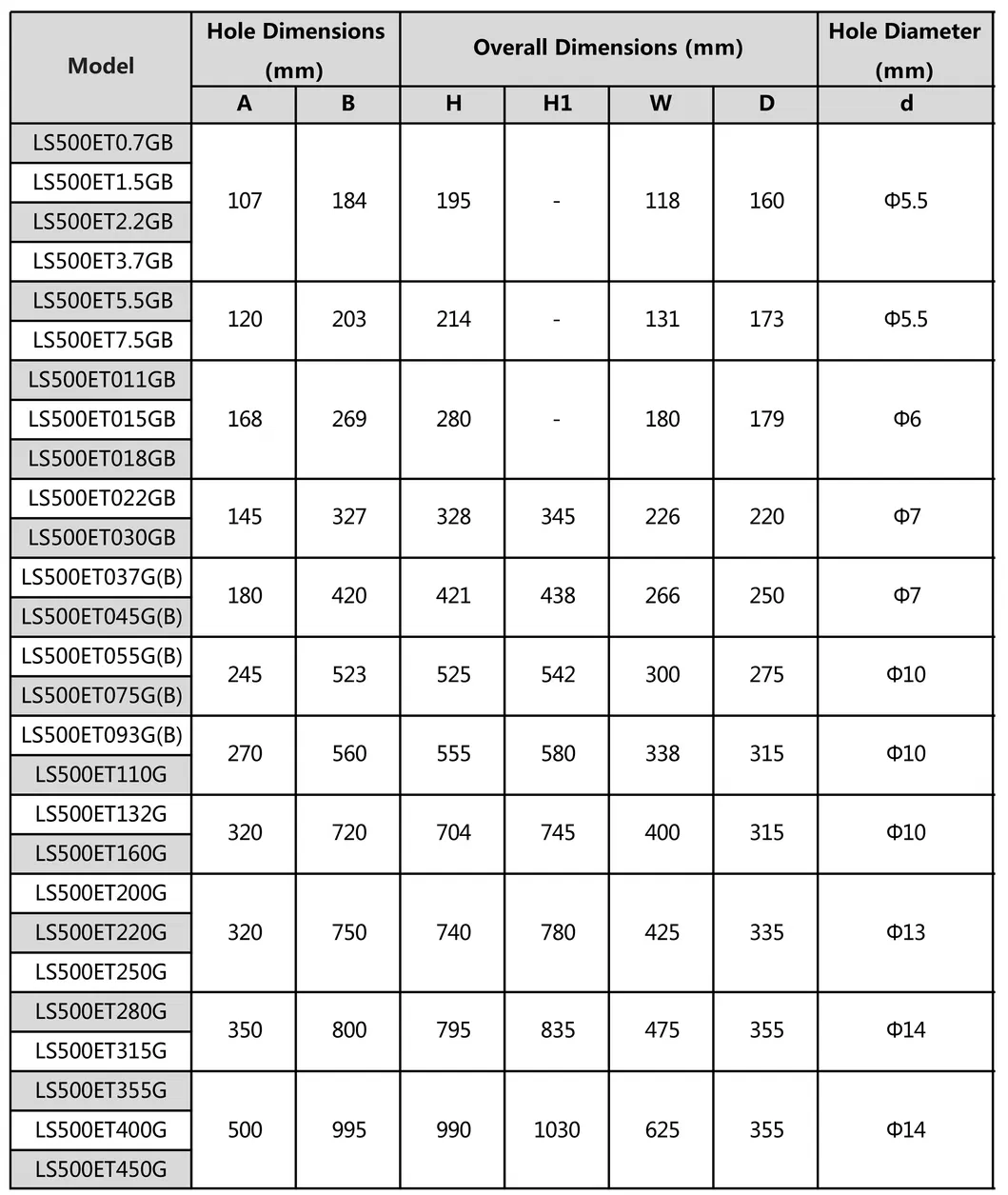

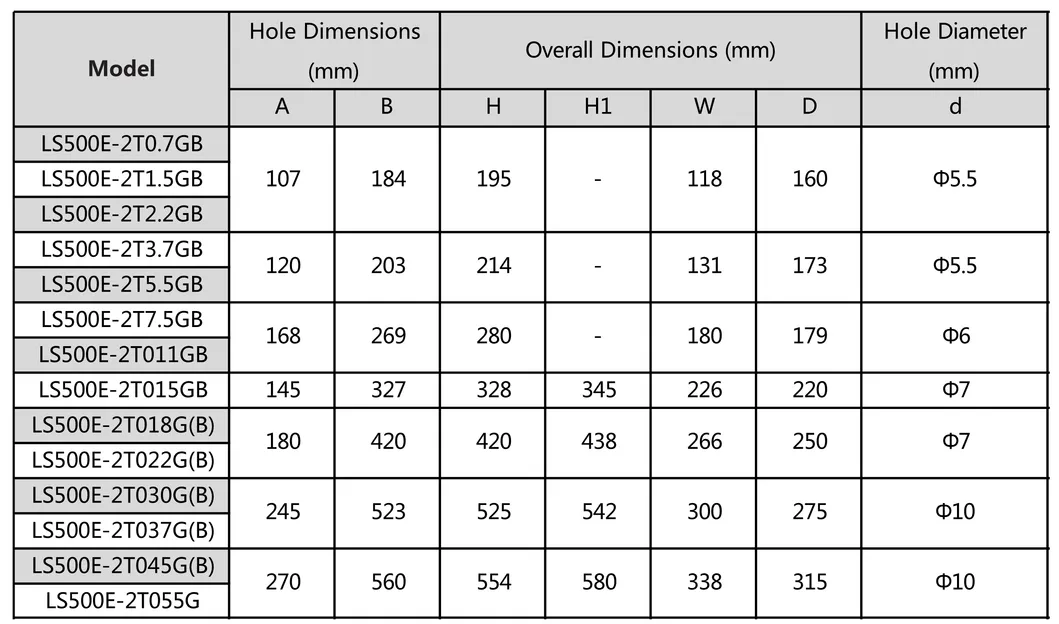

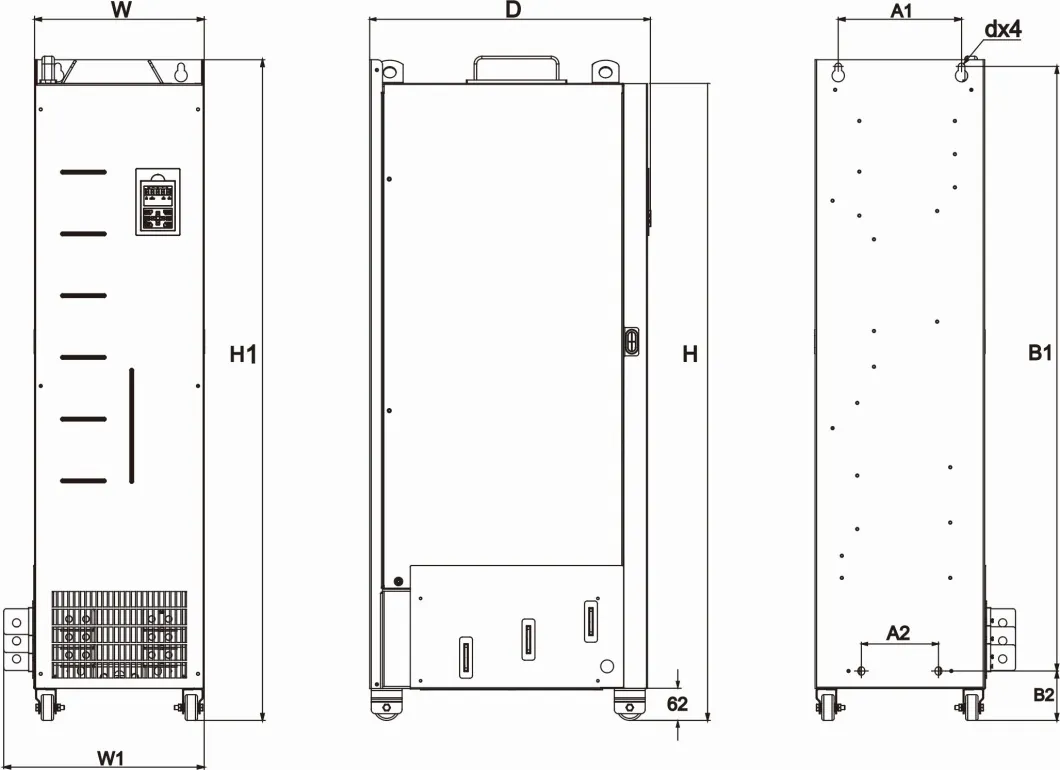

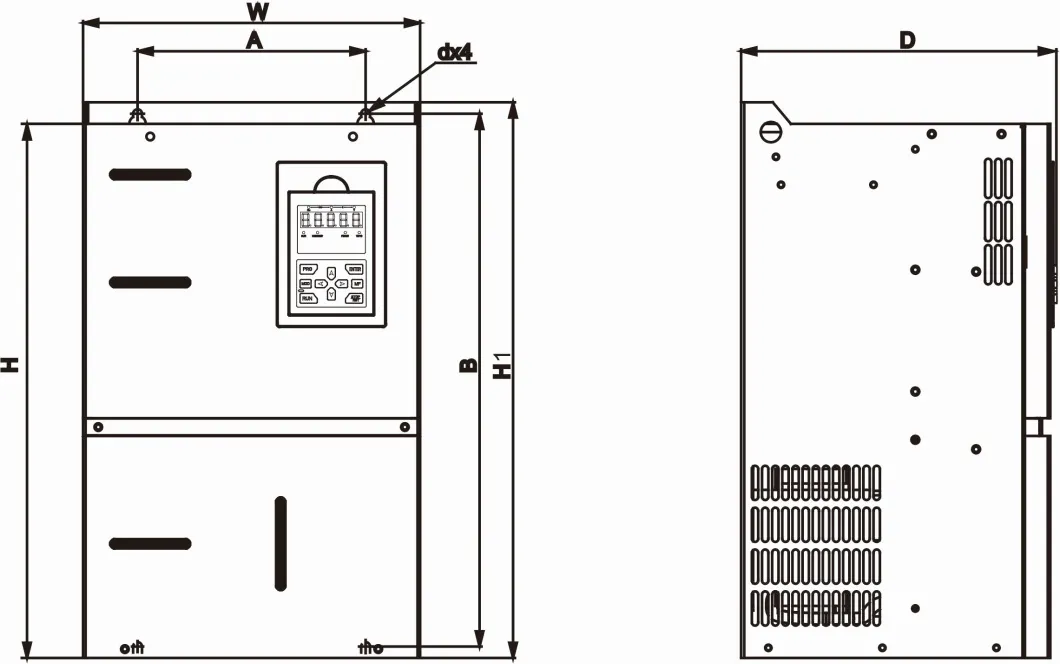

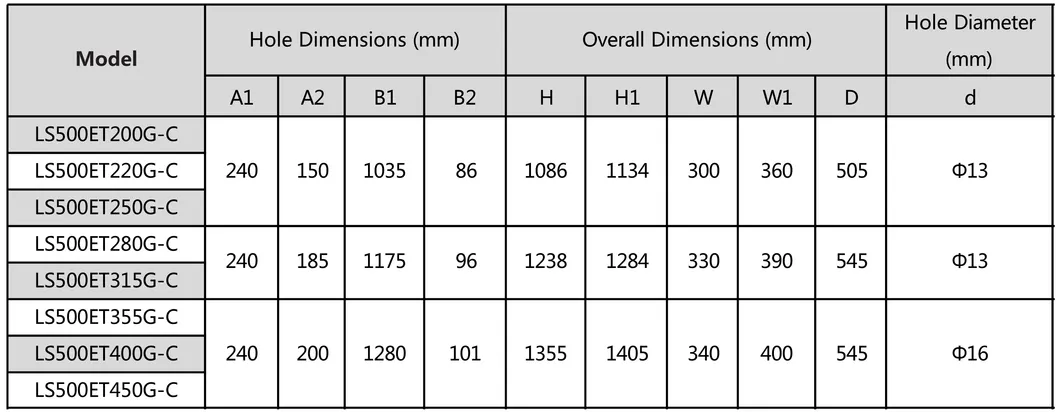

📐 Overall Dimensions
🖥️ Panel Options
The LED operating panel allows users to set and modify parameters, monitor system status, and start or stop the AC drive. An external LED (LS500KE1) operating panel is also available as an option.
❓ Frequently Asked Questions
What is the primary use of the LS500E driver?
The LS500E series is designed for controlling three-phase AC synchronous motors, specifically for managing speed and torque in automated production equipment.
Does this AC drive comply with international standards?
Yes, it satisfies CE, UL, and CUL certifications and meets the ROHS directive, making it suitable for markets in Europe, North America, and beyond.
Can it handle harsh industrial environments?
Absolutely. It features an independent air duct design, automatic three-proof coating for resistance to pollution, and high-margin derating design for long-life operation.
What voltage ranges are supported?
The series covers both three-phase 200-240V and three-phase 380-480V power grids.
What kind of communication does it support?
It features a standard built-in RS485 communication interface and is compatible with multiple communication bus protocols.
Is it possible to operate the drive remotely?
Yes, an external LED operating panel (LS500KE1) is available as an option for convenient external control.
