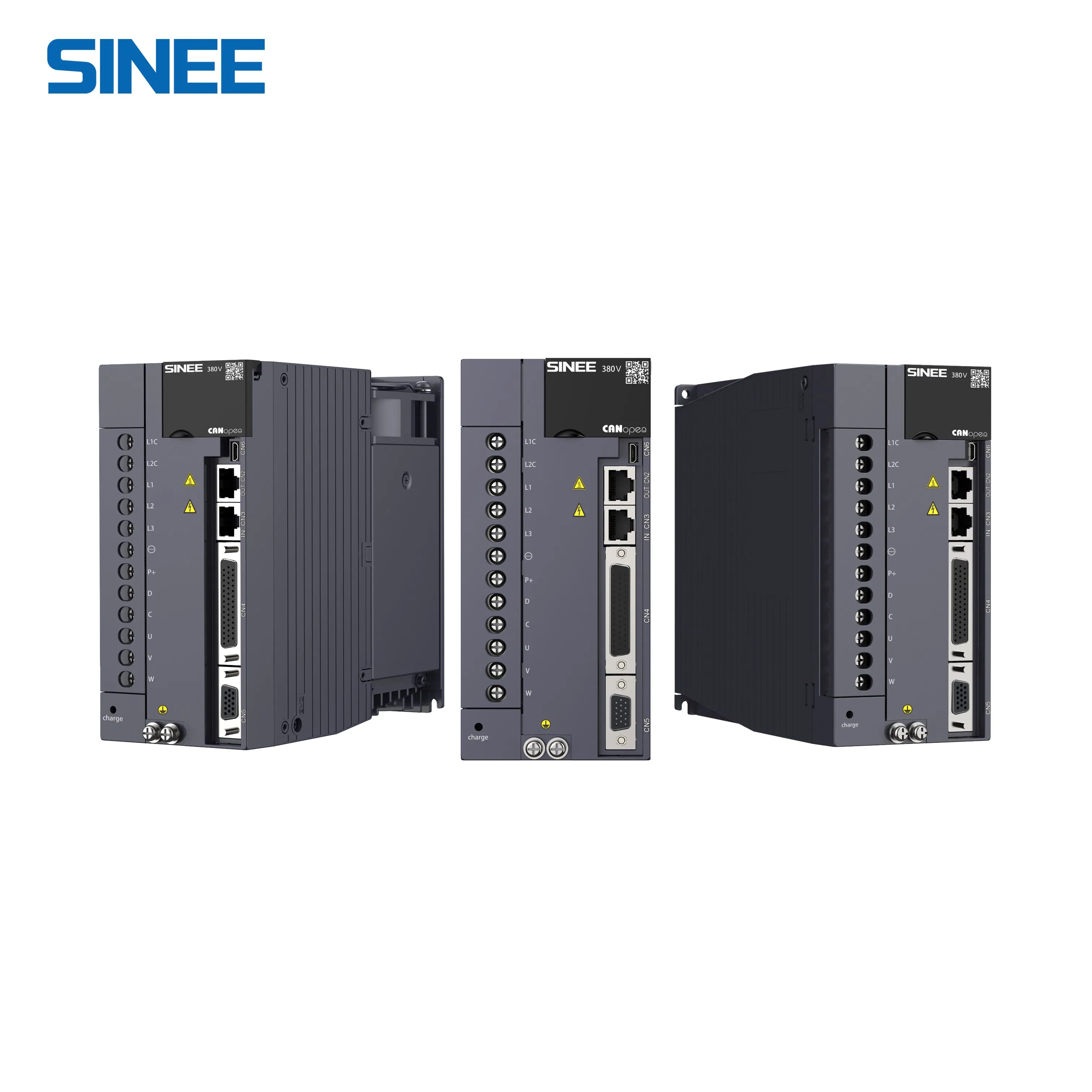

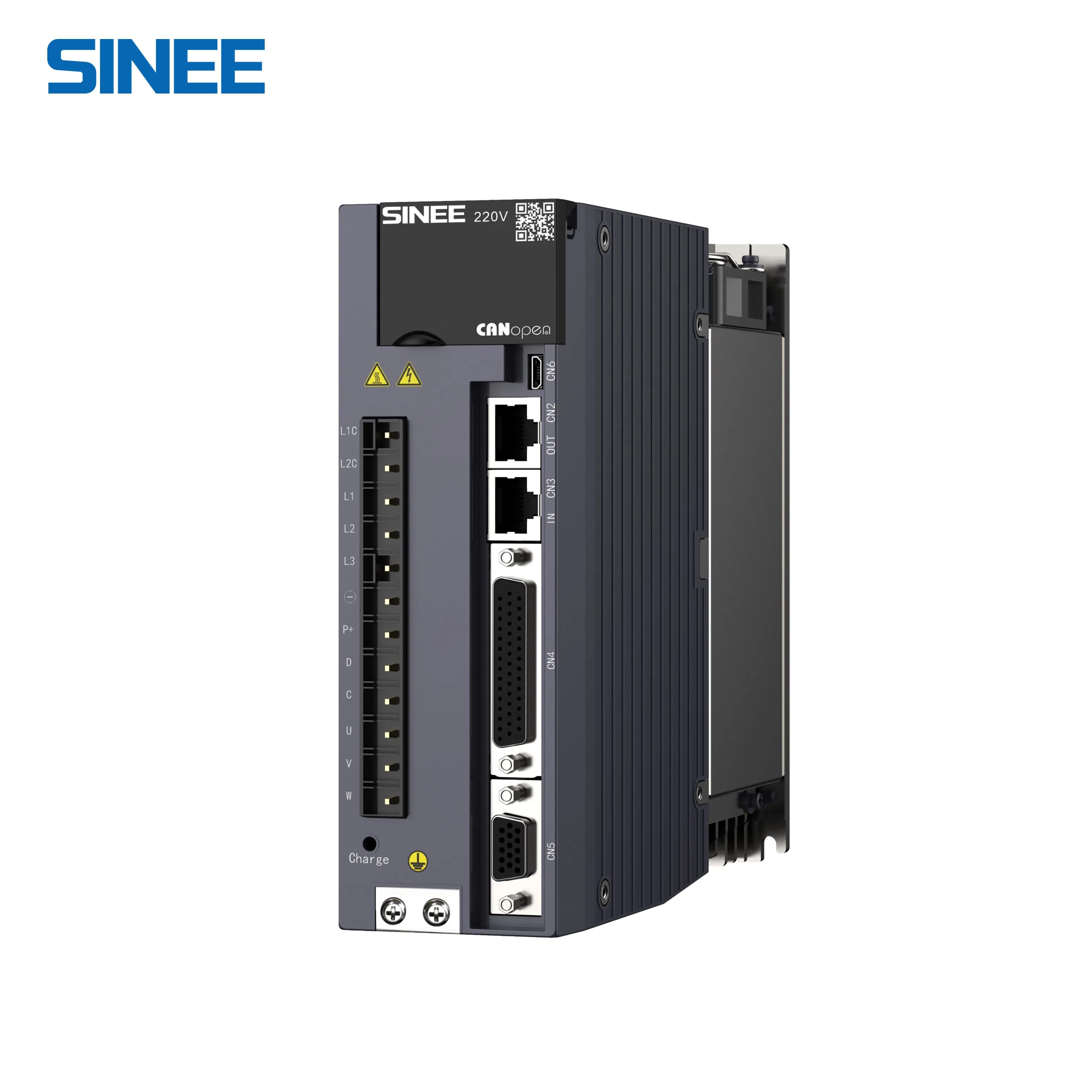

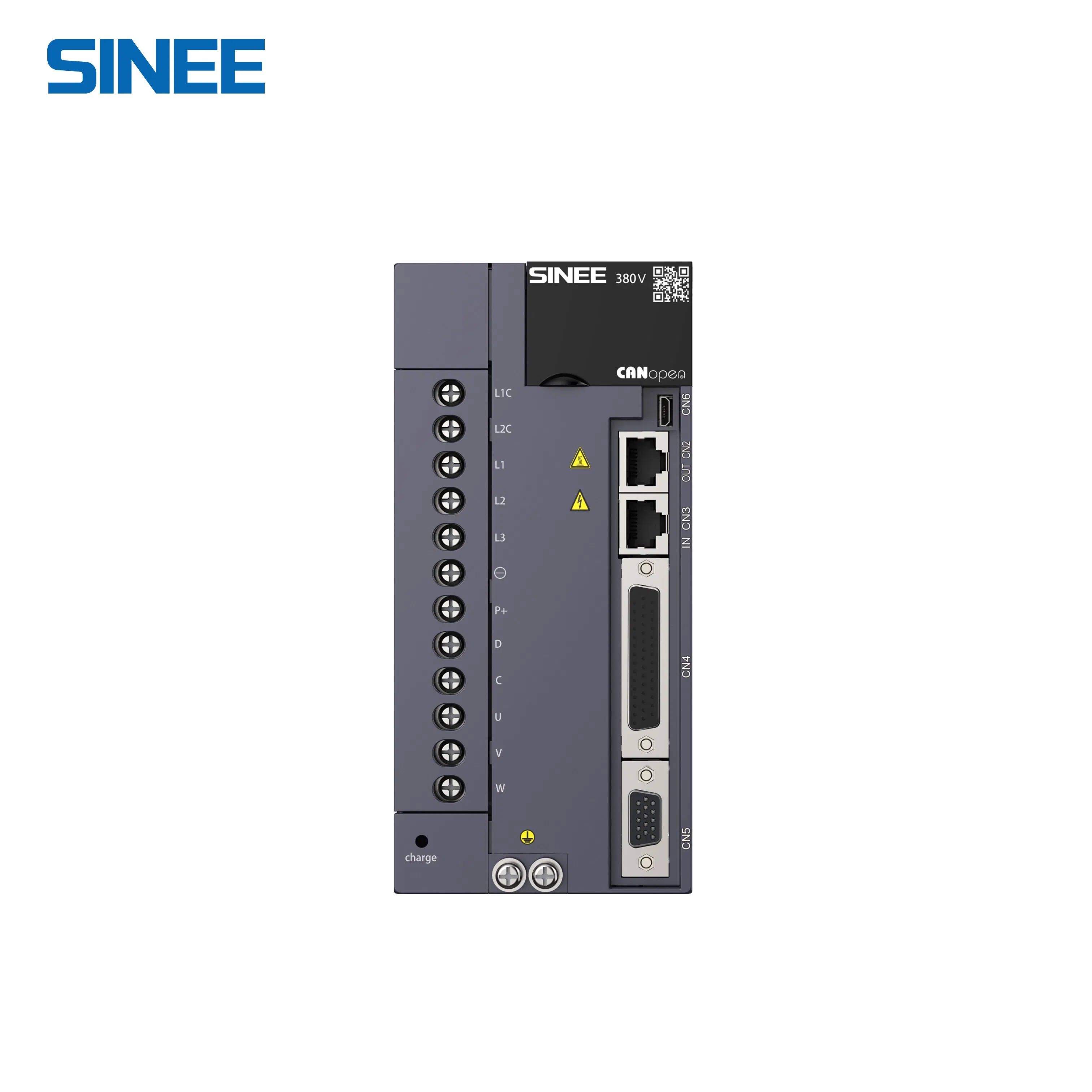

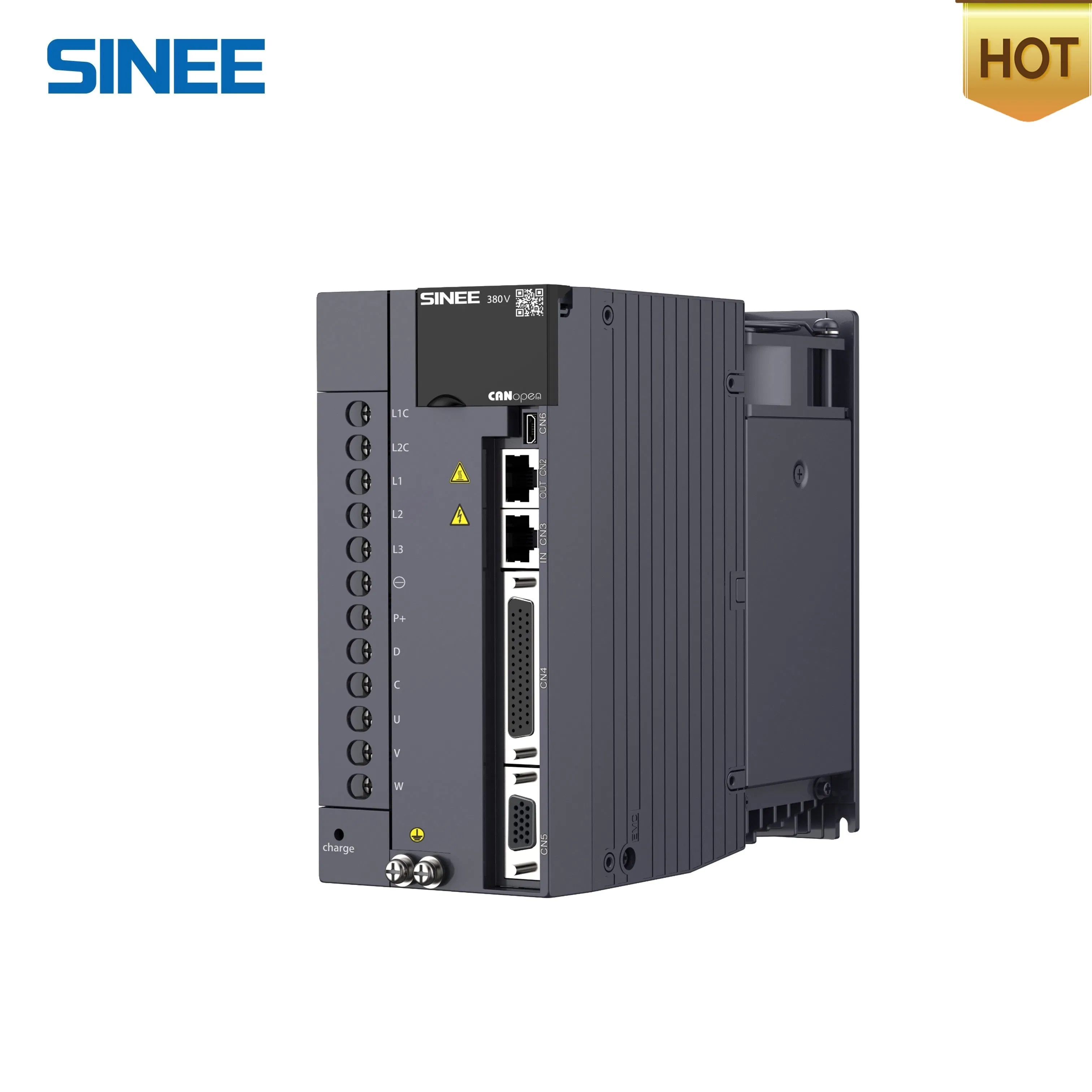

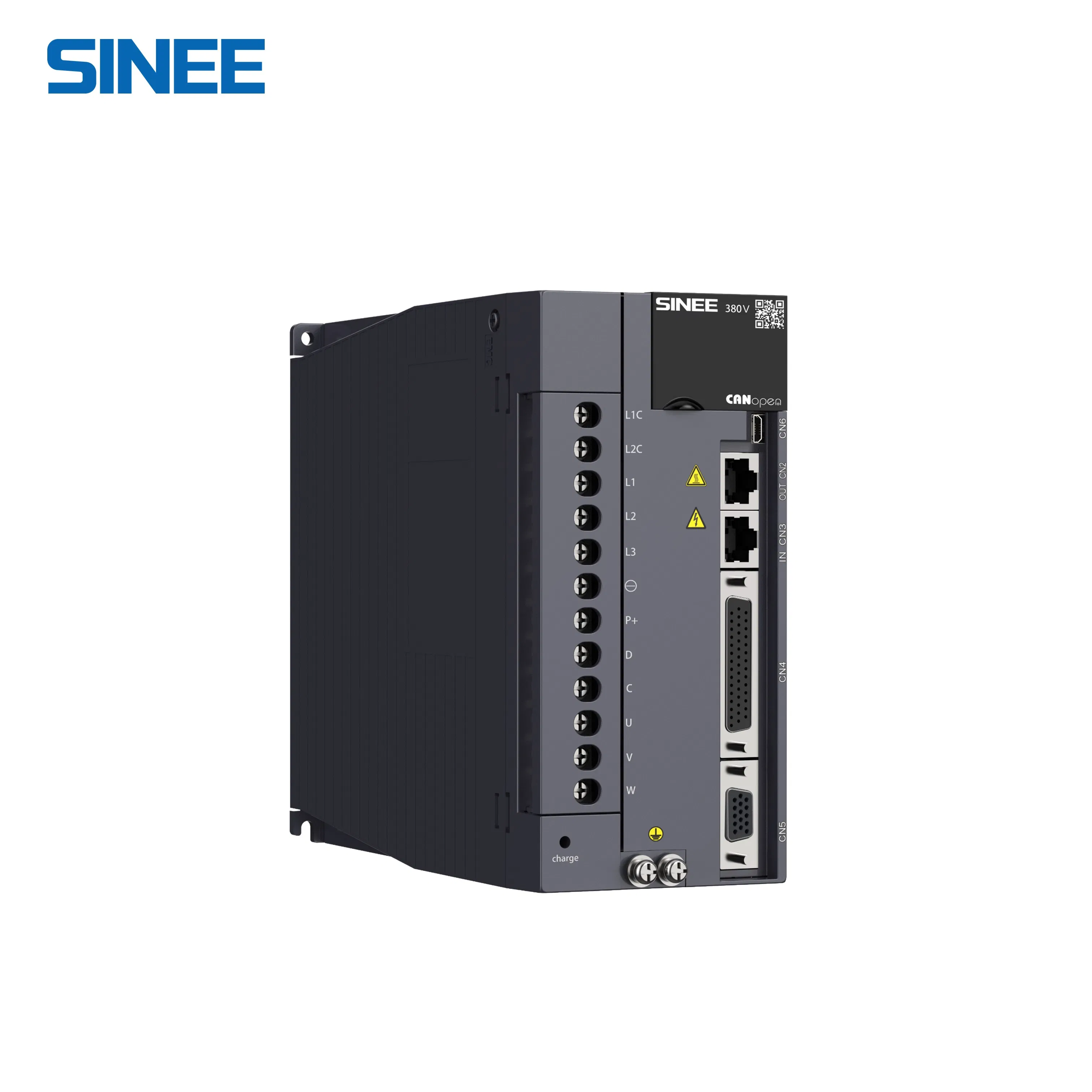

Intelligent Controls Canopen Network servo motor control system servo motors and drives for 3 Axis Servo Controller
| Item | Specification |
|---|---|

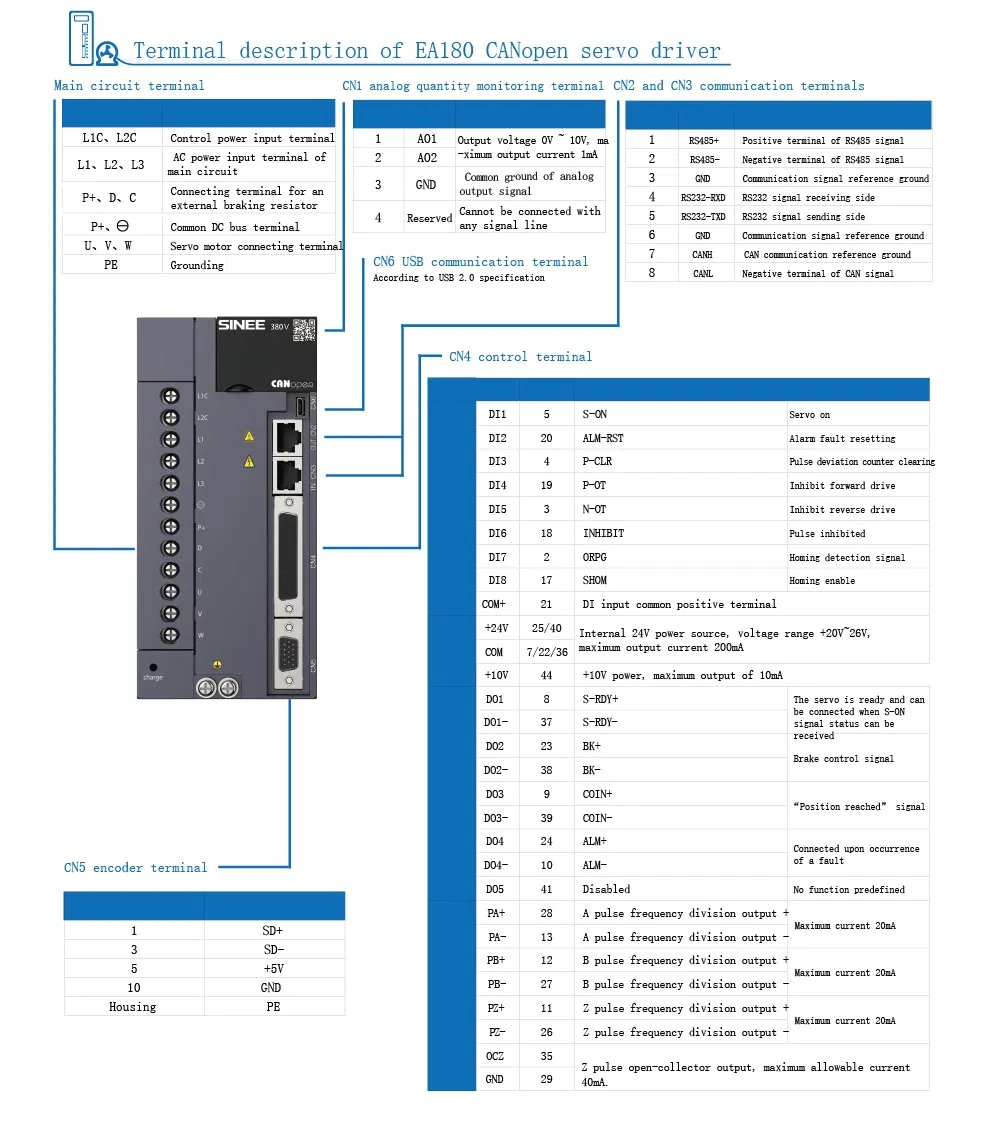

| Digital Input | 8-way DI: Servo enabled, fault resetting, pulse error clearing, control mode switch, etc. |
| Digital Output | 4-way DO: Servo ready, brake output, zero-speed signal, fault output, etc. |
| Overrun Prevention | P-OT, N-OT take effect, deceleration stop. |
| LED Display | 5-bit LED display: Main circuit CHARGE status. |
| Protection Functions | Overvoltage, undervoltage, overcurrent, overspeed, IGBT overheat, overload, encoder abnormality. |
| Communication Mode | RS232, RS485, CANopen. |
| Operation Modes | Profile position mode, Profile velocity mode, Profile torque mode, Homing mode. |
| Antirust treatment | Wipe off the "rust inhibitor" on the shaft extension before installation. |
| Notes for Encoders |
Avoid impact on the shaft extension during installation to prevent internal encoder damage.
|
| Pulley Installation |
Use screw holes at the shaft end. Use a pulley remover when removing to prevent impact on bearings.
|
| Countermeasures |
For environments with oil/water, ensure correct protection ratings and use oil seals if necessary.
|
