New design brushless motor controller 48V 72V 96V 120V 1500A-2000A motorcycle motor controller bike controller
New design brushless motor controller 48V 72V 96V 120V 1500A-2000A motorcycle motor controller bike controller
New design brushless motor controller 48V 72V 96V 120V 1500A-2000A motorcycle motor controller bike controller
New design brushless motor controller 48V 72V 96V 120V 1500A-2000A motorcycle motor controller bike controller
New design brushless motor controller 48V 72V 96V 120V 1500A-2000A motorcycle motor controller bike controller
1 / 5
New design brushless motor controller 48V 72V 96V 120V 1500A-2000A motorcycle motor controller bike controller
New design brushless motor controller 48V 72V 96V 120V 1500A-2000A motorcycle motor controller bike controller
New design brushless motor controller 48V 72V 96V 120V 1500A-2000A motorcycle motor controller bike controller
New design brushless motor controller 48V 72V 96V 120V 1500A-2000A motorcycle motor controller bike controller
New design brushless motor controller 48V 72V 96V 120V 1500A-2000A motorcycle motor controller bike controller

New design brushless motor controller 48V 72V 96V 120V 1500A-2000A motorcycle motor controller bike controller

Customization: Available
Condition: New
Customized: Customized
Send Inquiry

Product Description

Basic Information
Model NO.
EZ-E722000/E722500/E961500/E962000/E1201500
Rated Voltage
48V-240V
Max. Voltage
75V-290V
Max. Phase Current
400A-2500A
Rated Phase Current
160A-1000A
Production Capacity
500PCS/Month
Packaging & Delivery
Package Size
40.00cm * 26.00cm * 15.00cm
Gross Weight
4.200kg
Transport Package
Carton
Product Description
Important Note: The motor power recommendations are based on our brand's motors. If you are using motors from other brands, please discuss specifications in detail with our sales representative.
Motor Controller Banner

Wide Coverage of Power Range: 48Vdc-240Vdc | 400-2500 Amps | 1KW-30KW

The EZkontrol BLDC motor (Field Oriented Control) controller series flagship "E" series is capable of delivering up to 30KWs of power at a maximum of 240V(dc) or 2000 Amps. Modularized product design and effective production offers the best value for your money!

Powerful Processing: Armed with 32-bit Cortex-M4 core processors, it delivers Real-Time torque, speed and power control with zero delay.
Self-Learning: Intuitive automatic self-learning calibration of motor parameters via mobile app.

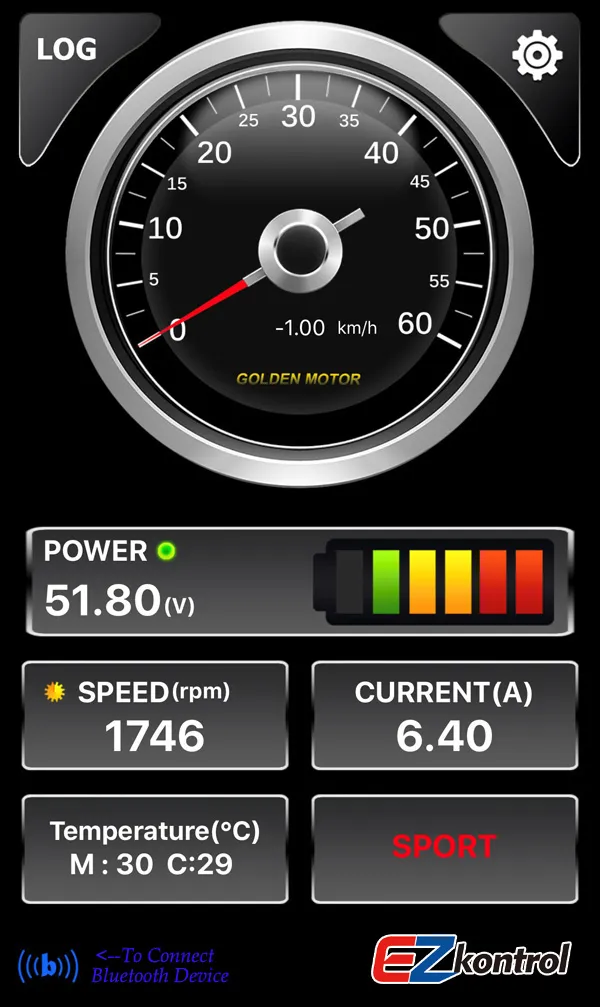

Mobile App Interface

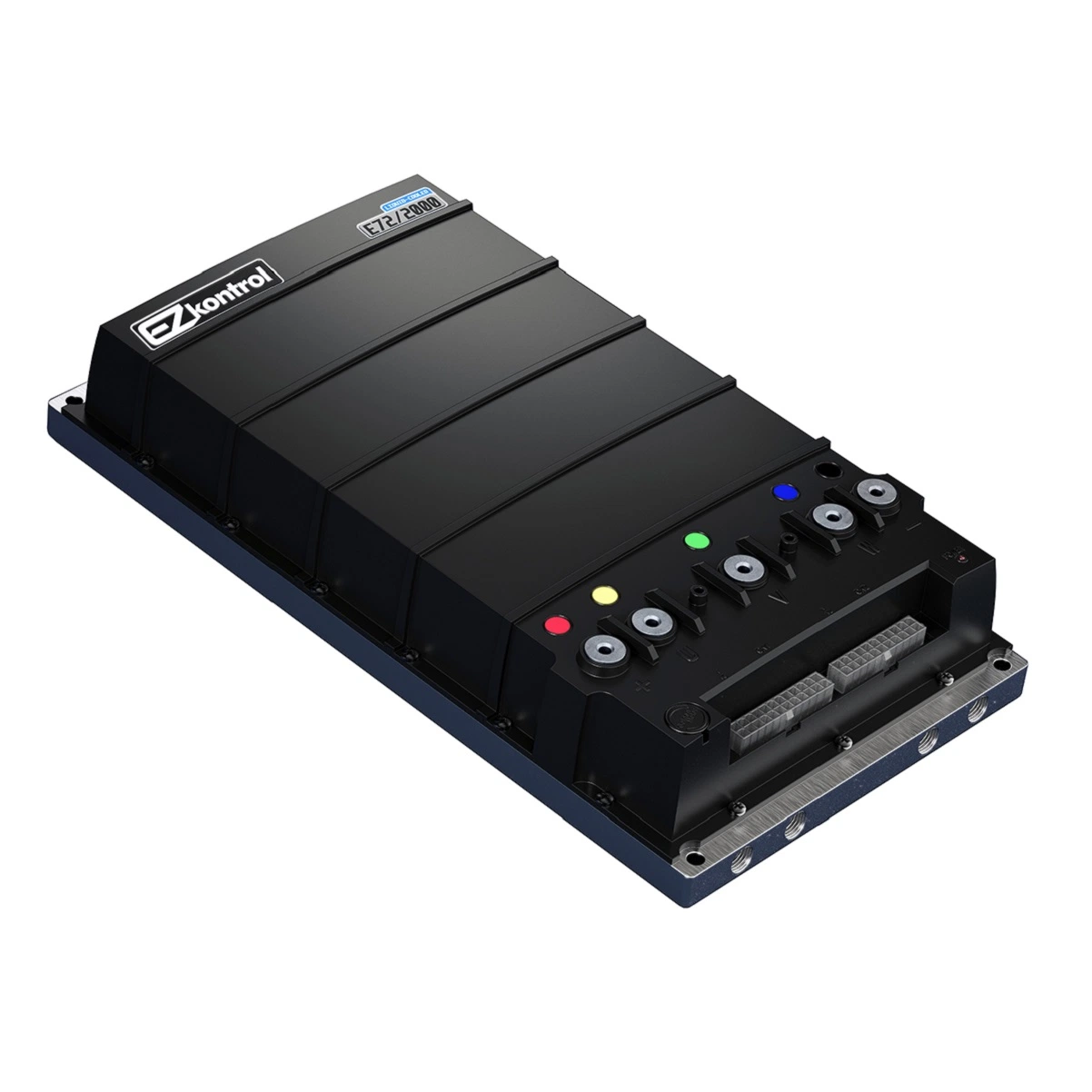

Product Photos

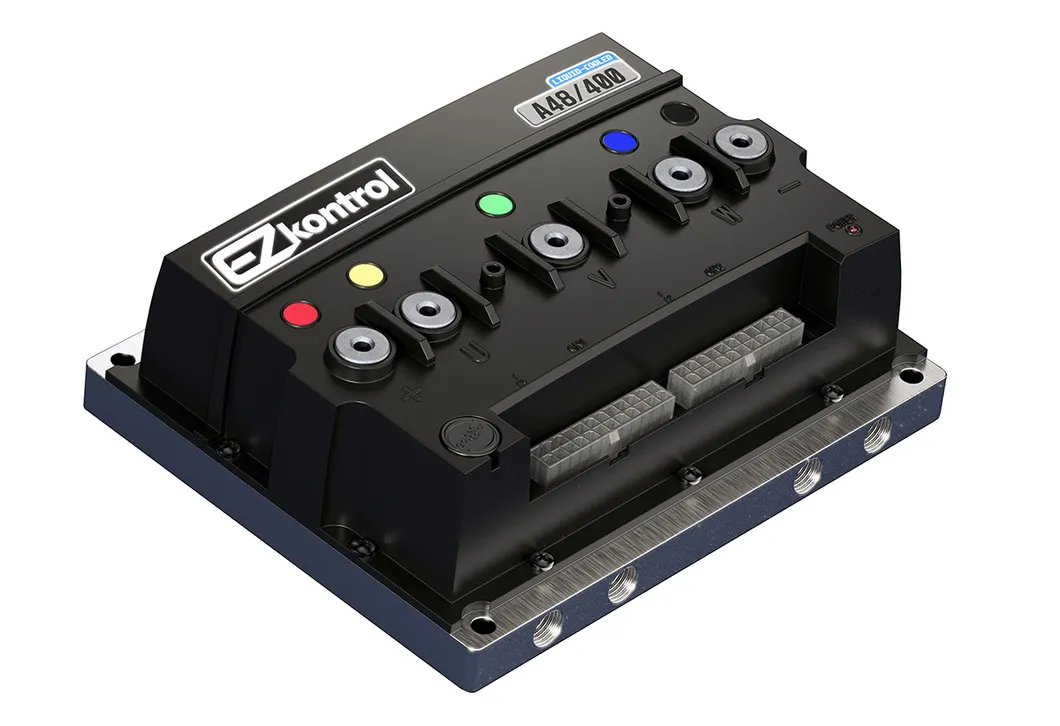

Controller Photo 1

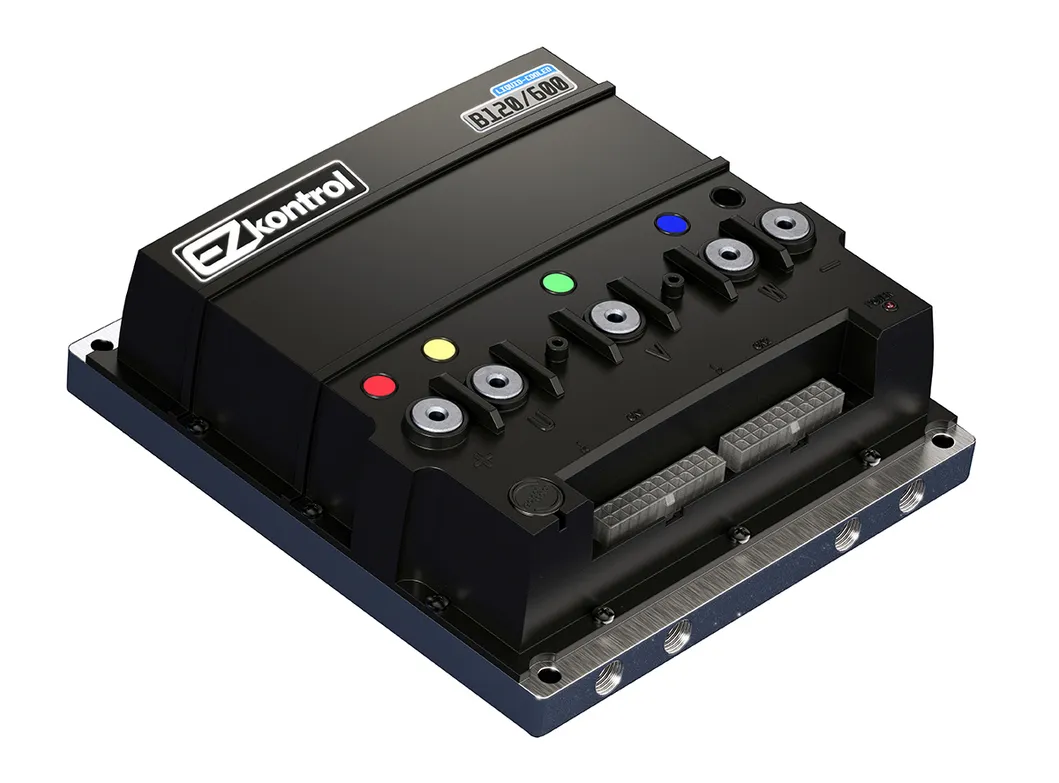

Controller Photo 2

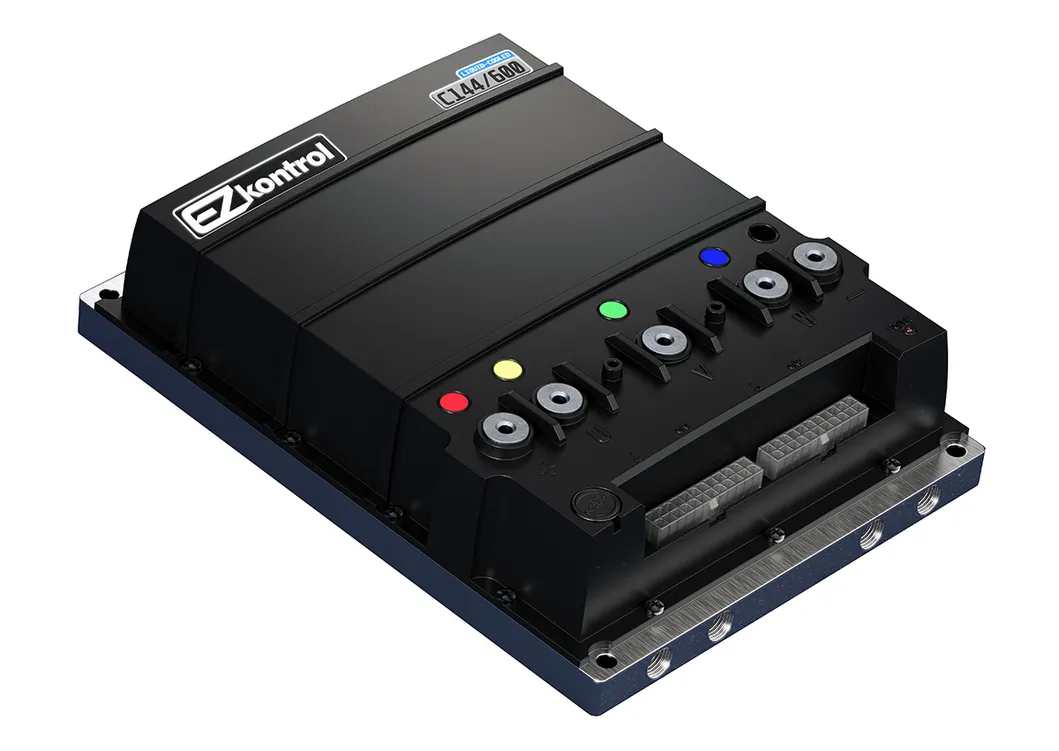

Controller Photo 3
Product Features

Built with ARM 32-bit Cortex-M4 and Field Oriented Control (FOC) technology for efficient real-time motor control.

1
Built-in Bluetooth: Wireless convenience to monitor and adjust performance from your smartphone.
2
CAN-BUS Enabled: Seamless integration with existing networks for reliable communication.
3
Self Motor Calibrating: Intelligent setup without complex manual adjustments.
4
Sensor Compatibility: Supports Hall, photoelectric encoder, magnetic encoder, etc.
5
Thermal Protection: Compatible with various temperature sensors to prevent overheating.
6
Advanced Control: Cruise speed and regenerative braking control.
7
Multi-level Settings: Five-level torque, speed, and power can be set separately.
8
Robust Hardware: Integrated DC contactor control and flame-retardant PC cover.
9
Liquid Cooling Ready: 4 extruded through holes for external cooling pump circulation.
10
High Protection: IP66 protection grade for stable quality.
Detail 1
Detail 2
Technical Specifications
Item No. Rated Voltage (V) Max. Voltage (V) Max. Phase Current (A) Rated Phase Current (A) Max. Bus Current (A)
EZ-A4840048V75V400160200
EZ-B48100075V1000400500
EZ-E48250075V250010001250
EZ-A7240095V400160200
EZ-E72250072V95V250010001250
EZ-A9640096V120-130V400160200
EZ-E96200096V120-130V20008001000
EZ-E1201500120V145V1500600750
EZ-E192750192V240V750300375
EZ-E240500240V290V500200250

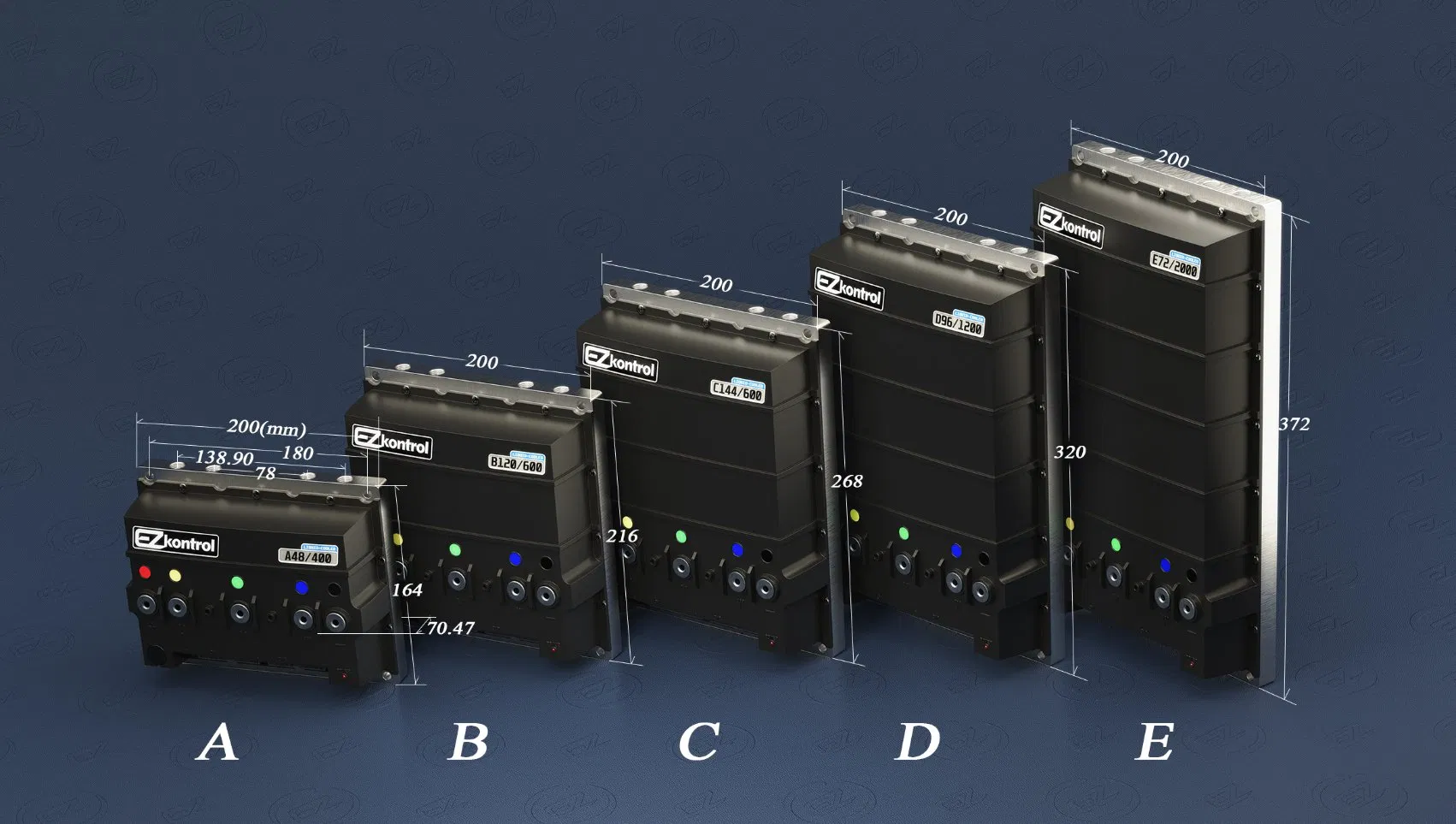

Dimensions & Wiring

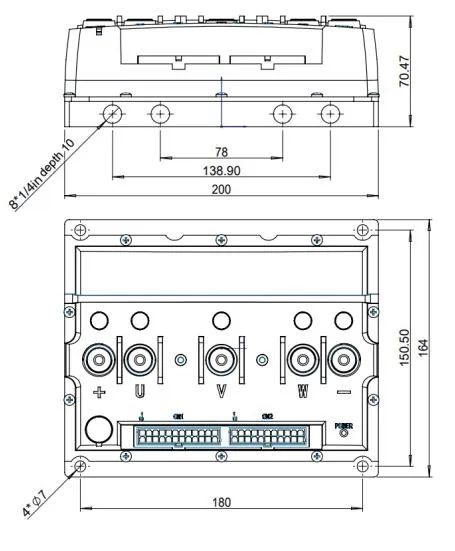

Dimensions A

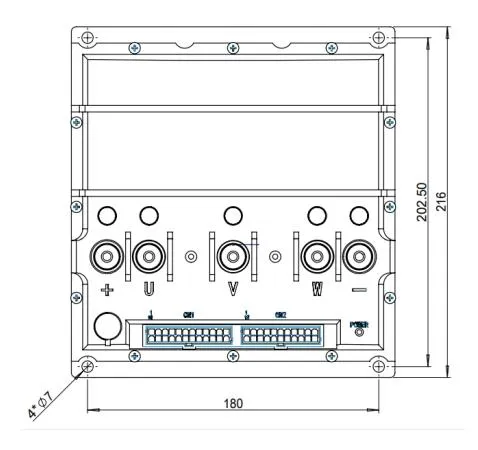

Dimensions B

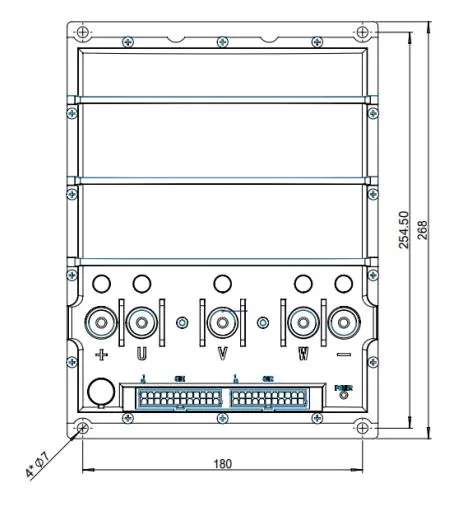

Dimensions C

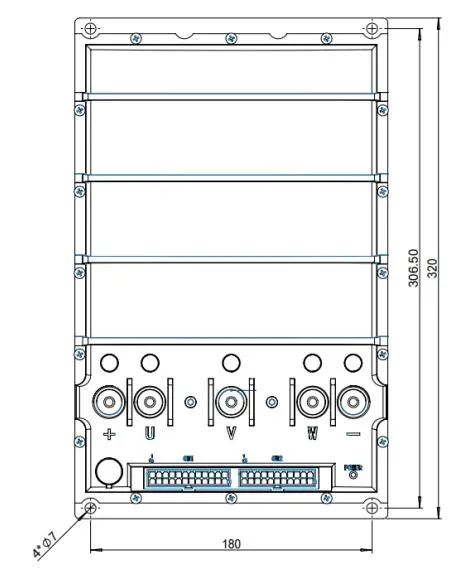

Dimensions D

Wiring Diagrams

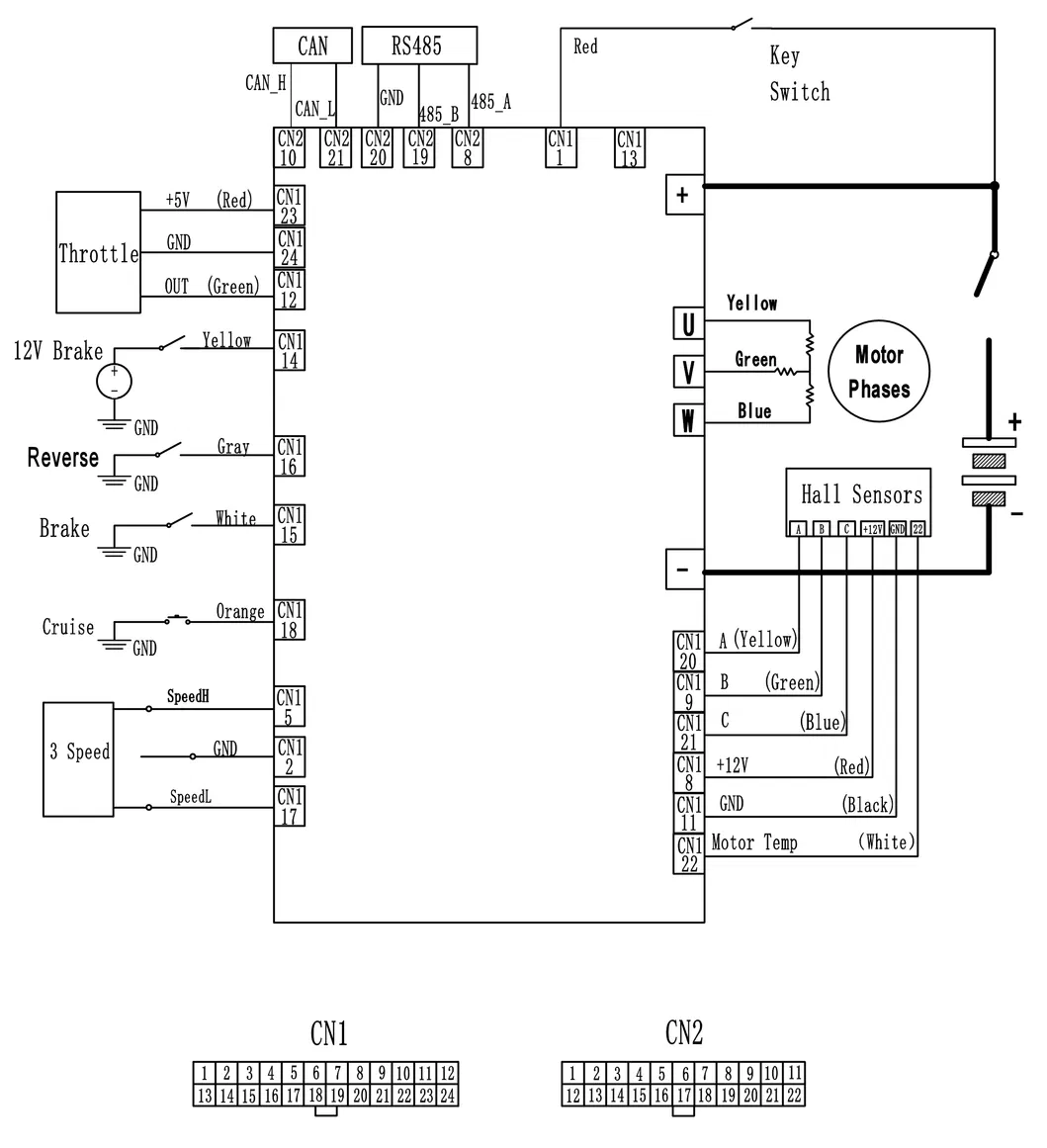

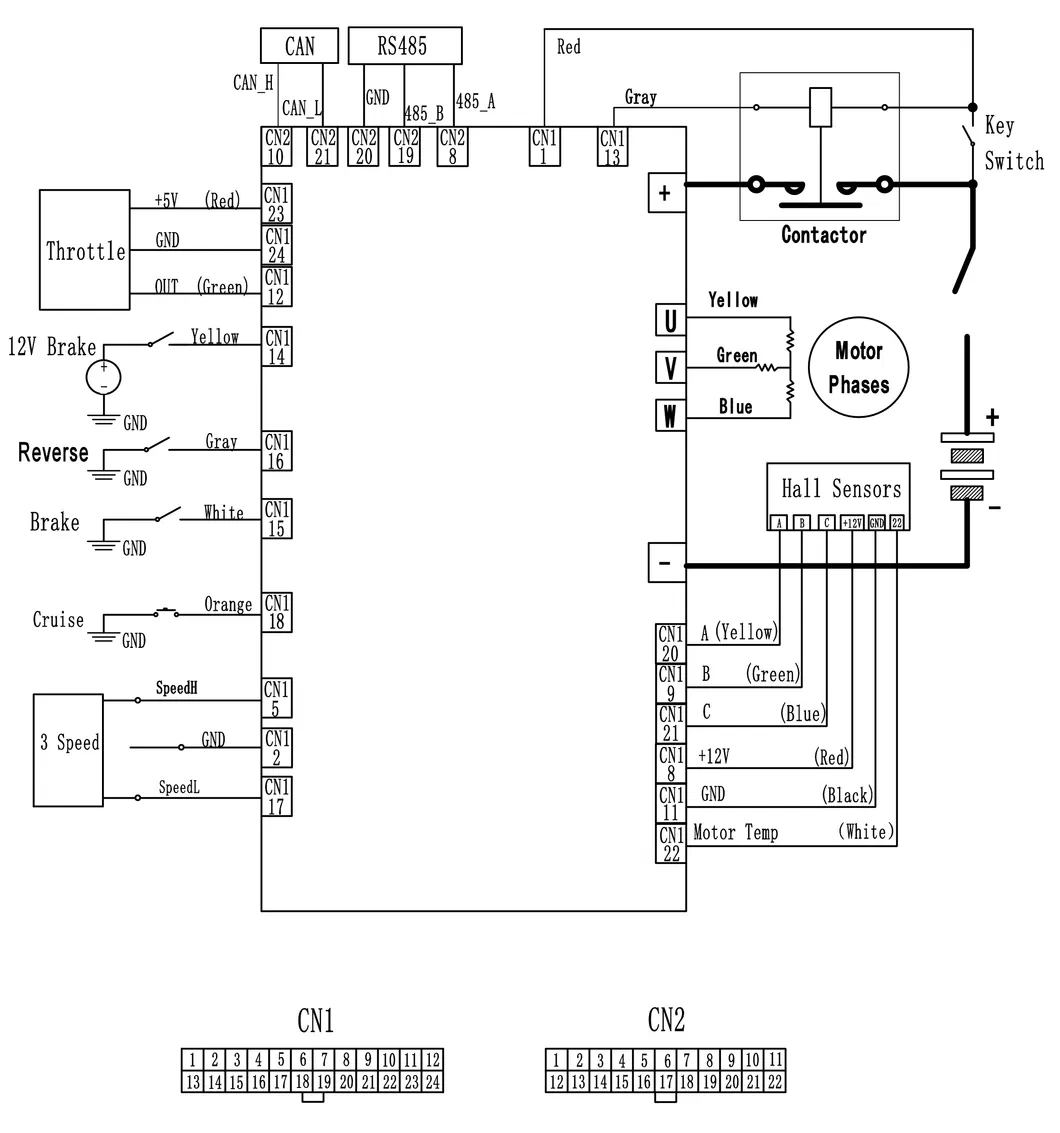

Wiring without Contactor Wiring with Contactor
Pinout 1
Pinout 2
Frequently Asked Questions
What is the voltage and power range of these controllers?
The EZkontrol series covers a wide range from 48Vdc to 240Vdc, with power outputs ranging from 1KW up to 30KW.
How do I calibrate the controller with my motor?
The controller features an intelligent automatic self-learning calibration system. You can easily perform this setup via the built-in Bluetooth and our dedicated mobile App.
Is the firmware upgradable?
Yes, the controllers fully support OTA (Over-The-Air) firmware upgrades through your smartphone, allowing you to switch between Sinewave and Square control modes.
What communication protocols are supported?
EZkontrol supports multiple communication interfaces including CAN-BUS, RS485, and UART for seamless system integration.
How is the controller cooled?
The units are Liquid Cooling Ready, featuring an aluminum base with four extruded through-holes that support external cooling pumps for high-performance thermal management.
What is the environmental protection rating?
The controllers carry an IP66 protection grade, ensuring durability and stable performance in demanding mechanical environments.
