Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System
We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging system. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS, we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.

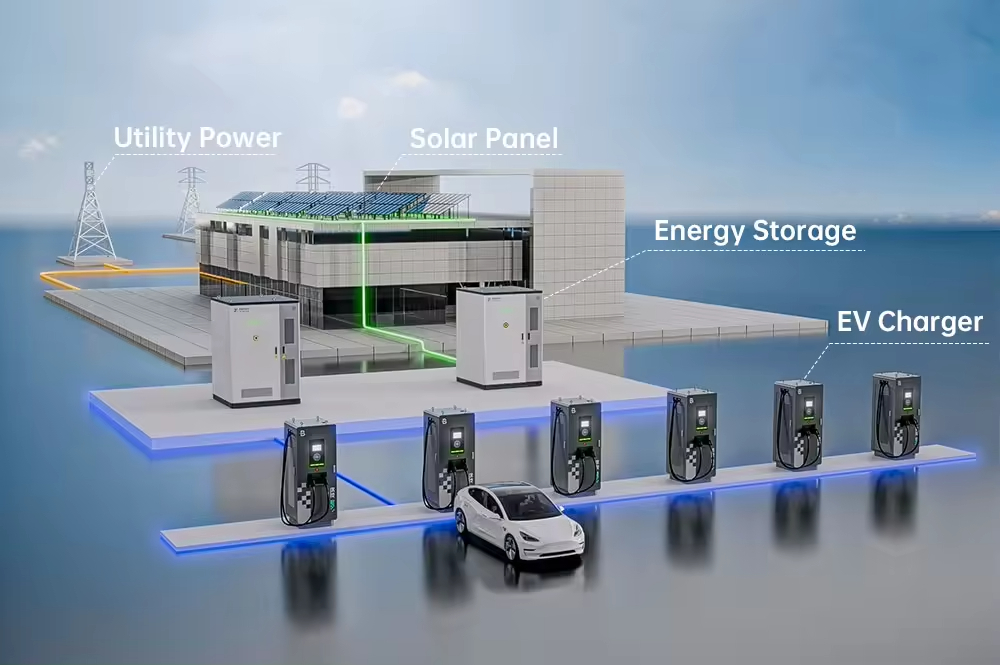

What is EVB + ESS?

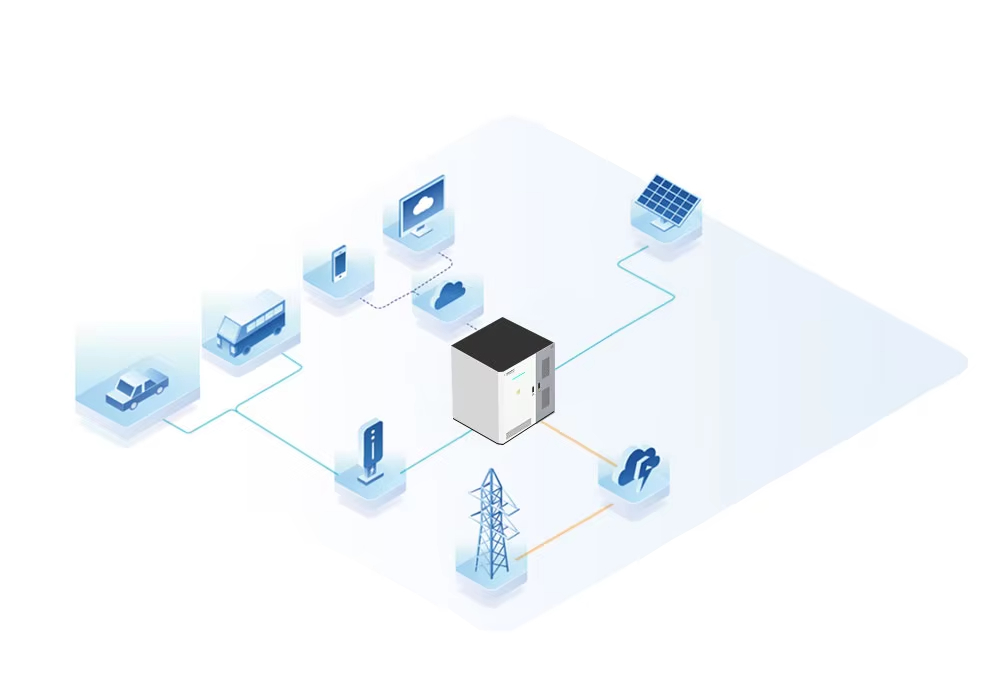

EVB+ESS, akin to a microgrid, integrates distributed power sources like PV ESS systems, electrical loads, and monitoring systems. This configuration effectively addresses land and grid constraints faced by EV charging stations. By optimizing the energy flow, it balances local energy production with consumption needs efficiently.
Performance Boost
25% faster with preconditioning
Versatile Application
Stable power for various scenarios

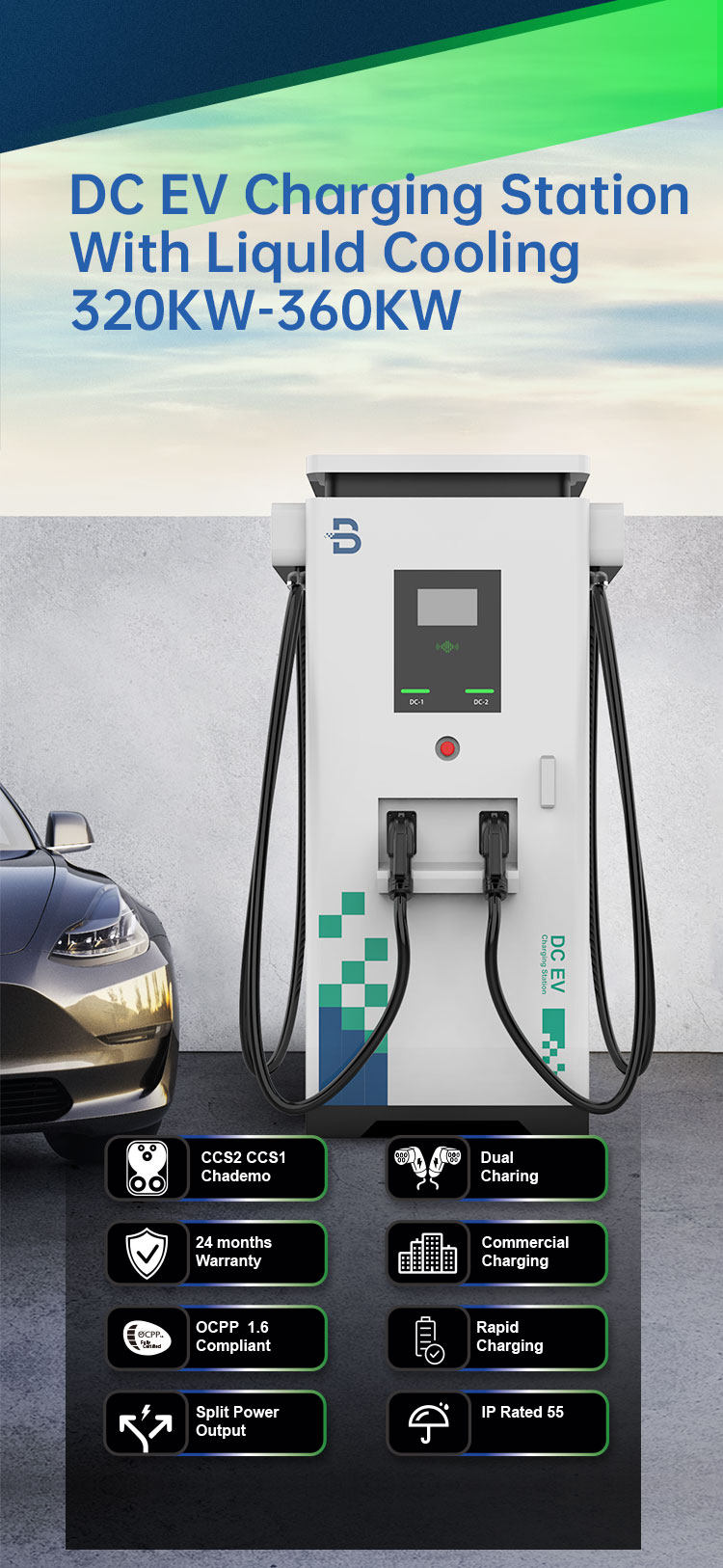

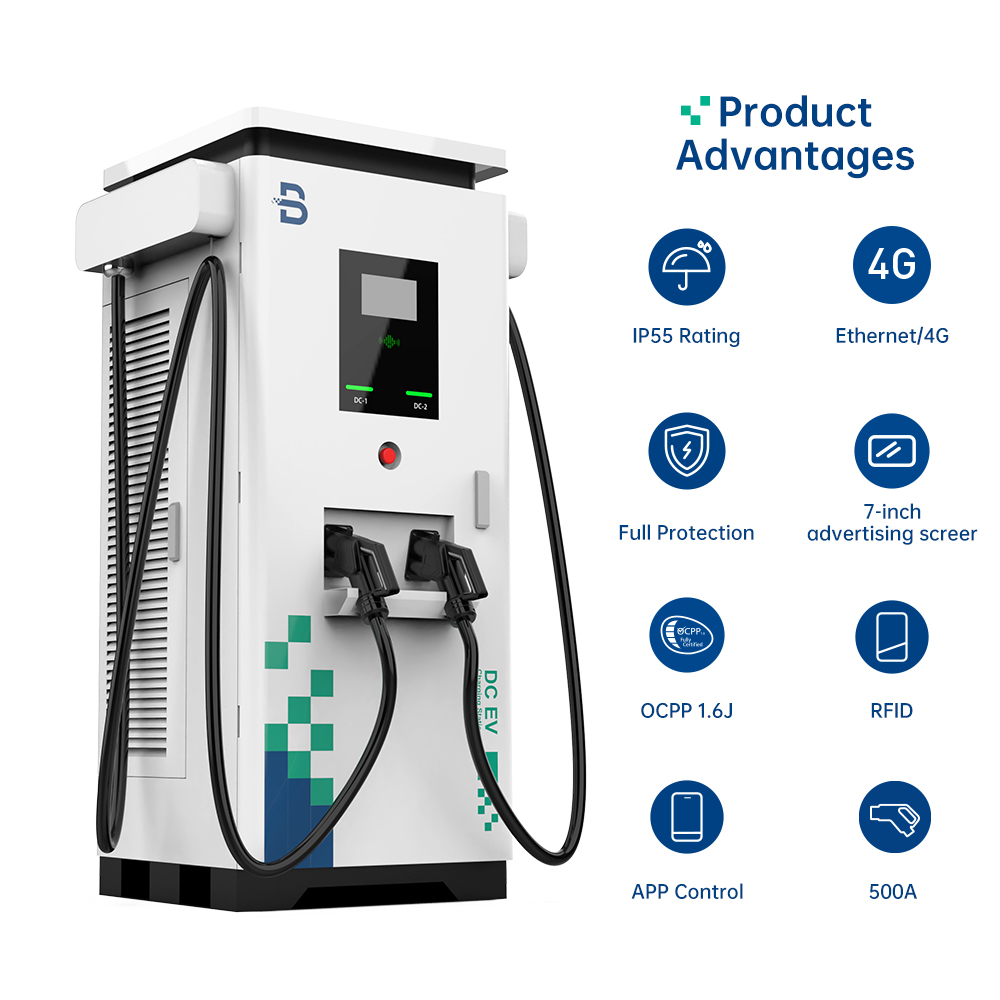

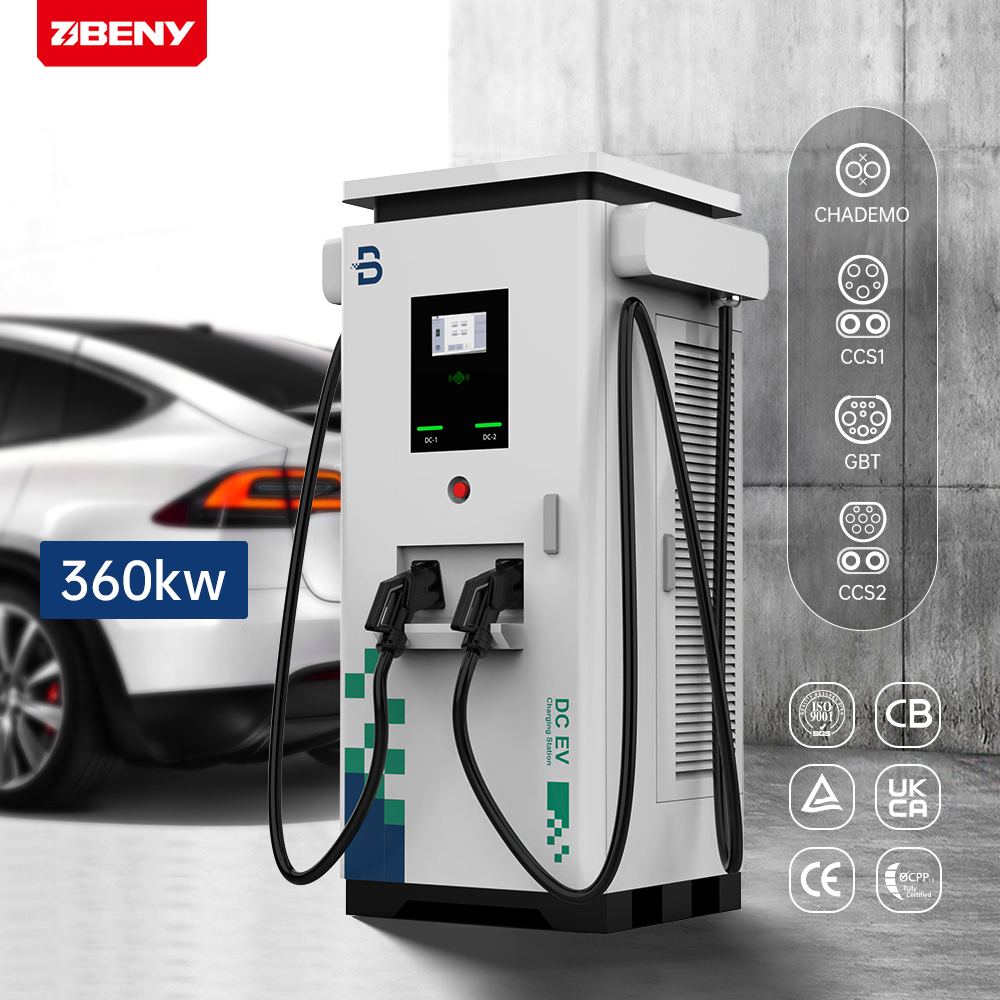

Highlights 320KW / 360KW Optional
| Model | BLDC320-D | BLDC360-D |
| Structure Description | ||
| Shell Material | Sheet Metal | |

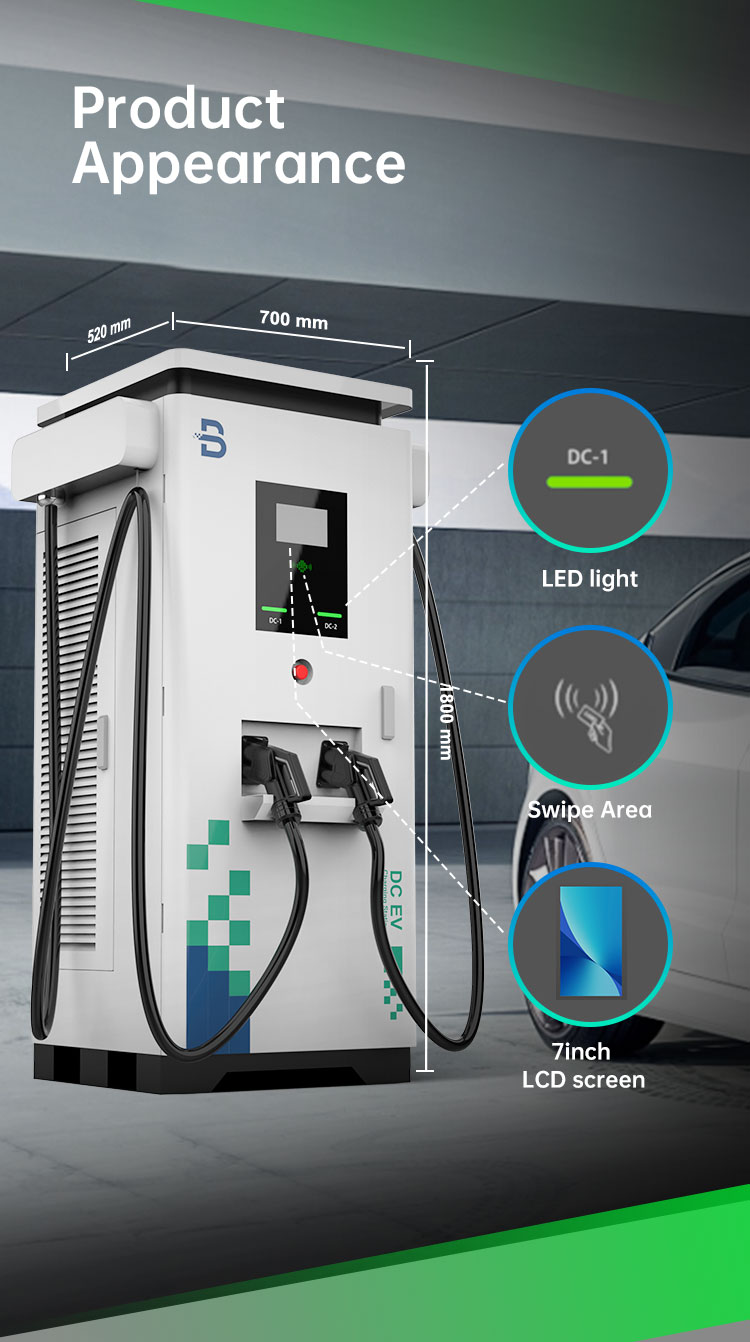

| Dimension | 800*800*1800 (L*W*T) | |
| Weight | ≤480kG | ≤500kG |

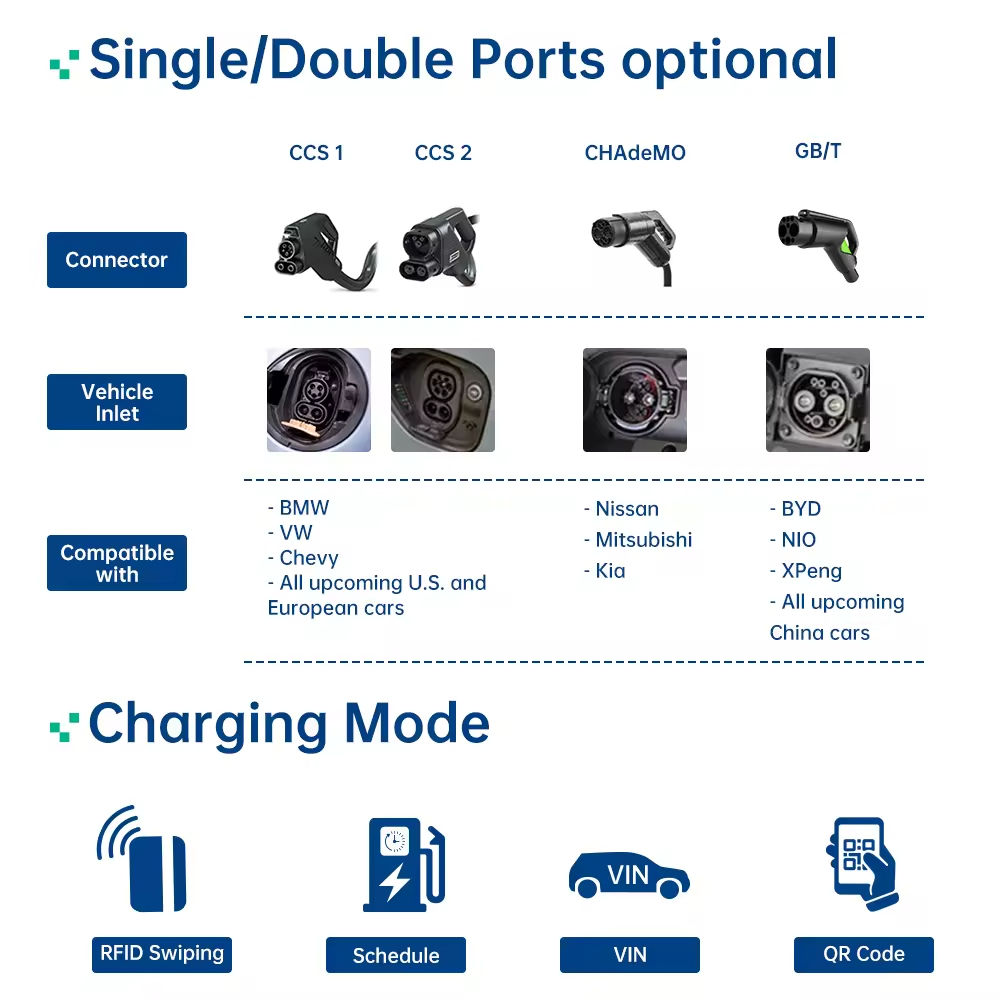

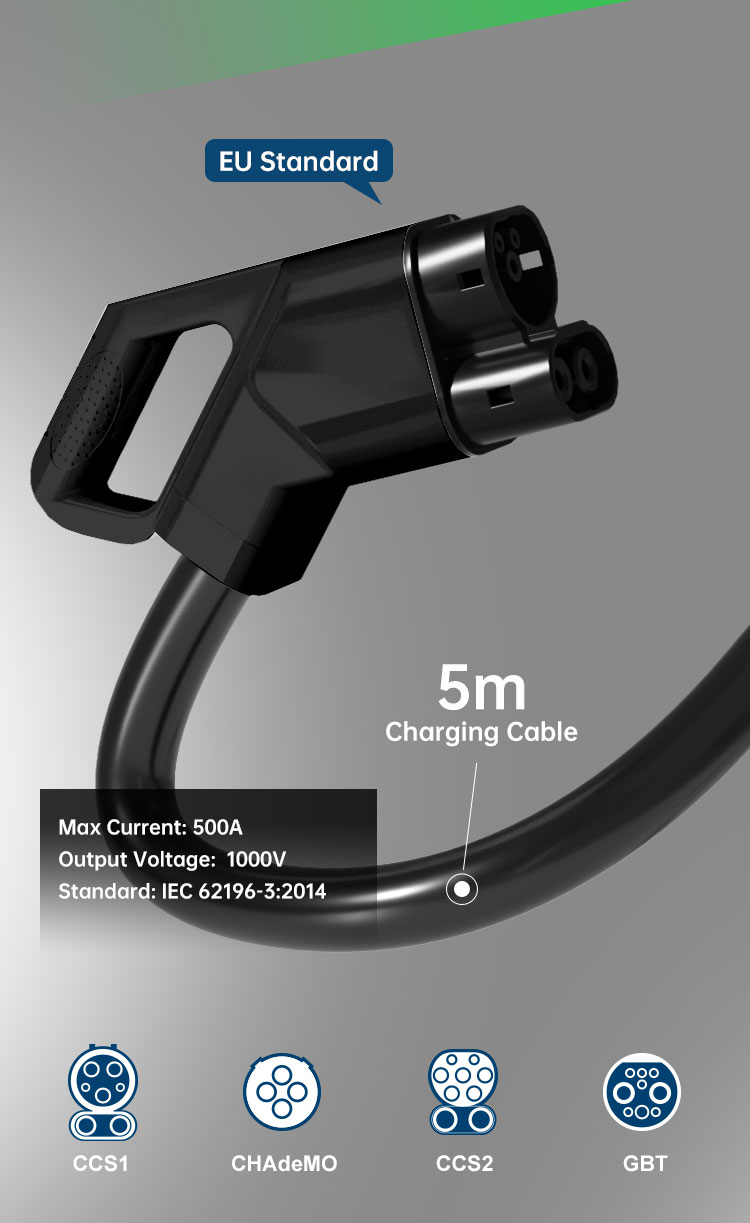

| Charging Outlets | Double (CCS2 + CCS2) | |

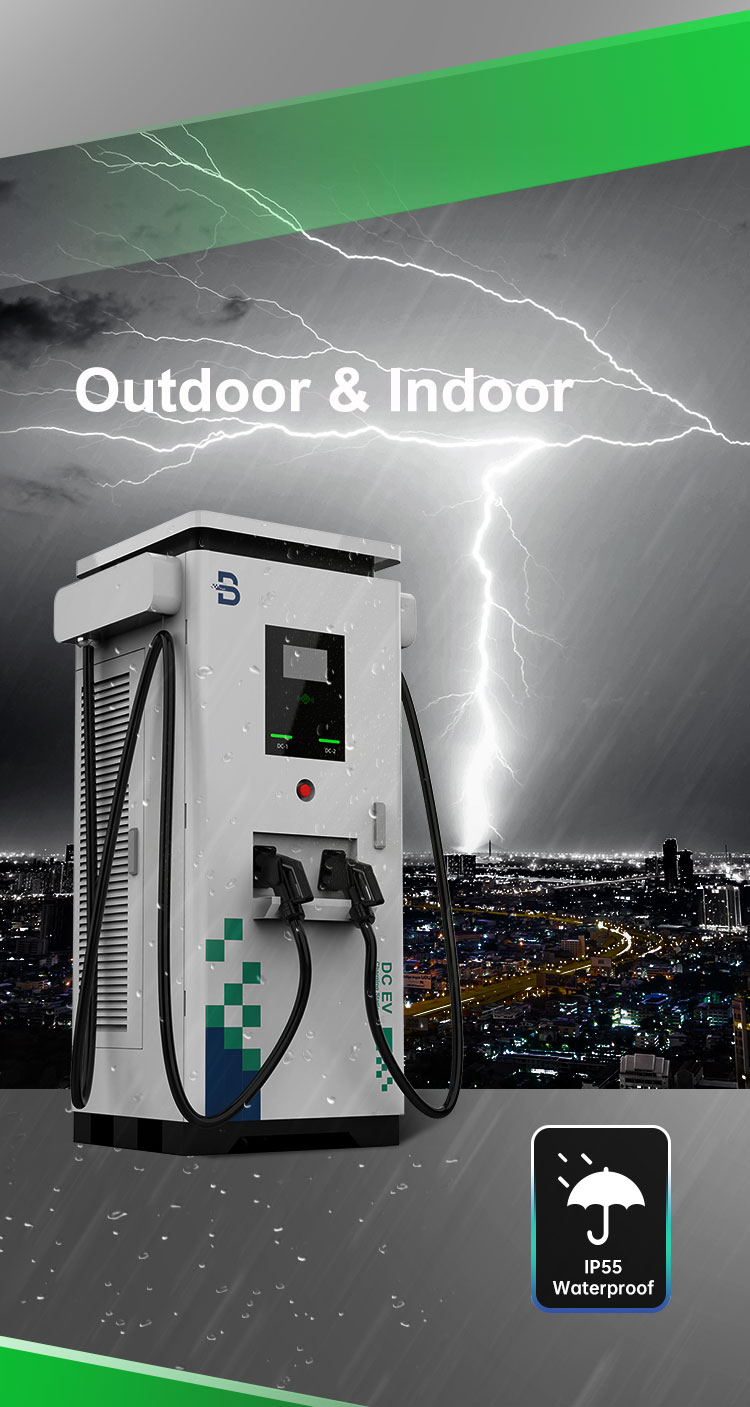

| Protection Level | IP55 | |
| Electrical Specification | ||
| AC Input Voltage | AC400V±10%, 3P+N+PE | |
| Rated Power | 320kW | 360kW |
| Output Voltage | CCS2: 150VDC - 1000VDC | |
| Output Current | CCS2: 0-500A (Liquid Cooling) | |
| Efficiency | ≥95% | |

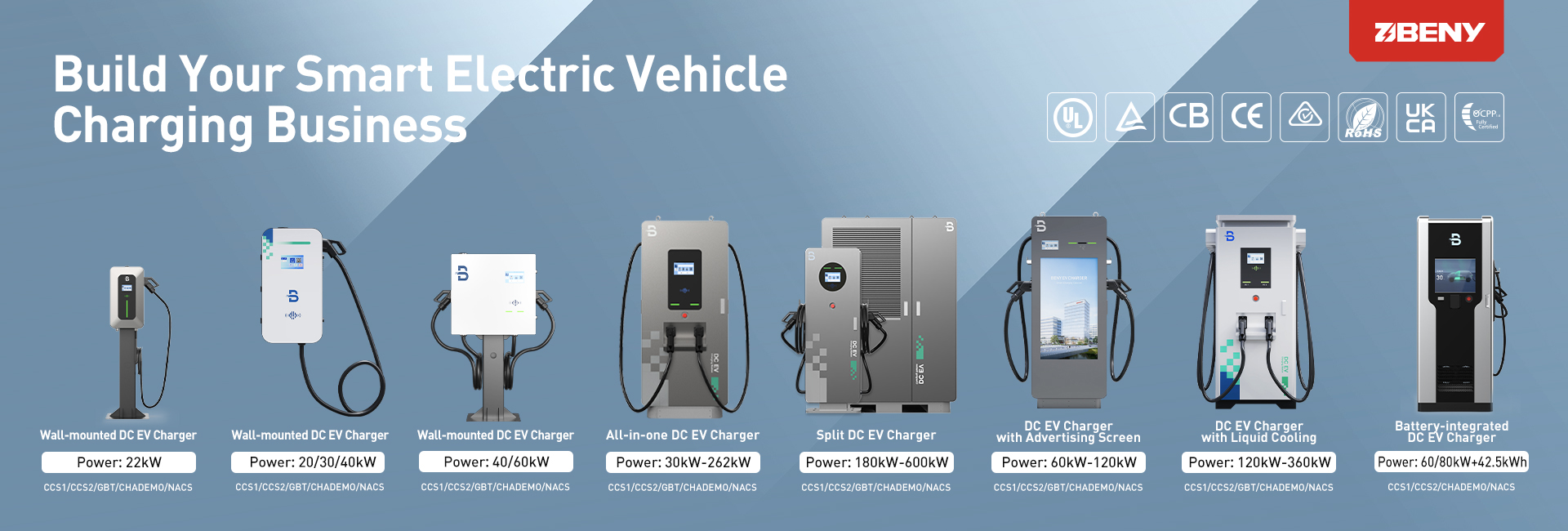

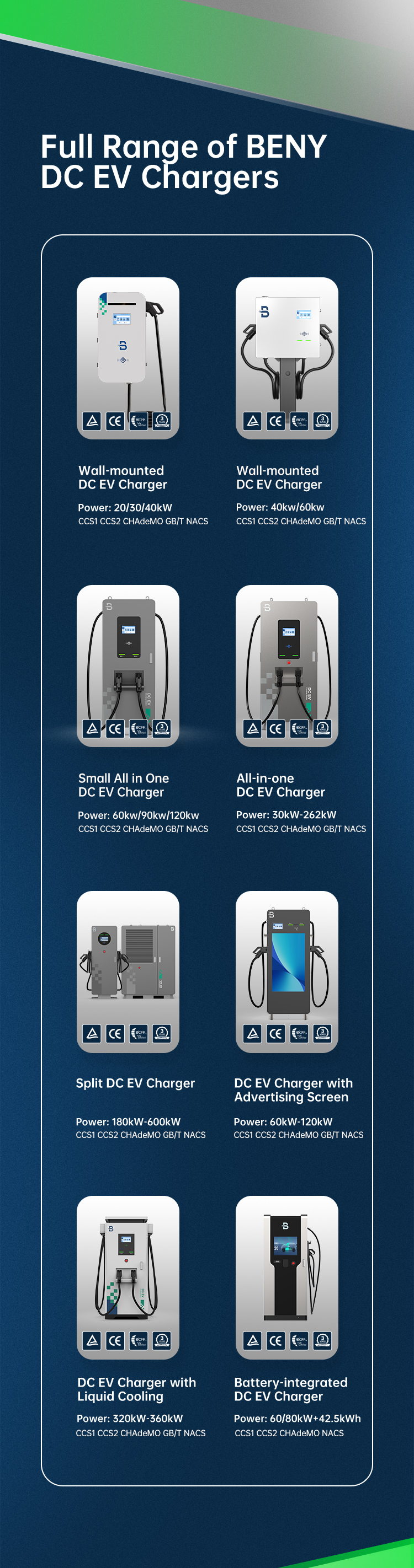

Our EV charger supplies power to any electrical vehicle. From wall-mounted to floor-mounted designs, our IP65 dust and waterproof housings are suitable for any environment. AC output ranges from 16A to 32A, while DC fast charging power reaches up to 600kW.
We have forged robust business relationships globally, offering comprehensive, cost-effective, and instant charging solutions. Our expertise spans diverse environments, contributing to global EV charging station development.
Standard Warranty: 2 Years for DC EV Chargers
Available Training Modules:
• Electrical Schematics
• Wiring Explanations

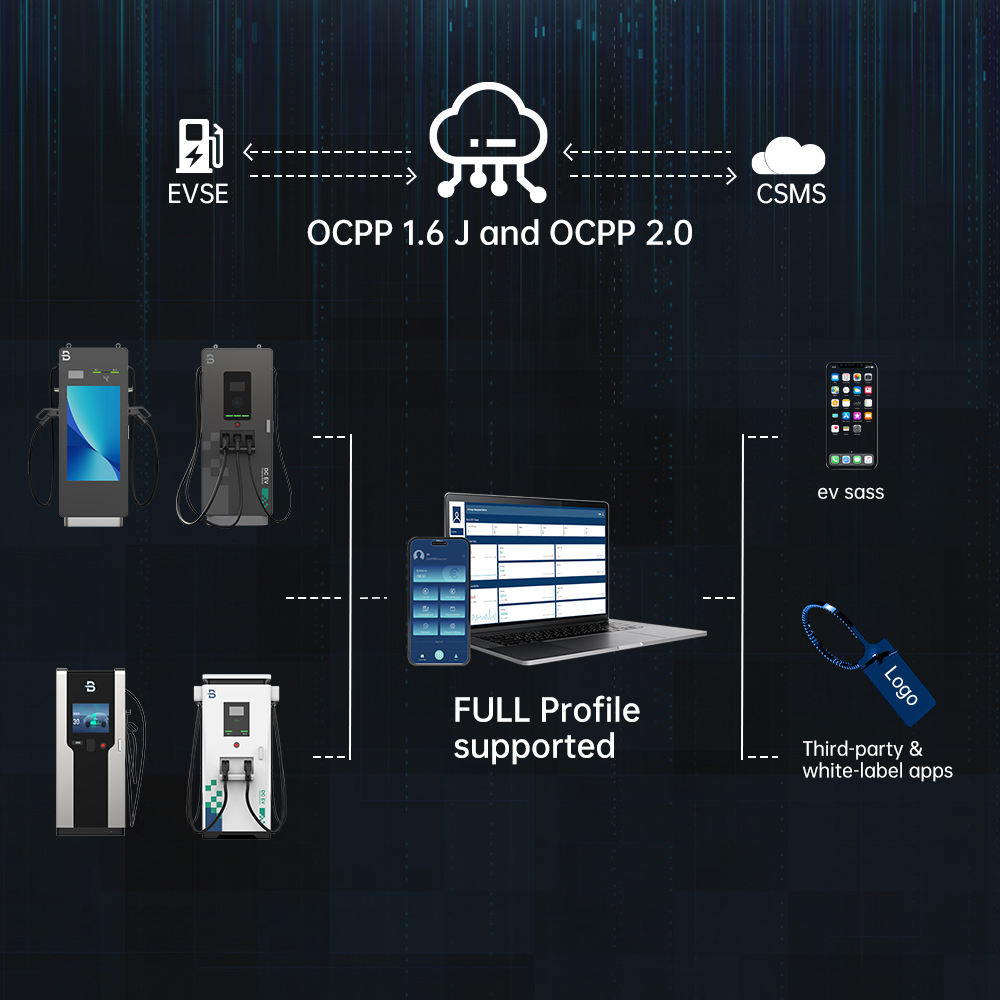

• OCPP Platform Demo
• BMS Introduction
• Load Management
• Earthing Systems
• Maintenance Guides
• Power Quality
