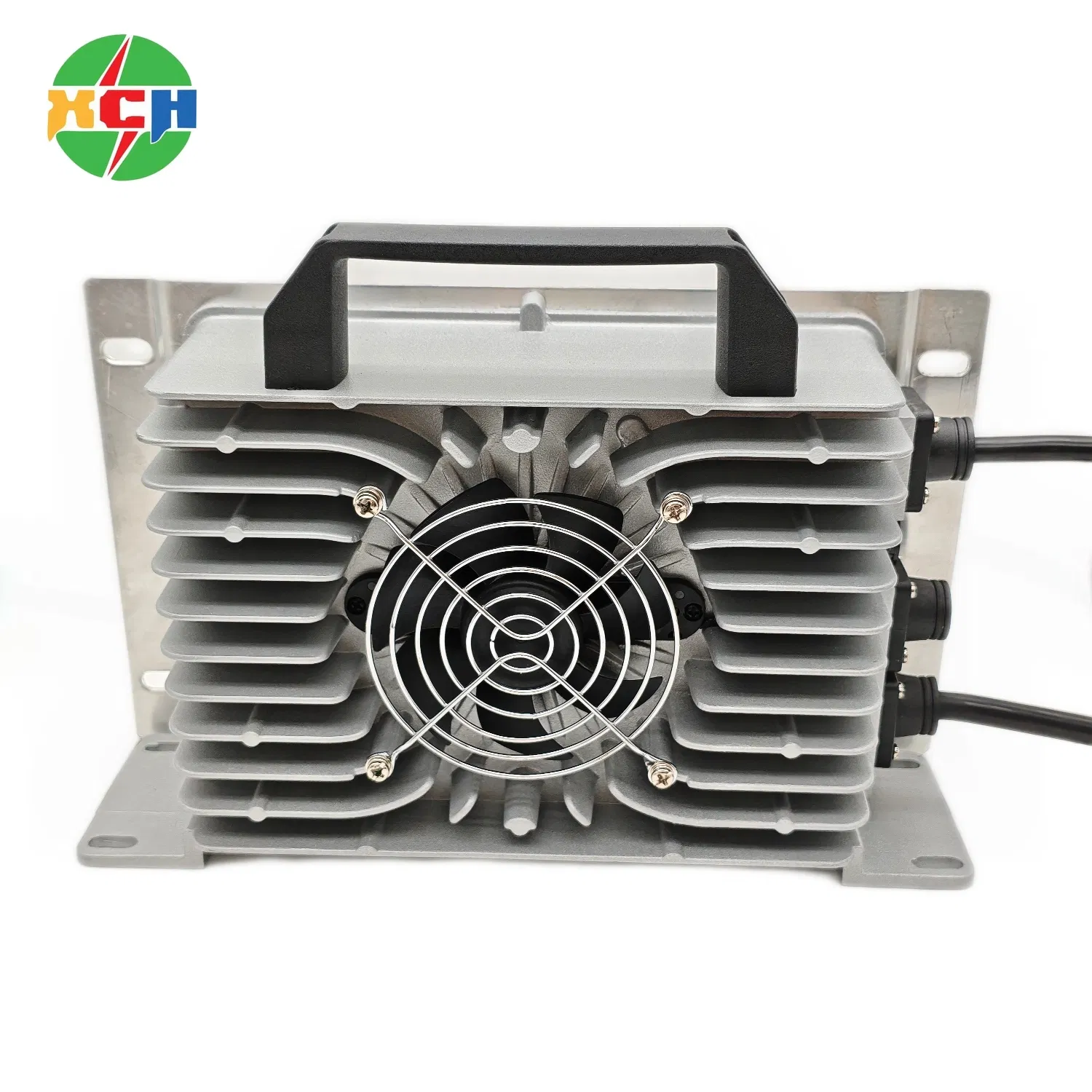

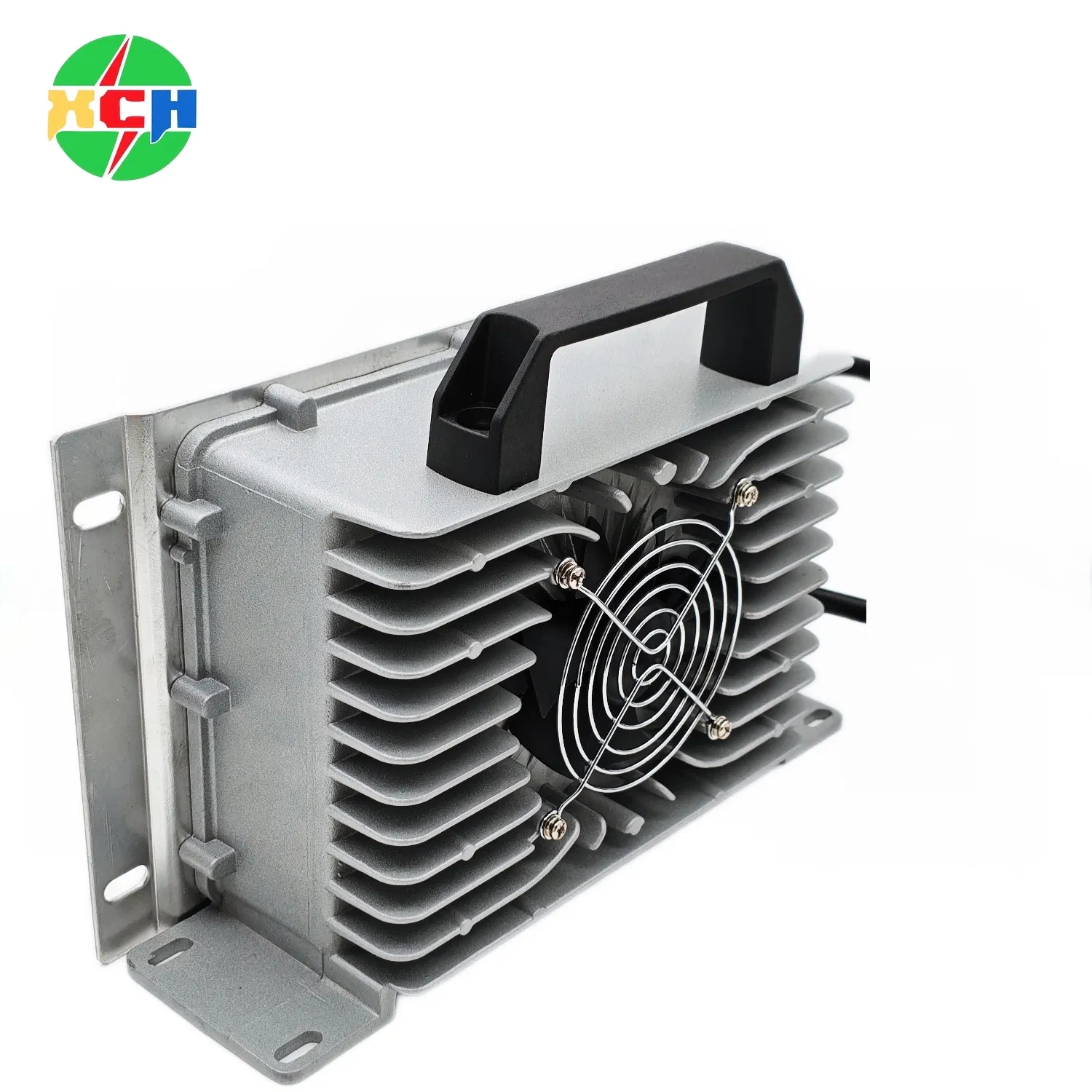

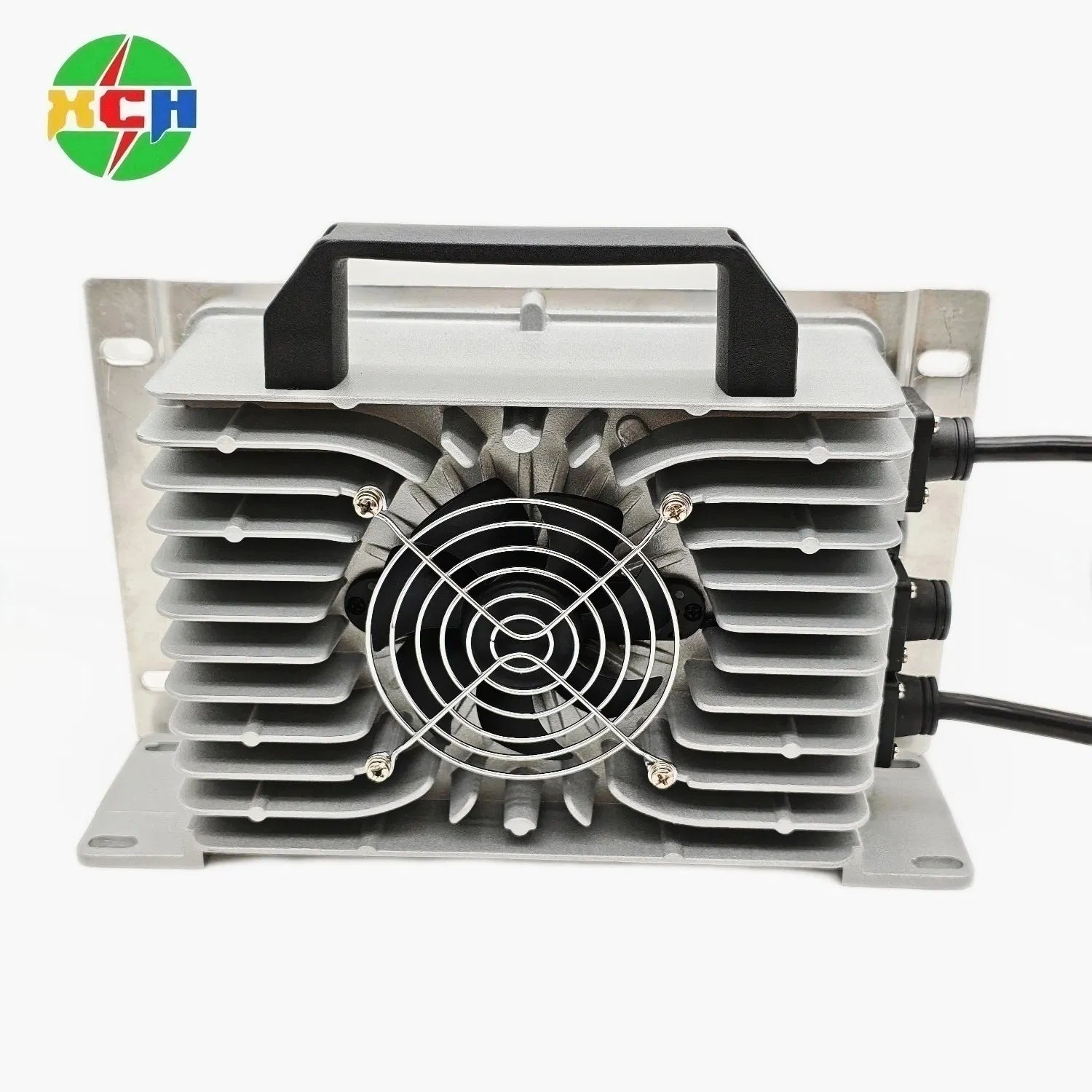

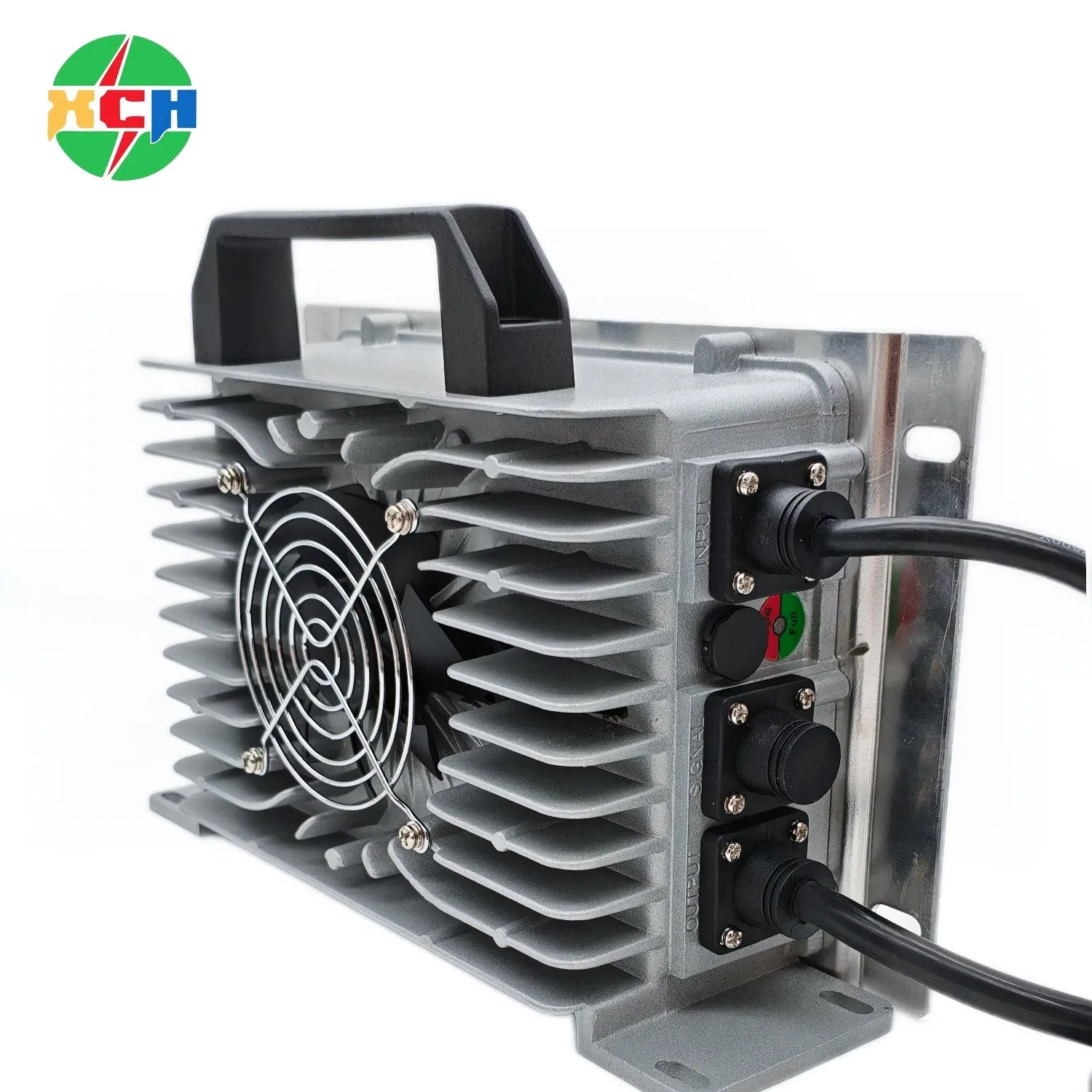

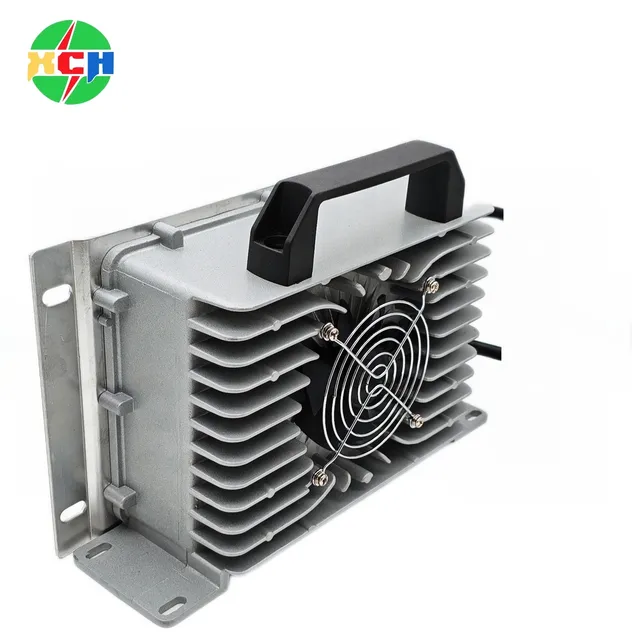

This onboard charger (OBC) is a vital component within electric vehicles, responsible for converting alternating current (AC) from external sources like home charging stations into the direct current (DC) required by the high-voltage traction battery. It acts as the critical interface during AC charging, dictating the speed and efficiency of the process. Its integrated design ensures safe, reliable power conversion, enabling convenient charging from standard AC infrastructure.
Charge faster and more efficiently with advanced graphene technology, reducing heat and energy loss for superior performance.
Extend your charger's lifespan with enhanced durability, designed to withstand rigorous daily use without compromising reliability.
Enjoy seamless compatibility with both lead-acid and lithium-powered electric vehicles, making it a versatile choice for various EV users.

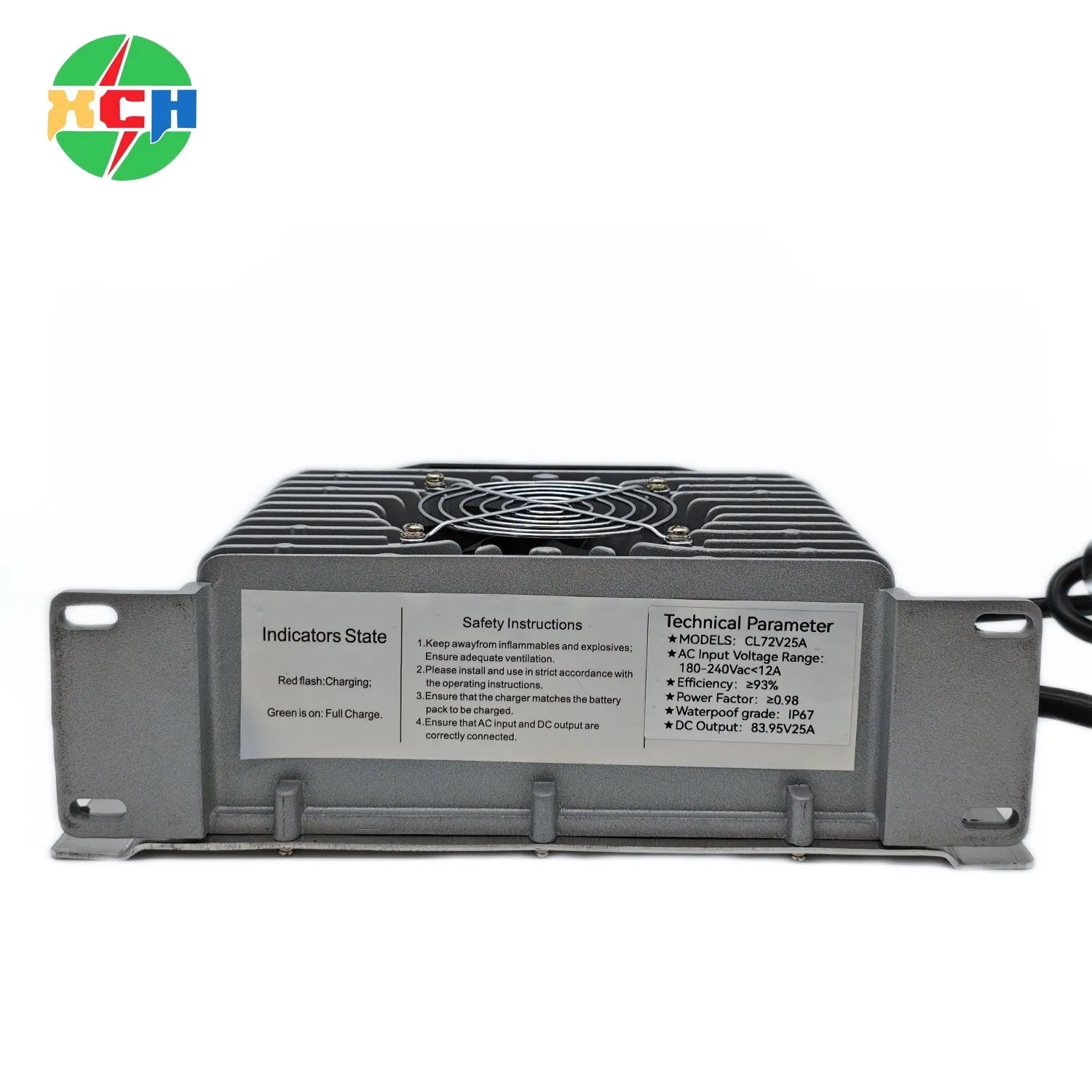

| ON-BOARD CHARGER SPECIFICATION | |
|---|---|
| Charger Model | 72V25A |
| Material | ABS+PC |
| Input Voltage | 110V, 220V, 110V-220V AC, 50-60HZ |
| Rated Output Voltage | 83.95V±0.5V DC |
| Rated Charging Current | 24.8-25.0V |
| Weight | 2.5Kg |
| Application | Ebike, Emotorcycle, Escooter, Erickshaw |
| Short Circuit Protection | Yes |
| Reverse Connect Protection | Yes |
| Temperature Protection | Yes |
| Zero Voltage Output | Yes |
| Temperature Compensation | Yes |
| Working Efficiency | >87% |

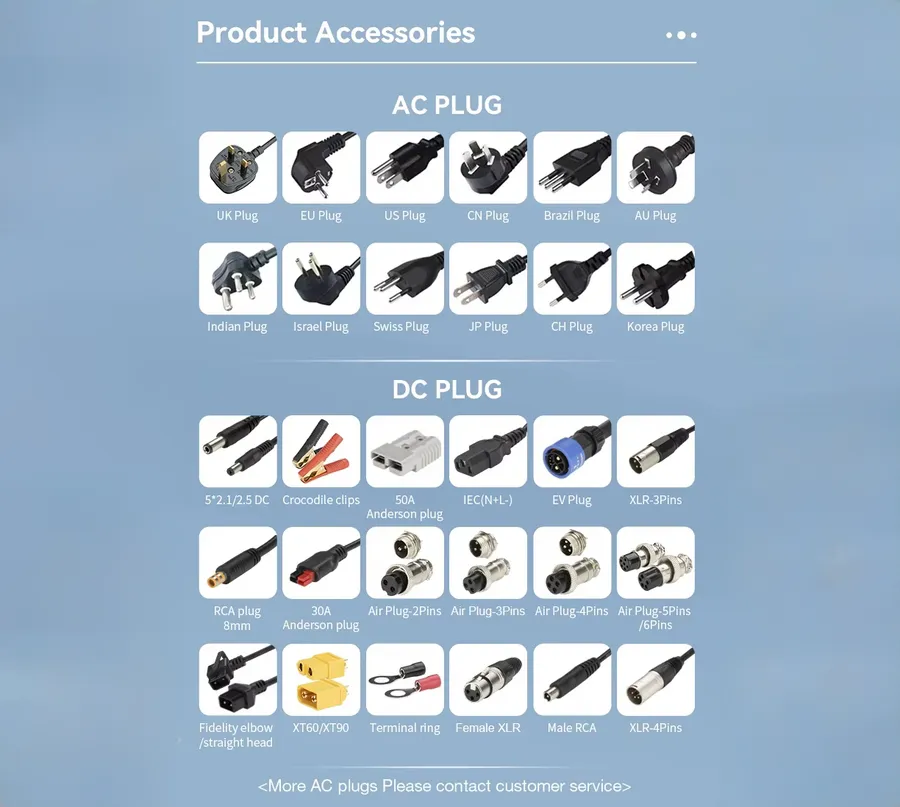

| Input/Output Wire | Customizable |
| No-Load Power | ≤3W |
| Output Voltage Ripple | ≤500MV P-P |
| Dielectric Strength | 3.75KV, Leakage Current < 10MA, A Minute |
| Working Temperature | -10℃ - 50℃ |
| Working Humidity | 20% - 85% |
